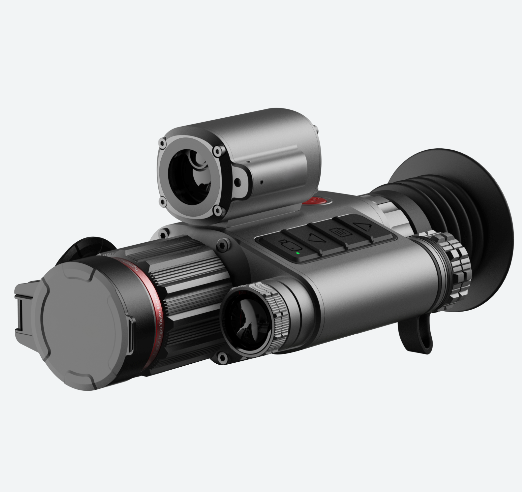

5–20X Night Vision Rifle Scope with Laser Rangefinder and Wi-Fi Support SYTH70R
Designed for professional hunters, tactical law enforcement, and security professionals, this night vision rifle scope delivers exceptional 1080P clarity, extended IR visibility, and precision laser-assisted targeting. Perfect for use in low-light or complete darkness across open fields, forest terrain, or tactical deployments.
OVERVIEW
Key Advantages and Features
- 5–20X Zoom with AMOLED 1024×768 Display Delivers high-resolution night vision targeting
- 1920×1080 CMOS Sensor Produces sharp imaging even in low-light environments
- Infrared Illumination (850/940nm) Long-range visibility up to 800 meters
- Built-in Laser Rangefinder (905nm) Precise distance measurement with ±1m accuracy
- 6000J Recoil Resistance Supports use with high-caliber firearms
- IP66 Waterproof and -20°C Operation Works in harsh outdoor environments
- Wi-Fi (2.4GHz) + 128GB TF Card Support Easy file transfer and extended recording
- 18650 Battery (3200mAh) + USB Power Up to 6 hours of continuous runtime
Application Scenarios
- Night hunting in forest environments — spot and track game up to 800 meters using powerful infrared illumination
- Tactical surveillance and perimeter monitoring — stream and share footage via integrated Wi-Fi
- Precision varmint control — ensure accurate shots with ±1m laser ranging and 5–20x zoom
- Outdoor patrol and security operations — perform reliably in all-weather conditions from -20°C to +50°C
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Reticle design
- Housing logo or branding
- IR wavelength: 850nm or 940nm
- Lens coating style or color
Parameters
| Product Code | SYTH70R |
| Sensor Type | CMOS |
| Sensor Resolution | 1920 × 1080 |
| Objective Lens Focus | 50 mm |
| Magnification | 5–20X |
| Focal Ratio (D/f’) | 5X |
| Eye Relief | 40 mm |
| Field of View | 4.8° × 3.6° |
| Diopter Adjustment | +5 / -5 D |
| Minimum Focusing Range | 3 m |
| IR Type / Wavelength | 850 / 940 nm |
| Display Type / Resolution | 0.39 inch / AMOLED / 1024 × 768 |
| Power Supply Voltage | 3–4.2 V |
| Battery | 18650 / 3200mAh |
| External Power Supply | 5V (USB) |
| Operating Time (22°C) | 6 hours |
| Max Recoil Resistance | 6000 J |
| Protection Rating | IP66 |
| Operating Temperature | -20°C to +50°C |
| Dimensions | 194 × 83 × 82 mm |
| Net Weight | 570 g |
| Video / Photo Resolution | 1440 × 1080 |
| Video / Photo Format | .mp4 / .jpg |
| Memory Type | TF Card (max. 128 GB) |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Standard | 802.11 b/g |
| Wi-Fi Reception Range | 15 m |
| Laser Wavelength | 905 nm |
| Max Measuring Range | 800 m |
| Measuring Accuracy | ±1 m |
Ready to Take Aim?
Whether you’re enhancing your night-time accuracy or building a complete tactical system, this night vision rifle scope is your trusted partner.
Contact us today to request a quote, customization, or testing sample.
