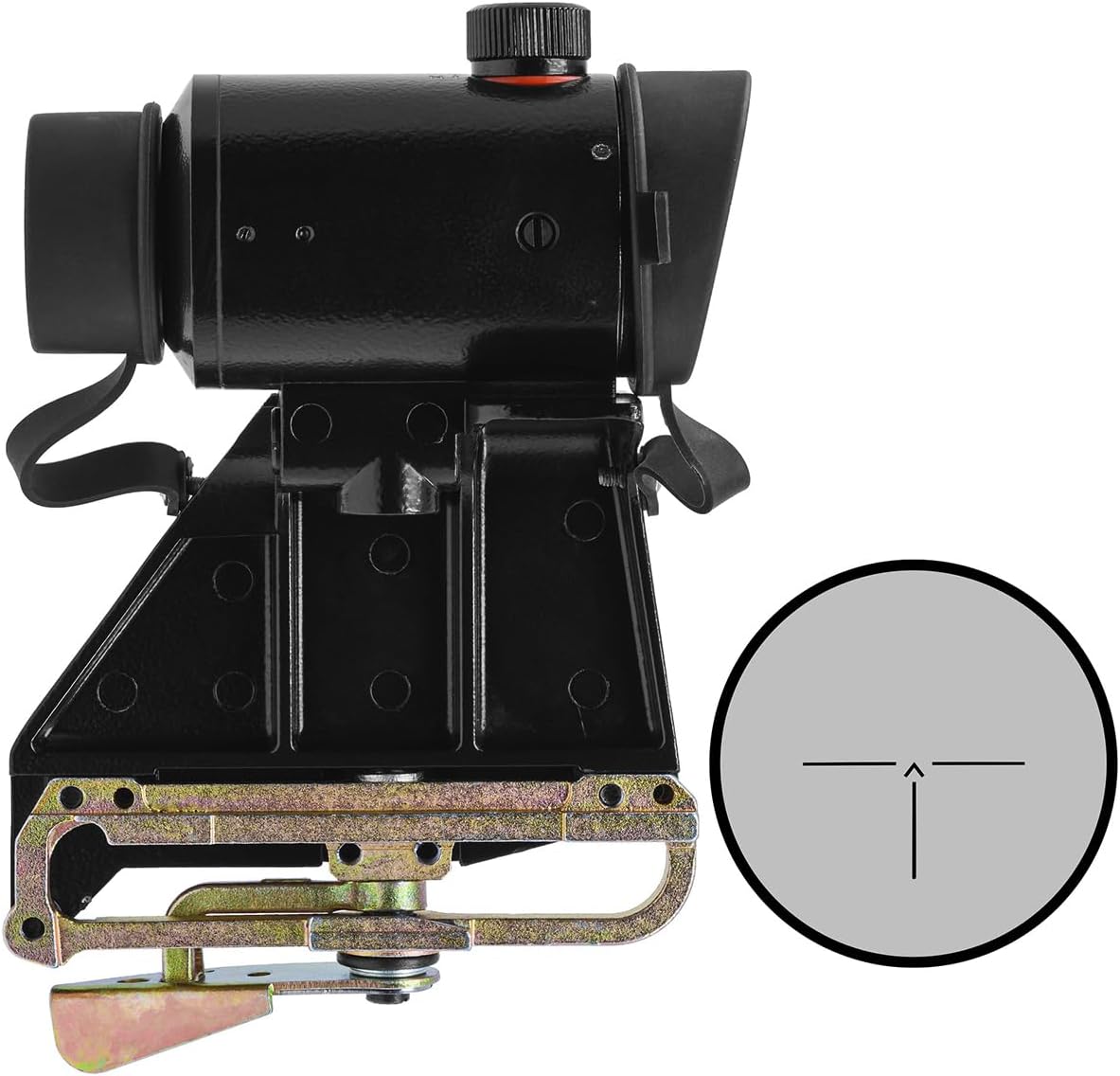

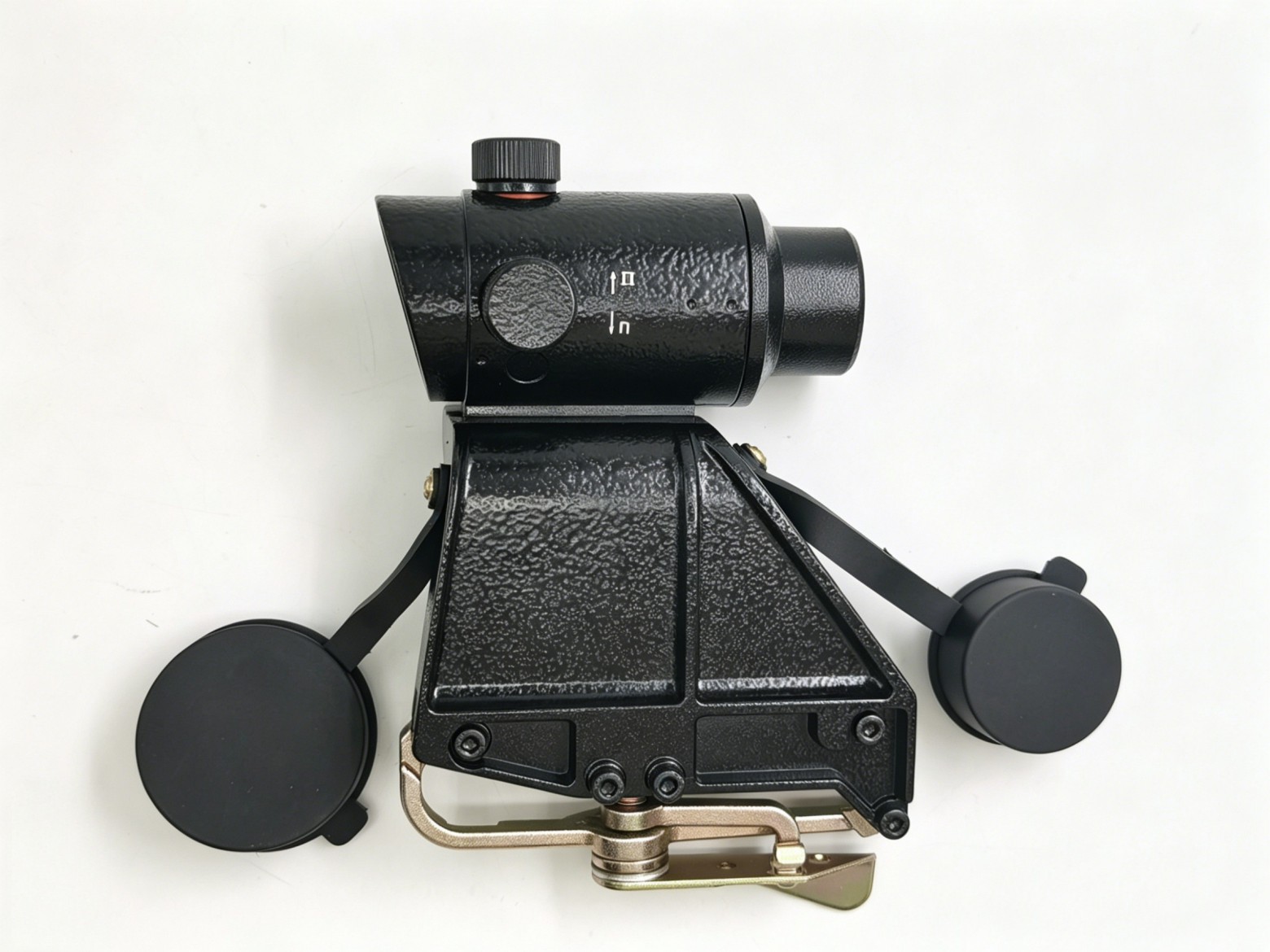

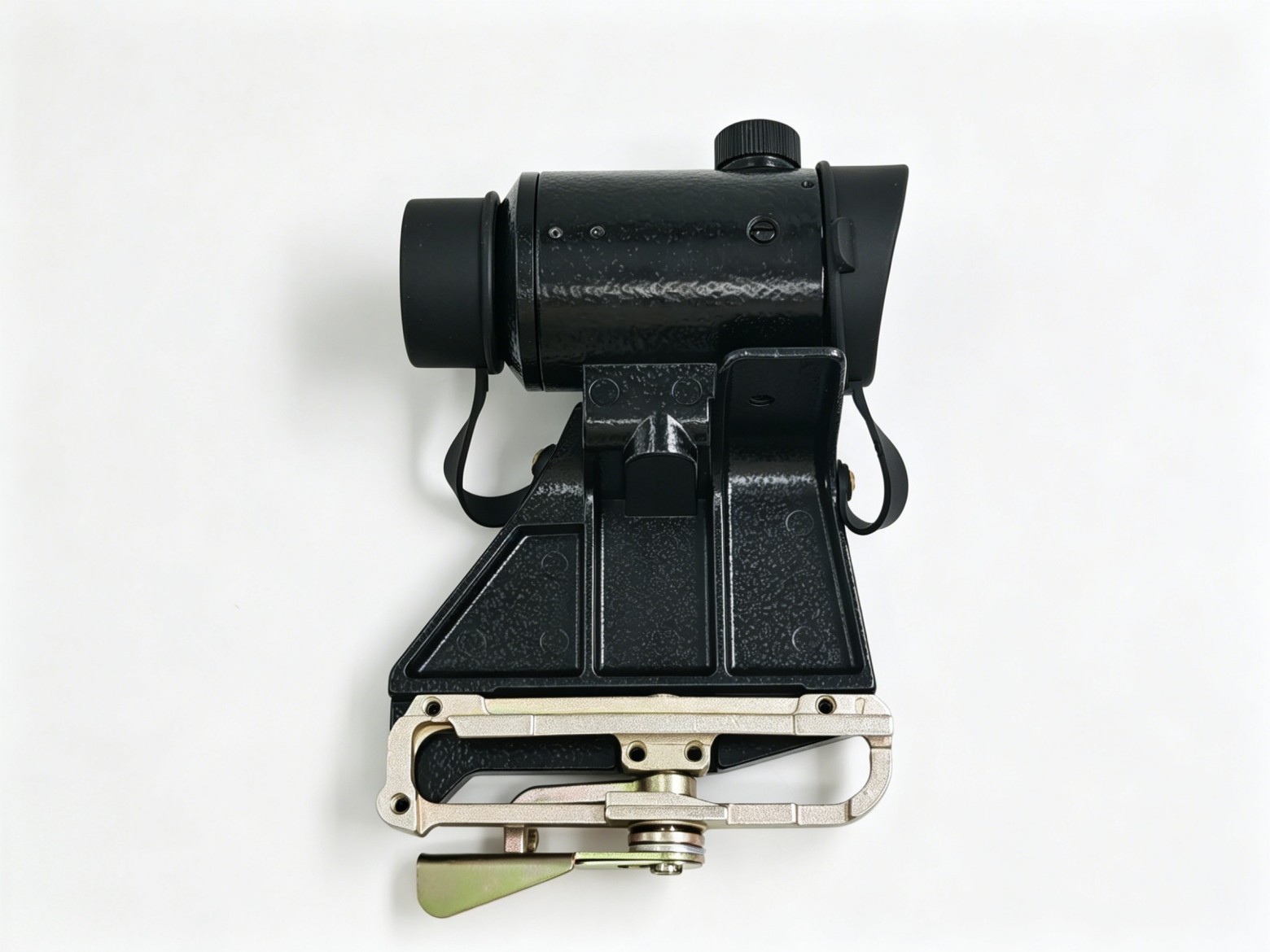

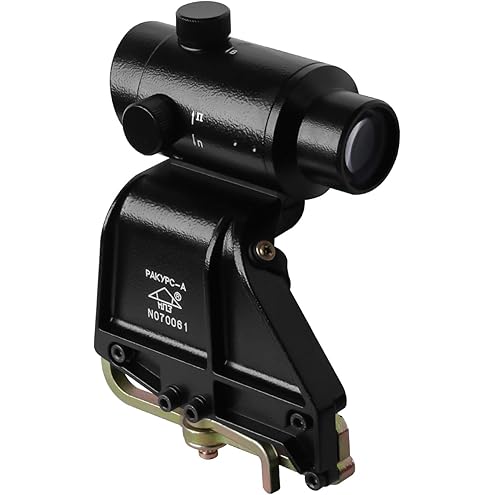

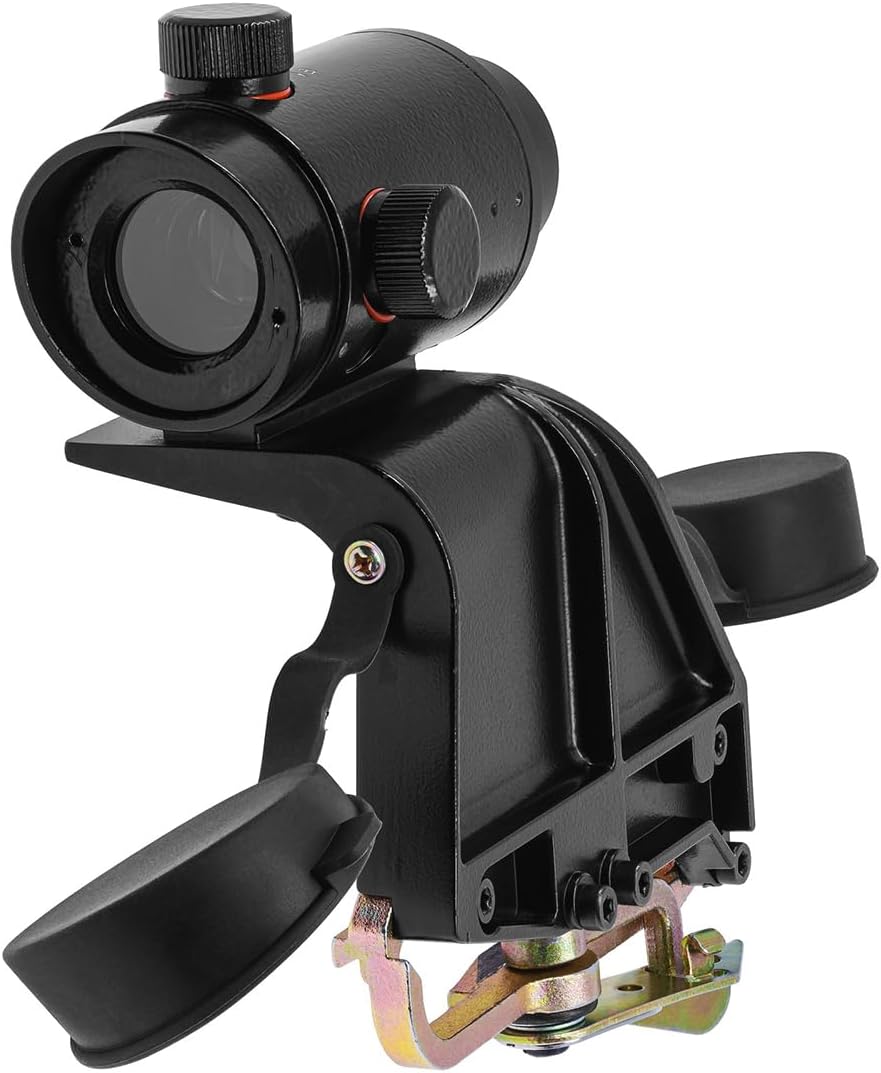

AK Red Dot Sight – 1x Side-Clamp Prism, 1 MOA, 23mm ZHY-AK1X20
This AK red dot sight is a practical 1X rifle optic designed for AK platform rifles, CQB training, tactical drills, hog hunting, brush hunting, and range practice. Featuring a 23mm objective lens, 14mm exit pupil, 100mm eye relief, 1 MOA click value, and a ±50 windage/elevation adjustment range, it delivers fast aiming performance for close-range shooting applications.
For B2B buyers, this model is well suited for AK rifle optic product lines, tactical accessories, hunting optics, and private label red dot sight programs. Customization options include logo branding, reticle design, mount configuration, packaging, accessories, and OEM/ODM support.
OVERVIEW
Key Advantages and Features
- 1X magnification for close-range aiming
- 23mm objective lens diameter
- 14mm exit pupil diameter
- 100mm eye relief for comfortable shooting
- 63.3 field of view for fast target tracking
- 1 MOA click value for simple adjustment
- ±50 windage/elevation adjustment range at 100 yards
- 100-yard parallax setting
- Compact 4.6-inch length
- 17.1 oz weight for stable AK rifle mounting
- Suitable for AK rifles, carbines, tactical drills, hunting, and range use
Best-Fit Application Scenarios
AK Platform Rifle Use
The 1X magnification and compact body make this optic suitable for AK rifles, carbines, and short-range tactical firearm setups.
CQB Training and Tactical Drills
With 1 MOA click value, ±50 windage/elevation adjustment, and a 100-yard parallax setting, this sight supports fast zeroing and close-range shooting drills.
Hog Hunting and Brush Hunting
The wide 63.3 field of view, 100mm eye relief, and 1X aiming design help users track moving targets in brush, woodland, and field conditions.
Range Practice and Fast Target Acquisition
The 23mm objective lens, 14mm exit pupil, and lightweight aiming setup make it practical for recreational range shooting and fast target transitions.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview (OEM/ODM-friendly)
- Logo Branding – Supports private label AK red dot sight projects.
- Reticle / Dot Style – Can be adjusted for tactical, hunting, or range markets.
- Mount / Base – Mounting options can be adapted for AK side rail or Picatinny setups.
- Housing Finish – Available in matte black or custom finish options upon discussion.
- Packaging – Options include retail box, neutral box, or customized brand packaging.
- Accessories – Includes lens cover, cleaning cloth, mounting tool, battery, and manual.
- OEM/ODM Support – Suitable for customized AK rifle optic programs.
Parameters
| Product Code | ZHY-AK1X20 |
| Click Value | 1 MOA |
| Magnification | 1X |
| Diopter Range | N/A |
| Objective Lens Diameter | 23mm |
| Exit Pupil Diameter | 14mm |
| Exit Pupil Distance | 100mm |
| Field of View | 63.3 |
| Tube Diameter | N/A |
| Length | 4.6 inches |
| Weight | 17.1 oz |
| Wind/Elevation Adjustment Range | ±50 W/E adjust click value @100yds |
| Parallax | 100yds |
| Battery | N/A |
Contact us to talk about your customized AK red dot sight solution for tactical, hunting, or range shooting markets.
