12×33 Image-Stabilized Monocular DIXA1233
This 12×33 image-stabilized Monocular is designed for B2B buyers in the tactical, outdoor, and surveillance sectors who need powerful optics that deliver steady visuals even on the move. Combining optical stabilization, FMC-coated lenses, and a 64° wide apparent field of view, it delivers sharp, shake-free images without the need for tripods-ideal for one-handed, real-world use in unstable environments.
OVERVIEW
Key Advantages and Features
- Built-In Image Stabilization: Equipped with a servo-controlled erect prism system, this monocular delivers active stabilization up to ±3°, eliminating hand tremors and movement shake for consistently stable images at 12x power.
- Wide, Immersive Field of View: With a 64° apparent field of view, users get a panoramic image window, ideal for fast subject acquisition in search, surveillance, or terrain scanning scenarios.
- Premium Optical System:
- Fully Multi-Coated (FMC) lenses maximize light transmission
- Phase coating + dielectric-coated prisms enhance clarity, contrast, and edge resolution
- Flat field optical design ensures minimal distortion from center to edge
- Long Session Readiness: Features a 700 mAh rechargeable battery via USB-C with up to 18 hours of standby power, ideal for extended field deployment or mobile reconnaissance missions.
- Compact, Durable, Field-Ready:
- Weighs only 325g, Compact body size: 142 × 52 × 52 mm
- Operating temperature: -10℃ to +50℃
- Designed for rugged field use in all climates.

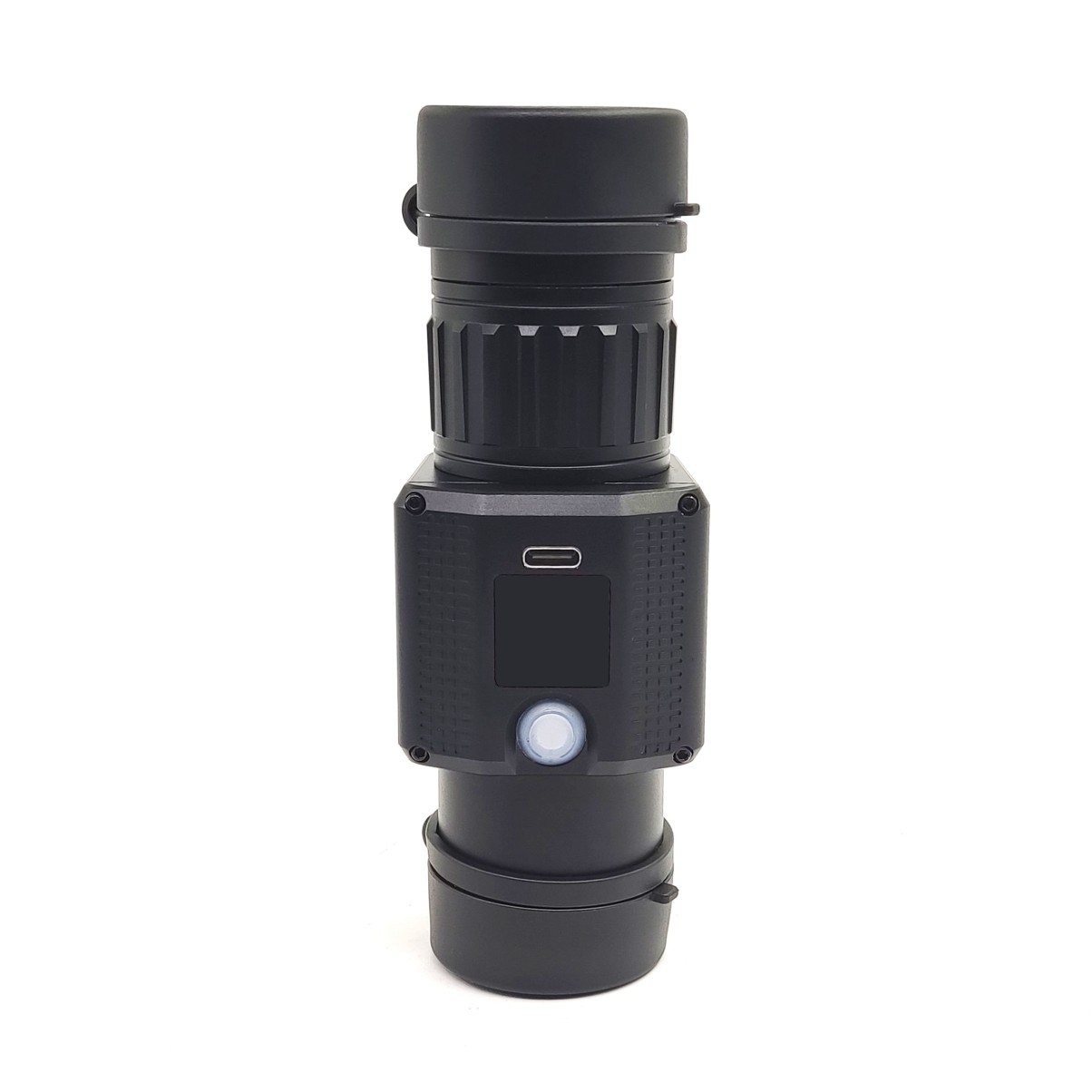

- User-Friendly Interface: A single multi-function button allows easy switching between normal and enhanced stabilization modes, ensuring quick adaptation to situational needs.
Application Scenarios
Perfect for border patrol agents, mobile wildlife trackers, security teams, and outdoor professionals, this unit’s ±3° stabilization range ensures a stable viewing experience even in moving vehicles or handheld operation during walking or observation under wind. The 2.5 m close focus distance also allows users to seamlessly transition from long-range viewing to near-object inspection, such as terrain details, documents, or animal behavior at close range.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- OEM branding on housing or eyepiece ring

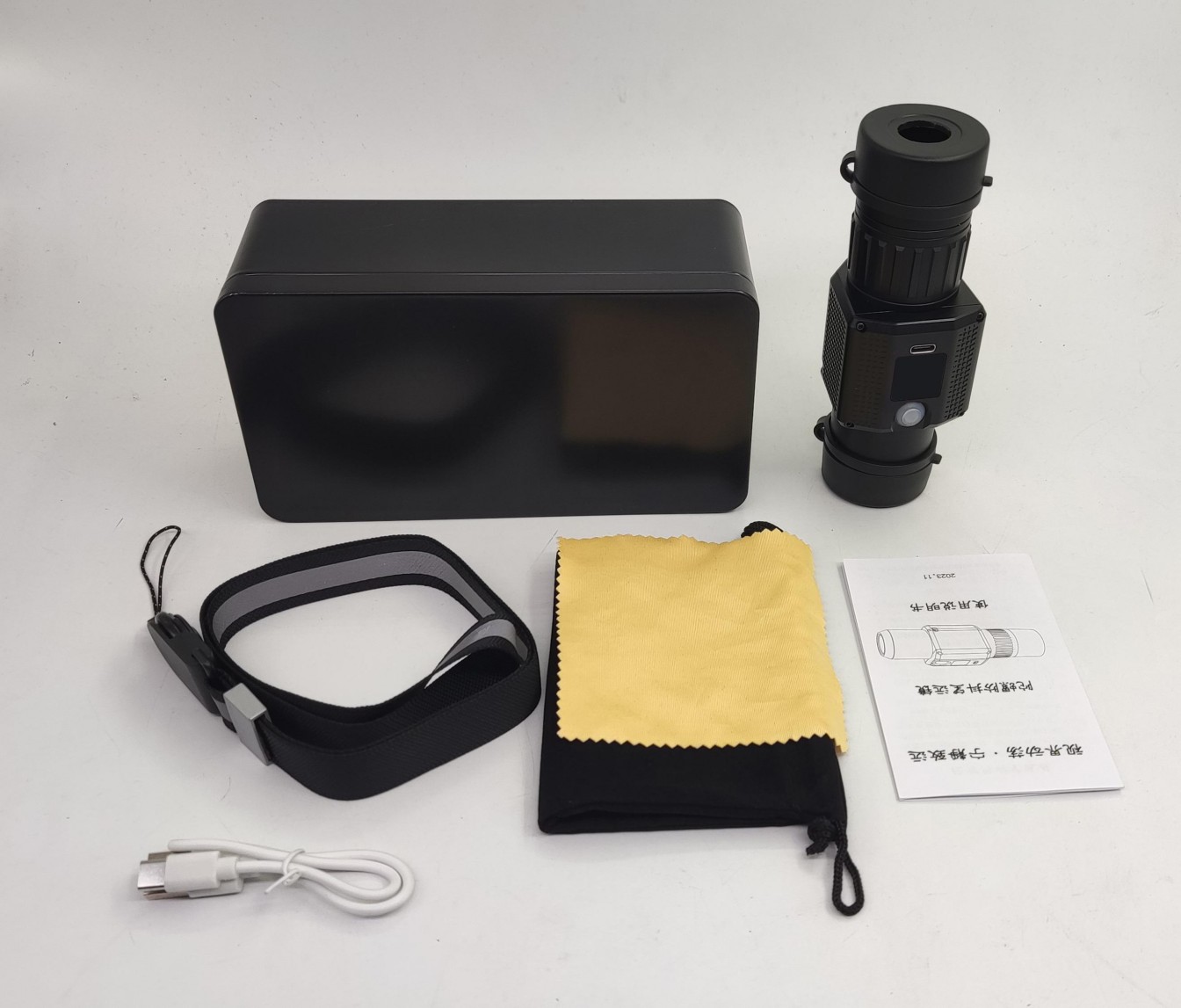

- Custom USB-C cable / strap / pouch branding
- Packaging options for tactical kits, retail boxes, or travel sets
- MOQ programs available for security integrators, outdoor optics brands, or premium gift applications.
Parameters
| Product Code | DIXA1233 |
| Model | 12×33 |
| Objective Lens Diameter | 33 mm |
| Magnification | Approx. 12x |
| Dimensions | Approx. 142 × 52 × 52 mm |
| Weight | Approx. 325 g |
| Exit Pupil Diameter | Approx. 2.75 mm |
| Field of View at 1000 m | Approx. 87 m / 1000 m |
| Actual Field of View | Approx. 5.3° |
| Apparent Field of View | Approx. 64° |
| Eye Relief | Approx. 15 mm |
| Flat Field Design | Pre-focus Flat Field |
| Eyepiece Diameter | 24 mm |
| Prism Size | 20 mm |
| Closest Focus Distance | Approx. 2.5 m |
| Lens Coating | Fully Multi-Coated (FMC) |
| Prism Coating | Phase Coating + High Reflective Dielectric Coating |

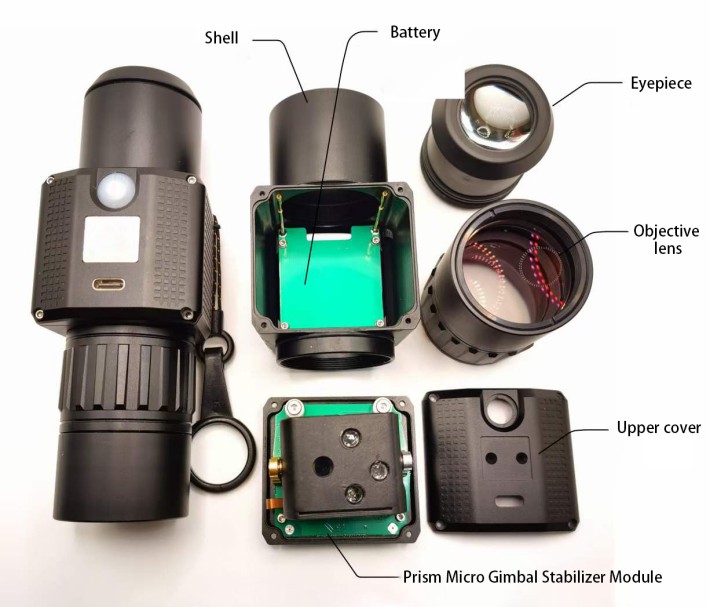

| Stabilization Method | Erect Prism Servo Stabilization |
| Stabilized Optical System | Close Focus Stabilization Structure |
| Stabilization Accuracy | Approx. 0.005° |
| Stabilization Range | Normal ±2°, Enhanced ±3° |
| Control Method | Multifunction Button |
| Battery Capacity | 700 mAh |
| Standby Time | Approx. 18 hours |
| Charging Port | USB Type-C |
| Operating Temperature | -10℃ to +50℃ |
Let’s Work Together
Looking to add cutting-edge image-stabilized Monoculars to your tactical, travel, or optical equipment lineup?
Contact us now for OEM options, pricing structures, and product sample support.
