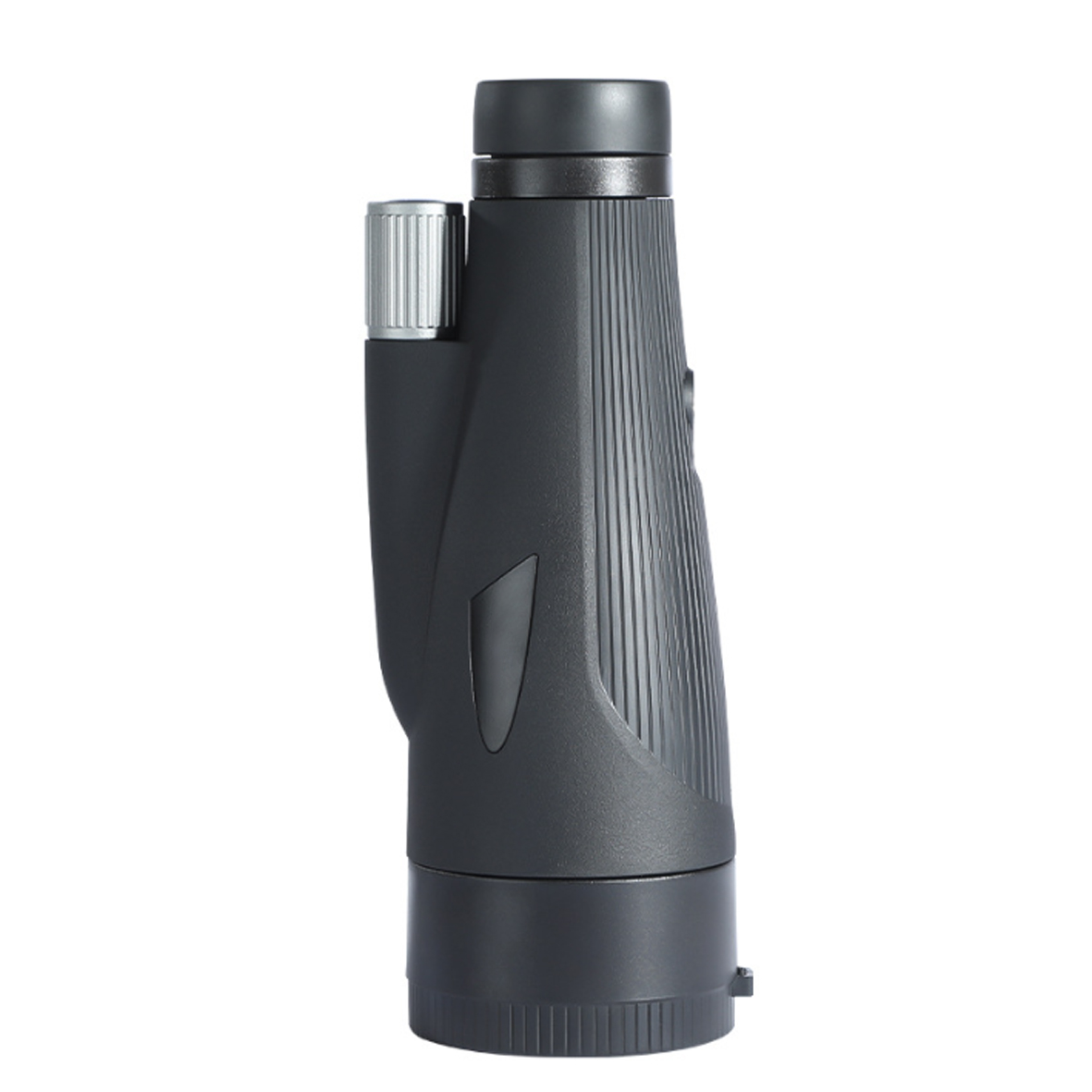

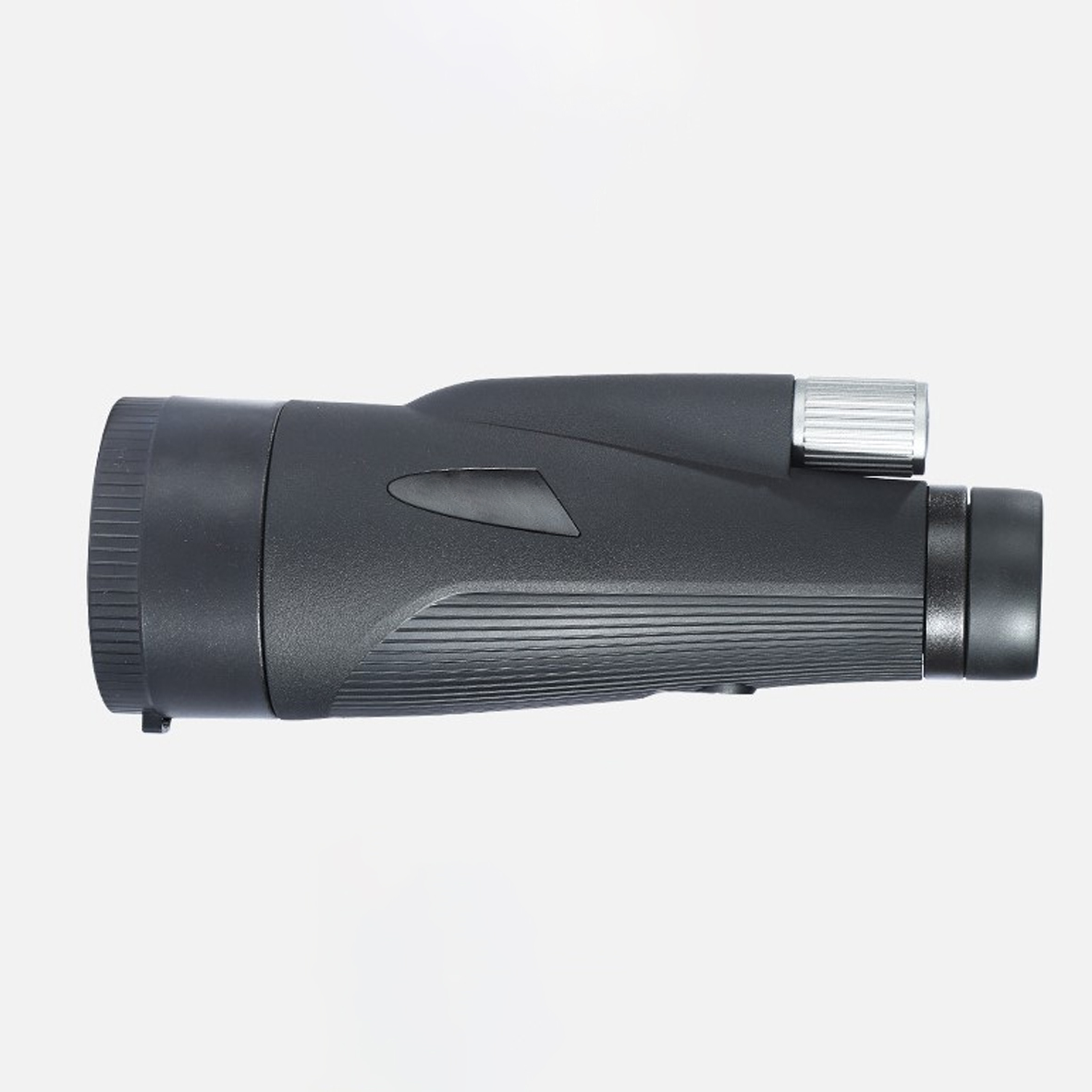

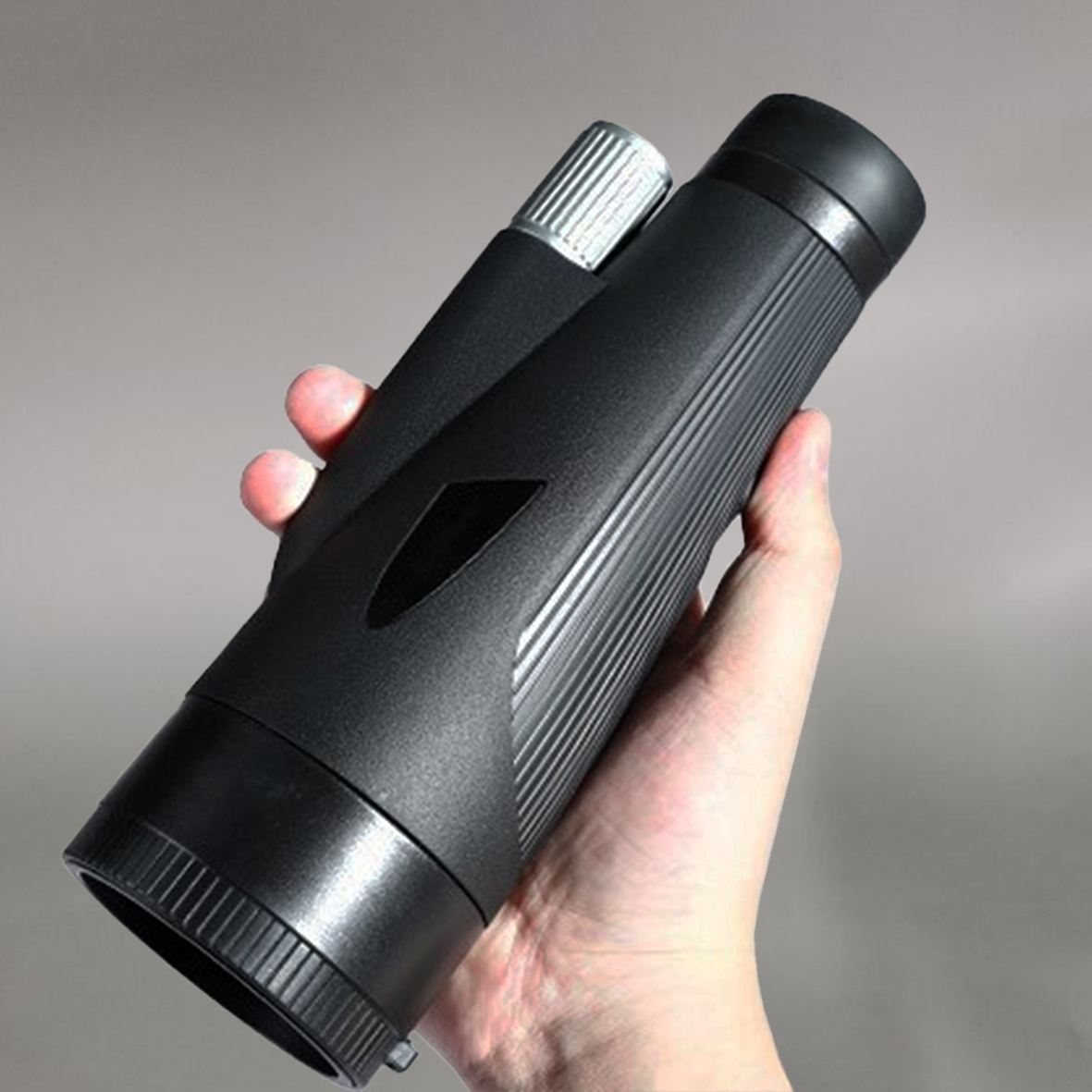

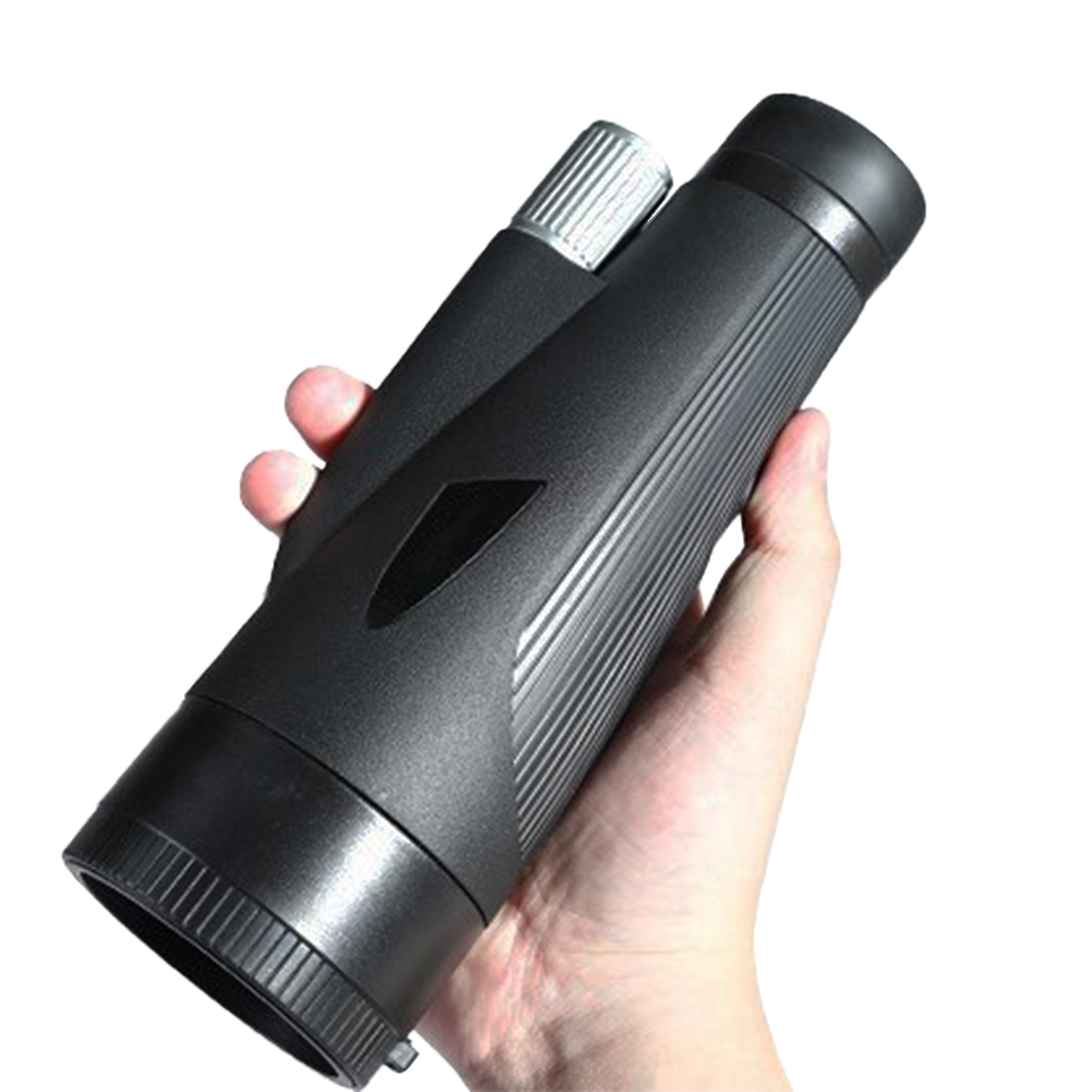

12×60 Long Range Monocular LODM1260P
This 12×60 long range monocular is engineered for professionals and enthusiasts who require stable high-magnification optics in outdoor environments. Equipped with a BAK4 16.5mm prism, multi-coated lenses, and a large 60mm objective, it delivers excellent image clarity across mid-to-long distances. The unit features a twist-up eyecup, wide 6.8° field of view, and tripod compatibility, making it ideal for hunting, surveillance, and terrain scouting in low-light and field conditions.
OVERVIEW
Key Advantages and Features
- Powerful 12x Magnification with Wide 6.8° Field: Combines strong zoom with an expansive view for fast target acquisition.
- 60mm Objective with Multi-Coated Lenses: Enhances image brightness and clarity in low-light or dusk conditions.
- BAK4 Prism with Prism Coating: Premium-grade prism ensures high contrast and reduced chromatic aberration.
- Twist-Up Eyecup and 14mm Eye Relief: Comfortable for extended use, including glasses wearers.
- Tripod-Compatible & Field-Ready Design: Includes hand strap, tripod adapter, and spotlight eye mask in one lightweight (840g) package.
- Water-Resistant (IPX2-3) for Rugged Use: Withstands splashes and light rain, ideal for outdoor environments.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding: Laser engraving or pad printing on monocular housing.
- Packaging: Premium carton box or branded travel pouch available.
- MOQ: Bulk-ready with 20 units per carton for easy distribution.
Parameters
| Product Code | LODM1260P |
| Model | 12×60 |
| Power | 12× |
| Objective Lens Diameter | 60mm |
| Eyepiece Diameter | 24mm |
| Waterproof Rating | IPX2-3 |
| Exit Pupil Diameter | 5.2mm |
| Eye Relief | 14mm |
| Prism Type / Material | 16.5 BAK4 |
| Prism Coating | Yes |
| Field of View (Angle) | 6.8° |
| Field of View (m/1000m) | 98m/1000m |
| Number of Lenses (Pieces & Groups) | 6pcs/4groups |
| Lens Coating | Multi Coated |
| Focusing Lens | Objective |
| Minimum Focal Length | 2.6m |
| Eyecup Type | Twist-up |
| Unit Dimensions (mm) | 238×92×135 mm |
| Unit Weight | 840g (including hand strap, spotlight eye mask, adjustable tripod) |
| PCS per Carton | 20 |
| Carton Size (mm) | 501×485×330 mm |
| Gross Weight per Carton | 18.1kg |
