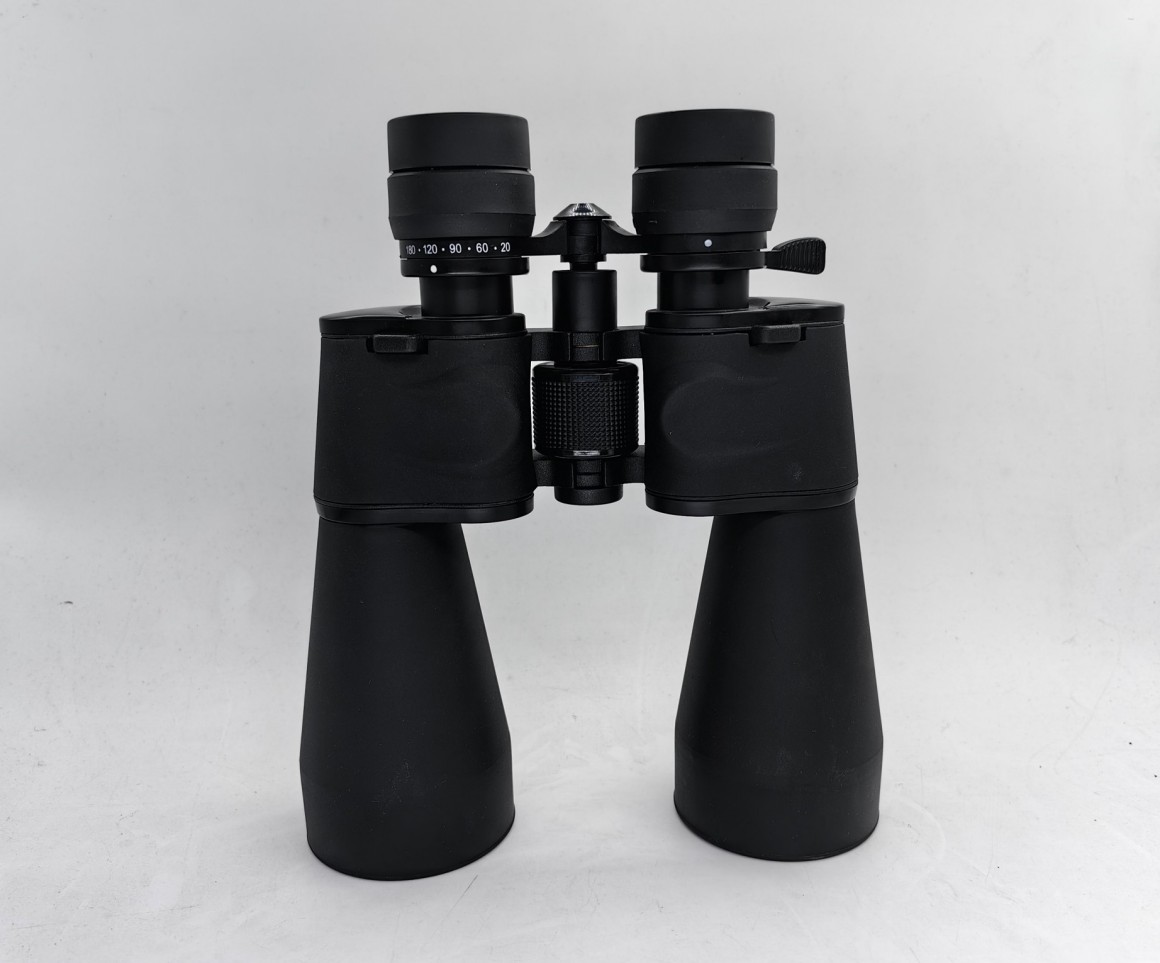

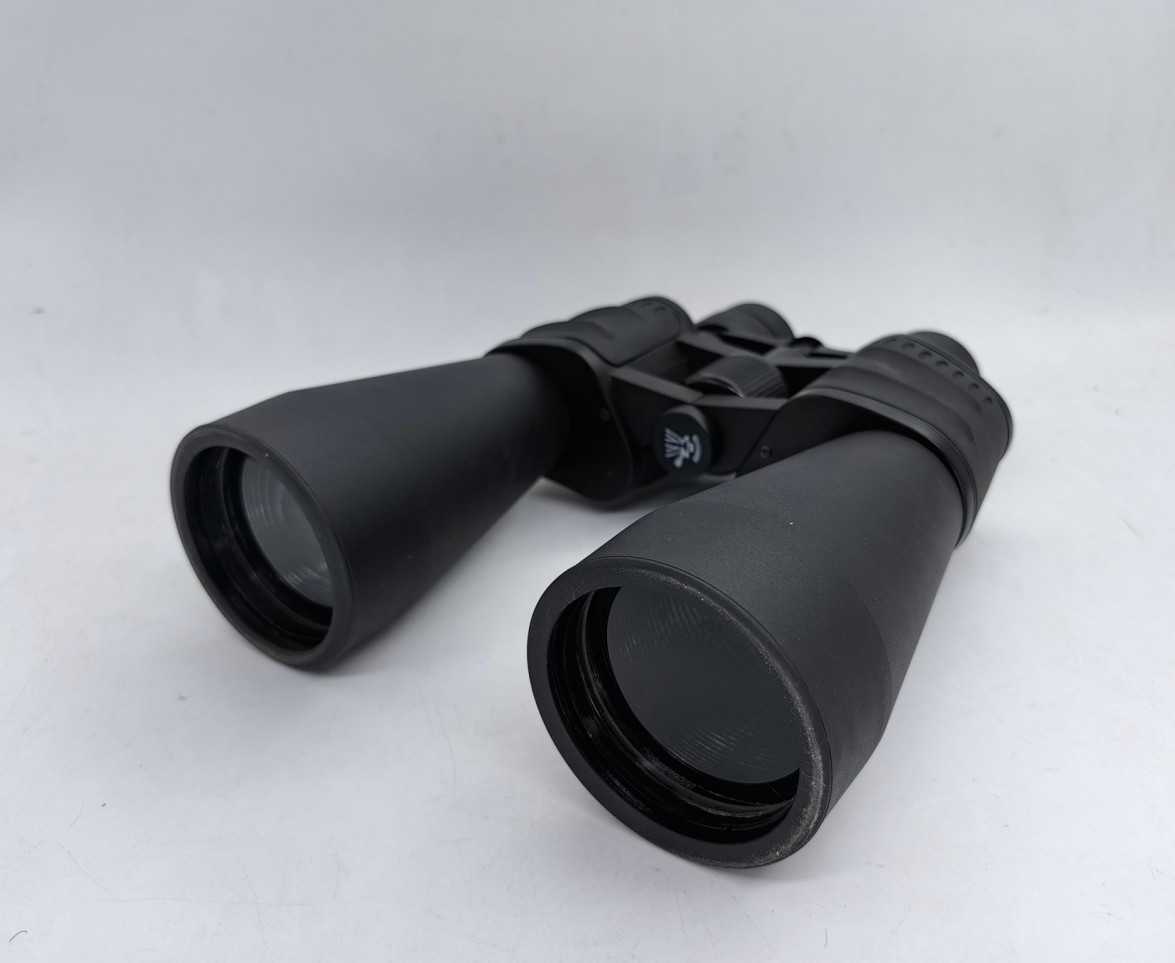

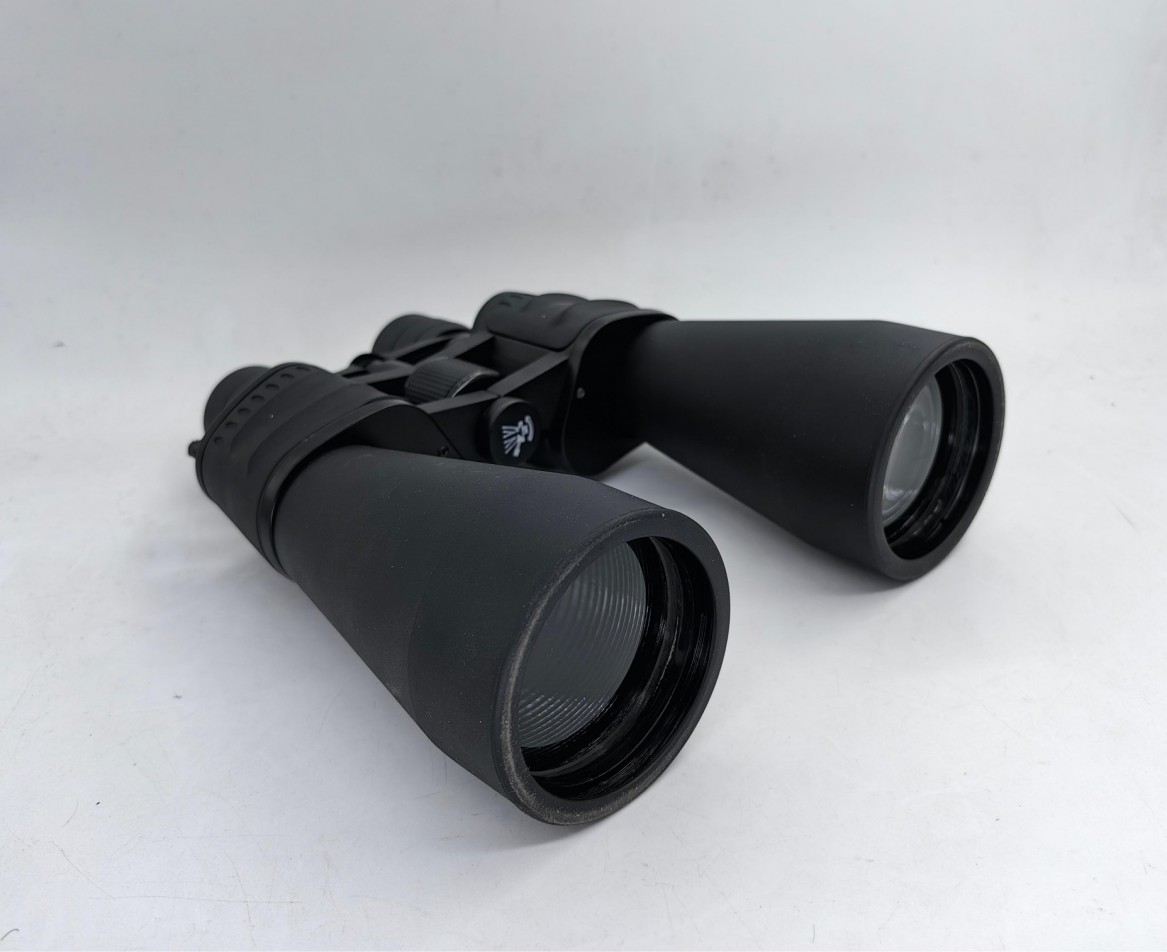

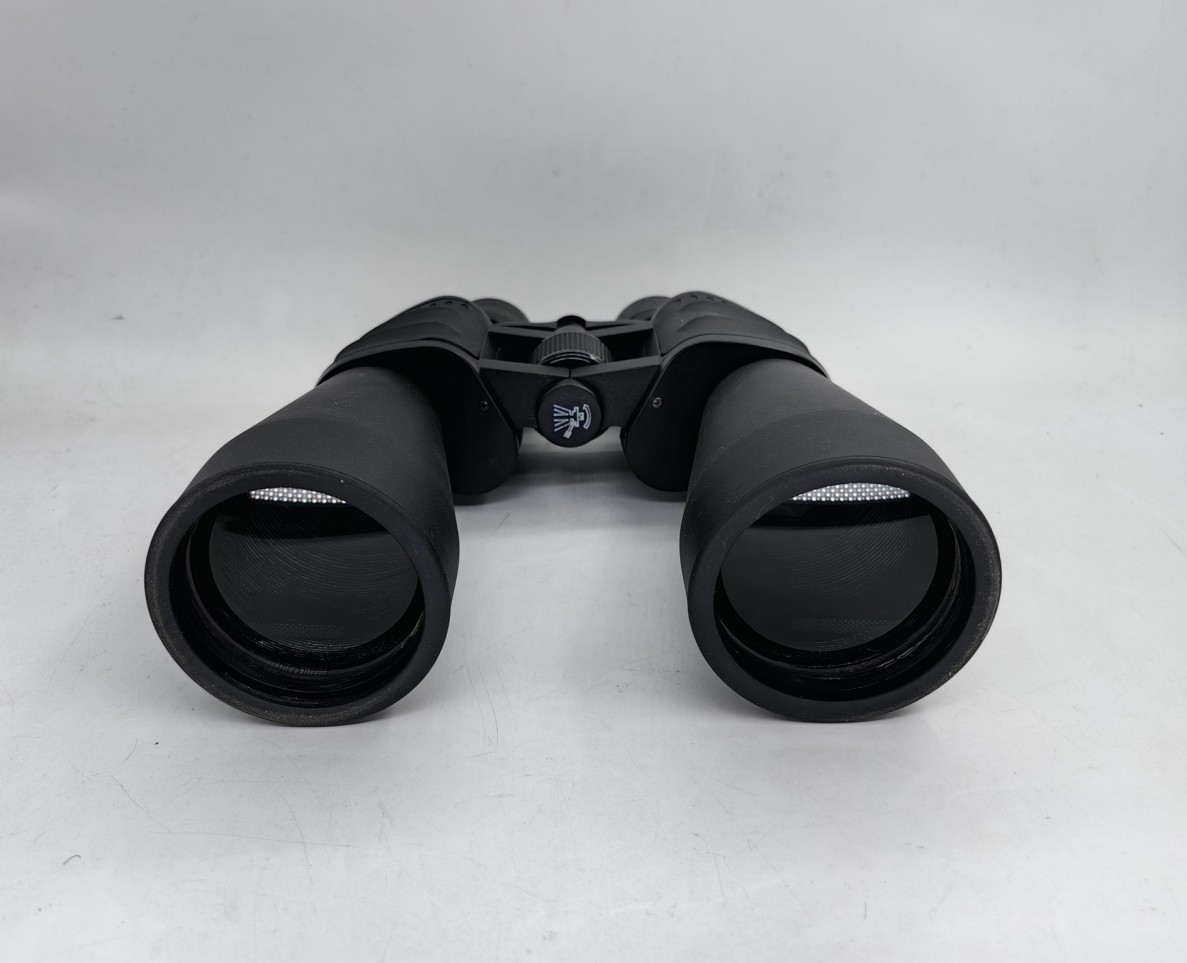

15×70 Long Range Porro Binoculars KAXP1570-1
Engineered for high-powered distance viewing, the KAXP1570-1 15×70 long range binoculars offer wide-angle clarity, exceptional brightness, and long eye relief. Its large 70mm objective lenses and BAK4 Porro prisms deliver crisp detail even in twilight, while the fold-down eyecups and tripod adaptability support extended use in field stations, watchtowers, or stargazing setups.
OVERVIEW
Key Advantages & Features
- 15x magnification delivers sharp long-range visibility
- Large 70mm objective lenses with FMC (Fully Multi-Coated) optics for enhanced brightness
- BAK4 Porro prism system ensures excellent depth and contrast
- Wide apparent field of view (68°) and 4.5° angle of view enable broad scanning
- 18 mm long eye relief for comfortable viewing with glasses
- Tripod adaptable – ideal for steady observation in astronomy or fixed surveillance
- Durable build with 4-element eyepiece construction for high-resolution detail
- Generous interpupillary adjustment (58–72mm) suits a wide user range
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo engraving on the central bridge or lens cap
- OEM box packaging for retail or educational use
- Optional carrying case, strap, or tripod mount kit
Parameters
| Product Code | KAXP1570-1 |
| Magnification | 15x |
| Objective Lens Diameter | 70 mm |
| Exit Pupil Diameter | 4.6 mm |
| Relative Brightness | 21 |
| Twilight Factor | 32.4 |
| Eye Relief | 18 mm |
| Angle of View | 4.5° |
| Apparent Field of View | 68° |
| Field of View (Metric) | 77 m |
| Field of View (Imperial) | 231 ft |
| Minimum Focus Distance | 14 m |
| Diopter Adjustment | ±3 |
| Interpupillary Distance | 58–72 mm |
| Focusing System | Center |
| Prism System | Porro |
| Prism Material | BAK4 |
| Objective Lens Construction | 2 elements / 1 group |
| Eyepiece Construction | 4 elements / 3 groups |
| Coating | FMC |
| Eyecup Type | Fold Down |
| Waterproof | No |
| Tripod Adaptable | Yes |
| Product Dimensions | 280 Ă— 210 Ă— 90 mm |
| Product Weight | 1270 g |
Let’s Talk Custom Orders
Contact us for OEM/ODM quotes, bulk pricing, or to request a branded sample for astronomy or security product lines.
