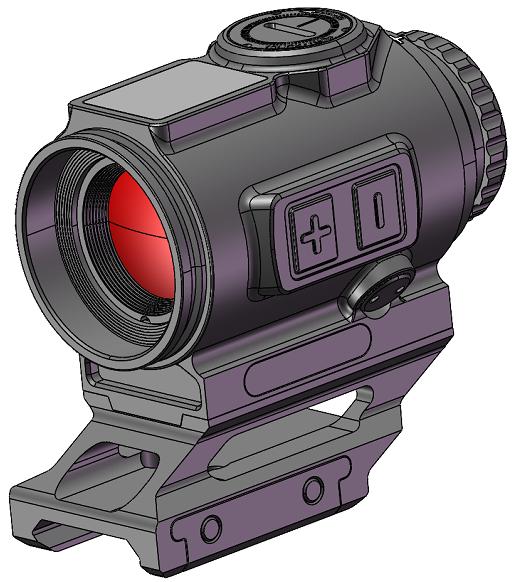

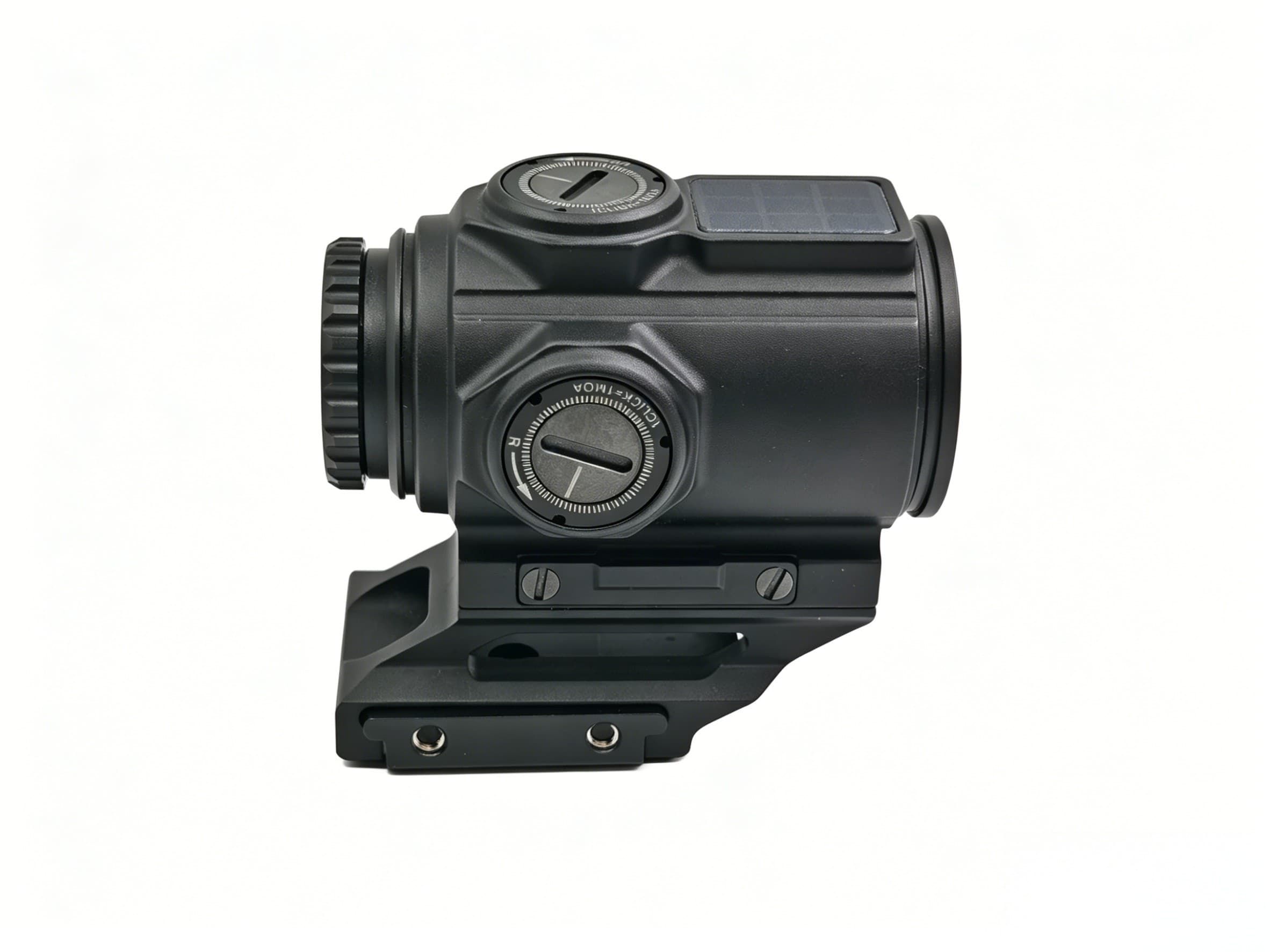

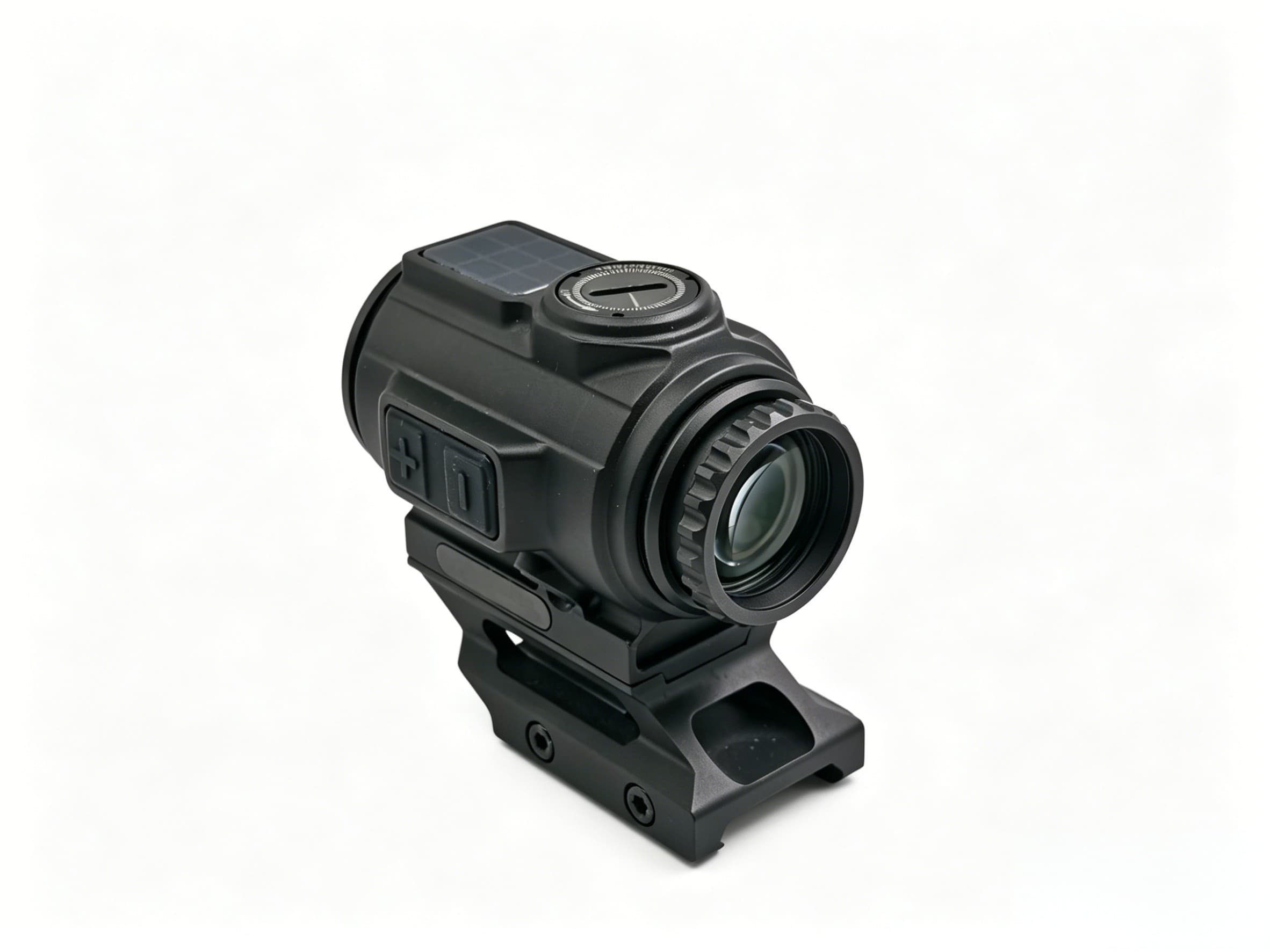

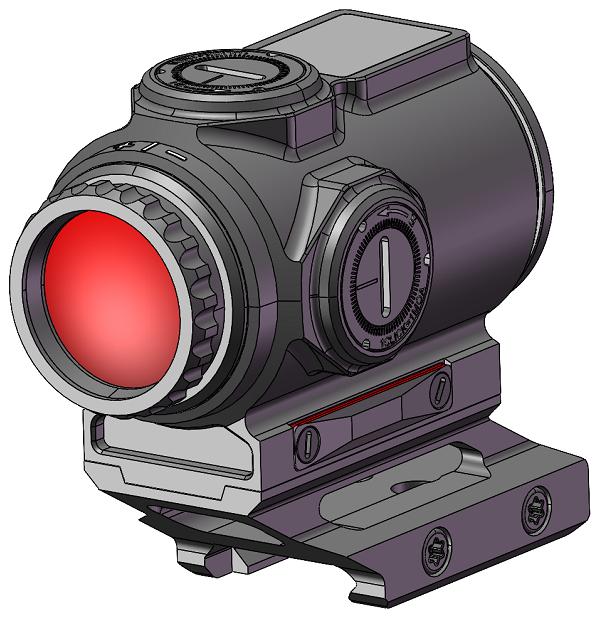

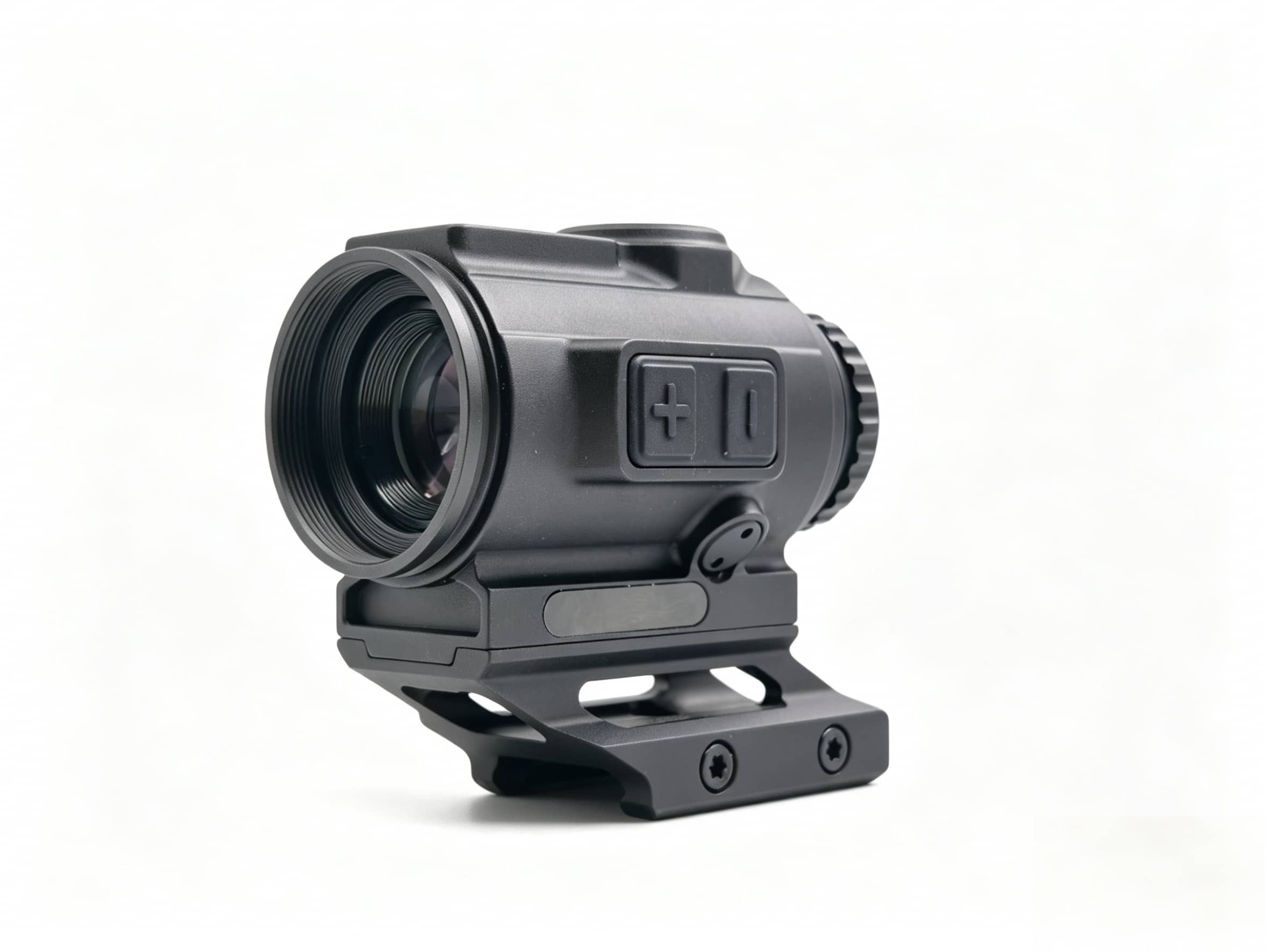

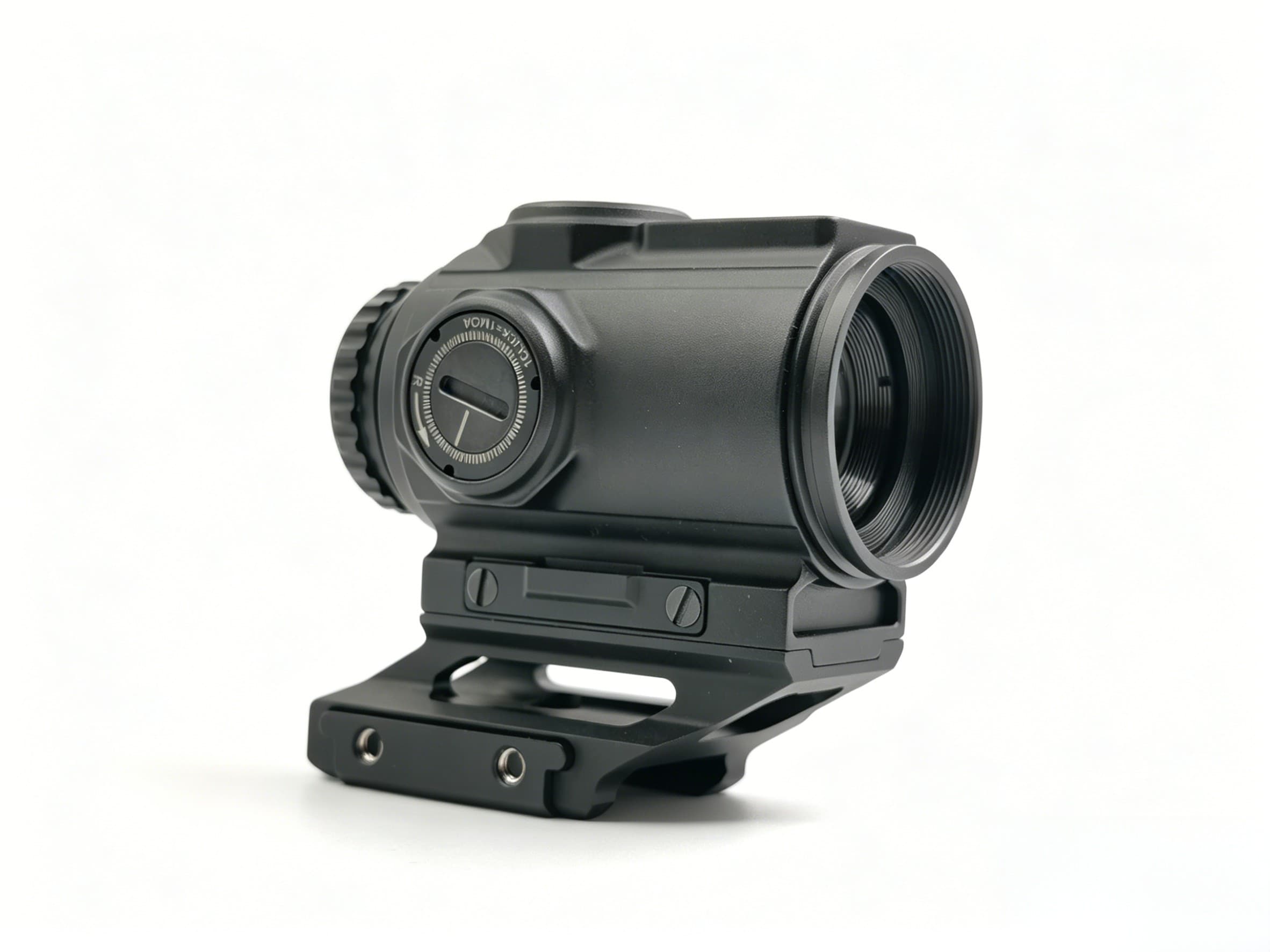

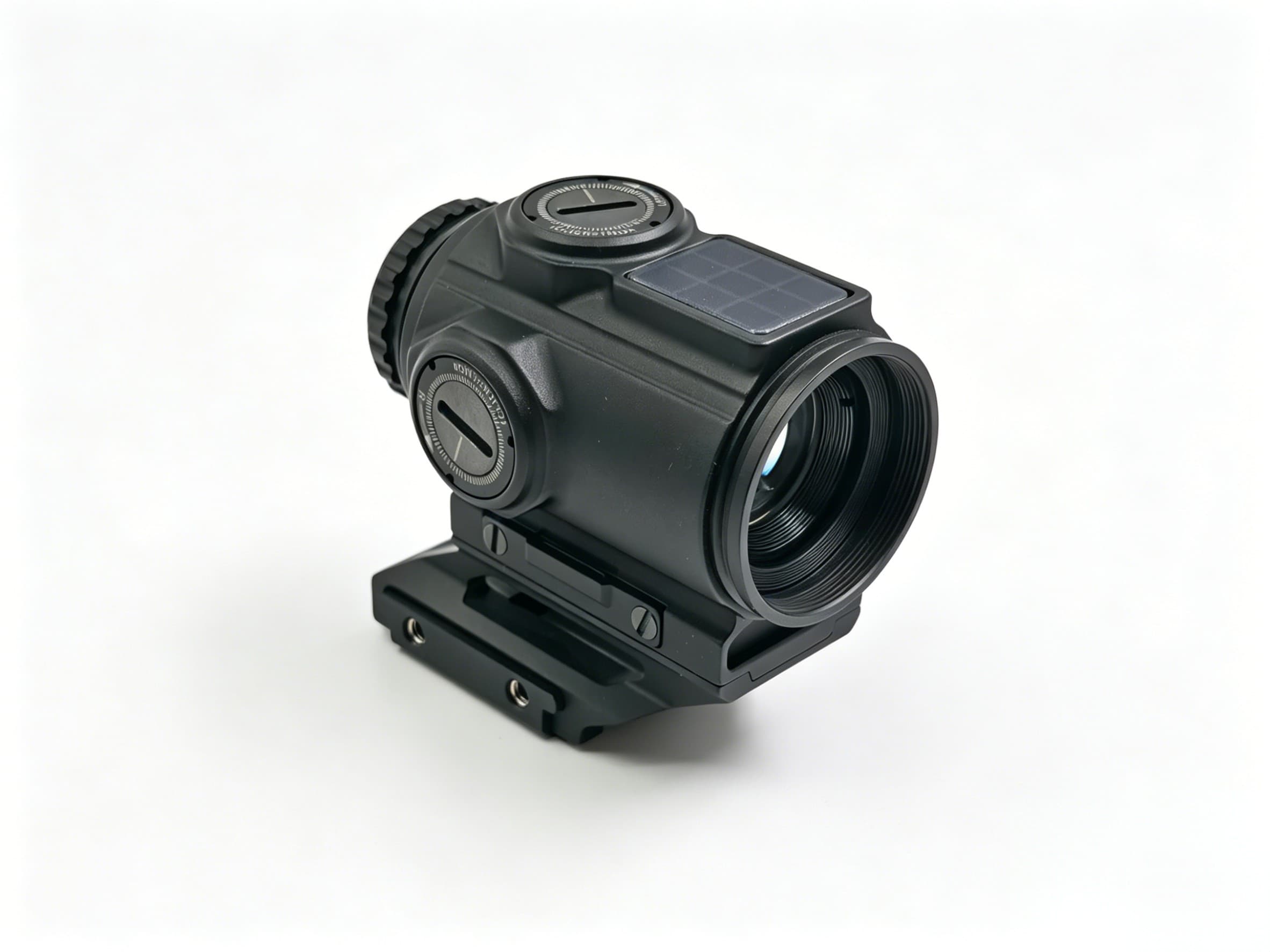

1x Red Dot Sight Prism Scope for AR Rifles YIE1201PR
This 1x Red Dot Sight is designed for AR rifles, close-range shooting, CQB training, tactical drills, hog hunting, home defense optics, and range practice. With red illumination, 10 brightness settings, 2 NV-compatible levels, motion sensing, memory function, and manual/solar mode switching, it provides fast and reliable aiming for modern rifle platforms.
Built with 6061 aluminum housing, matte black finish, IPX7 waterproof protection, 1000G vibration resistance, and a long-lasting CR2032 battery system up to 50,000 hours, this optic is suitable for outdoor, tactical, and private label rifle accessory markets.
Note: Based on the parameters, this product is more accurately positioned as a Red Dot Sight / Reflex Sight, not a traditional Prism Scope.
OVERVIEW
Key Advantages and Features
- 1x magnification for fast target acquisition
- Red illumination, black reticle when turned off
- 10 brightness levels, including 8 daylight + 2 NV-compatible settings
- Motion sensing: auto sleep after 225 seconds, wakes on movement
- Manual mode and solar mode switching
- Memory function returns to last brightness and reticle setting
- CR2032 side-loaded battery
- Battery life up to 50,000 hours
- 13.8° field of view
- 91mm eye relief
- 100-yard parallax setting
- 1 MOA tactile click value
- ±45 MOA adjustment range
- 6061 aluminum housing, matte black finish
- IPX7 waterproof / submersion rating
- 1000G vibration resistance
- Working temperature: -30°C to 60°C
Best-Fit Application Scenarios
Close-Range Tactical Shooting
The 1x magnification, 13.8° field of view, and 91mm eye relief support fast aiming and both-eyes-open shooting.
CQB Training and Range Practice
With 1 MOA tactile click adjustment and ± 45 MOA adjustment range, this sight is practical for zeroing, drills, and short-range range practice.
Low-Light and Night Vision Use
The sight offers 10 brightness levels, including 8 daylight settings and 2 NV-compatible settings, making it suitable for changing light environments.
Hunting and Field Use
The motion sensing function, IPX7 waterproof rating, and 1000G vibration resistance make it suitable for hog hunting, brush hunting, and outdoor rifle setups.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview (OEM/ODM-friendly)
- Logo Branding Supports private label red dot sight projects
- Reticle / Dot Style Red illuminated reticle can be customized by market needs
- Brightness System 8 daylight + 2 NV settings support tactical positioning
- Housing Finish Matte black finish; custom surface options can be discussed
- Mount / Base Mount configuration can be adapted for AR and tactical platforms
- Packaging Retail box, neutral box, or custom brand packaging
- Accessories Battery, lens cover, tool, cleaning cloth, mount, and manual
- OEM/ODM Support Suitable for customized compact rifle optic programs
Parameters
| Product Code | YIE1201PR |
| Images |   |

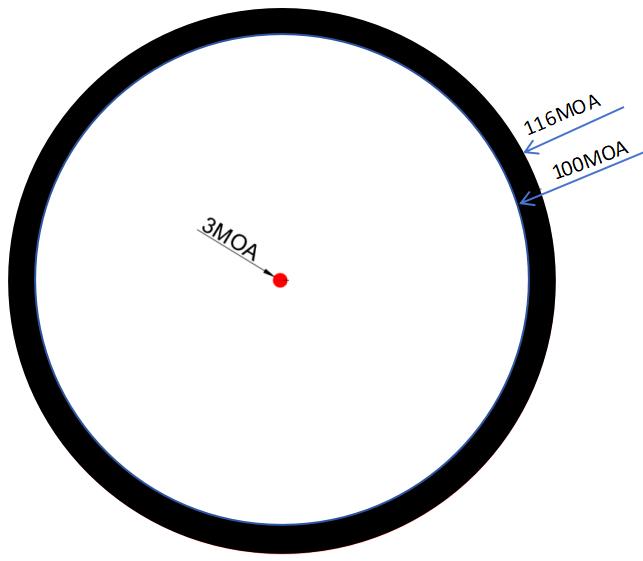

| Reticle |  |
| Housing Material | 6061 |
| Surface Finish | Matte Black |
| Battery Type: | CR2032 |
| Battery Tray: | Side-loaded,put “-” upward |
| Battery Life (Hours): | Up to 50,000 hours |
| Power on/Power off: | Turn the sight on by momentarily pressing “+” or “-” , hold the “-” button for 3 seconds to turn off, hold the “+” for 3 seconds to switch between manual mode and solar mode |
| Illumination: | Glows red with illumination, or remains black when the illumination is turned off |
| Brightness Setting: | 10 levels(8 DL&2 NV), settings 1 to 2 are NV compatible |
| Memory Function: | Turn the sight on returning to the last brightness setting and reticle used |
| Magnification: | 1x |
| Field of View (°): | 13.8° |
| Eye Relief: | 91mm |
| Parallax Setting: | 100 yards |
| Motion Sensing: | Automatically enter into sleep mode after 225s of no movement, powers up when it senses motion. |
| Window Size(mm): | 20mm |
| Click Value: | Tactile 1MOA Per click |
| Adjustment Range: | ±45MOA |
| Submersion: | IPX7 |
| Vibration: | 1000G |
| Storage Temperature: | -40℃~70℃ |
| Working Temperature: | -30℃~60℃ |
For B2B buyers, customization options can include logo branding, reticle design, mount configuration, surface finish, packaging, accessories, and OEM/ODM support.
Contact us to discuss your customized red dot sight solution for tactical, hunting, or compact rifle optic markets.
