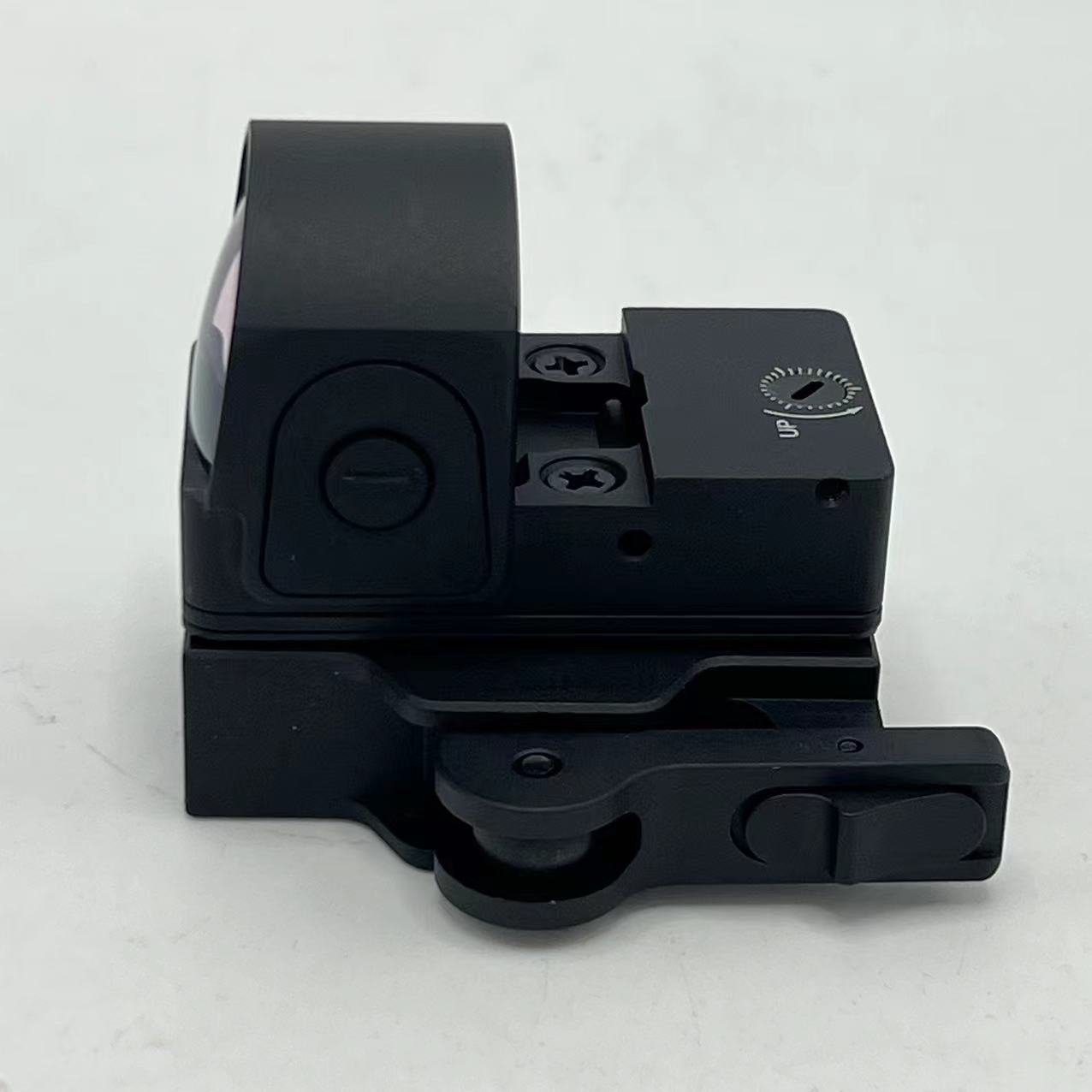

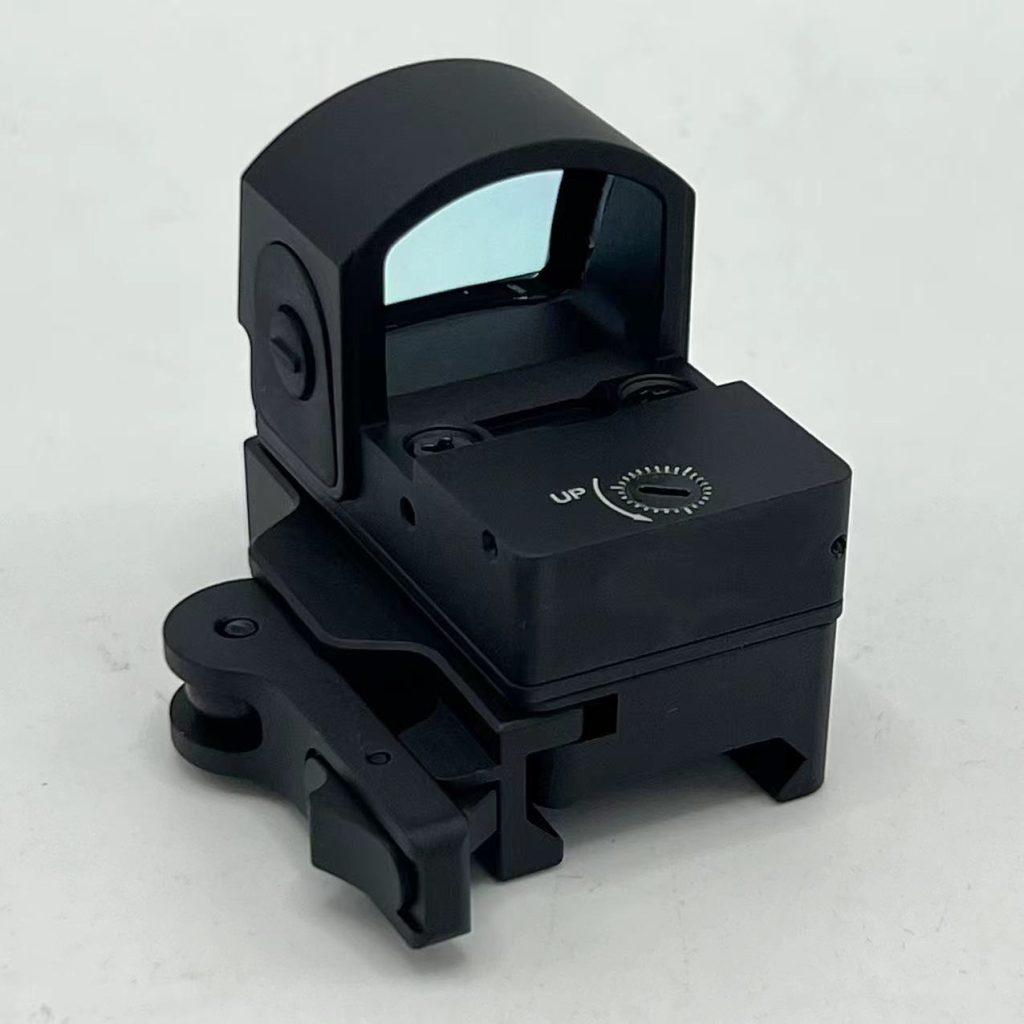

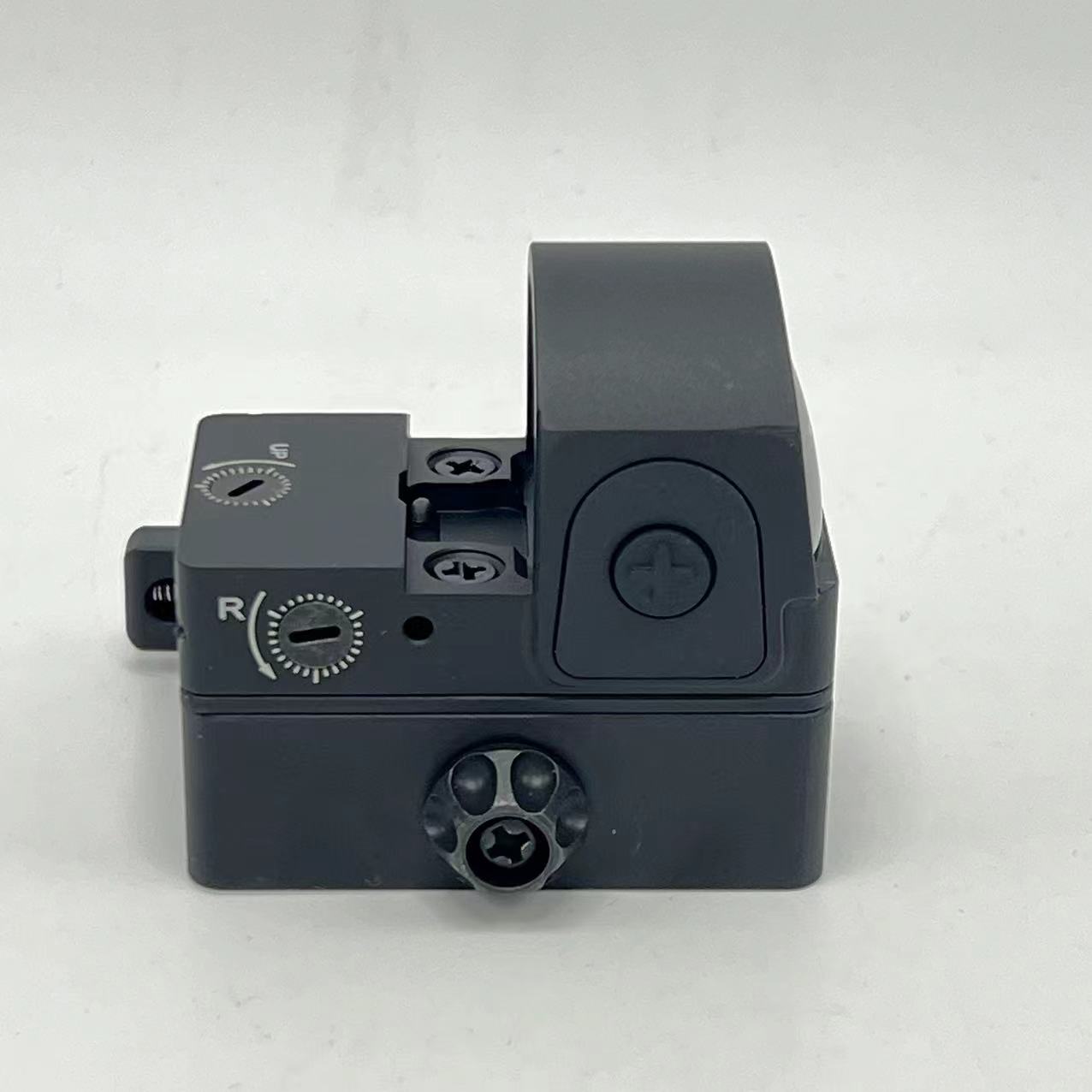

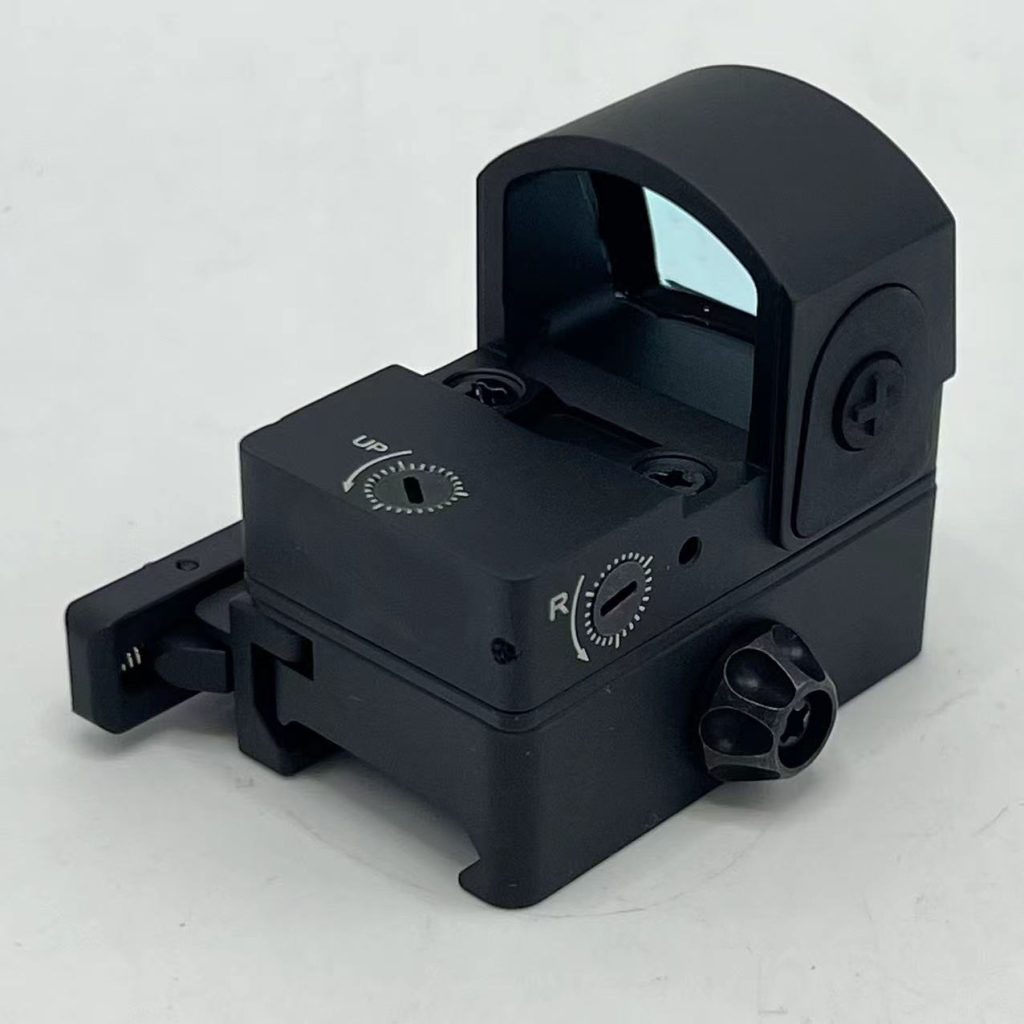

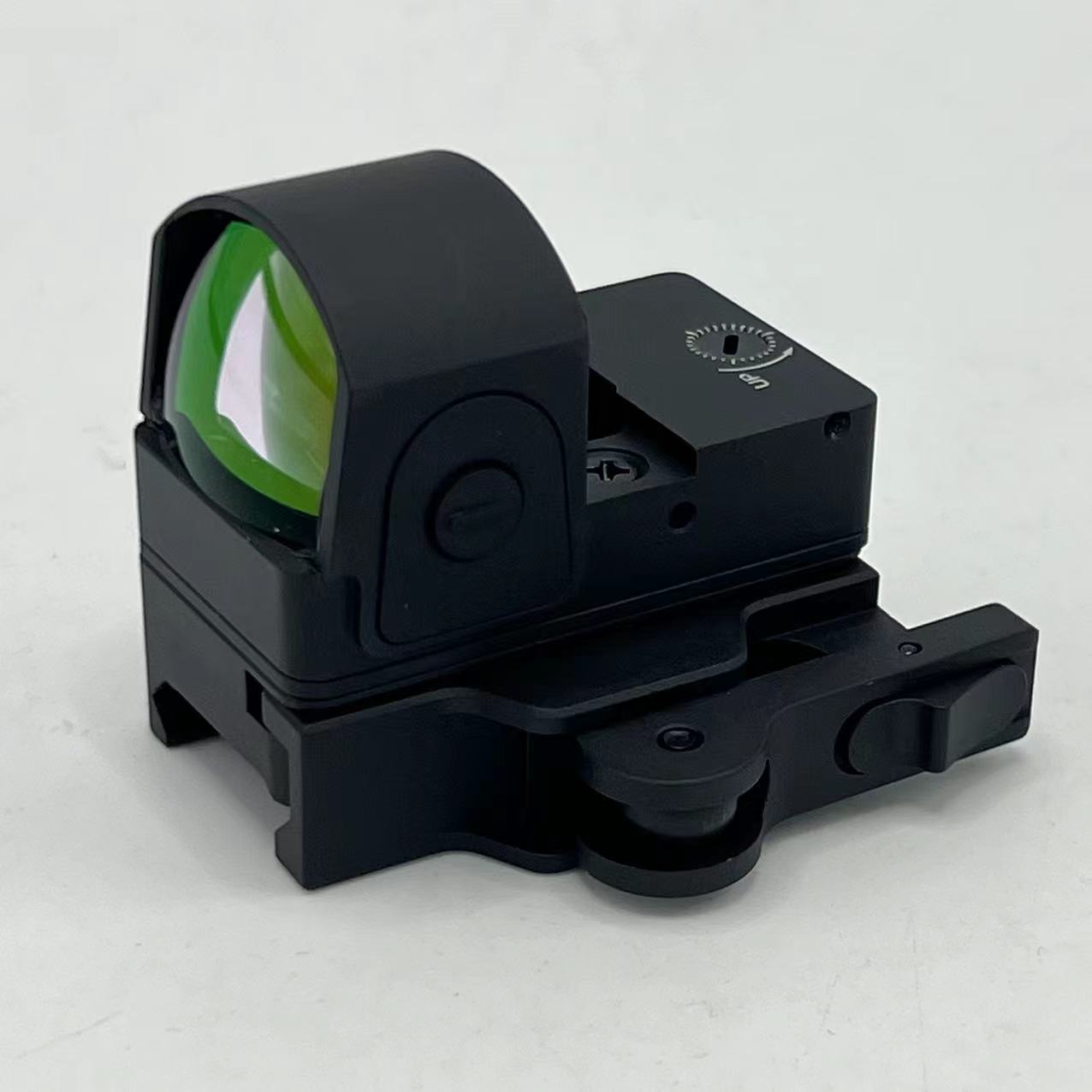

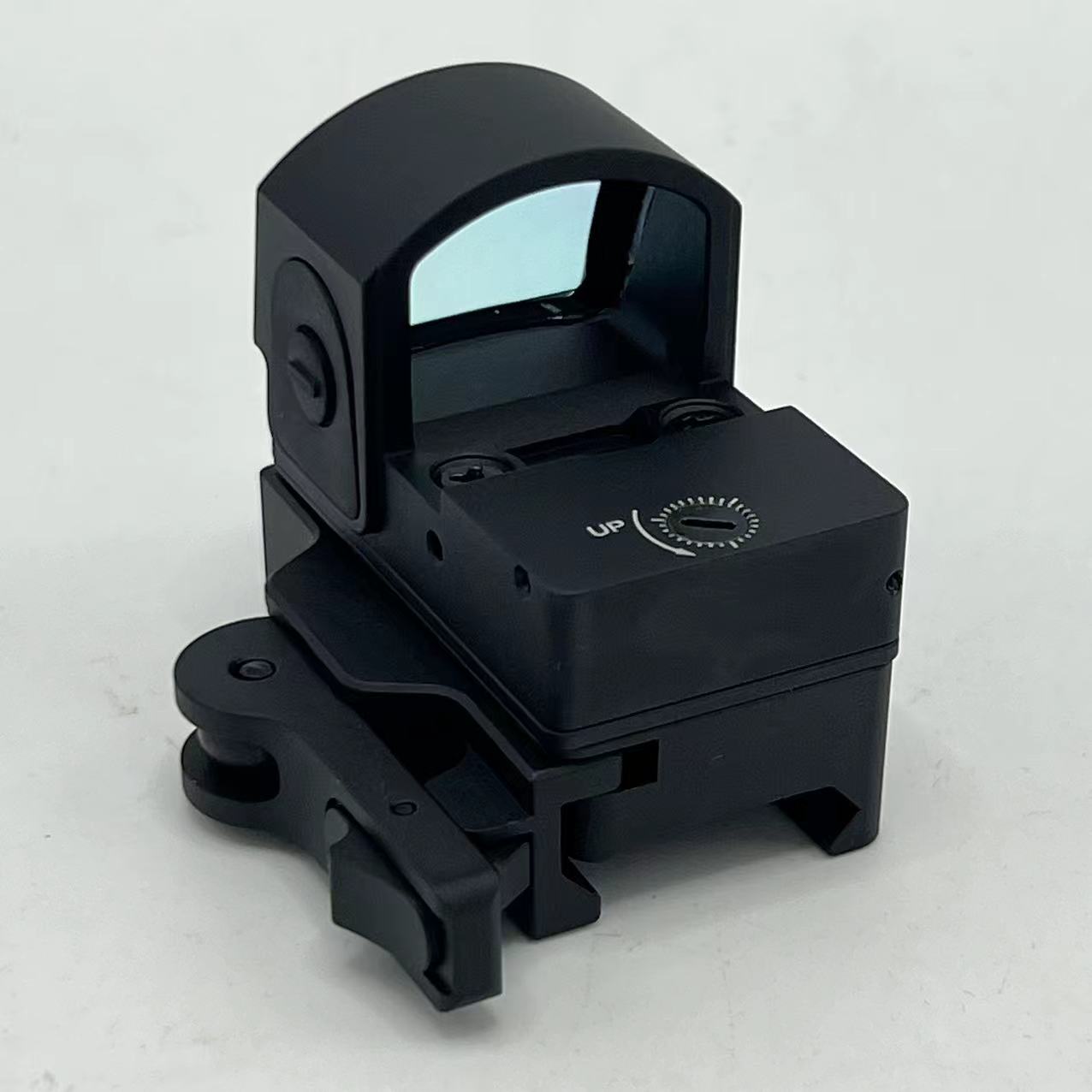

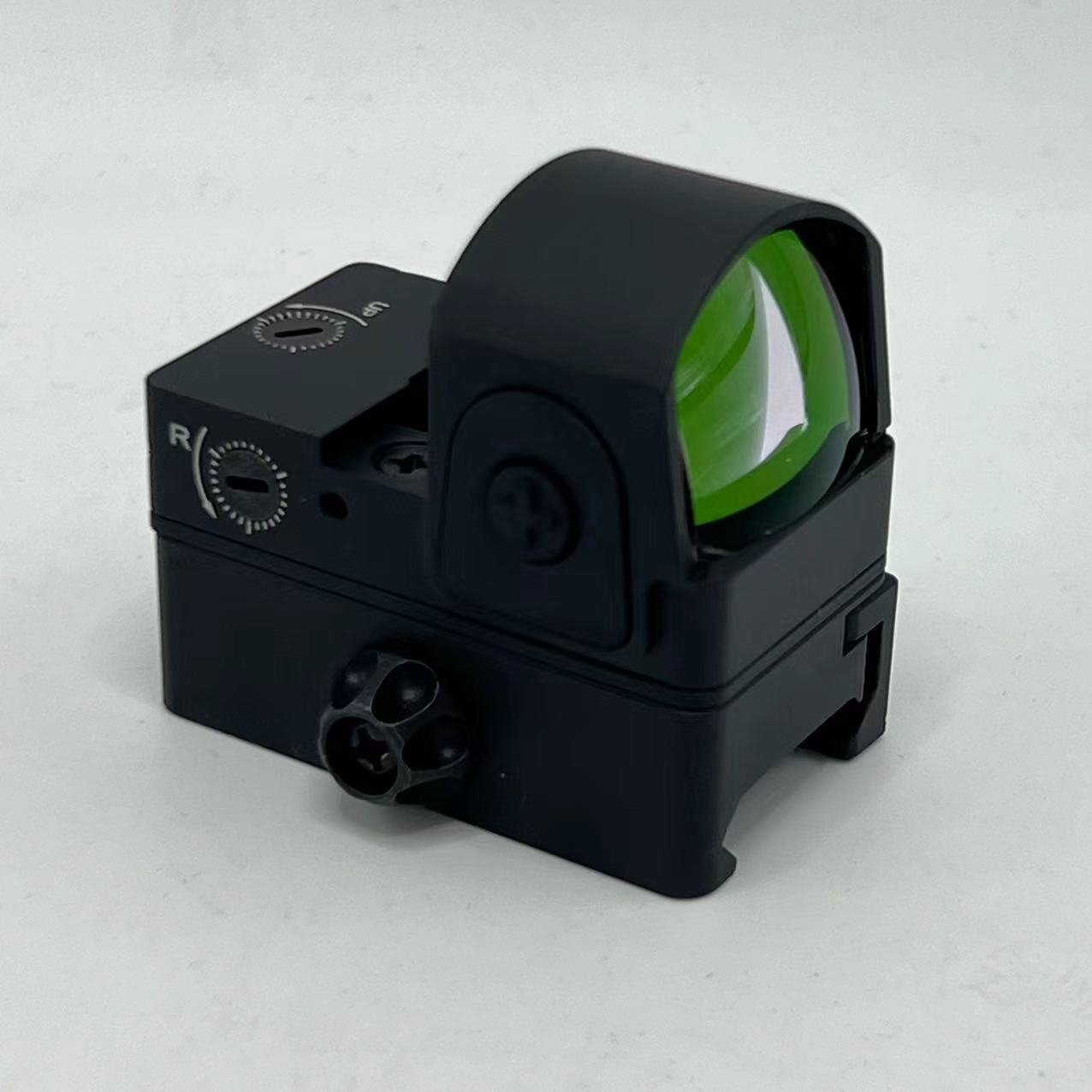

2-3 MOA 25mm IP67 Reflex Red Dot Sights XIX125OR
This rugged Reflex Red Dot Sight is built for military, law enforcement, and precision shooters who demand accuracy and reliability under extreme conditions. With IP67 waterproofing (1m submersion), 3000G recoil resistance, and a wide ±60 MOA adjustment range, it’s a dependable optic for both professional duty use and high-level sporting applications.
OVERVIEW
Key Advantages and Features
- Wide viewing window: 25mm lens with ultra-high transmission multilayer coating (95%).
- Crisp reticle: Single dot (2–3 MOA) with 5 brightness levels.
- Precision adjustments: 1 click = 1 MOA, ±60 MOA travel range, ≤±0.5 MOA deviation.
- Strong construction: Quenched manganese steel adjustment mechanism, Grade 12.9 bolts.
- Automatic functions: Power-loss memory, auto power-off after 4 hours.
- Rugged design: IP67 waterproof, 3000G recoil tested (≤1 MOA zero shift).
- Balanced weight: 110g with mount / 55g optic only.
Application Scenarios
Tactical & Law Enforcement: A durable reflex red dot sight for AR-15 and tactical rifles, offering reliable zero retention even after repeated heavy recoil.
Hunting & Outdoors: Ideal as a large window reflex red dot sight for hunting rifles, giving shooters a wider field of view and fast target acquisition.
Competitive Shooting: Used as a reflex red dot for 3-gun competitions, ensuring fast transitions between targets with minimal parallax error (±0.5 MOA).
Military Training & Professional Use: Designed for extreme reliability, this IP67 waterproof reflex red dot sight withstands harsh environments and prolonged field deployment.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- OEM/ODM services (logo engraving, retail packaging, private labeling).
- Housing colors/finishes (matte black, desert tan, olive drab, camo).
- Reticle customization (2 MOA or 4 MOA dots, red/green options).
- Mounting interfaces (Picatinny/Weaver, quick-detach, RMR footprint).
Parameters
| Product Code | XIX125OR |
| Dimensions | 58 × 51 × 47 (mm) |
| Window Size | Ø25 × 1mm |
| Reticle | Single dot (2-3 MOA) |
| Weight | Full unit: 110g（Without mount: 55g） |
| Optics | Ultra-high transmission (95%) medium reflectivity |
| Coating | Ultra-high transmission multilayer purple-red coating |
| Power Consumption | Standby 700 hours / Auto power-off after 4 hours |
| Button Settings | 5 brightness levels / Instant power-loss memory function |
| Power On | Press either ‘+’ or ‘–’ button |
| Power Off | Press both ‘+’ and ‘–’ buttons simultaneously |
| Zeroing Distance | 50 meters |
| Parallax (at 50m) | ±0.5 MOA |
| Travel Error | 1 MOA per 20 clicks |
| Deviation During Travel | ≤±0.5 MOA (within effective range) |
| Click Value | 1 click = 1 MOA |
| Adjustment Mechanism | Quenched manganese steel |
| Rotation | 27 MOA per revolution |
| Effective Travel Range | ±60 MOA |
| Mount Bolts | Grade 12.9 |
| Body-to-Mount Screws | Grade 12.9 |
| Waterproof | IP67 (1m submersion for 20 min) |
| Shock Resistance | 3000G / 500 impacts (≤1 MOA zero/parallax shift) |
| Packaging | Plastic box |
| Carton Capacity | 50 units/ctn |
| Carton Weight | 13 kg/ctn |
Let’s Work Together
Looking for a rugged Reflex Red Dot Sight supplier for tactical, hunting, or professional shooting applications?
You now have two distinct Reflex Red Dot Sight models:
- Ultra-compact 18g model (3 MOA, IPX7, pistol-friendly)
- Professional Ø25mm model (2–3 MOA, IP67, rifle/tactical use)
Contact us today to discuss OEM/ODM solutions and wholesale pricing.
