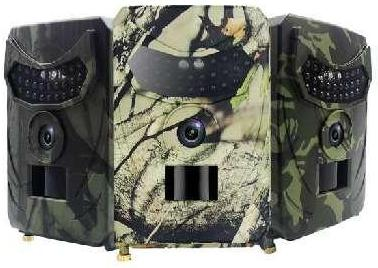

20MP 1080P Video 12-month Standby Memory Card Trail Camera PR100 Series
The PR100 Series (PR100A / PR100B / PR100C) is designed for users who need a lightweight, energy-efficient trail camera that delivers professional image quality and minimal maintenance. With up to 12 months standby on just 4 AA batteries, 940nm black IR LEDs, and full HD 1080P video, it is a go-to option for wildlife researchers, forest rangers, and rural security personnel requiring long-term deployment in discreet settings.
OVERVIEW
Key Features & Advantages
- High-quality Capture: 20MP stills and 1080P @ 25FPS full HD videos
- Discreet Night Vision: 26 pcs 940nm black IR LEDs with 15m effective range
- Energy Efficient: Only 4 AA batteries needed for up to 12 months standby
- Fast Trigger Speed: 0.2–0.8s ensures timely response to motion events
- User-Friendly Mode: 3-photo + 10s video combo captures key movements without excessive memory use
- Wide Field Monitoring: 110° PIR detection angle with 120° lens coverage
- Durable Build: IP56 rated housing for dust and light rain protection
- Compact Form Factor: Slim and easy to conceal (135×90×55 mm, only 160g)
Application Scenarios
- Low-impact Wildlife Tracking in Research Zones – Lightweight build and black IR illumination prevent disturbance in sensitive environments
- Forest Logging and Site Management – 0.01mA standby current enables year-round unattended deployment
- Backyard or Perimeter Entry Surveillance – Wide 120° lens captures large field-of-view even in tight installation spots
- Budget-friendly Game Trail Setup – Simplified mode: 3 photos + 10s video per trigger ideal for resource-conscious projects
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Options
- Supports OEM logo engraving, custom retail packaging, and includes value-added accessories (card reader, USB cable, strap).
- Compatible with micro SD cards up to 32GB and certified CE, FCC, RoHS for regional compliance.
Parameters
| Product Code | PR100A PR100B PR100C |
| Image Sensor | 1.3MP Color CMOS |
| Photo Resolution | 20 MP |
| Video Resolution | FHD 1920×1080P @ 25FPS |
| Trigger Time | 0.2 – 0.8 s |
| Working Mode | 3 Photos + 10s Video |
| PIR Angle | 110° |
| Lens Angle | 120° Wide |
| IR LED | 26 pcs 940nm Black IR LEDs |
| IR Distance | 15 m |
| PIR Distance | 15 m |
| Memory Support | Max Micro SD 32GB |
| USB Slot | 5-pin USB 2.0 |
| Power Supply | 4 × AA batteries or DC 5V |
| Waterproof Rating | IP56 |
| Standby Time | 12 months |
| Standby Current | 0.01 mA |
| Operating Temperature | -10~+70℃ / -14~+158℉ |
| Product Dimensions | 135 × 90 × 55 mm |
| Net Weight | 160 g |
| Weight per Unit | 0.3 kg |
| Packing Size | 16 × 11.8 × 8.9 cm |
| Carton Quantity | 40 pcs |
| Carton Weight | 12.5 kg |
| Carton Dimensions | 45 × 33 × 48 cm |
| Certifications | CE, FCC, RoHS |

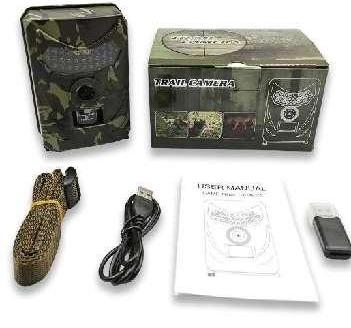

| Package Contents | Packaging Box, Strap x1, USB Cable x1, Manual x1, Card Reader x1 |
Let’s Work Together
Contact us now for OEM packaging or bulk pricing on PR100 series Memory Card Trail Cameras, ideal for low-cost deployment and entry-level wildlife projects.
