OVERVIEW

Key Features & Benefits

Multi-Mode Versatility

• Supports Photo / Video / Photo+Video / Timelapse modes
• Adjustable time-lapse intervals (5/10/30/60 mins) for plant growth or long-term studies
• PIR-triggered capture with 1-second response time

Clear Day & Night Imaging

• Selectable photo resolutions: 20MP / 16MP / 12MP
• Records 1080P / 720P / VGA video with audio
• 4×850nm IR LEDs enable 20m night vision—safe for wildlife and discreet for security

Compact & Easy to Deploy

• Lightweight (Net: 0.25 kg), compact (105×85×45 mm) design
• Mount via belt or tripod, suited for tight spaces or trail posts
• 2.0″ TFT screen for instant photo review and field adjustments

Efficient Power and Data Management

• Powered by 4×AA batteries, 2600mAh Li-ion, or external 6V DC
• Standby time: up to 6 months, with 0.1mA standby current

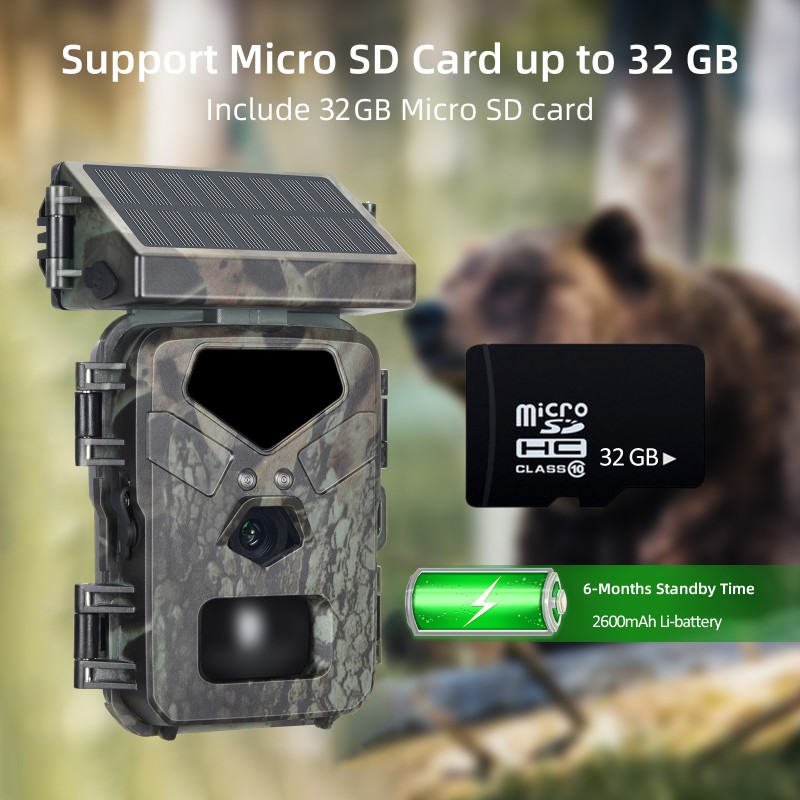

• Stores data on Micro SD card (up to 32GB) with overwrite option

Useful Features for Research and Reporting

• Time/date stamp, ISO settings, 4-digit password protection
• User-friendly interface in 13 languages (default: English)
• Type-C interface + audio recording + ISO adjustment = field-ready flexibility

Application Scenarios

In backyard birdwatching or small animal studies, users can deploy the unit on a tripod or strap for silent, infrared-triggered imaging.

For gardens, greenhouses, or poultry pens, this camera provides overnight visibility and daily time-lapse options to track plant growth or animal behavior.

In classroom field kits or nature camps, students benefit from clear 20MP images, easy playback on screen, and long battery standby with simple Type-C charging.

Customization Options

• OEM branding on camera shell, startup screen, and retail packaging
• Custom user manual with local language and wildlife tips
• Multi-unit kits with tripod, Li-ion cell, and SD card bundles
• MOQ available for outdoor retail brands, educational supply distributors, and nature clubs.

Parameters

Product Code	MiNi700W
Mode	Camera / Video / Camera&Video / Timelapse
Memory	Micro SD Card up to 32GB
Lens	F=2.0; FOV=60°
Size	105mm * 85mm * 45mm
G.W (Gross Weight)	0.25KG
N.W (Net Weight)	0.35KG
TFT Display Screen	2.0” Screen
Infra LED	850nm Infrared LEDs
PIR Sensitivity	High / Normal / Low
PIR Sensor Sight Angle	60 Degrees
Number of IR LED	4pcs
Max Night Vision Lighting Distance	65ft / 20 meters
Trigger Speed	1 second
PIR Interval	1/5/10/30 sec/min (default 1 sec)
Selectable Image Resolution	20MP / 16MP / 12MP
Continue shot	1/3/6/9
Video Resolution	1080P / 720P / VGA
Video length	10s / 30s / 60s / 90s
ISO	Auto / 100 / 200 / 400
Date Time Imprint	Yes
Time lapse	Yes (5/10/30/60 min)
Power Supply	4×AA battery or external DC 6V 1.5A or 2600mAh Li-ion +18650*1pcs
Password Security	4 digital PIN codes
Over write	Off / Yes
Timer	00:00:00 to 23:59:59
Record Audio	Off / Yes
Interface	Type-C, Micro SD Card jack, 6V DC External jack
Stand-by current	0.1mA
Stand-by time	6 Months
Fix Method	Mount Belt, Tripod mount
Water proof	IP65
Language	13 languages, default English
