20MP 2G GSM Trail Camera 6-Month Standby with 20m IR Night Vision HC801M
This 2G GSM-enabled Trail Camera is a practical surveillance solution for users who require unattended monitoring in remote areas without relying on high-bandwidth connections or mobile apps. Equipped with a 5MP CMOS sensor, multi-angle PIR detection, and support for MMS/email/SMS alerts, it’s ideal for wildlife conservationists, farmland managers, and security patrols looking for durable, easy-to-deploy monitoring equipment with minimal power usage.
OVERVIEW
Key Features & Benefits

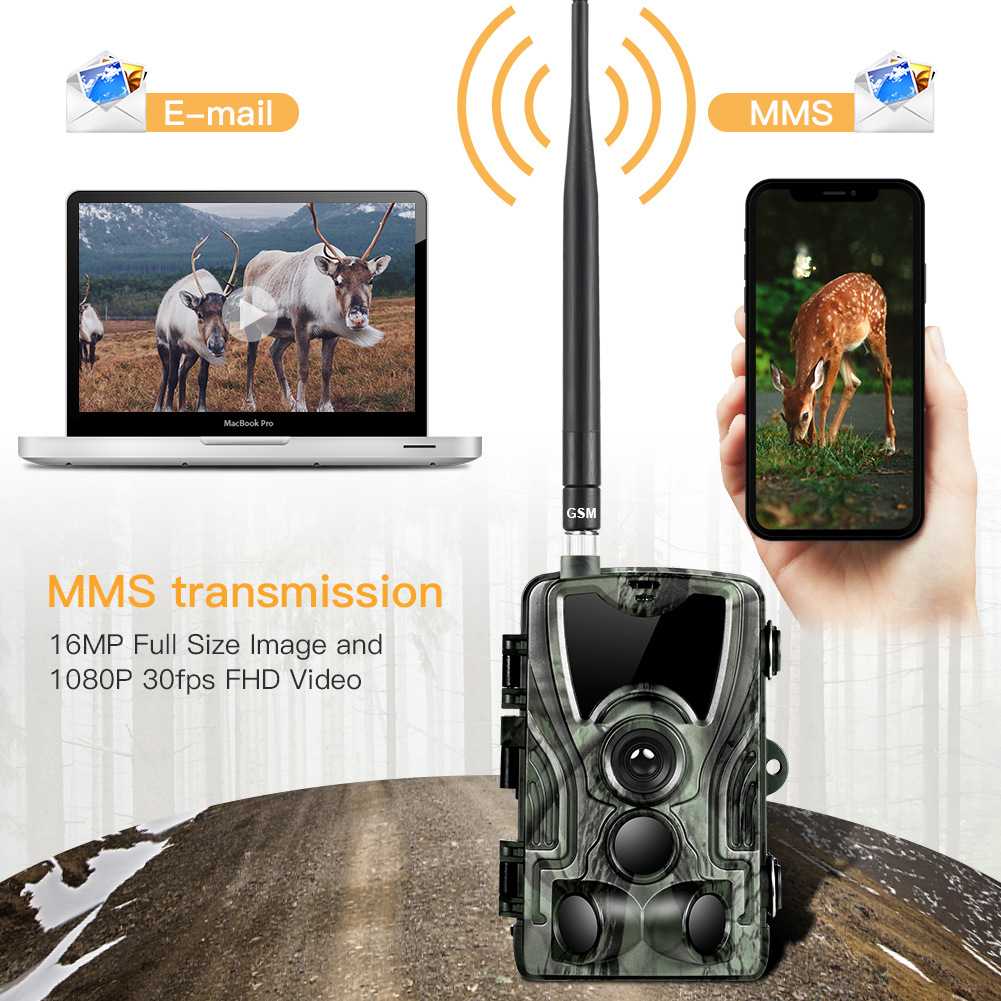

Reliable 2G Connectivity with Push Alerts
- Supports MMS, SMTP (email), and SMS messaging
- Enables app-free real-time photo alerts, suitable for low-infrastructure zones

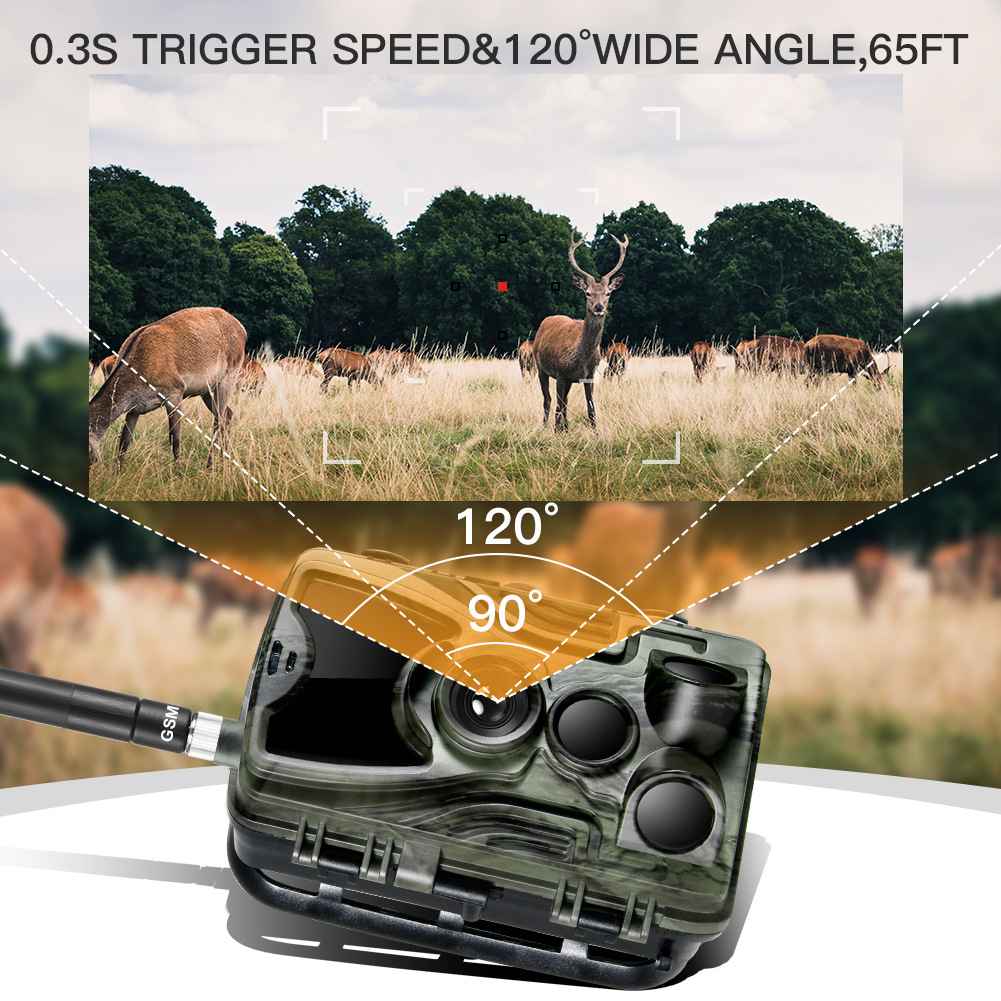

Fast Trigger, Smart PIR Motion Detection
- 0.3-second activation time
- 3 PIR sensors covering 120° detection zone for wide coverage and reduced false triggers
- Night vision range up to 20 m with 44 pcs 940nm no-glow IR LEDs
Versatile Imaging and Recording
- Photo resolutions up to 20MP
- Video capture at 1080P / 720P / WVGA, compressed in H.264 format for efficient storage
- 2.4” TFT color display for convenient in-field playback
Long Runtime, Rugged Build
- Runs on 8×AA batteries or external 9V DC input
- Up to 6 months standby time, supporting seasonal deployments
- IP65 waterproof and cold-resistant from -20℃ to +60℃
Compact and Field-Ready
- Small footprint (135 × 90 × 76 mm) and lightweight (0.32 kg) for easy concealment
- Packaged with standard accessories and suitable for high-volume, low-cost rollouts
Application Scenarios
In conservation reserves or wildlife corridors, the device’s 44 no-glow IR LEDs and 0.3-second trigger time make it effective for night monitoring without disturbing animal behavior.
For rural farms and fences, its SMS/MMS capabilities ensure you’ll receive alert photos directly to your phone, even in areas without 4G signal.
In budget-conscious security projects, the IP65 waterproof housing and 6-month standby time support long-term deployment with minimal maintenance or recharging needs.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Options
- OEM logo printing on device and interface
- Customized MMS/SMS gateway configurations for regional markets
- 12-language support with multilingual instruction manuals
- MOQ available for rural security integrators, agricultural equipment resellers, and wildlife NGOs.
Parameters
| Product Code | HC801M |
| Sensor | 5.0 Mega Pixels CMOS |
| Lens | FOV=90° with Auto IR Filter |
| PIR Sensing Angle | 3 PIR, 120° |
| Photo Resolutions | 20MP / 16MP / 12MP / 8MP |
| Video Resolutions | 1080P / 720P / WVGA |
| Night Vision Range | 20 meters with 44 pcs 940nm IR LEDs |
| Trigger Time | 0.3 seconds |
| Display | 2.4″ Color TFT LCD |
| Standby Time | Approx. 6 months |
| Operating Temperature | -20℃ to +60℃ |

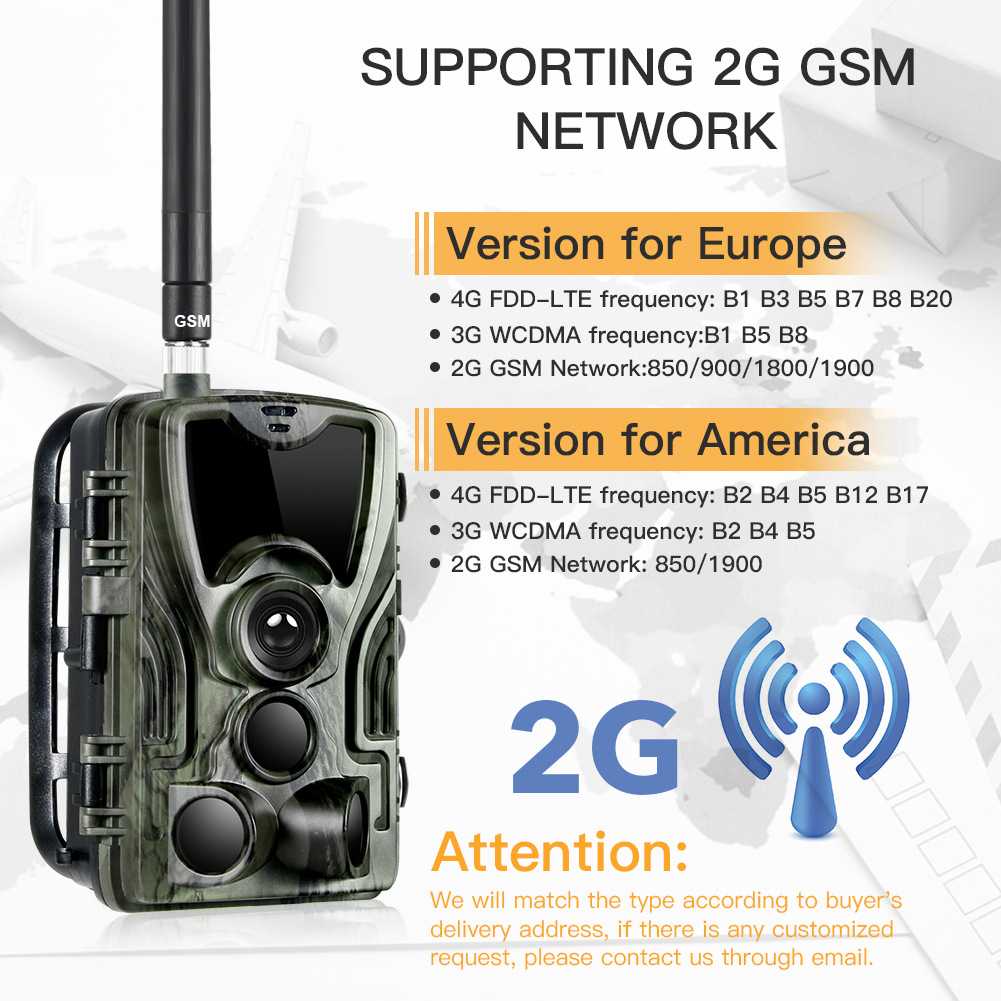

| Communication | 2G GSM |
| MMS/SMTP/SMS Support | Yes |
| Video Compression | H.264 |
| Power Supply | 8 × AA batteries or external power 9V 1.5A DC |
| Language Support | 12 languages (default English) |
| Waterproof Rating | IP65 |
| Unit Size | 135 × 90 × 76 mm |
| Unit Net Weight | 0.32 kg/pc |
| Color Box Size | 165 × 126 × 110 mm |
| Color Box Weight | 0.52 kg/pc |
| Packing Quantity | 18 pcs/ctn |
| Carton Dimensions | 51 × 35 × 27 cm |
| Carton Gross Weight | 10.5 kg/ctn |
Need a reliable, low-cost Trail Camera with 2G connectivity and long-term deployment support?
Contact us today for OEM branding, gateway configuration, and project pricing.
