OVERVIEW

Key Features & Benefits

True Off-Grid Operation with Solar Panel Ready Design

• Built-in 2200mAh lithium battery plus support for 3×18650 cells
• Supports 12V external power input via Type-C and solar ports
• Standby power draw only 0.1mA, allowing up to 6 months idle time

 Real-Time Control with 4G App Integration

• Works with SuntekCam or TCamPro mobile platforms
• View photos/videos live, push alerts and 30s clips via cloud
• Change camera settings remotely without physical access

High-Resolution Imaging and Video

• Selectable image sizes: 30MP / 24MP / 20MP
• 2K video at 30fps, also supports 1080P / 720P
• Date/time and GPS coordinates stamped for documentation and geolocation

Wide PIR and Stealth IR Detection

• 3 PIR sensors with 90° angle, trigger speed 0.5s
• Low-glow infrared with 4 high-power 940nm IR LEDs
• Night vision range: 65 ft / 20 m—ideal for nocturnal species or nighttime intrusions

Security & Compliance

• 4-digit PIN protection

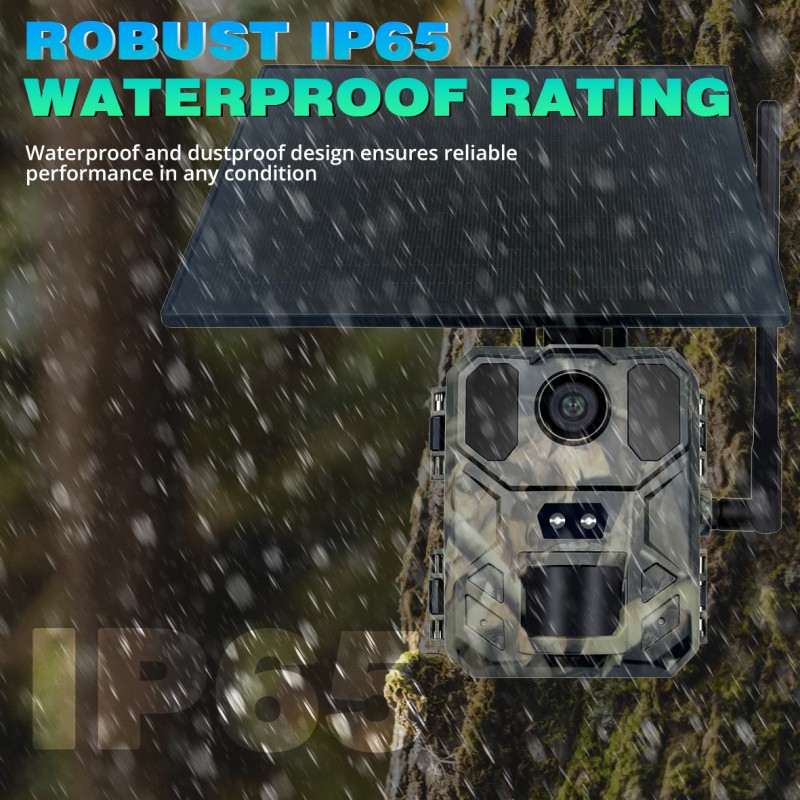

• Waterproof rating: IP65
• Certified for FCC, CE, RoHS, REACH, RED standards

Application Scenarios

In wildlife corridors or nature reserves, the camera captures up to 30MP stills with low-glow IR and sends live footage or 5–30s video clips to cloud platforms for research or review.

For farm perimeters, eco-parks, or solar infrastructure, its solar-ready design, 0.1mA standby draw, and 6-month idle time reduce maintenance while ensuring 24/7 coverage.

In remote construction zones or border patrol, its GPS-tagged visuals, password security, and real-time alerts enhance situational awareness and response.

Customization Options

• OEM branding on camera housing, boot screen, and mobile app
• Pre-loaded SIM + regional LTE band configuration
• Cloud platform and FTP/SMTP endpoint integration
• MOQ programs available for conservation tech providers, IoT security distributors, and solar deployment partners.

Parameters

Product Code	MiNi900Pro
Image Sensor	5 Mega Pixels Color CMOS
Memory	Micro SD Card up to 512GB
Lens	F=3.1; FOV=120°
Camera Size	100*98*60mm
Solar Panel Size	184*157*97mm
LED	Low Glow Infrared LEDs
PIR Distance	High/Normal/Low
PIR Sensor Sight Angle	90 Degrees (3 PIRs)
Number of IR LED	4pcs High power IR LEDs
Max Night Vision Lighting Distance	65ft / 20 meters
Trigger Speed	0.5 second
Triggering Interval	1/5/10/30sec (default 1 sec)
Selectable Image Resolution	30MP / 24MP / 20MP
Multiple Photo on one detection	1/3/6/9
Video Resolution	2K (30fps) / 1080P / 720P
Full Size Photo Transmission	Yes
Video sending	Yes (picture and 5s–30s video send APP Cloud, Live Video)
Date Time Imprint	Yes
Time lapse	Yes
GPS Location	Longitude and Latitude stamped
Password Security	4 digital PIN codes
Frequency Bands	FDD-LTE: B1/B3/B5/B7/B8/B20; TDD-LTE: B38/B40/B41; WCDMA: B1/B5/B8; GSM: 900/1800
APP	SuntekCam or TCampro
APP Function	Change camera settings; View photos and videos in real time
Interface	TYPE-C jack; TF Card Holder; SIM card jack; 12V DC External plug
Stand-by current	0.1mA
Stand-by time	6 Months
Power Supply	Built-in 2200mAh 18650 lithium battery; 3×18650 batteries
Fix Method	Belt, Tripod mount
Water proof	IP65
Security authentication	FCC, CE, RoHS, REACH, RED
