OVERVIEW

Key Features & Advantages

Versatile High-Resolution Imaging

• Capture crisp visuals with up to 36MP still photos
• Record smooth videos in 2.7K, 1080P, 720P, or WVGA formats
• Ideal for close-up documentation or broader habitat coverage

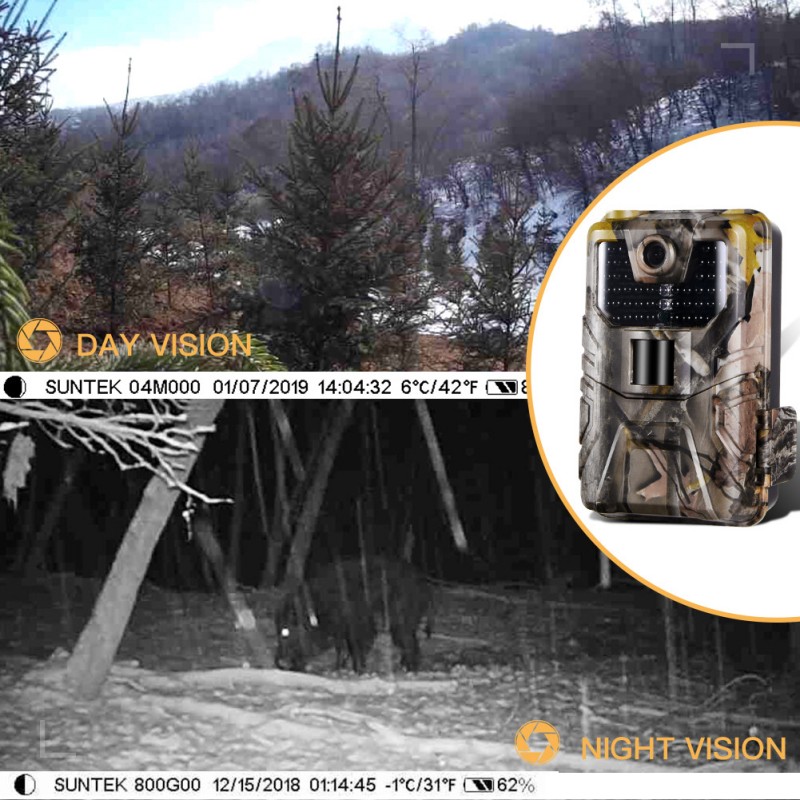

Enhanced Infrared Night Vision

• 44 pcs 940nm no-glow IR LEDs offer 20m night range
• Auto IR filter ensures accurate transition between day and night
• Suitable for nocturnal animal behavior studies or silent property monitoring

Fast, Intelligent Motion Capture

• Trigger speed: 0.3 seconds—ready for fast-moving targets
• Main PIR sensor: 90° angle, wide enough to reduce blind zones
• Reduces false triggers while capturing critical movement

Large Memory Card Storage

• Supports Micro SD cards up to 256GB (not included)
• Operates independently—no SIM, Wi-Fi, or app required
• Built-in H.264 compression optimizes file size for long-term capture

Field-Ready Design and Long Operation

• Powered by 8×AA or 9V 1A DC external input
• Up to 6 months standby time for unattended long-term use

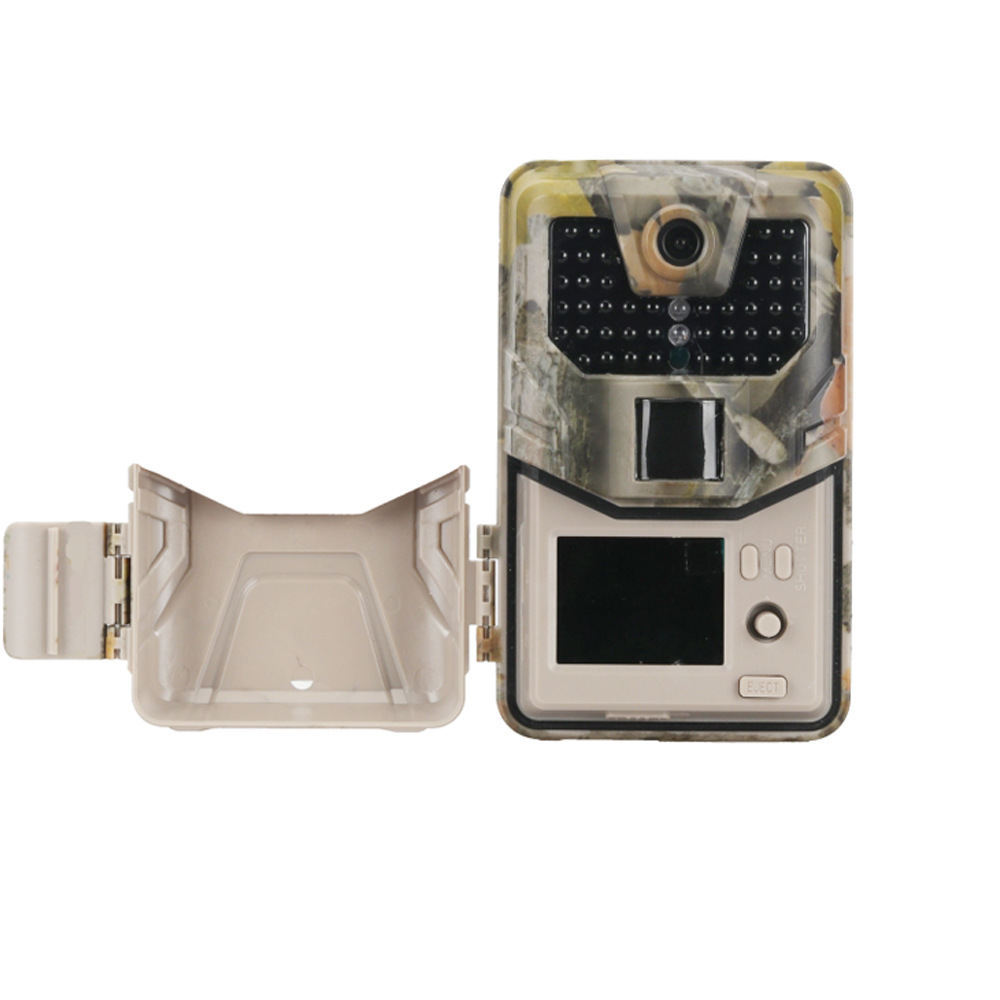

• 2.0″ color TFT LCD screen for in-field playback and setting adjustment
• IP65 waterproof housing protects from dust, rain, and temperature shifts

Application Scenarios

• In wildlife observation or species monitoring, users benefit from sharp 36MP images and stealth 940nm IR for nighttime data without spooking animals.
• On small farms or orchards, this camera offers motion-activated surveillance and long battery life, storing data directly to a 256GB Micro SD card.
• For environmental studies or outdoor classrooms, the multilingual menu, time-lapse options, and durable waterproof design make it a top educational tool.

Customization Options

• OEM branding on shell, boot screen, and packaging
• SD card bundles, instructional sticker overlays, solar adapter support
• Preconfigured language packs or startup settings for regional deployments
• MOQ supported for wildlife gear distributors, agricultural equipment dealers, and surveillance solution providers.

Parameters

Product Code	HC900A
Sensor	5.0 Mega Pixels CMOS
Lens	FOV=90° with Auto IR Filter
PIR Sensing Angle	Main PIR 90°
Photo Resolution Options	36/24/20/16/12/8/5/3/1 MP
Video Resolutions	2.7K / 1080P / 720P / WVGA
Memory Support	Micro SD Card up to 256GB
Night Vision Range	20 m with 44 pcs 940nm IR LEDs
Trigger Time	0.3 s
Screen	2.0″ COLOR TFT LCD
Standby Time	Approx. 6 months
Operating Temperature	-20°C to +60°C
H.264 Support	Yes
Power Supply	8 × AA or External 9V 1A DC
Language Support	12 languages (default: English)
Waterproof Rating	IP65
Product Dimensions	145 × 80 × 55 mm
Net Weight per Unit	0.40 kg
Color Box Dimensions	122 × 170 × 95 mm
Gross Weight per Unit	0.55 kg
Carton Quantity	20 pcs
Carton Dimensions	50 × 35 × 27 cm
Carton Weight	10.5 kg
