OVERVIEW

Key Features & Benefits

4G LTE Cellular Control + Real-Time Access

• Supports global 4G LTE bands (FDD B1/B3/B5/B7/B8/B20; TDD B38/B40/B41; GSM & WCDMA fallback)

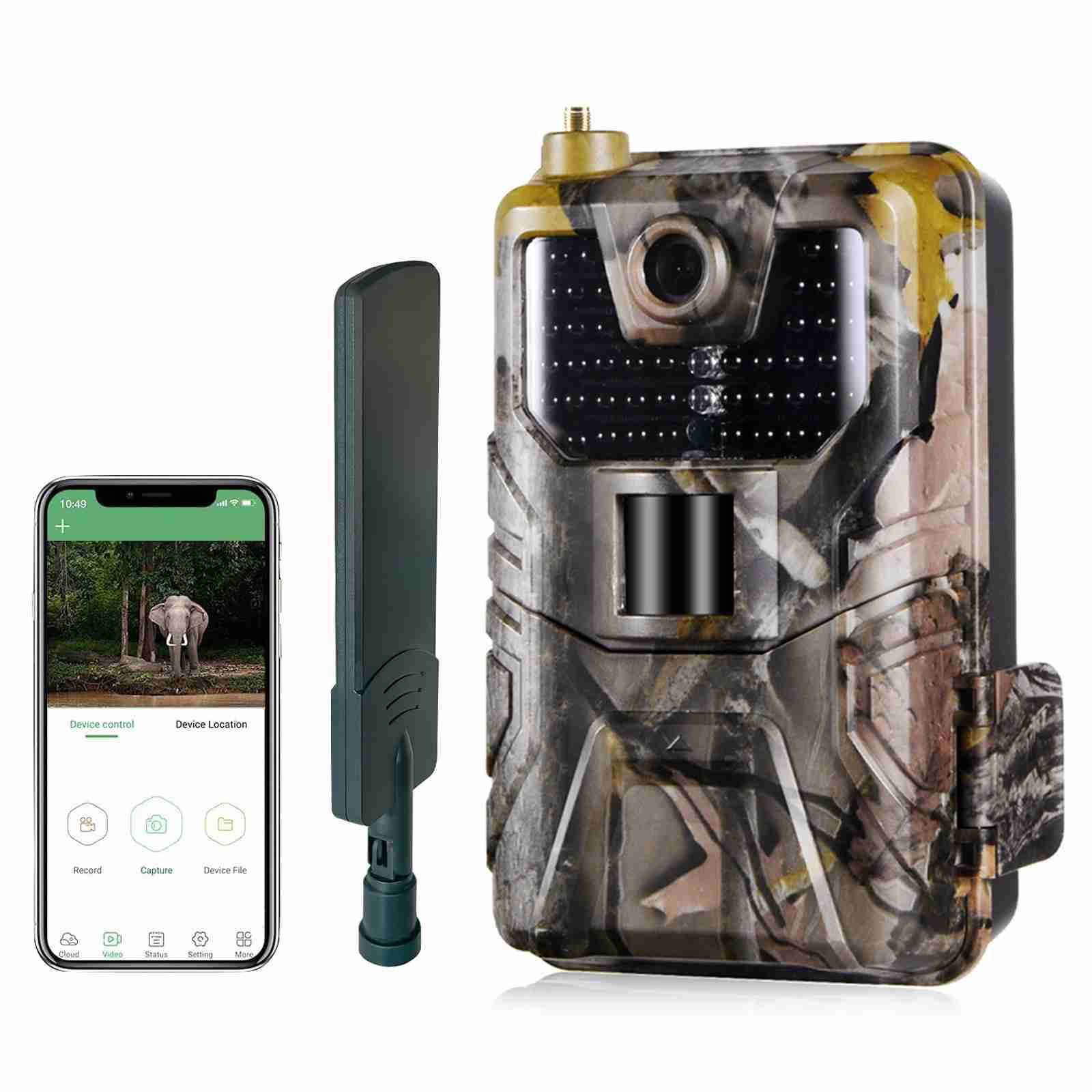

• Real-time app connection via SuntekCam / TCamPro for live preview, 5–30s video clip transmission, and instant alerts
• View camera output and adjust settings without on-site visits

Superior Imaging and Video Performance

• Captures crisp 36MP / 30MP / 24MP / 20MP photos
• Records 4K video at 30fps, stored in AVI format, with sound
• Choose between Photo / Video / Hybrid / Time-lapse modes for flexibility

Night Vision That Stays Invisible

• 2 high-power 940nm IR LEDs offer no-glow night coverage up to 20m (65 ft)
• IR detection sensitivity and angle adjustable (90°)—ideal for stealth wildlife monitoring

Extended Standby + Secure Power Options

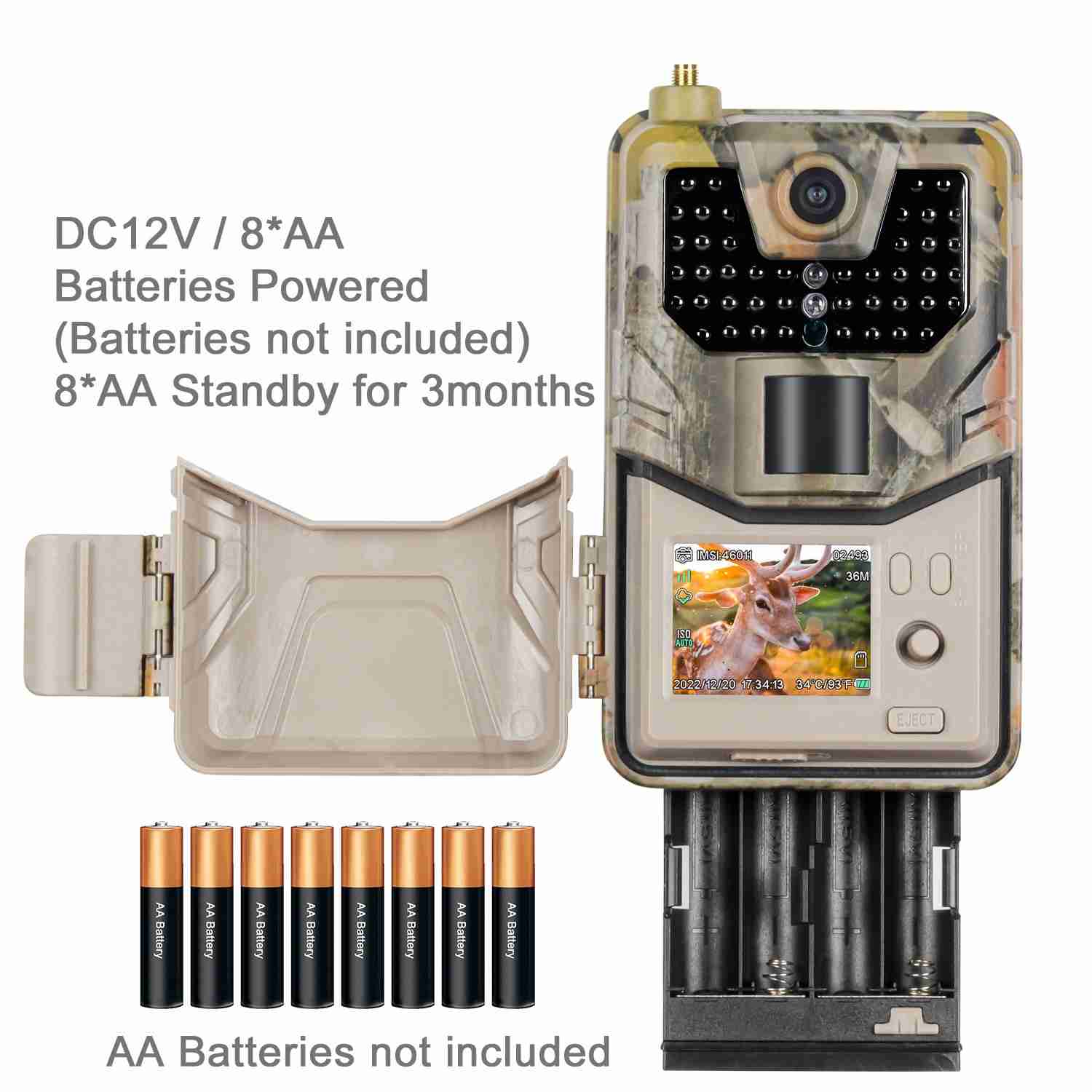

• Powered by 8×AA batteries or 12V/2A solar/external adapter
• Up to 6 months standby time for autonomous field operation
• Supports timed photo shooting, interval shooting, and multi-shot bursts (up to 10)

High-Capacity & Secure Storage

• Supports TF cards up to 512GB for high-volume storage
• Equipped with USB2.0 interface, SIM slot, and solar power input
• Includes timestamp, password protection, and multi-language UI

Application Scenarios

In wildlife research and conservation zones, this unit offers 36MP ultra-clear photo capture, 940nm infrared for invisible night monitoring, and clip previews for quick behavioral insights.

For ranchers, remote facility owners, or forest rangers, the system provides real-time alerts, 4K video records, and six-month standby with solar compatibility—ideal for long unattended deployments.

In smart infrastructure or energy field security, the 512GB TF card support and multi-band 4G LTE/GSM coverage allow full area recording with data accessible from HQ.

Customization Options

• OEM branding on device casing, boot-up screen, and retail box
• Custom pre-installed SIM & cloud destination settings (FTP/SMTP)
• Localized firmware (13-language support, default English)
• MOQ programs available for wildlife technology vendors, security integrators, and outdoor surveillance system distributors.

Parameters

Product Code	HC900PRO
Image Sensor	5MP CMOS Sensor
Storage	TF card, supports up to 512GB
Lens	F=3.1; FOV=90°
Camera Size	150mm × 120mm × 70mm
Screen Size	2.0″ TFT LCD
IR Light	2 high-power infrared lamps
IR Wavelength	940nm infrared
IR Detection Sensitivity	High/Medium
IR Detection Angle	90°
IR Night Vision Distance	65 feet / 20 meters
Shooting Modes	Photo/Video/Photo + Video/Time-lapse
Working Mode	1/5/10/30s (adjustable)
Timer Shot	Yes
Photo Resolution	36MP / 30MP / 24MP / 20MP
Continuous Shooting	3/6/10 shots selectable
Video Resolution	4K (30fps) / 2K / 1080P
Video Format	AVI
Video Transmission	Clip (5s–30s) with app preview, live video
Timestamp	Yes, supports time, date, temperature
Timed Photo	Yes
Password	4-digit numeric password
Supported Bands	FDD-LTE: B1/B3/B5/B7/B8/B20; TDD-LTE: B38/B40/B41; WCDMA: B1/B5/B8; GSM: 900/1800
App	SuntekCam / TCampro
App Functions	Remote photo/video preview, real-time push notifications
Interface	USB2.0 port for data, TF card slot, SIM card slot, 12V solar panel input
Instant Current	0.1A (instant)
Standby Time	6 months
Power Supply	8×AA 1.5V batteries or 12V/2A adapter
Mounting	Strap, tripod
Waterproof Rating	IP65
Languages	13 languages, default English
Certifications	FCC, CE, RoHS, REACH, RED
