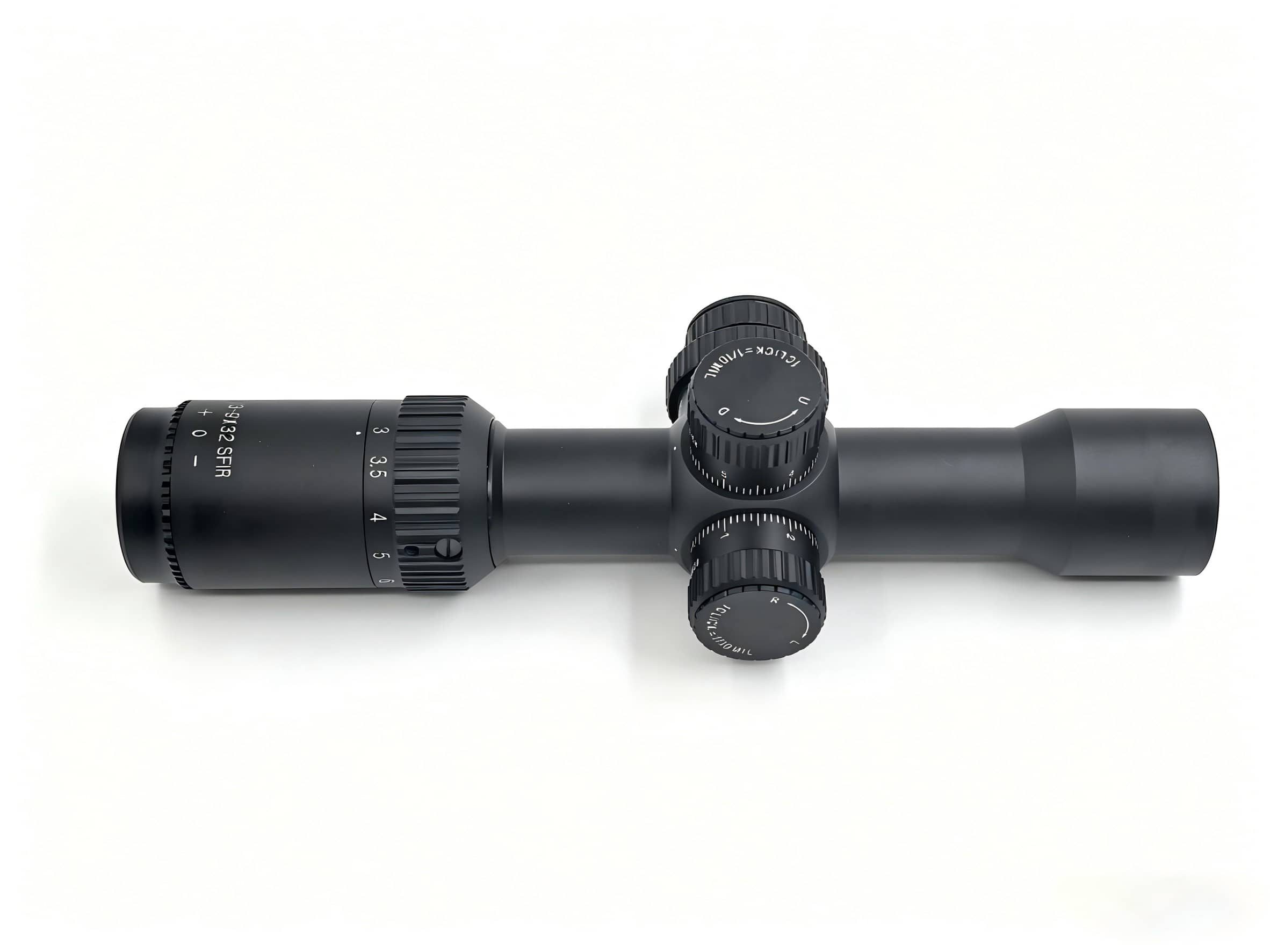

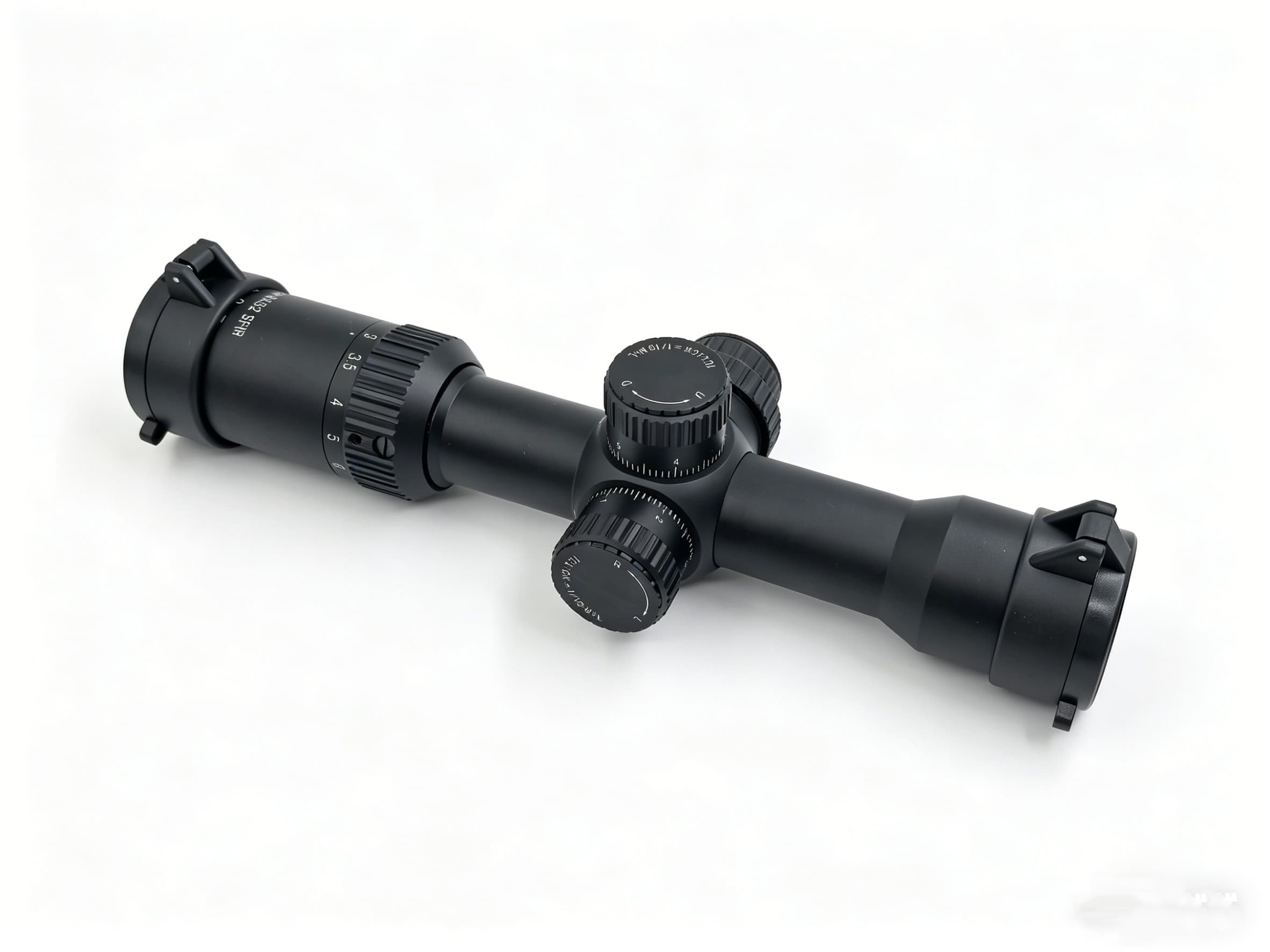

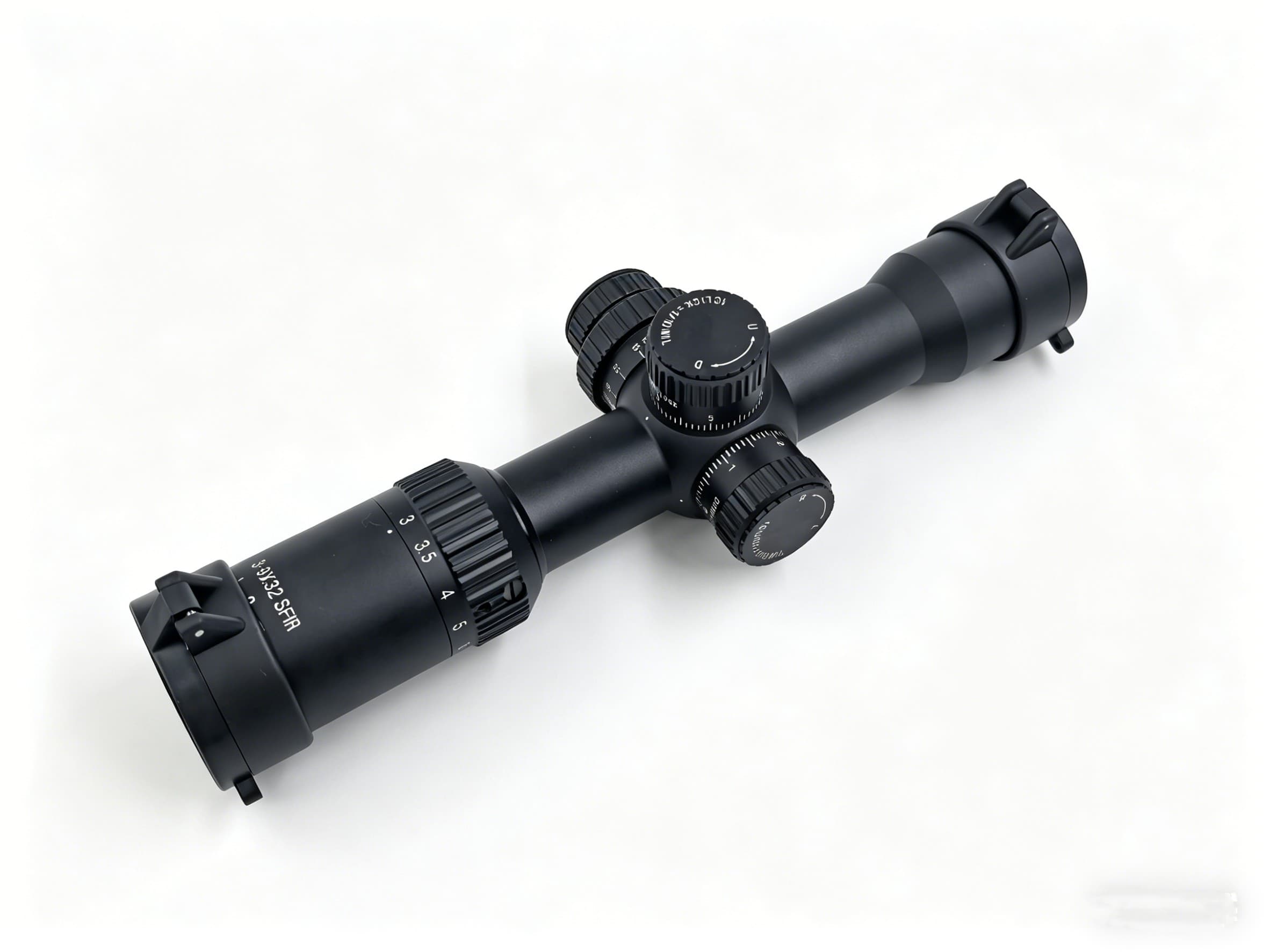

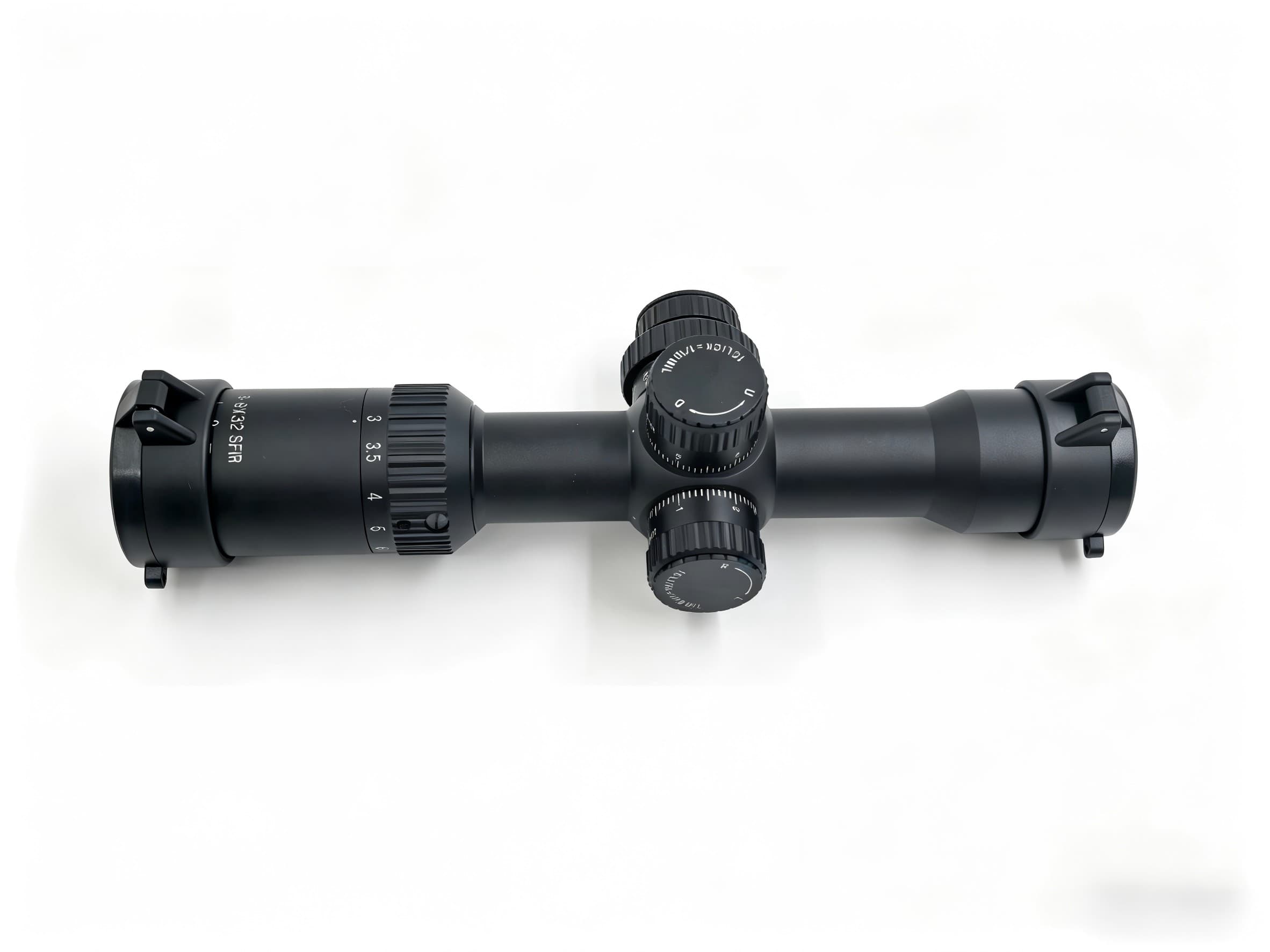

3X-9X Short Range Rifle Scopes BEM3-9X32SFIR
The BEM3-9X32SFIR Short Range Rifle Scope is a compact 3X-9X illuminated rifle scope built for close-range shooting, short-to-mid range hunting, tactical training, AR platform rifles, and range practice. It features a 32 mm objective lens, 30 mm tube, red illuminated SFP reticle, broadband multi-layer green coating, and side parallax adjustment from 5 yards to infinity for flexible field use.
Â
With 1/10 MIL adjustment, ±16 MIL windage and elevation range, push-pull self-locking turrets, 1200G shockproof performance, and IPX5 waterproof/fog-proof protection, this model is suitable for outdoor shooting and private label optics programs.
OVERVIEW
Key Advantages and Features
- 3X-9X magnification for close-to-mid range shooting
- 32 mm objective lens with broadband multi-layer green coating
- Red illuminated SFP special reticle
- Side parallax adjustment from 5 yds to infinity
- 30 mm tube diameter for mainstream mounting compatibility
- 90-96 mm eye relief for comfortable shooting
- ±16 MIL windage/elevation range, 1/10 MIL click value
- Push-pull self-locking turret to reduce accidental adjustment
- 1200G shockproof performance
- IPX5 waterproof, nitrogen-filled, and fog-proof protection
- 6061-T6 body with black matte anodizing
- Adjustable diopter for user-friendly focusing
Application Scenarios:
Close-Range and Short-to-Mid Range Shooting
The 3X-9X magnification and 33.1-11.4 ft field of view @100 yds help users aim quickly at close range while keeping enough precision for medium distances.
Hunting and Brush Field Use
The red illuminated reticle, IPX5 waterproof/fog-proof protection, and compact 244 mm body length make this model suitable for brush hunting, hog hunting, and woodland field use.
Tactical Training and Range Practice
The 1/10 MIL click value, ±16 MIL windage/elevation range, and push-pull self-locking turret support repeatable adjustment during tactical drills and range shooting.
AR Platform and Entry-Level Rifle Builds
With a 30 mm tube, 90-96 mm eye relief, and 594 g weight, this model fits AR-style rifles and general-purpose firearm setups for entry-to-mid level markets.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Customizable Part B2B Value
- Logo Branding Supports private label rifle scope lines
- Reticle Design Special reticle can be adjusted for hunting or tactical markets
- Illumination Red light system with CR2032 battery
- Packaging Retail box, neutral box, or custom brand packaging
- Accessories Lens caps, cleaning cloth, mounts, manual, or battery accessories
- OEM/ODM Support Suitable for custom Short Range Rifle Scopes projects
Parameters
| Product Code | BEM3-9X32SFIR |
| Magnification | 3X–9X |
| Weight | 594 g |
| Length | 244 mm |
| Objective Lens Diameter | 32 mm |
| Eye Relief | 90–96 mm |
| Tube Diameter | 30 mm |
| Illumination | Red light |
| Field of View @ 100 yds | 33.1–11.4 ft @ 100 yds |
| Reticle | Special reticle |
| Lens Coating | Broadband multi-layer green coating |
| Side Parallax Adjustment Range | 5 yds to ∞ |
| Elevation Adjustment Range | ±16 MIL; 1 click = 1/10 MIL |
| Windage Adjustment Range | ±16 MIL; 1 click = 1/10 MIL |
| Locking Method | Push-pull self-locking |
| Shockproof | 1200G |
| One-Piece Tube | No |
| Adjustable Diopter | Yes |
| Nitrogen Filled / Waterproof / Fogproof | IPX5 |
| Exit Pupil Diameter | Ø6.9 mm – Ø3.3 mm |
| Focal Plane Position | SFP Reticle |
| Material | 6061-T6 |
| Surface Treatment | Black Matte Anodizing |
| Battery Specification | CR2032 |
| Zeroing Function | NO |
Looking to elevate your optical lineup?
For B2B buyers, customization options can include logo branding, reticle design, packaging, accessories, manuals, and OEM/ODM configuration.
Contact us to discuss your customized Short Range Rifle Scopes solution for hunting, tactical, or range markets.
