OVERVIEW

Key Advantages and Product Features

• 3X fixed magnification for short-to-mid range shooting
• 24mm / 30mm objective lens options
• Multi-coated glass for clear viewing
• 69.2mm eye relief for comfortable aiming
• 7.3° field of view for fast target awareness
• 0.25 MOA click value for precise adjustment
• 100 MOA elevation / windage range
• CR2032 side-loading battery for easy replacement
• 8 daytime + 2 NV illumination settings
• CNC 6061 aluminum housing with anodized matte black finish
• Compact size: 73–78mm length with mount
• Lightweight design: 250g / 253g
• Waterproof 1m for 30 minutes, fogproof, and 1000Gs shockproof
• Operating temperature: -20°C to 40°C

Application Scenarios:

AR Rifle and Tactical Shooting

The compact body, 36mm optical axis height, and included mount design make these Prism Scopes suitable for AR-style rifles and tactical setups.

CQB Training and Short-Range Shooting

With 3X magnification, 7.3° field of view, and 38.2 ft field of view at 100 yards, these scopes support fast aiming and short-to-mid range target engagement.

Hog Hunting and Brush Hunting

The 8 daytime + 2 night vision illumination settings help users adapt to changing light conditions in woodland, brush, and low-light hunting environments.

Range Practice and Training Optics

The 0.25 MOA click value, 100 MOA elevation range, and 100 MOA windage range offer practical adjustment for zeroing and range practice.

Customizable Features

• Logo Branding Supports private label Prism Scopes
• Reticle Design Can be adapted for tactical, hunting, or range markets
• Illumination Setting 8 daytime + 2 NV settings support different user needs
• Mount / Base Mount style can be discussed for AR and tactical rifle platforms
• Housing Finish Matte black anodized finish; custom finish options available by project
• Packaging Retail box, neutral box, or customized brand packaging
• Accessories Lens caps, tools, cleaning cloth, battery, mount, and manual
• OEM/ODM Support Suitable for custom rifle optics product lines

Parameters

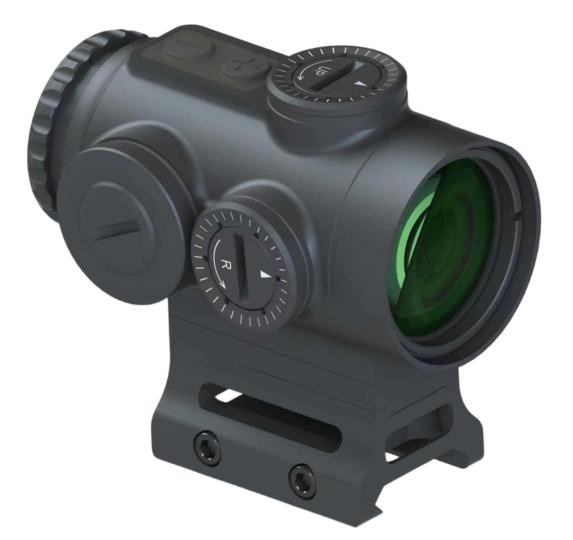

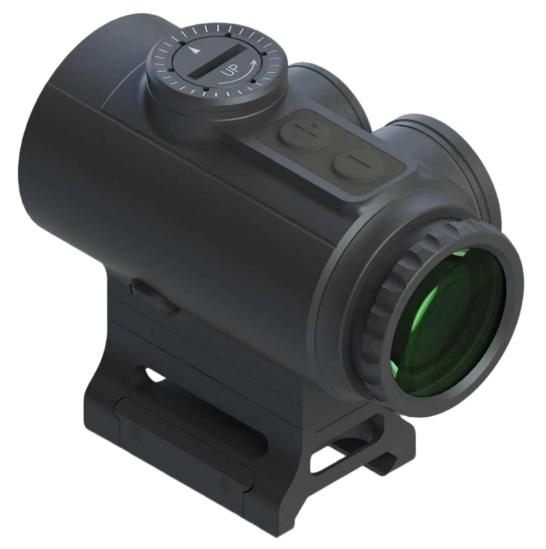

Product Code	RUT324PR	RUT330PR
Reticle
Magnification	3X	3X
Objective Lens Dia	24mm	30mm
Lens Material	Multi-Coated Glass	Multi-Coated Glass
Eye Relief	69.2mm	69.2mm
Exit Pupil	8mm	10mm
Field of View	7.3°	7.3°
Height of Optical Axis	36mm	36mm
Field of view m@100M	12.8m	12.8m
Field of view feet@100yards	38.2feet	38.2feet
Parallex  Setting	100 yards	100 yards
Parallex	≤1MOA	≤1MOA
Click Vlue	0.25MOA	0.25MOA
Total Elevation Range	100 MOA (±50MOA)	100 MOA (±50MOA)
Total Windage Range	100 MOA (±50MOA)	100 MOA (±50MOA)
Battery	CR2032, Side loading	CR2032, Side loading
Illumination Setting	8 daytime & 2 NV	8 daytime & 2 NV
Housing Material	CNC Aluminum Housing, 6061	CNC Aluminum Housing, 6061
Housing Surface	Anodized	Anodized
Housing  Color	Matt Black	Matt Black
Size (LxWxH)	73×44.3×66.4mm (w/ mount)	78×44.3×66.4mm (w/ mount)
Weight	250g	253g
Waterproof	1M, 30min	1M, 30min
Shockproof	1000Gs	1000Gs
Fogproof	Yes	Yes
Operating Temp.	-20℃  ~  40℃ (-4℉ ~ 104℉)	-20℃  ~  40℃ (-4℉ ~ 104℉)
Storage Temp.	-30℃  ~  50℃ (-22℉ ~ 122℉)	-30℃  ~  50℃ (-22℉ ~ 122℉)
