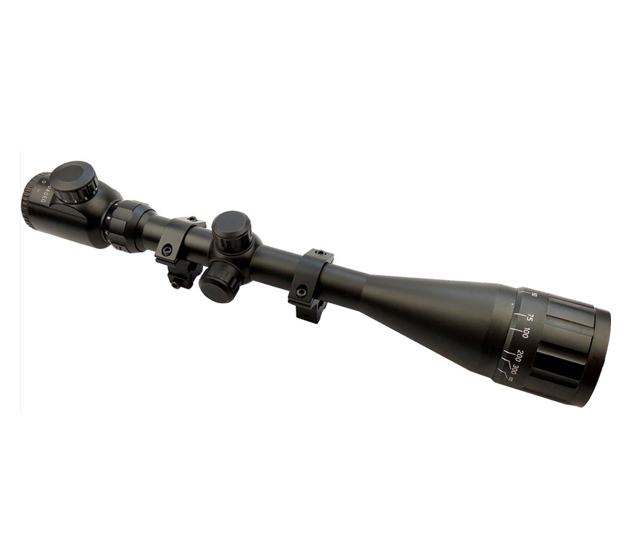

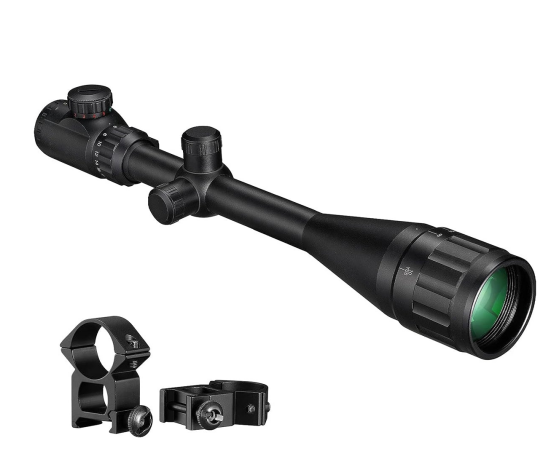

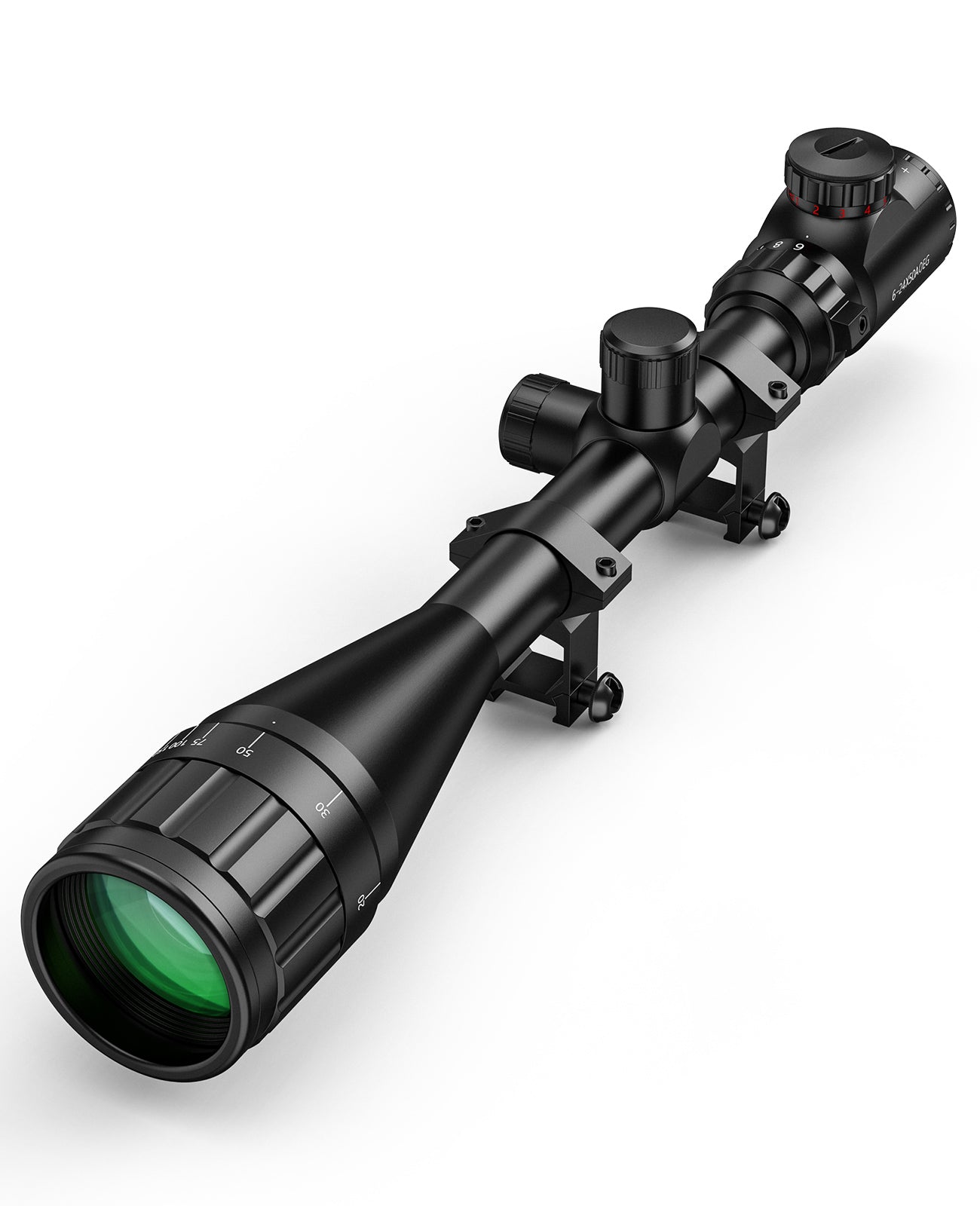

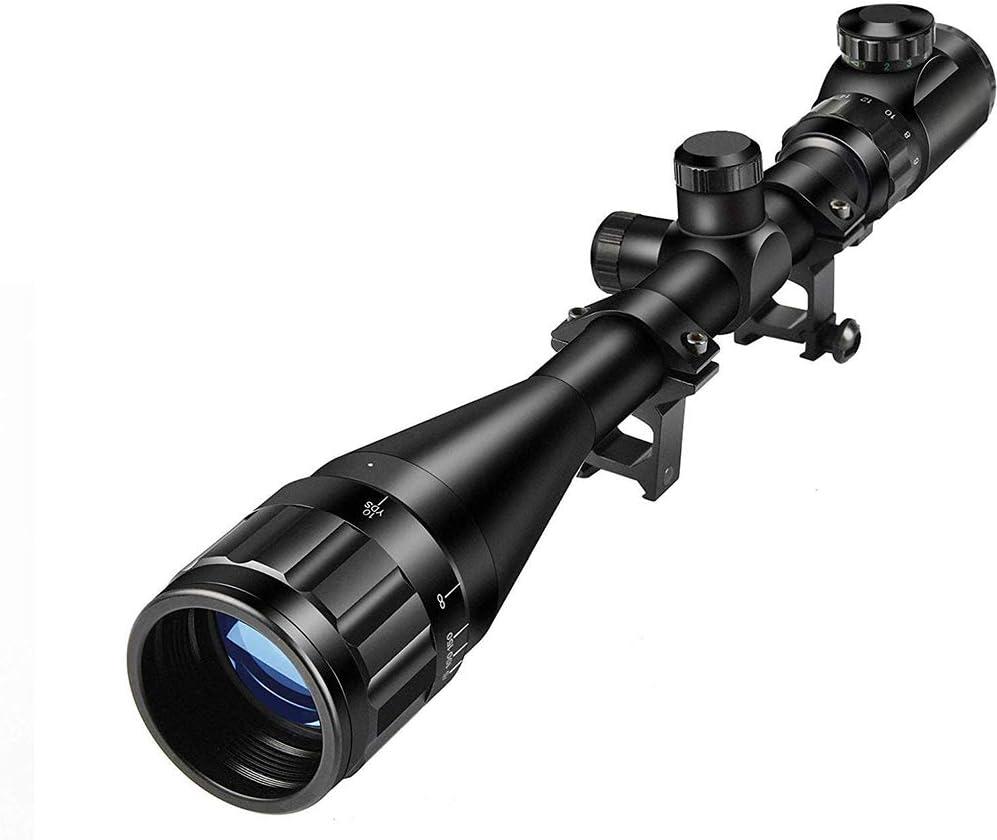

4–16×40 Short Range Rifle Scope SHM4-16X40AOEG

Designed for precision shooters and hunters seeking clarity and control across a wide zoom range, this 4–16x scope features a 40mm clear aperture, 25.4mm tube, and compact 345mm profile. Its strong 4x base magnification is ideal for close-quarter engagements, while the 16x upper range ensures mid-distance target identification with ease.

Get A Quote

OVERVIEW

Key Advantages and Features

  • Wide Magnification Range (4x–16x): Optimized for both short-range accuracy and mid-range flexibility.
  • Large 40mm Clear Aperture: Maximizes light intake for bright, high-contrast images.
  • Exit Pupil Adaptability: From 10mm at low power for quick eye alignment to 2.5mm at high magnification for sharp focus.
  • Comfortable Eye Relief: 85–75mm ensures shooter safety and reduced fatigue under recoil.
  • Field of View: Wide angular vision from 3.8° to 1.1° ensures situational awareness.
  • Rugged Durability: Operates from -5°C to +43°C with fogproof and waterproof sealing for demanding environments.
  • Precision Diopter Compensation: +/-5D range supports customized focus for shooters with vision variation.

Application Scenarios:

Perfectly suited for forest hunting, range shooting, and competitive marksmanship training, this scope performs exceptionally in short-range tactical drills and mid-range varmint control. It excels in daylight field use where rapid acquisition and variable zoom flexibility are essential.

Customizable for Your Brand

Logo and firmware customization available

OEM/ODM support with low MOQ

Custom language interface and startup screens

Quote for Customization

Customizable Features

  • Reticle styles (e.g. duplex, mil-dot, BDC)
  • Logo and branding (laser engraving, packaging)
  • Finish and housing color options
  • OEM scope turret and diopter configurations

Parameters

Product CodeSHM4-16X40AOEG
Magnification (Low) 4X
Magnification (High)16X
Clear Aperture (mm) 40
Exit Pupil Diameter (mm)10–2.5mm
Length (mm)345mm
Tube Diameter (mm)25.4mm
Eye Relief (mm)85–75mm
Field of View3.8°–1.1°
Range of Function Temperature “-5°C/+43°C
Storage Temperature5°C to +23°C
Range of Dioptric Compensation +/- 5 dpt
