OVERVIEW

Key Advantages and Features

• Reliable Tactical Performance: ±30 MOA adjustment range enables swift corrections for ballistic offset, ensuring high-precision shots.
• Sharp Optical Clarity: 26 mm objective lens paired with a 6 mm exit pupil delivers clear imagery in diverse lighting environments.
• Compact & Lightweight Design: Measuring only 10.2 inches in length and weighing just 18.5 oz, it’s highly portable and mission-ready.

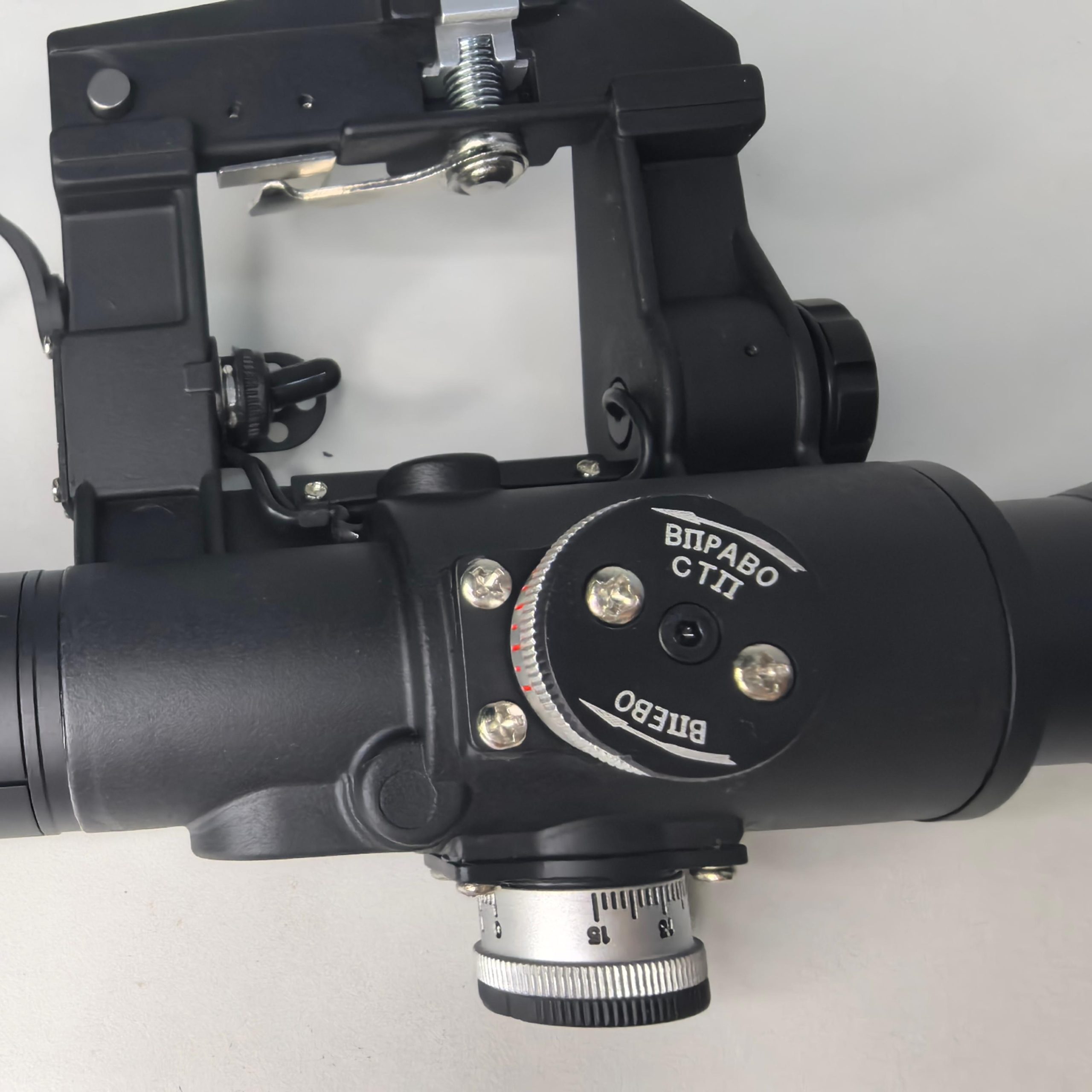

• Fine-Tuned Adjustability: Equipped with a 0.75 MOA click value turret for micro-adjustments tailored to mid-range accuracy.
• Dependable Power Source: Powered by CR2032 battery, supporting potential illuminated reticle functions if integrated.

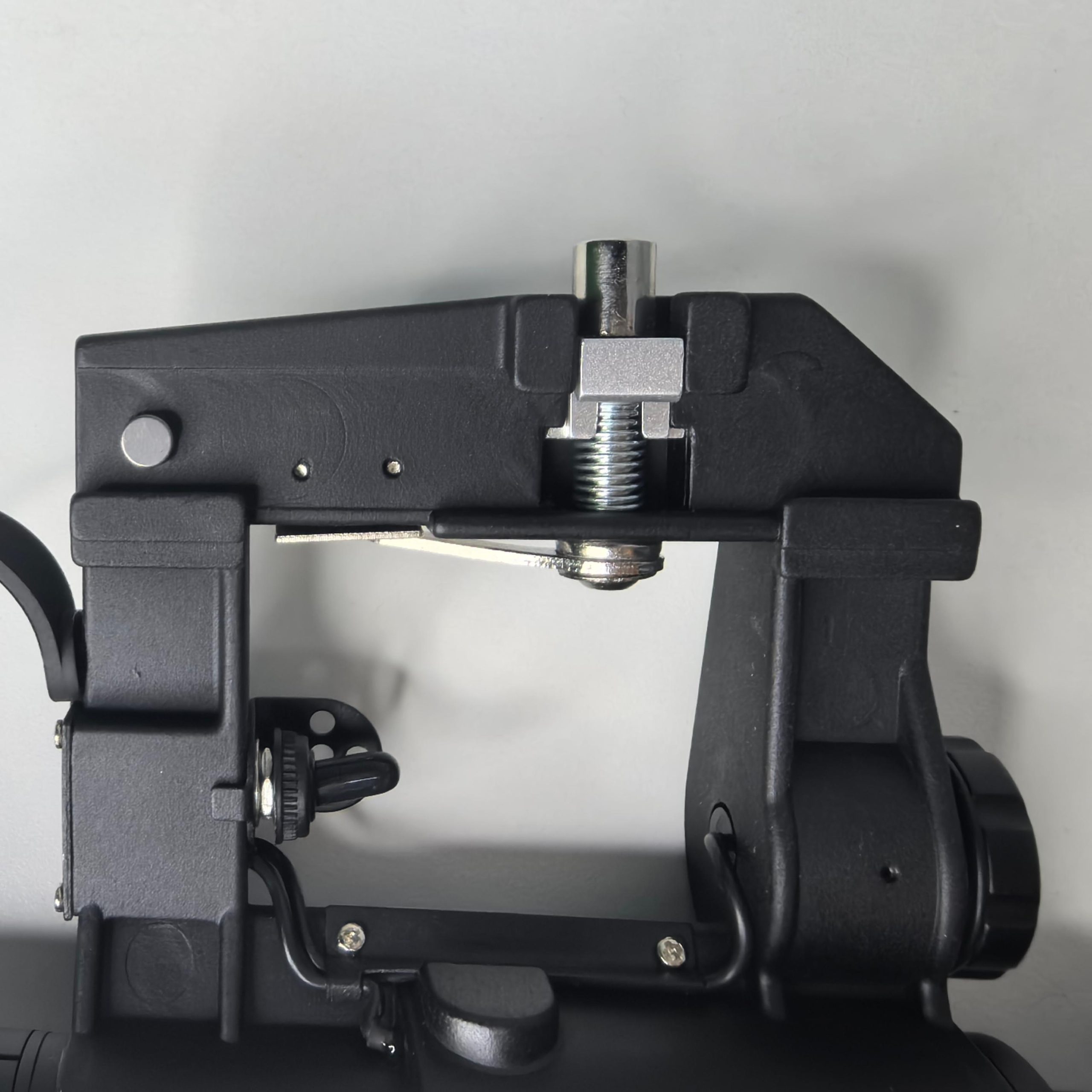

• Seamless Integration: Compatible with standard SVD rifle mounting systems for quick deployment and platform continuity.

Application Scenarios:

Ideal for use in tactical training with SVD rifles, mid-range hunting, law enforcement patrols, and military simulation shooting. With a 20-foot field of view and a comfortable 3.15″ eye relief, it suits real-world applications such as field-based positional shooting, cover-based targeting, and scenario-driven drills.

Customizable Features

• Available customization options include parallax setting (default 100 yards), reticle style, body color, and surface finish.
• OEM branding and functional adaptations are available to meet varied tactical preferences and procurement requirements.

Parameters

Product Code	ZYA4X26
Click Value	0.75
Magnification	4x
Diopter Range	-0.75D
Objective Lens Diameter	26 mm
Exit Pupil Diameter	6 mm
Eye Relief	3.15″
Field of View	20′
Length	10.2″
Weight	18.5 oz
Adjustment Range	±30 MOA
Parallax Setting	100 yards
Battery Type	CR2032
