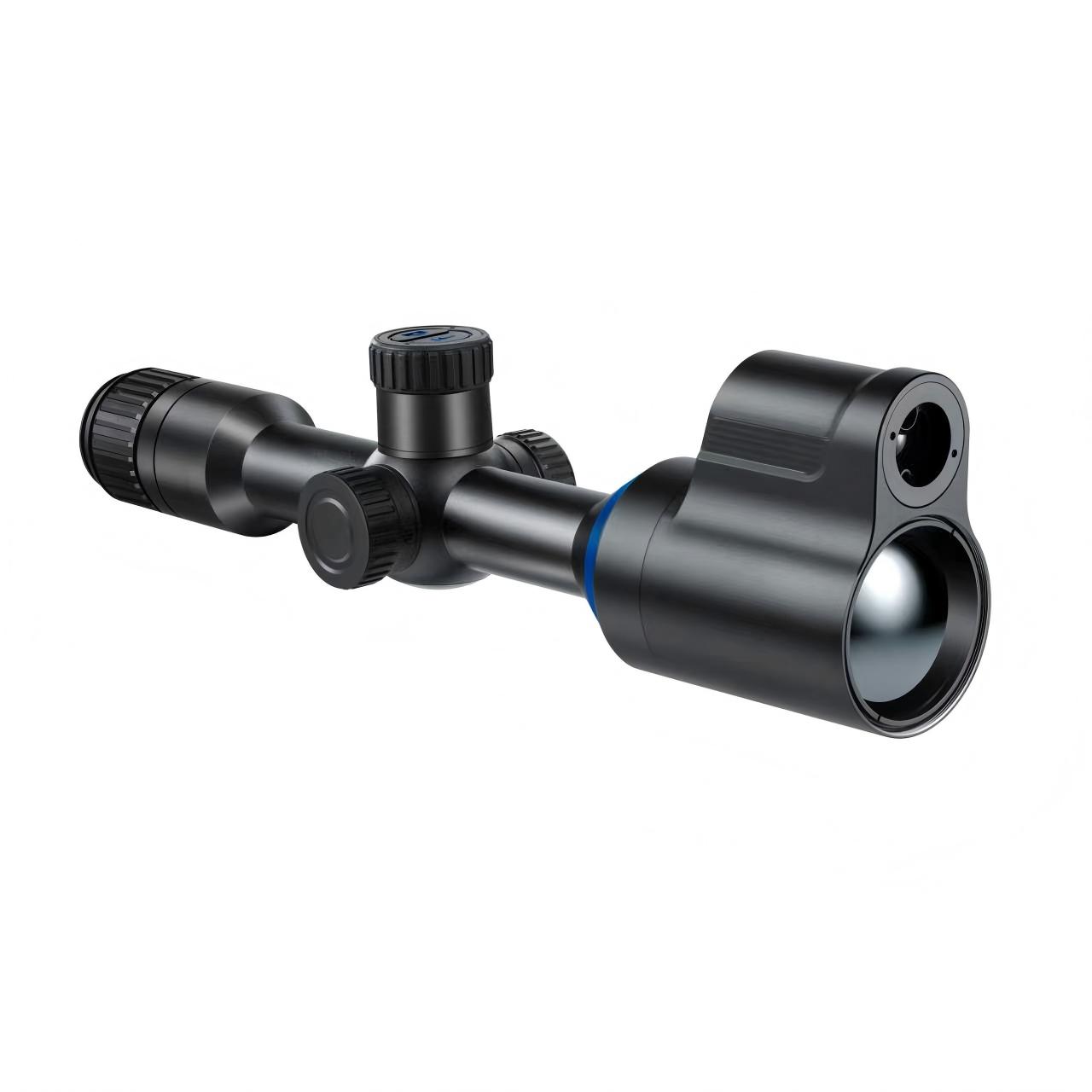

640×512 Thermal Rifle Scope TherComp X3 640
The TherComp X3 640 Thermal Imaging Rifle Scope is a high-performance 640×512 thermal rifle scope designed for night hunting, hog hunting, predator control, long-range thermal detection, ranch protection, tactical field use, and outdoor surveillance, featuring a 50mm lens, 2600m detection range, AMOLED display, Wi-Fi, laser ranging, 12+ hours battery life, and OEM/ODM customization support.
OVERVIEW
Key Advantages and Features
- 640×512 VOx uncooled detector, 12μm pixel size
- NETD ≤30mK for reliable thermal sensitivity
- 50Hz frame rate for smooth target tracking
- 50mm lens with 8.8°×7.0° field of view
- 2.8X–22.4X magnification for long-range observation
- 2600m detection range for human-size targets
- AMOLED display, 1024×768 resolution
- 7 color modes for different viewing environments
- 10 reticle types with 0.15mil reticle scale value
- Photo/video recording, mp4/jpg format
- 32GB built-in storage
- Wi-Fi 2.4GHz, connection distance ≤10m
- 905nm laser rangefinder, ±1m accuracy
- Built-in 6400mAh battery + external 2000mAh battery: Battery life over 12 hours
- 6000J / 1200G recoil resistance
- 900G impact resistance
- IP66 protection level
- Aluminum alloy body, 1050g weight
- Operating temperature: -25°C to +50°C
Application Scenarios
Night Hunting and Hog Hunting
The 640×512 detector, 50mm lens, and 2600m detection range help hunters locate heat signatures clearly at night, especially in open fields and hunting areas.
Predator Control and Ranch Protection
With long detection capability, laser ranging, and strong battery life, this scope is suitable for coyote hunting, livestock protection, ranch patrol, and farm security.
Tactical Field Use and Outdoor Surveillance
The AMOLED 1024×768 display, multiple color modes, Wi-Fi connection, and photo/video recording make it useful for tactical training, patrol, and outdoor monitoring.
Long-Range Detection and Ranging
The 905nm laser, ±1m ranging accuracy, and ranging distance up to 1000m for buildings support distance estimation in field observation and hunting scenarios.
Suitable for:
- Hunting optics brands
- Thermal rifle scope distributors
- Tactical equipment suppliers
- Ranch and farm security channels
- Private label thermal imaging scope programs
- Application Scenarios
- Night Hunting and Hog Hunting
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding Supports private label Thermal Imaging Rifle Scopes
- Reticle System 10 reticle types for hunting and tactical users
- UI / Menu Language Can support international market localization
- Color Modes White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot, Green Hot
- Packaging Retail box, neutral box, or custom brand packaging
- Accessories Battery, charger, rail mount, eyecup, USB cable, carrying case, manual
- OEM/ODM Support Suitable for custom thermal rifle scope projects
Parameters
| Product Code | TherComp X3 640 |
| Detector Type | VOx Uncooled |
| Detector Resolution | 640×512 |
| Pixel Size | 12μm |
| NETD | ≤30mK |
| Frame Rate | 50Hz |
| Lens Focal Length | 50mm |
| Field of View (FOV) | 8.8°×7.0° |
| Magnification | 2.8X~22.4X |
| Exit Pupil Distance | 48mm |
| Diopter | ±4 |
| Display Type | AMOLED |
| Display Resolution | 1024*768 |
| Color Modes | White Hot/Black Hot/Ironbow/Glowbow/Sepia/Red Hot/Green Hot |
| Detection Range (Human, 1.8m) | 2600m |
| Reticle Scale Value (H/V, mm, 100m) | 0.15mil |
| Reticle Scale Range (H/V, mm, 100m) | 73.2×58.6mil |
| Number of Reticle Types | 10 |
| Video/Image Resolution | 1024*768 |
| Video/Image Format | mp4/jpg |
| Built-in Storage | 32GB |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | 802.11b/g/n |
| Frequency | 2.4GHz |
| Connection Distance | ≤10m |
| Laser Wavelength | 905nm |
| Ranging Accuracy | ±1m |
| Ranging Distance | Building 1000m; Deer ≈400m; Wild Boar ≈300m |
| Output Voltage | 3~4.2V |
| Battery Type | Built-in 18650 Battery×2, External 18500 Battery×1 |
| Battery Capacity | 6400mAh (Built-in) + 2000mAh (External) |
| Battery Life | ≥12hrs. |
| External Power Supply Voltage | 5V |
| Built-in Battery Charging Time | ≈5hrs |
| Built-in Battery Charging Temperature | 0~45℃ |
| Maximum Recoil Energy Resistance | 6000J (1200G) |
| Impact Resistance | 900G |
| Body Material | Aluminum Alloy |
| Weight (Excluding Rail and Eyecup) | 1050g |
| Dimensions (Excluding Rail and Eyecup) | 365mm |
| Dimensions (Including Rail and Eyecup) | 367×83×82mm |
| IP Protection Level | IP66 |
| Operating Temperature | -25℃～+50℃ |
| Storage Temperature | -50℃～+60℃ |
For B2B buyers, customization options can include logo branding, reticle/UI design, menu language, packaging, accessories, software support, and OEM/ODM configuration.
Contact us to discuss your customized Thermal Imaging Rifle Scopes solution for hunting, tactical, or outdoor security markets.
