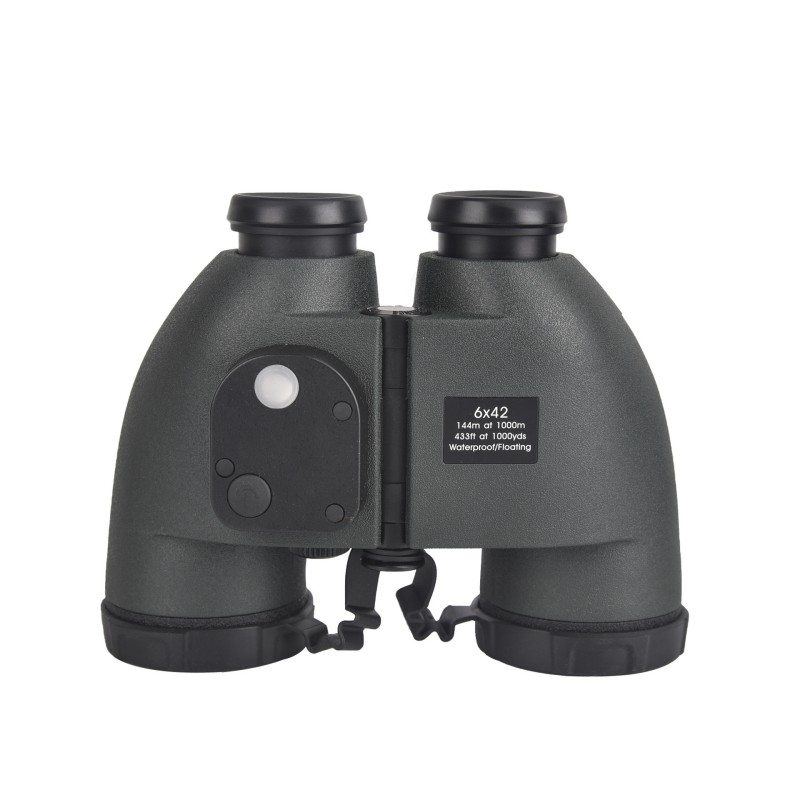

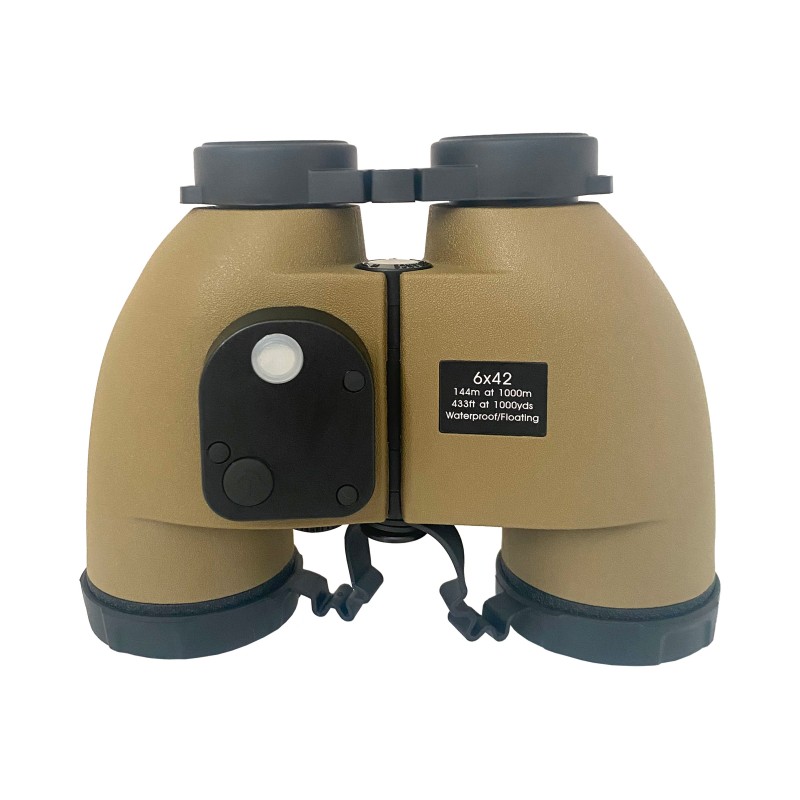

6X42 7X50 10X50 All-weather Porro Binoculars MIZP642-1
These high-performance Porro Binoculars, available in 6×42, 7×50, and 10×50 configurations, are engineered for maritime use, coastal security, and outdoor navigation. Featuring BAK4 prisms, multi-coated optics, and individual eyepiece focus, they combine precision viewing with onboard tools like compass, rangefinder reticle, and LED illumination for operation in low-light or high-glare environments.
OVERVIEW
Key Advantages and Features
- BAK4 Porro prism system delivers bright, sharp, high-contrast images
- Multi-coated optics enhance light transmission across all weather conditions
- Individual focus per eyepiece ensures precise vision correction
- Built-in compass with illuminated reticle assists with orientation and rangefinding
- LED illumination improves reticle readability in dusk/dawn or overcast weather
- Nitrogen filled, waterproof, and fogproof—ready for marine or rainy field use
- Durable aluminum body with all-weather armor
- Twist-up eyecups (on 7×50, 10×50) for eyeglass compatibility
- Wide viewing angles: 6×42: 8.2°, 144 m @ 1000 m, 7×50: 7°, 123 m @ 1000 m, 10×50: 6°, 109 m @ 1000 m
- Long eye relief: up to 24.2 mm for comfort during extended use

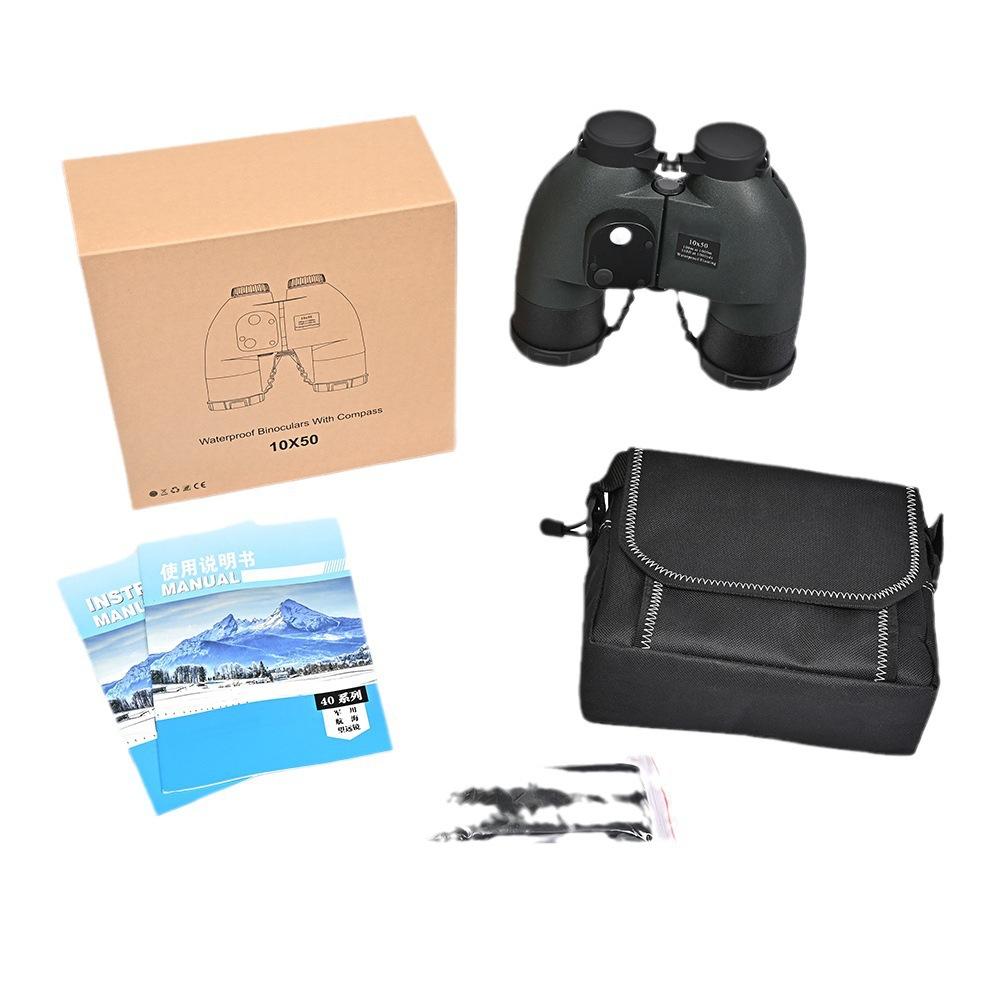

- Supplied with accessories: soft case, cleaning cloth, hand strap, desiccant
- Standardized body size (200 × 70 × 180 mm) and trip-ready packaging (10 pcs/carton)
Application Scenarios
Perfect for boaters, mariners, coast guards, and field patrol units, this series supports accurate direction reading and target range estimation – even in challenging weather. The 7×50 model, with its wide 7° field of view and 24.2 mm eye relief, is ideal for marine observation and ship-to-shore spotting. The 10×50 model offers extended reach for distant target identification, while the 6×42 option provides exceptional brightness and stability in low-light conditions.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
OEM customization available for logo engraving, color adjustments, reticle or rangefinder overlays, custom case branding, and packaging design. Ideal for retailers of outdoor gear, wildlife optics, and tactical equipment, with low MOQ options for private label expansion.
Parameters
| Product Code | MIZP642-1 | MIZP750-4 | MIZP1050-1 |
| Magnification | 6x | 7x | 10X |
| Objective Lens Diameter | 42 mm | 50 mm | 50 mm |
| Prism Type | Porro / BAK4 | Porro / BAK4 | Porro / BAK4 |
| Prism Coated | Yes | Yes | Yes |
| Lens Configuration | 6 Pieces / 3 Groups | / | / |
| Lens Coating | Multi-coated | Multi-coated | Multi-coated |
| Focusing System | Individual | Individual | Individual |
| Focusing Lens | Eyepiece | Eyepiece | Eyepiece |
| Exit Pupil Diameter | 7 mm | 6.9 mm | 5mm |
| Eye Relief | 18.6 mm | 24.2 mm | 18.3mm |
| Field of View (° / ft / m) | 8.2° / 432 ft @ 1000 yds / 144 m @ 1000 m | 7° / 123 m @ 1000 m / 369 ft @ 1000 yds | 6°/109M/1000M/327Ft/1000Yds |
| Diopter Adjustment | ±5 DIOPTER | ±5 DIOPTER | ±5 DIOPTER |
| Interpupillary Distance | 56 – 72 mm | 56 – 72 mm | 56 – 72 mm |
| Compass (Dial Type) | Yes | Yes | Yes |
| Reticle | Yes | Yes | Yes |
| LED Illumination | Yes | Yes | Yes |
| All-weather Protection | Yes | Yes | Yes |
| Waterproof Structure | Yes | Yes | Yes |
| Nitrogen Filled | Yes | Yes | Yes |
| Reversed Eyecups | No | Yes | Yes |
| Soft Case | Yes | Yes | Yes |
| Hand Strap | Yes | Yes | Yes |
| Cleaning Cloth | Yes | Yes | Yes |
| Desiccant | Yes | Yes | Yes |
| Net Weight (g) | 900g | 1100g | 1100g |
| Dimensions (L×W×H) | 200 × 70 × 180 mm | 200 × 70 × 180 mm | 200 × 70 × 180 mm |
| Packing Quantity | 10PCS | 10PCS | 10PCS |
| Gross Weight/Carton | 15 kg | 17 kg | 17 kg |
| Carton Size | 60 × 26 × 51 cm | 60 × 26 × 51 cm | 60 × 26 × 51 cm |
| Focusing Mode | Individual Focus | Individual Focus | Individual Focus |
Let’s Work Together
Looking for military-style Porro Binoculars with compass and reticle for marine or tactical use?
Contact us today for OEM details, samples, and bulk pricing options.
