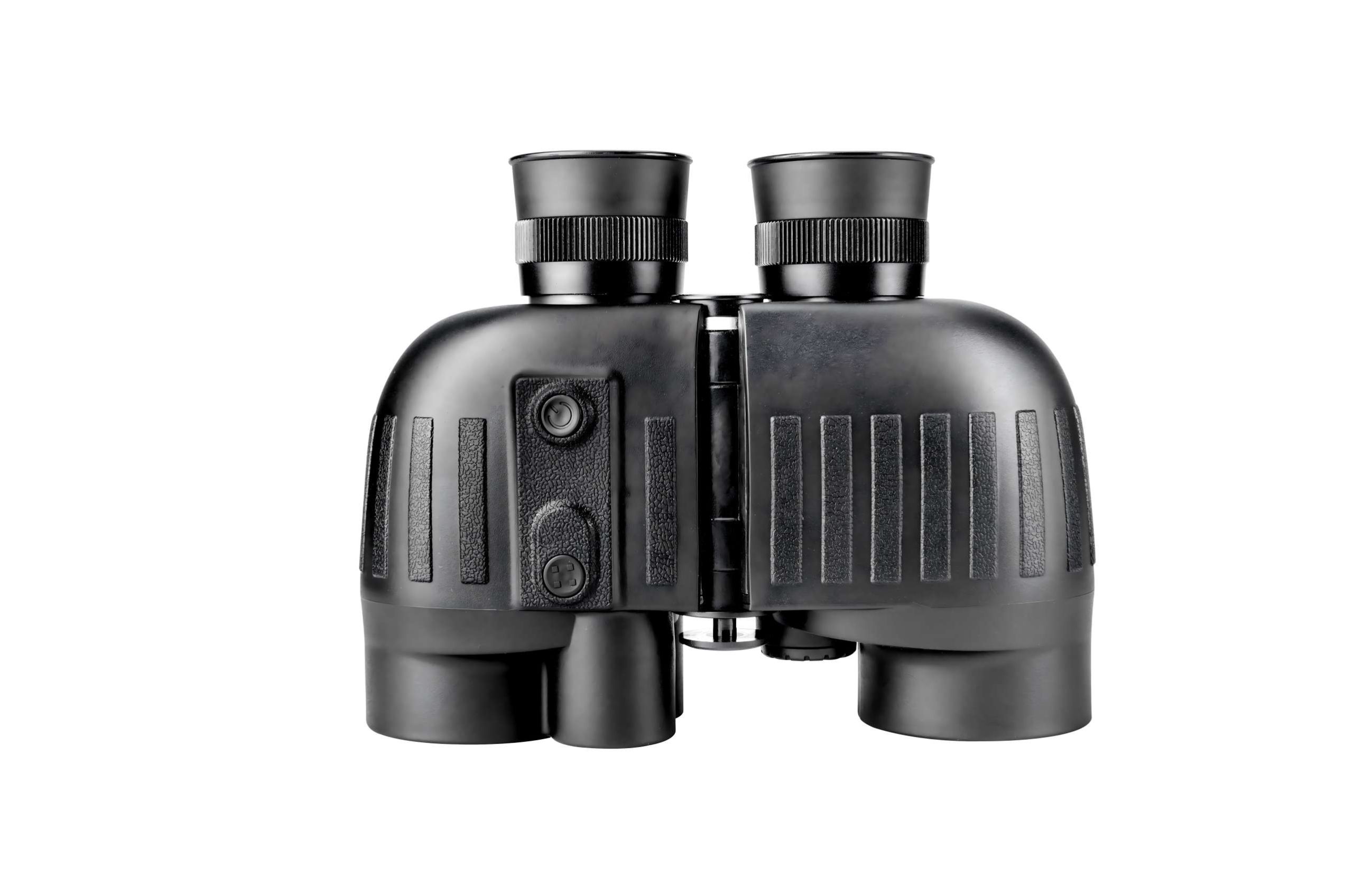

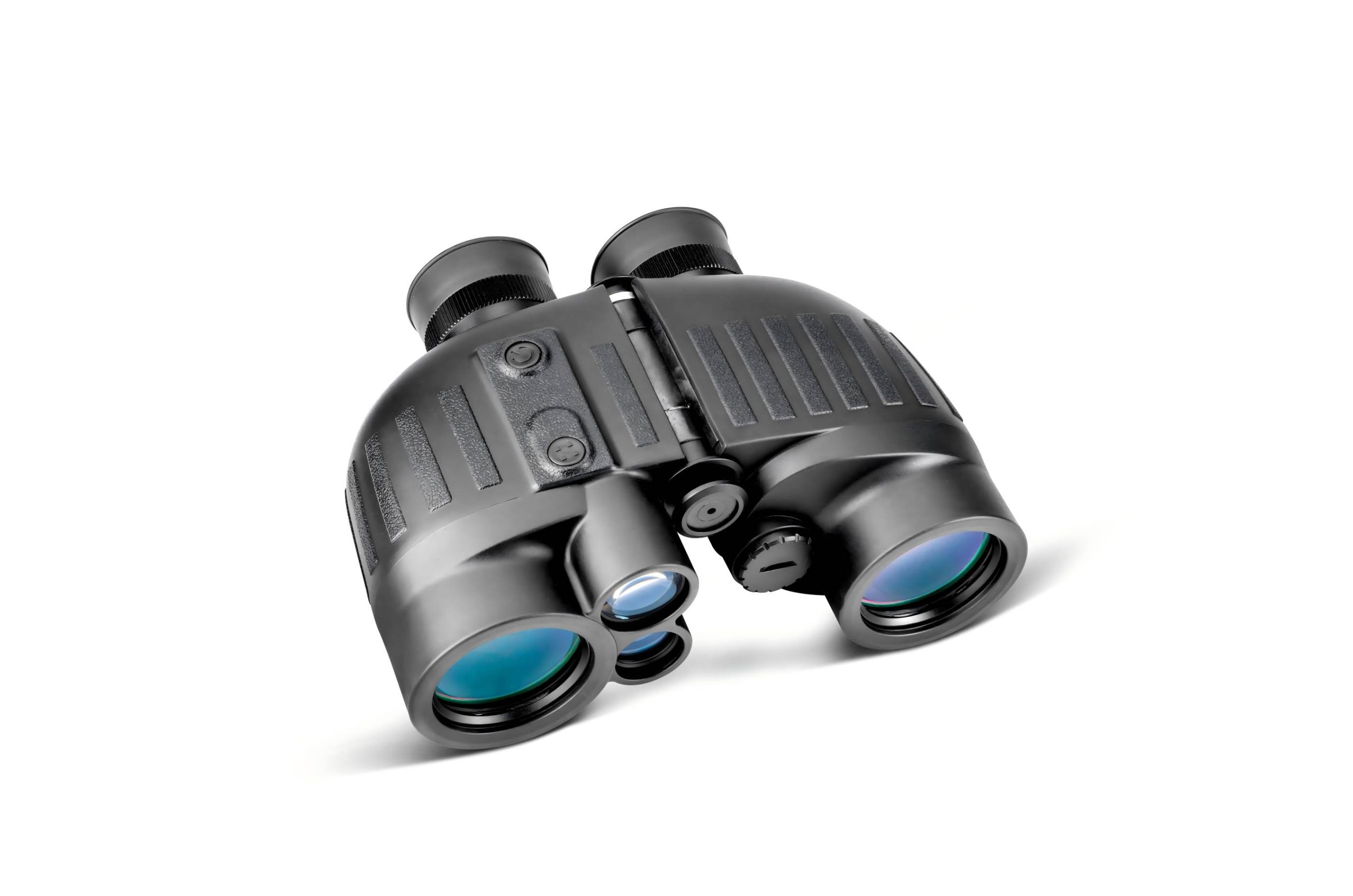

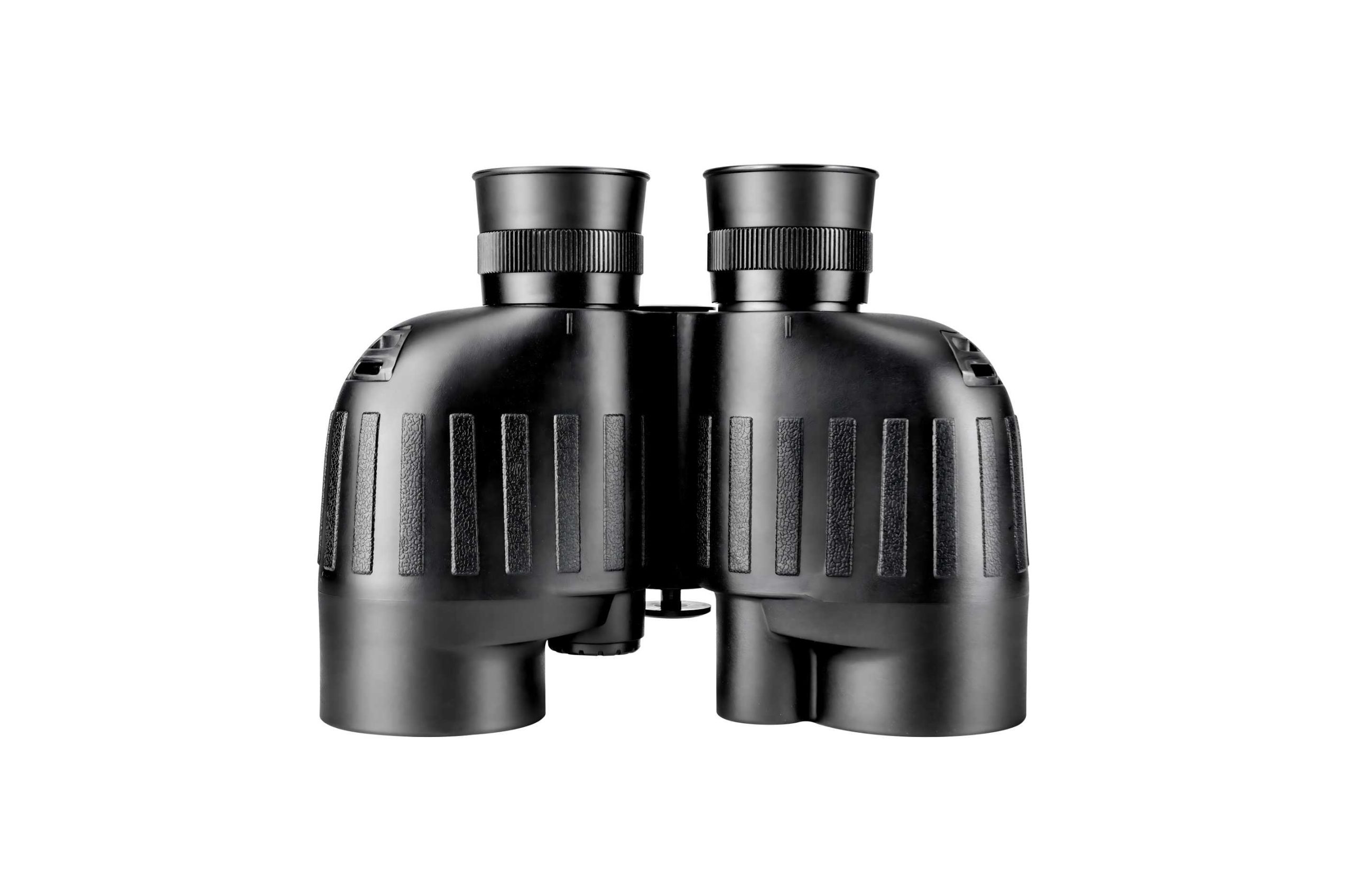

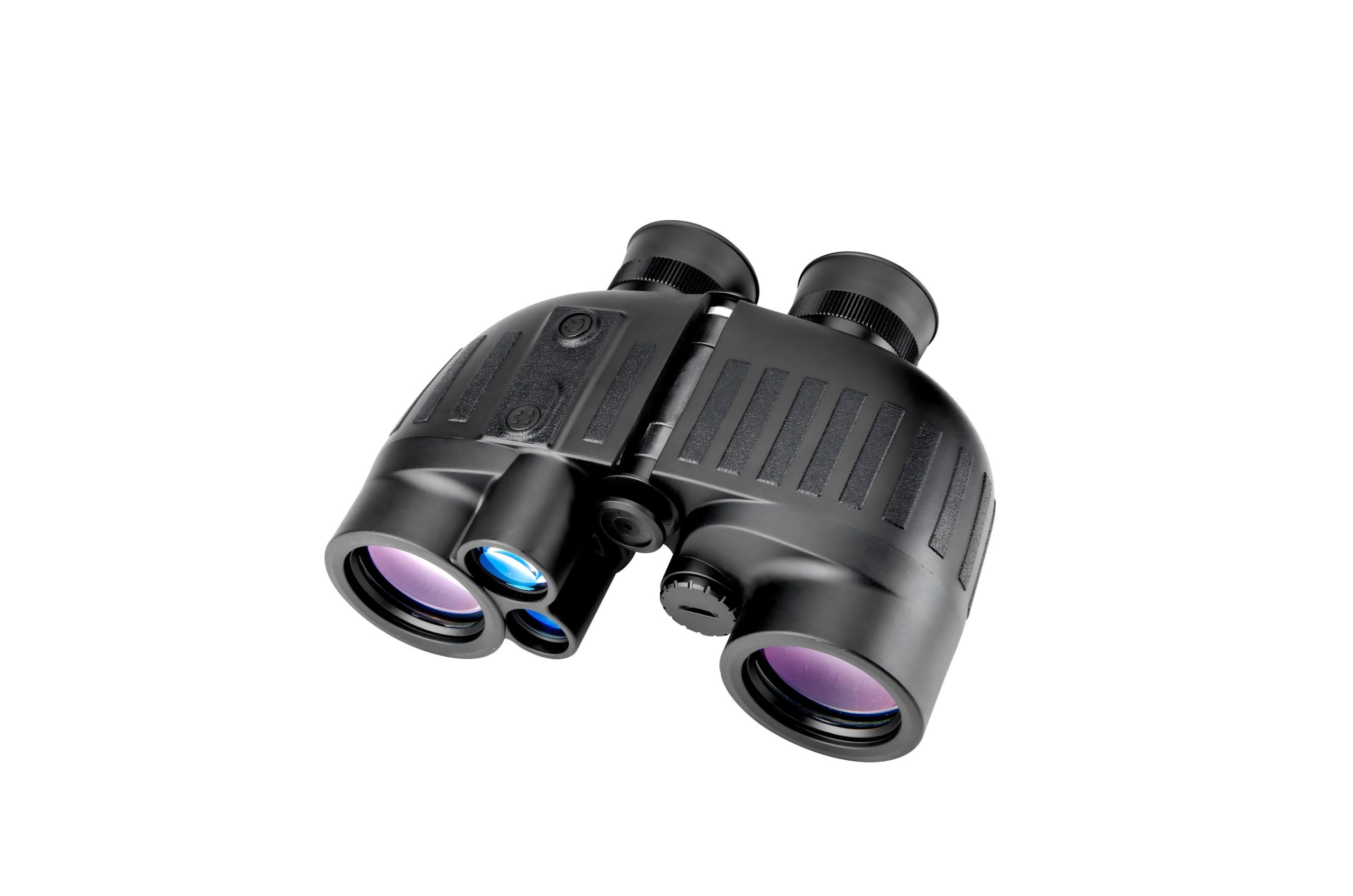

8×40 Rangefinder Binoculars TER-B20

These 8×40 laser rangefinder binoculars combine powerful optical performance with advanced measurement technology, including distance, angle, and height calculation, plus an electronic compass. Designed for hunting, search and rescue, forestry, topography, and military observation, they offer a reliable measuring range of 1–1000m, with high accuracy of ±1m within 600m. A wide 8° field of view, large 40mm objective lenses, and FMC optics ensure bright, sharp images even in challenging environments. The rugged body made of PC + fiberglass offers excellent durability for all-weather use.

Get A Quote

OVERVIEW

Key Features & Competitive Advantages

Integrated Rangefinder Functionality:

  • Distance Measurement: Accurate from 1m to 1000m
  • Height & Angle Measurement: ±85° angle range with real-time data
  • Electronic Compass: Ensures precise directional awareness
  • Measurement Modes: Switch between single and continuous scan
  • Accuracy: ±1m (1–600m), ±2m (600–1000m), ±3m (up to 3000m)

Advanced Optics System:

  • 8× Magnification with 40mm Objective Lenses
  • Wide 8° Field of View for rapid target acquisition
  • High-Transmission LCD Display for real-time measurement feedback
  • ±5D Diopter Adjustment & 17mm Eye Relief for visual comfort
  • Minimum Focus Distance: Just 2 meters for close-up precision

Durability & Usability:

  • Weather-resistant PC + Fiberglass housing
  • Auto shut-off after 30 seconds of inactivity to save power
  • Class 1 Laser (905nm) – Safe and compliant for field use
  • Operating Temperature: -20°C to +40°C
  • Ergonomic Build: Lightweight yet rugged at 955g

Customizable for Your Brand

Customizable Feature

  • Logo Customization – Laser engraving or silk screen printing
  • Housing Color Customization – Custom camo, black, green, or desert color
  • Packaging Customization – Branded EVA case, retail box, or OEM carton

Parameters

Model NumberTER-B20
Distance Range1m-1000m
FunctionsDistance measurement, height measurement, angle measurement, electronic compass, meter/yard switch
Measurement Accuracy (1-600m)±1m
Measurement Accuracy (600-1000m)±2m
Measurement Accuracy (1000-3000m)±3m
Measurement UnitMeter/Yard
ScreenHigh-transmission LCD display
Angle Measurement Range±85°
Distance measurementYes
Height measurementYes
Angle measurementYes
Meter/Yard unit switchYes
Electronic compassYes
Measurement modeSingle/Continuous
Auto shut-off30s after inactivity
Magnification8X
Objective Lens Diameter40mm
Eye Relief17mm
Exit Pupil Diameter4.65mm
Minimum Focus Distance2m
Field of View
Diopter Adjustment±5D
Eyepiece Diameter19.2mm
Laser Wavelength905nm
Safety ClassClass 1
Working Voltage3.7V
Operating Temperature-20°C/+40°C
InterfaceNone
Housing MaterialPC + Fiberglass
Dimensions (mm)180 x 148 x 68
Weight (g)955

Partner With Us

Looking to source advanced rangefinding binoculars for tactical, outdoor, or OEM applications?
Contact us today to receive a tailored quotation, MOQ info, and sample support!
