Advanced Long-range Precision Zero-Stop Rifle Scopes XIX5-30X56SFIR FFP
These scopes are designed for long-range marksmen, competitive shooters, military & tactical training units, and OEM/ODM distributors who require durable optics with zero-stop functionality, first focal plane (FFP) reticles, and high adjustment ranges.
OVERVIEW
Key Advantages and Features

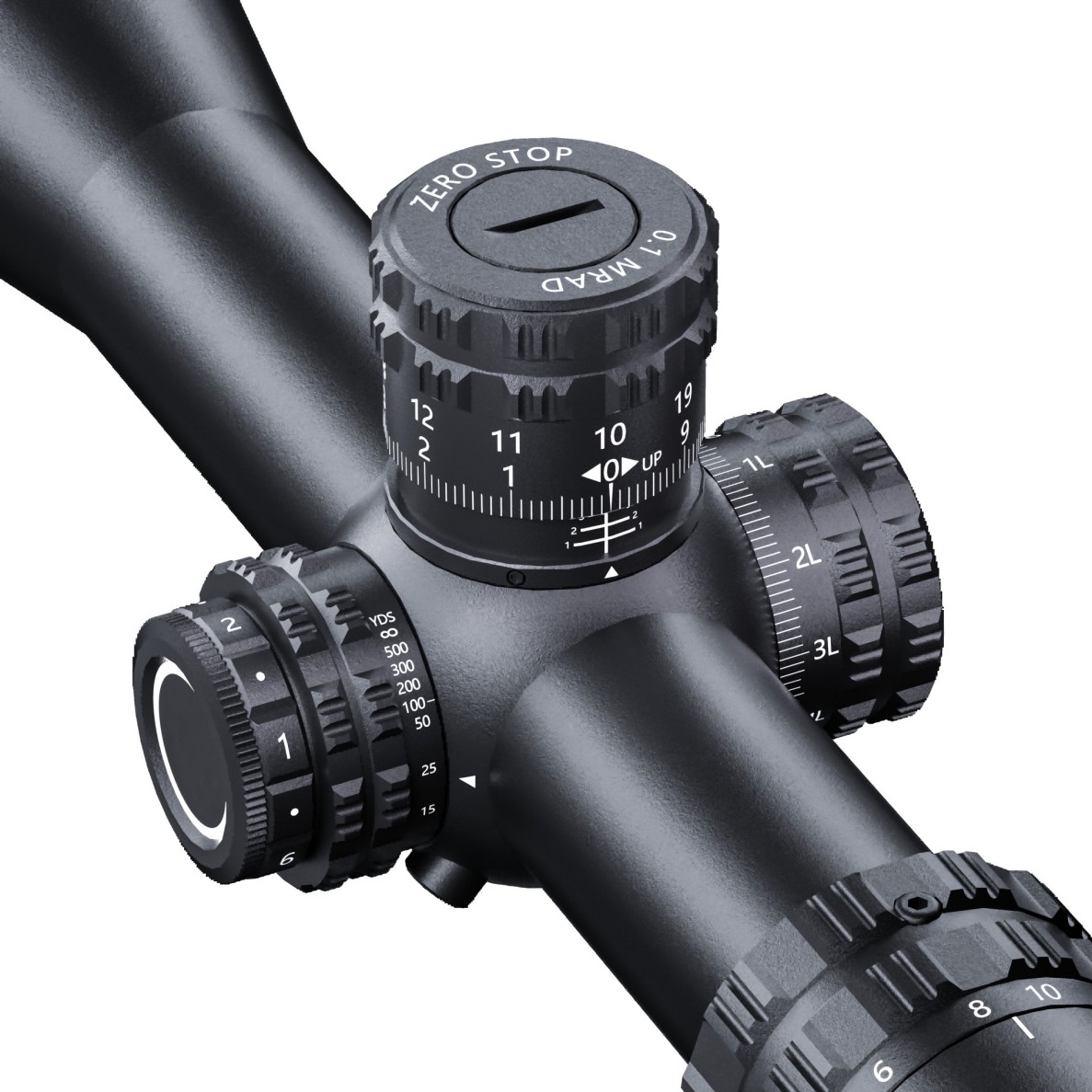

- Zero-stop mechanism – ensures reliable return-to-zero, even after extensive adjustments.
- FFP reticle precision – accurate holdovers and ranging at all magnification levels.
- Wide magnification ranges – 5–25x and 6–25x options for extreme versatility.
- Superior optics – fully multi-coated lenses deliver sharp images and excellent light transmission.
- Durability – waterproof, shockproof, and fog-proof construction suitable for tactical missions and rugged field conditions.
Key Specifications

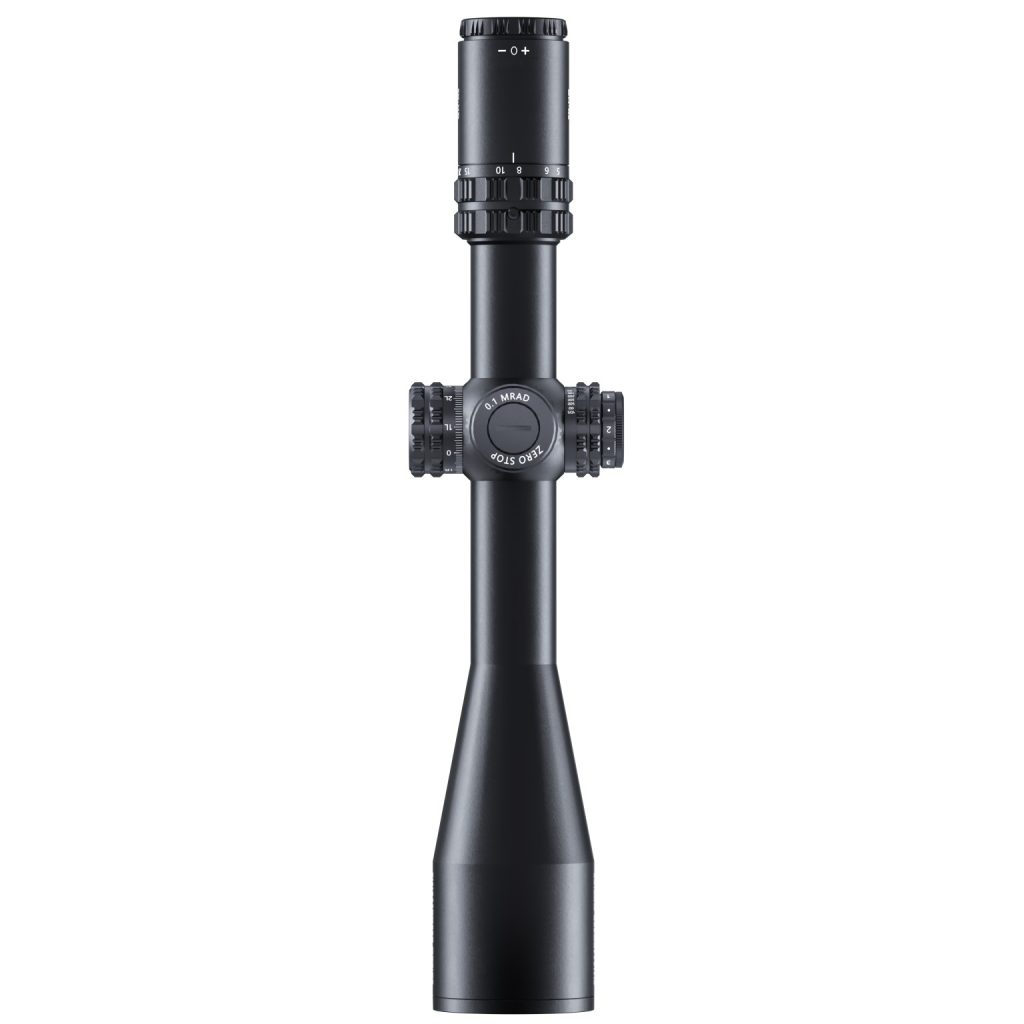

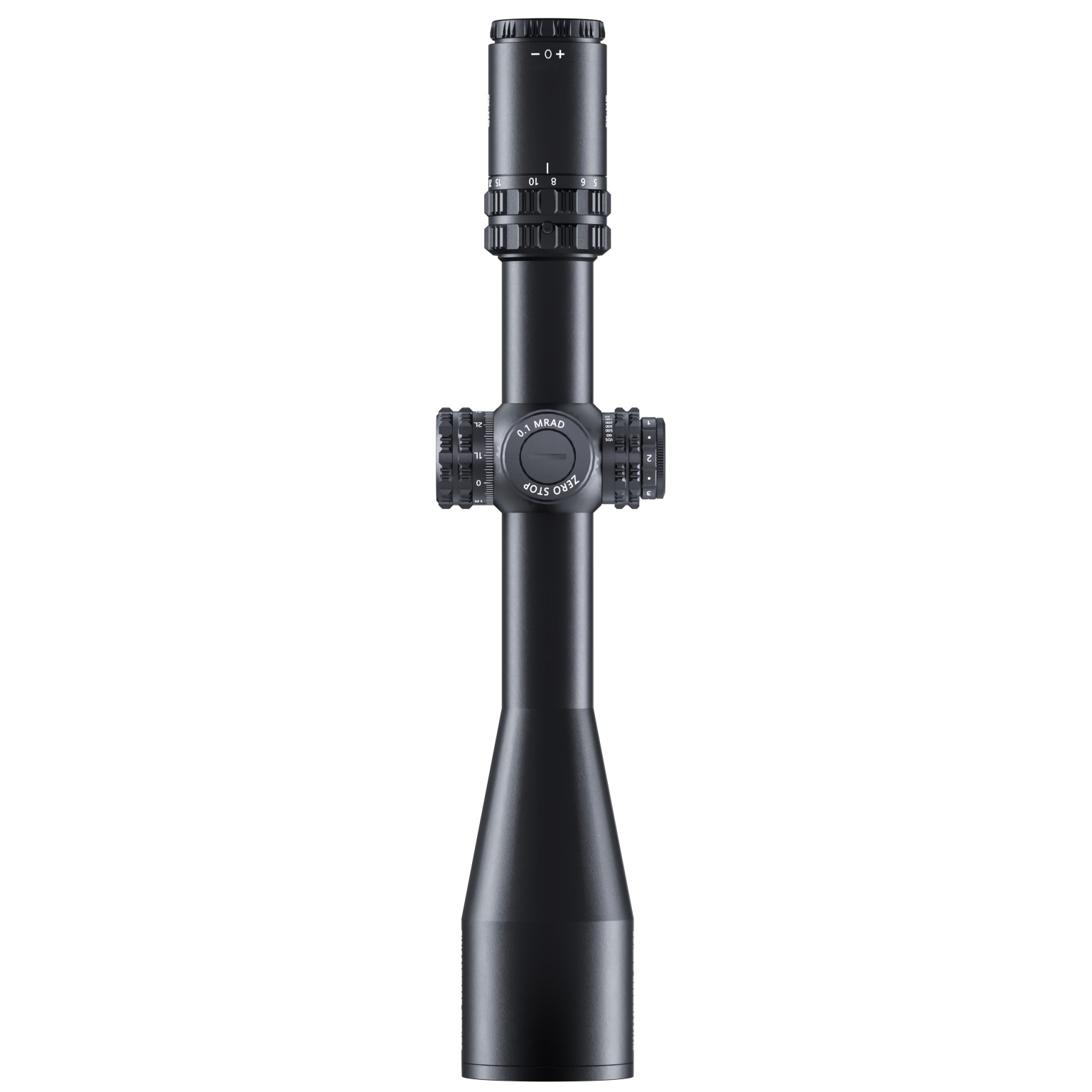

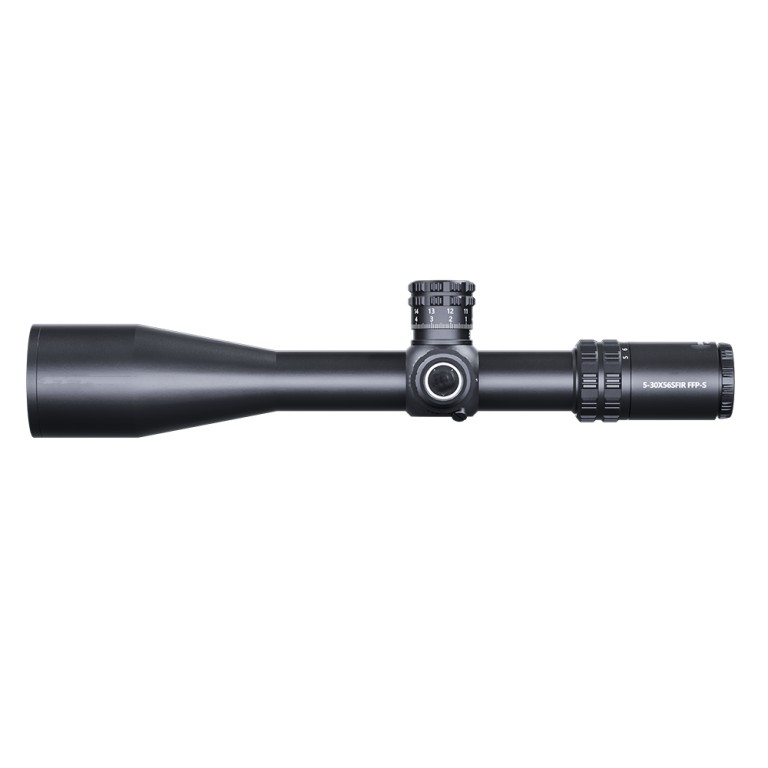

Model 1: XIX5-30X56SFIR FFP
- Magnification: 5X – 25X
- Tube Diameter: 34mm
- Objective Lens: 56mm | Eyepiece: 35mm

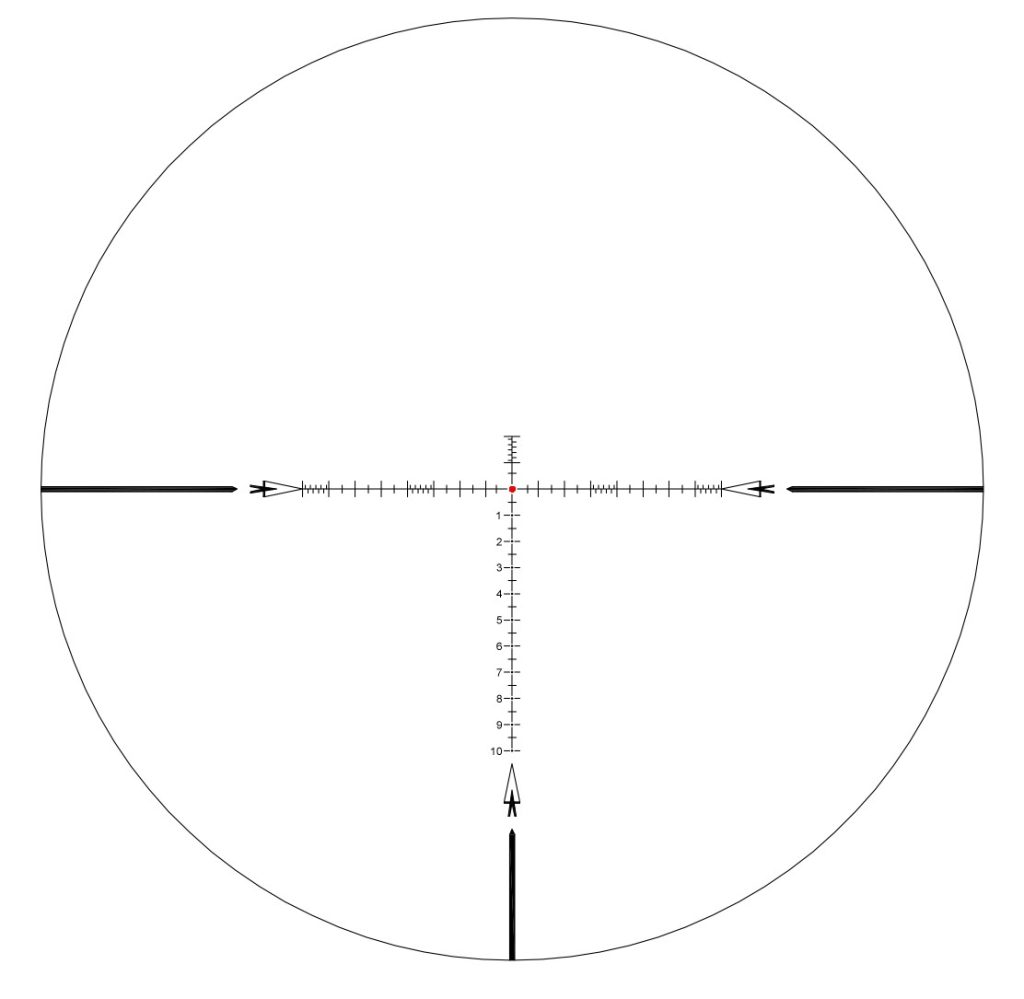

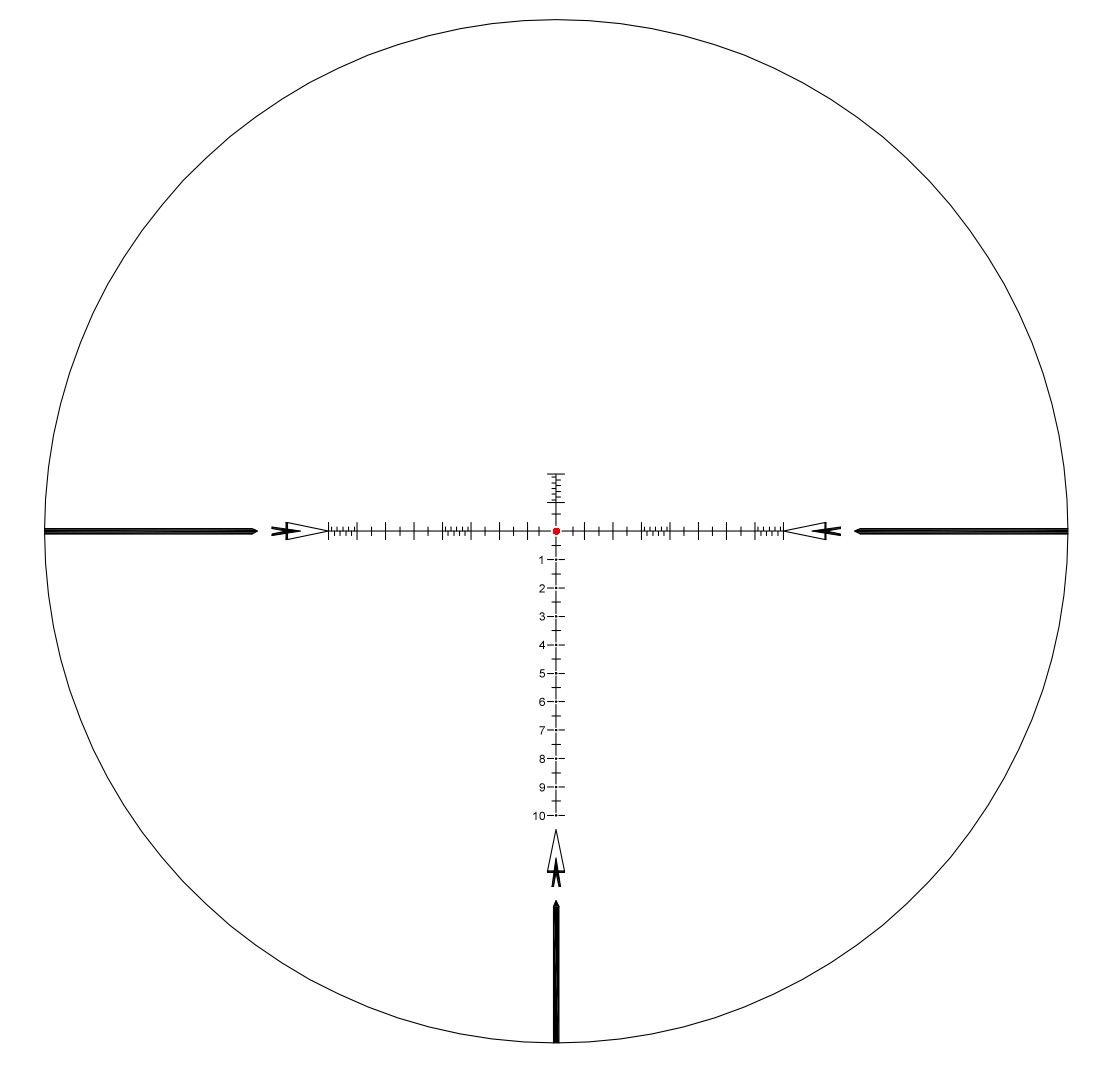

- Reticle: Dividing reticle, First Focal Plane (FFP)
- Adjustment: 1/10 MOA per click | Elevation: 90 MOA | Windage: 80 MOA
- Parallax: 10 yards – ∞ | Side focus adjustment
- Eye Relief: 7mm – 2mm
- Length: 14’’ (355mm) | Matte black finish
- Lens Coating: Fully multi-coated green
- Focus Adjustment: -2.0 to +2.0 Diopter
Model 2: XIX6-24X50SFIR FFP
- Magnification: 6X – 25X
- Tube Diameter: 30mm
- Objective Lens: 50mm | Eyepiece: 35mm

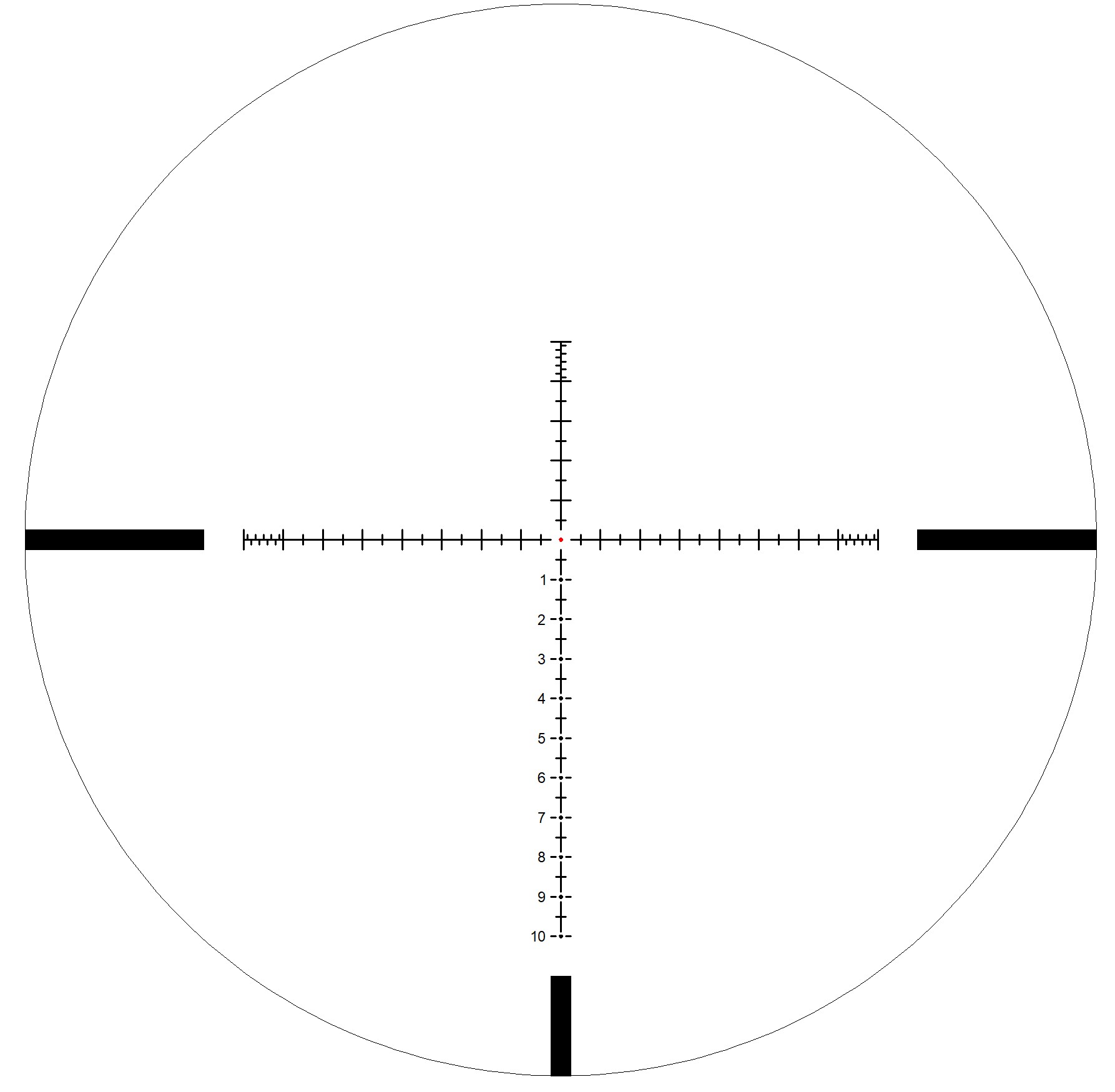

- Reticle: First Focal Plane (FFP)
- Adjustment: 1/10 MOA per click | Elevation: ±30 MOA | Windage: ±40 MOA
- Parallax: 10 yards – ∞ | Side adjustment
- Eye Relief: 96–95mm (3.78″–3.74″)
- Length: 13.9’’ (352mm) | Matte black finish
- Lens Coating: Fully green multi-coated
- Focus Adjustment: -2.0 to +2.0 Diopter
Application Scenarios
Zero-stop rifle scope for ELR (Extreme Long Range) shooting – the XIX5-30X56SFIR offers a wide 5–25x magnification and 90 MOA total elevation adjustment.
Zero-stop rifle scope for hunting rifles – the XIX6-24X50SFIR delivers 6–25x versatility, perfect for both medium and long-distance hunting shots.
Zero-stop rifle scope for tactical sniping – side parallax correction from 10 yards to infinity ensures crisp target focus in varied environments.
Precision rifle scope with zero stop for competitions – 34mm and 30mm tubes maximize adjustment range and light transmission.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- OEM/ODM Branding: Custom engraving, reticle design, packaging solutions
- Finish Options: Matte black, tactical camo, or custom anodized finishes
- Illumination Choices: Custom reticle illumination colors available
- Packaging: Standard or premium tactical packaging for retail/OEM
Parameters
| Product Code | XIX5-30X56SFIR FFP | XIX6-24X50SFIR FFP |
| Magnification | 5X – 25X | 6-25x |
| Rifle Scope Tube Diameter | 34mm | 30mm |
| Lens Coating | Fully Multi-Coated Green | Fully Green Multi Coated |
| Reticle Type | Dividing reticle | Reticle |
| Eyepiece Diameter | 35mm | 35mm |
| Objective Lens Diameter | 56mm | 50mm |
| External Finish | Matte black | Matte Black |
| Mounting Length | 152mm | 155mm |
| Field of View (@100yds) | 23ft – 4.6ft @ 100yds | 18.9-4.7 feet |
| Eye Relief | 7mm – 2mm | 3.78″-3.74″ (96mm-95mm) |
| Adjustment Value | 1/10 MOA | 1/10 MOA |
| Parallax Correction | 10 yards – ∞ | 10 yards – ∞ |
| Overall Length | 14” (355mm) | 13.9″ (352.0mm) |
| Focus Adjustment (Diopter) | -2.0 to +2.0 | -2.0 to +2.0 |
| Total Elevation Adjustment | 90 MOA | +/-30MOA |
| Windage Adjustment Range | 80 MOA | +/-40MOA |
Equip your lineup with our Zero-stop Rifle Scopes — precision-built for hunters, tactical shooters, and long-range professionals.
Contact us now for bulk pricing, OEM/ODM customization, and distributor opportunities.
