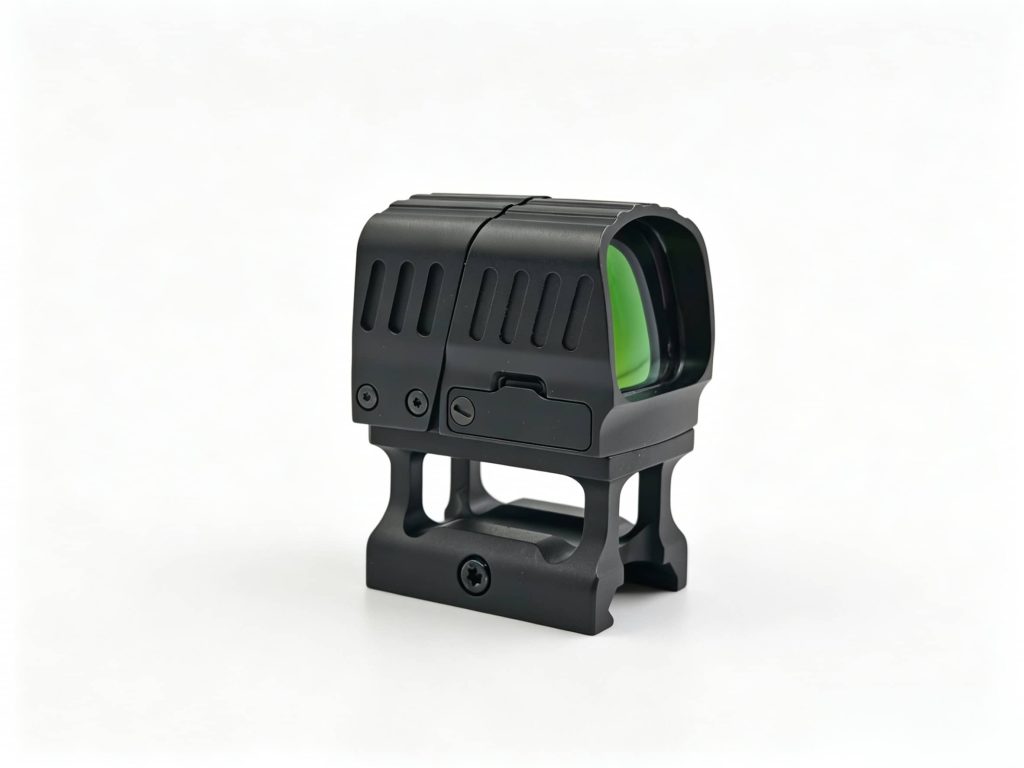

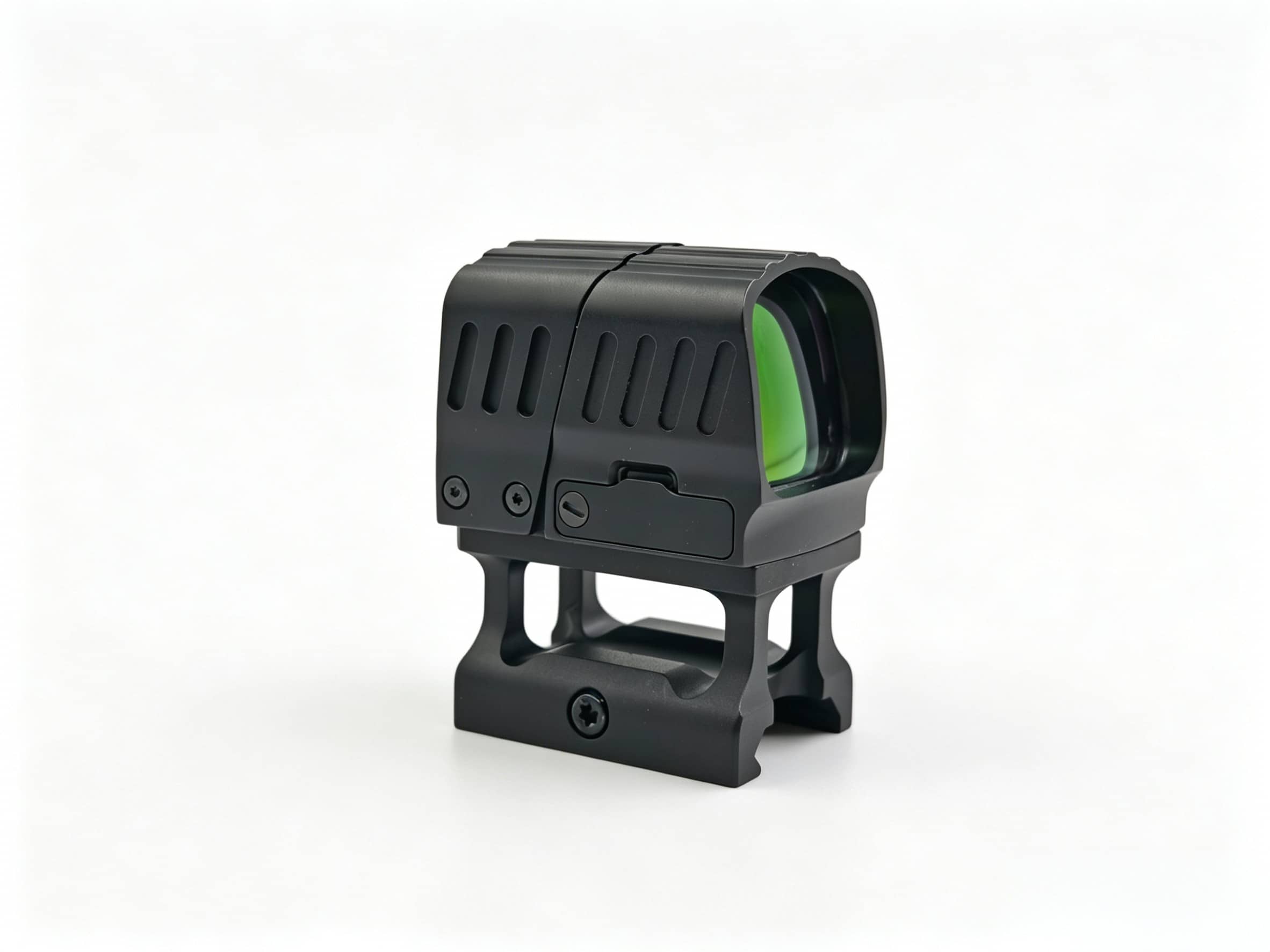

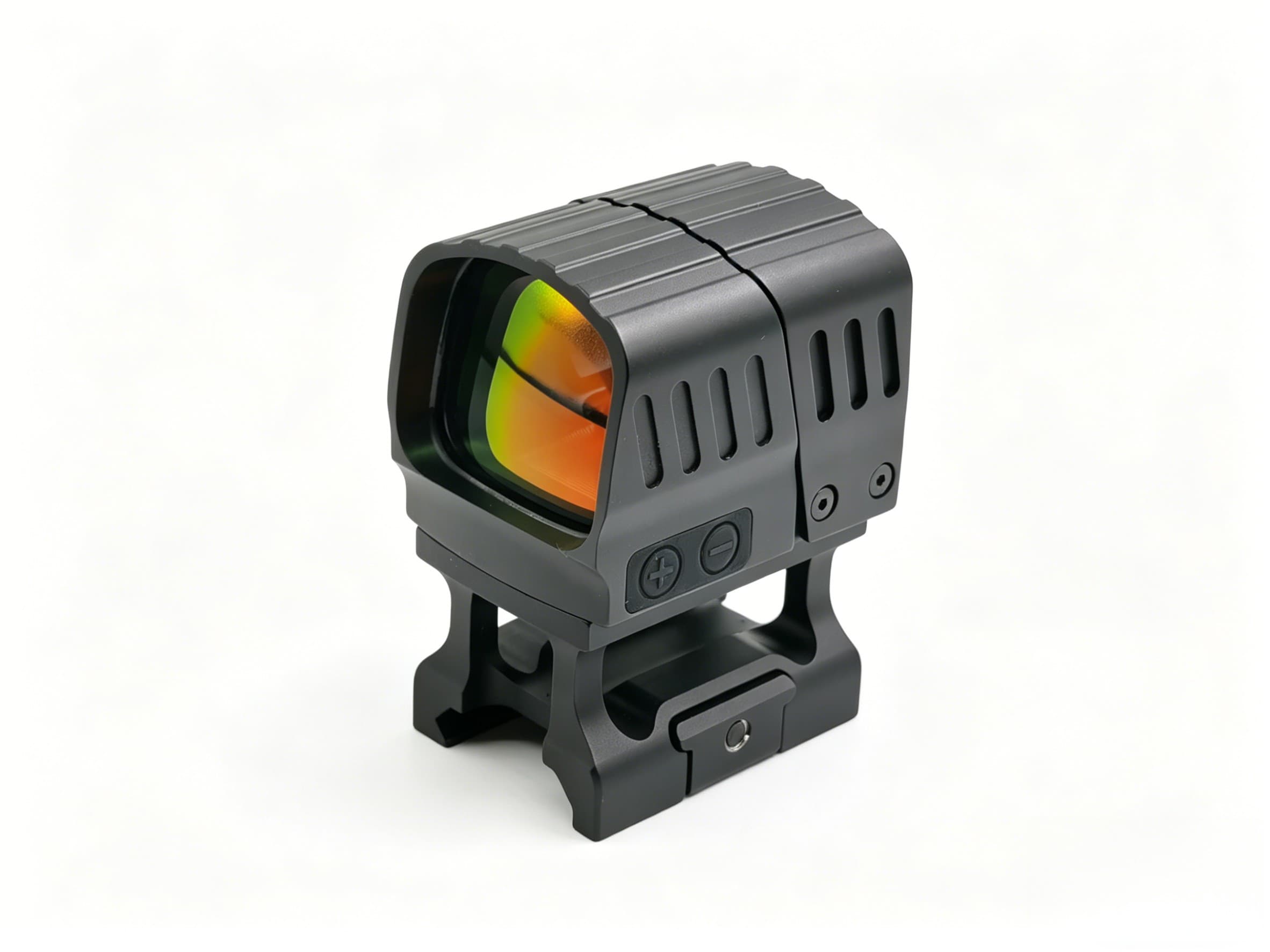

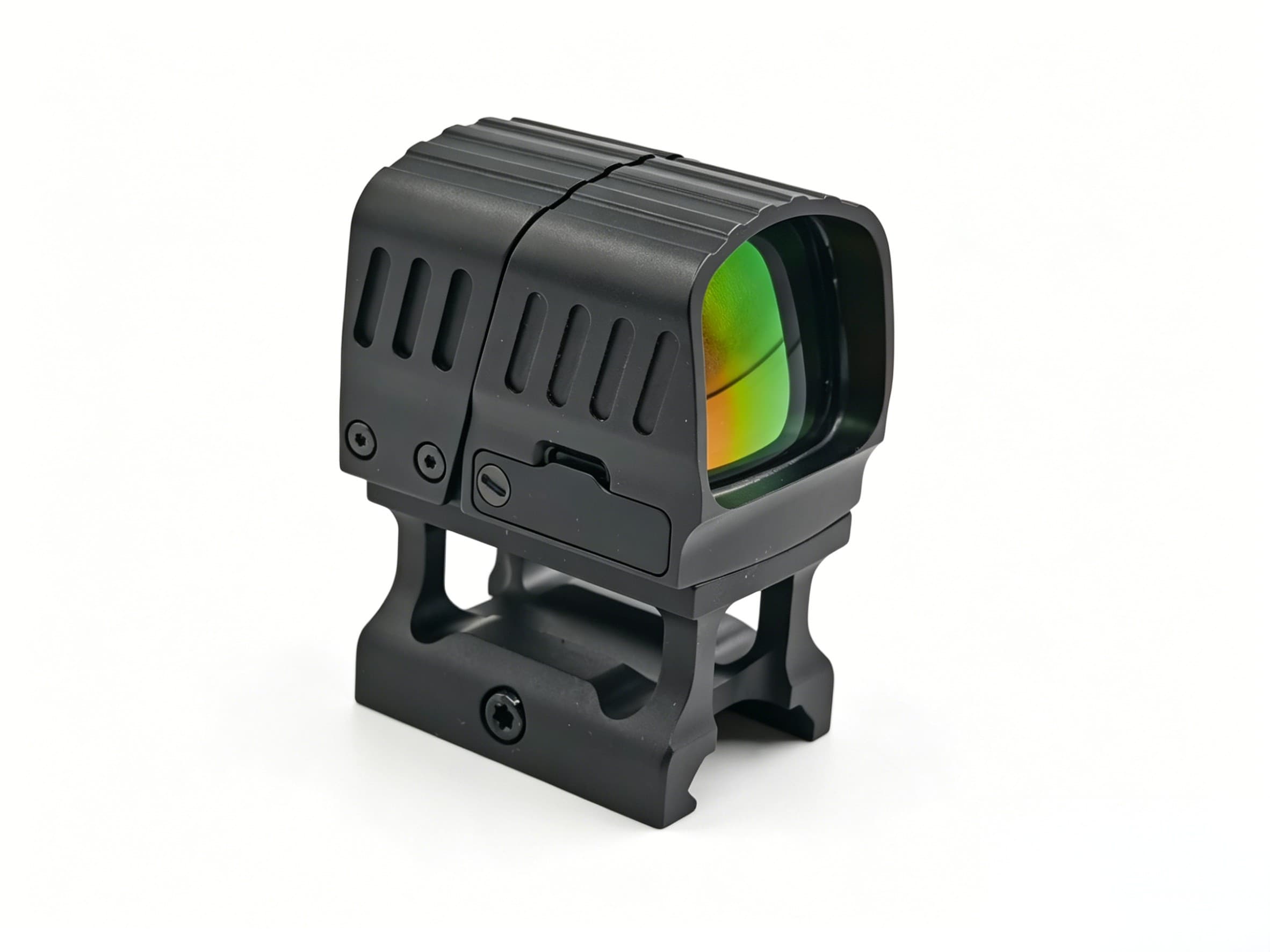

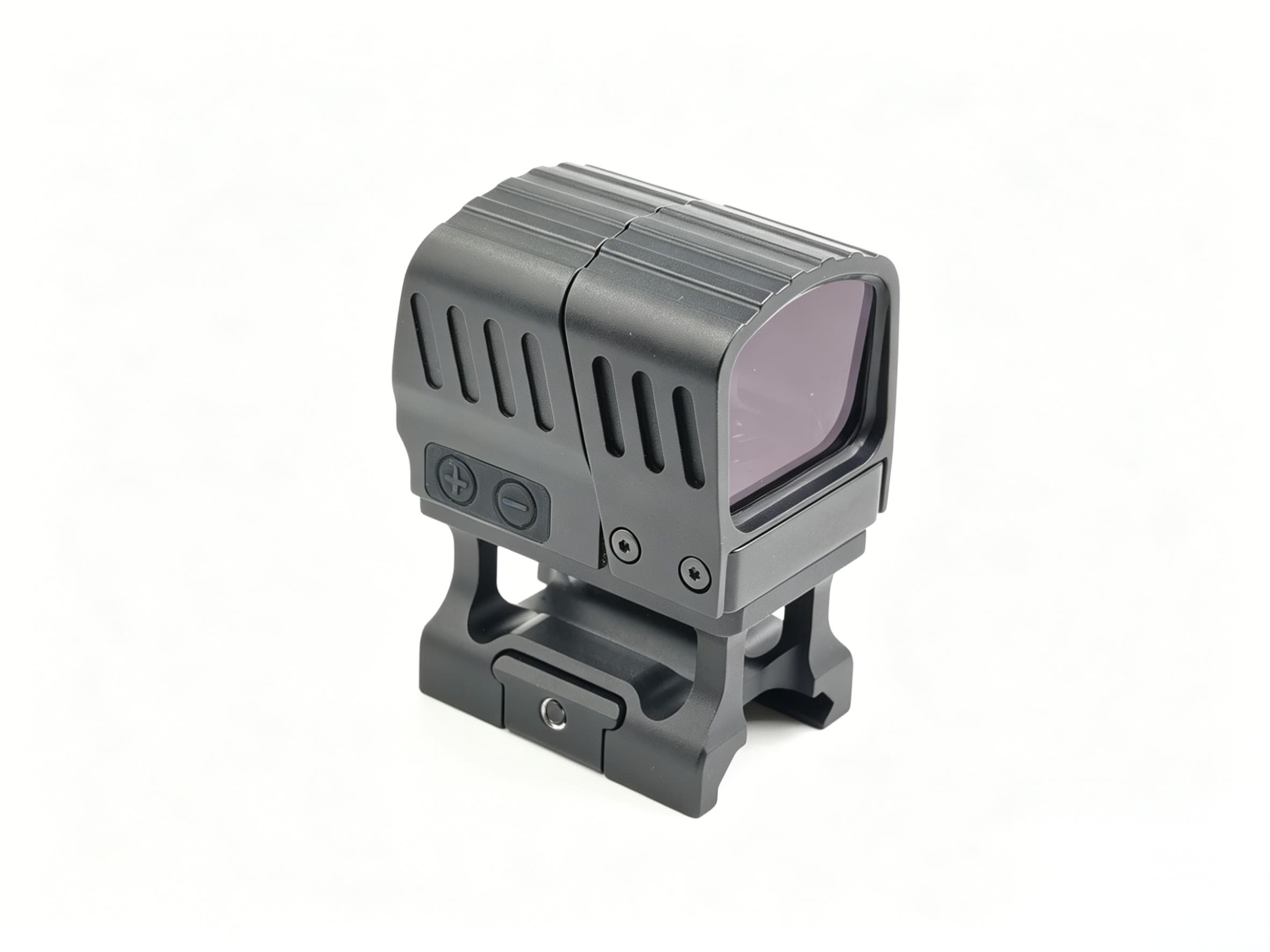

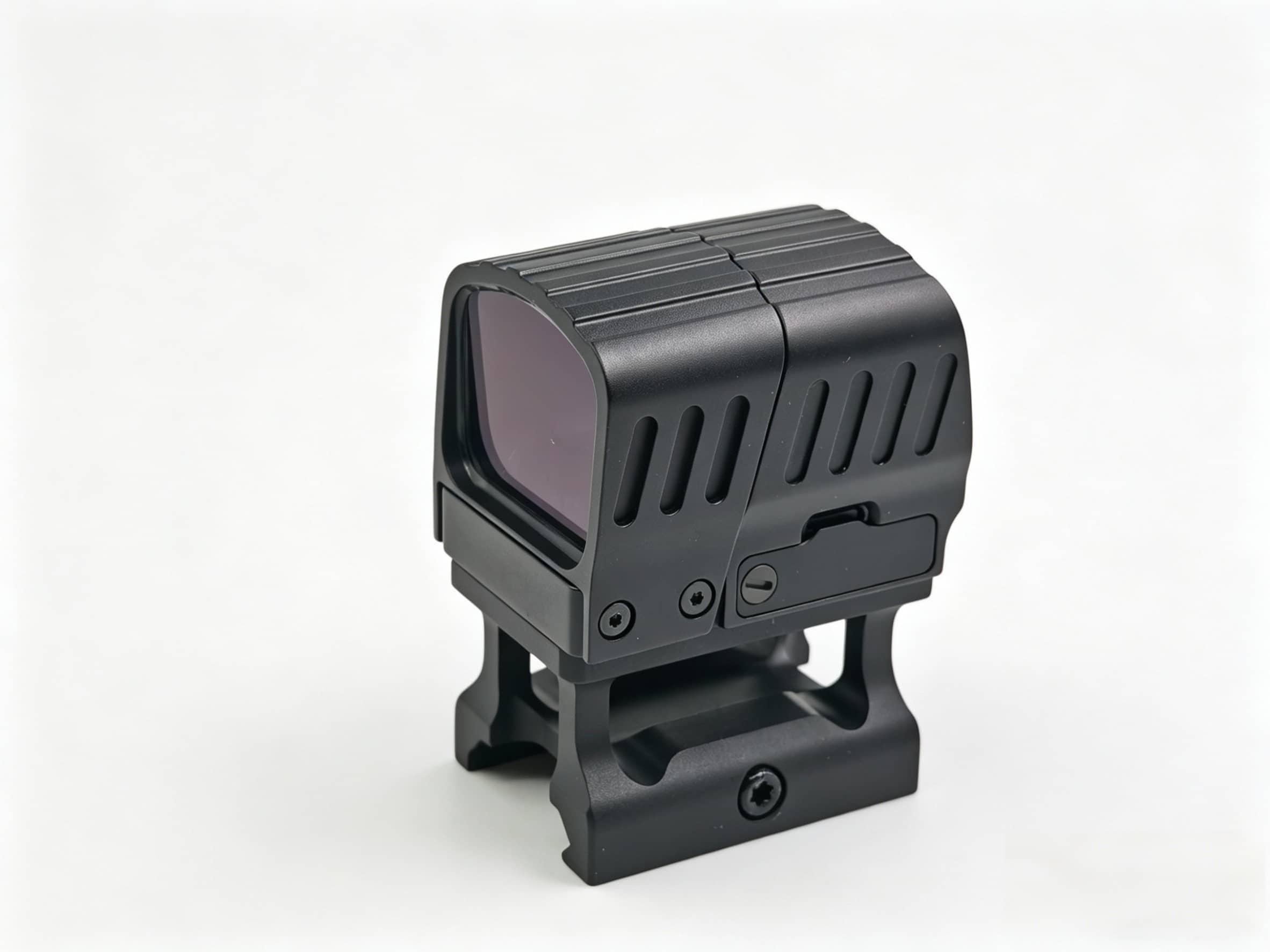

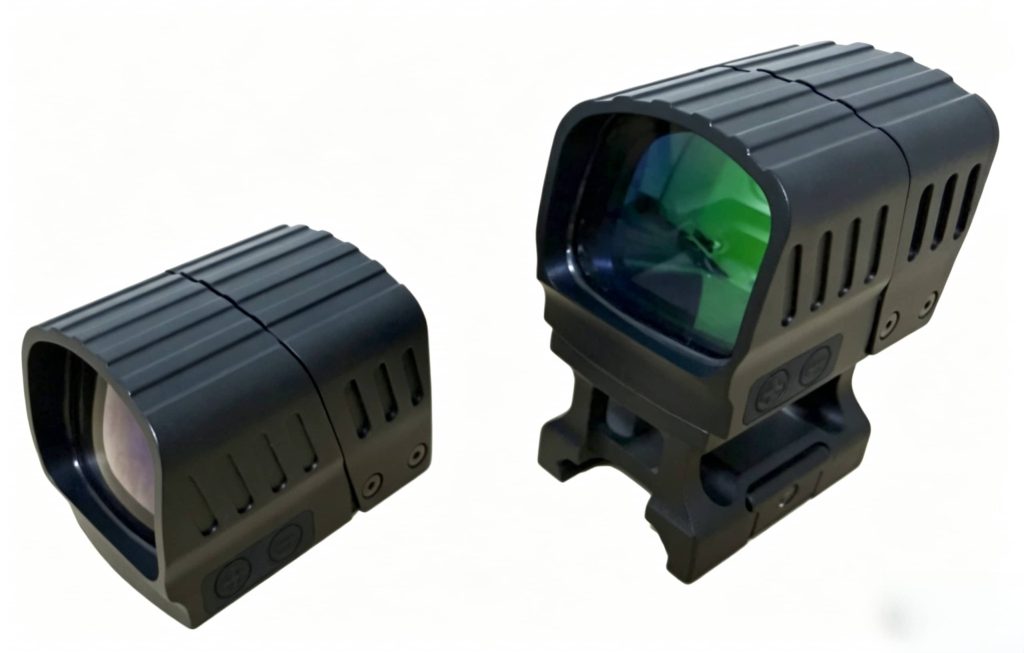

AR Red Dot Sight – Enclosed, Solar/Battery, 30mm Window, 1 MOA YIE1301TR
The YIE1301TR Red Dot Sight is a rugged 1x open reflex sight designed for AR rifles, carbines, tactical drills, CQB training, hog hunting, range practice, and fast target acquisition. It features standard or multi-reticle options, red or green LED illumination, 10 brightness settings, 2 NV-compatible levels, motion sensing, memory function, and solar/battery power modes for flexible use in different shooting environments.
Built with a 6061 aluminum housing, matte black finish, IPX7 waterproof protection, and 2500G vibration resistance, this optic is suitable for tactical, hunting, and private label rifle optics markets.
OVERVIEW
Key Advantages of AR Red Dot Sight YIE1301TR
- 1x magnification with unlimited eye relief
- 30mm window size for fast sight picture
- Standard or multi-reticle dot options
- Red or green LED illumination
- 10 brightness levels: 8 daylight + 2 NV-compatible
- Solar mode and battery mode switching
- CR1620 side-loaded battery
- Battery life up to 50,000 hours
- Motion sensing: sleeps after 225s, wakes on motion
- Memory function returns to last brightness and reticle setting
- Zero parallax at 33 yards
- 1 MOA tactile click value
- ±45 MOA adjustment range
- 6061 aluminum housing, matte black finish
- IPX7 submersible waterproof rating
- 2500G vibration resistance
- Operating temperature: -30°C to 60°C
Application Scenarios
AR Rifle and Tactical Shooting
The 1x magnification, 30mm window, and unlimited eye relief support quick target acquisition on AR rifles, carbines, and tactical platforms.
CQB Training and Range Practice
With 1 MOA tactile clicks, ±45 MOA adjustment range, and zero parallax at 33 yards, this sight is suitable for CQB drills and short-range zeroing.
Hunting and Outdoor Use
The IPX7 submersible rating, 2500G vibration resistance, and wide operating temperature range make it suitable for hog hunting, brush hunting, and outdoor field use.
Low-Light and Night Vision Applications
The 10 brightness levels, including 8 daylight and 2 NV-compatible settings, support bright daylight, low-light shooting, and night vision equipment use.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview
- Customizable Part B2B Value
- Logo Branding Supports private label Red Dot Sights
- Reticle Option Standard dot or multi-reticle for different market needs
- Illumination Color Red or green LED options for product differentiation
- Power Mode Solar mode and battery mode support premium positioning
- Housing Finish Matte black standard; custom finish can be discussed
- Packaging Retail box, neutral box, or customized brand packaging
- Accessories Battery, lens cover, mount, tool, cleaning cloth, and manual
- OEM/ODM Support Suitable for custom red dot sight product lines
Parameters
| Product Code | YIE1301TR |
| Housing Material | 6061 Aluminum |
| Surface Finish | Matte Black |
| Reticle | Standard or Multi-Reticle Dot |
| Battery Type | CR1620 |
| Battery Tray | Side-loaded |
| Battery Life | Up to 50,000 hours |
| Illumination Source | Red or Green LED |
| Power Operation | On: press “+” briefly; Off: hold “-” for 3 seconds; Mode switch: hold “+” for 3 seconds to switch between solar mode and battery mode |
| Brightness Settings | 10 levels (8 Daylight & 2 Night Vision); Settings 1-2 are NV-compatible |
| Memory Function | Remembers last brightness setting and reticle used on power-on |
| Magnification | 1x |
| Unlimited Eye Relief | Yes |
| Parallax Free Distance | Zero parallax at 33 yards |
| Motion Sensing | Sleep mode after 225 seconds of inactivity; wakes on motion |
| Window Size | 30 mm |
| Click Value | Tactile 1 MOA per click |
| Adjustment Range | ±45 MOA |
| Waterproof Rating | IPX7 (submersible) |
| Vibration Resistance | 2500G |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Temperature | -30℃ ~ 60℃ |
Let’s Work Together
For B2B buyers, customization options can include logo branding, reticle style, LED color, packaging, accessories, mount configuration, and OEM/ODM support.
Contact us to discuss your customized Red Dot Sights solution for tactical, hunting, or close-range shooting markets.
