Closed Emitter Pistol Red Dot – Solar + USB Rechargeable, Aspherical Lens, RMSc RUT1201TR
The RUT1201TR Red Dot Sight is an ultra-compact 1X micro reflex sight designed for pistols, compact carbines, AR platforms, CQB training, range practice, and fast target acquisition. It features a 20×17mm aspherical glass lens, red LED illumination, 8 daylight + 2 NV brightness settings, solar panel support, motion activation, and a built-in rechargeable lithium battery.
With Shield RMSc footprint, 30g lightweight housing, IPX7 waterproof protection, 1500Gs shockproof performance, and CNC A6061 aluminum construction, this optic is suitable for compact tactical and pistol red dot markets.
OVERVIEW
Key Advantages and Features
- 1X magnification with unlimited eye relief
- 20×17mm aspherical glass lens
- Red LED point source emitter
- Solar panel support
- Motion activation: auto sleep after 2 minutes, wakes on motion
- 8 daytime + 2 NV illumination settings
- Built-in 35mAh rechargeable lithium battery
- 2-hour charging time
- Long runtime: up to 12,000 hrs dot only / 3,400 hrs circle dot at low level
- Low power alarm
- 1.5 MOA click value
- 60 MOA total elevation and windage range
- CNC A6061 aluminum housing, matte black anodized finish
- Ultra-lightweight: 30g
- Compact size: 40.8×26×25.7mm
- IPX7 waterproof, 1500Gs shockproof
- Shield RMSc footprint
Best-Fit Application Scenarios
Pistol and Compact Firearm Use
The 30g micro design and Shield RMSc footprint make this sight suitable for pistols, compact carbines, and lightweight firearm setups.
CQB Training and Fast Target Acquisition
With 1X magnification, unlimited eye relief, and a 25-yard parallax setting, this optic supports fast aiming at close range.
Low-Light and NV-Compatible Shooting
The 8 daytime + 2 night vision illumination settings help users adapt to daylight, low-light, and NV-compatible environments.
Outdoor and Tactical Field Use
The IPX7 waterproof rating, 1500Gs shockproof performance, and motion activation make it practical for outdoor training and duty-style use.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview (OEM/ODM-friendly)
- Customizable Part B2B Value
- Logo Branding Supports private label Red Dot Sights
- Reticle Style Dot or circle-dot positioning can support different user preferences
- Housing Finish Matte black anodized standard; custom finish can be discussed
- Footprint / Mounting Shield RMSc footprint supports compact optic compatibility
- Packaging Retail box, neutral box, or customized brand packaging

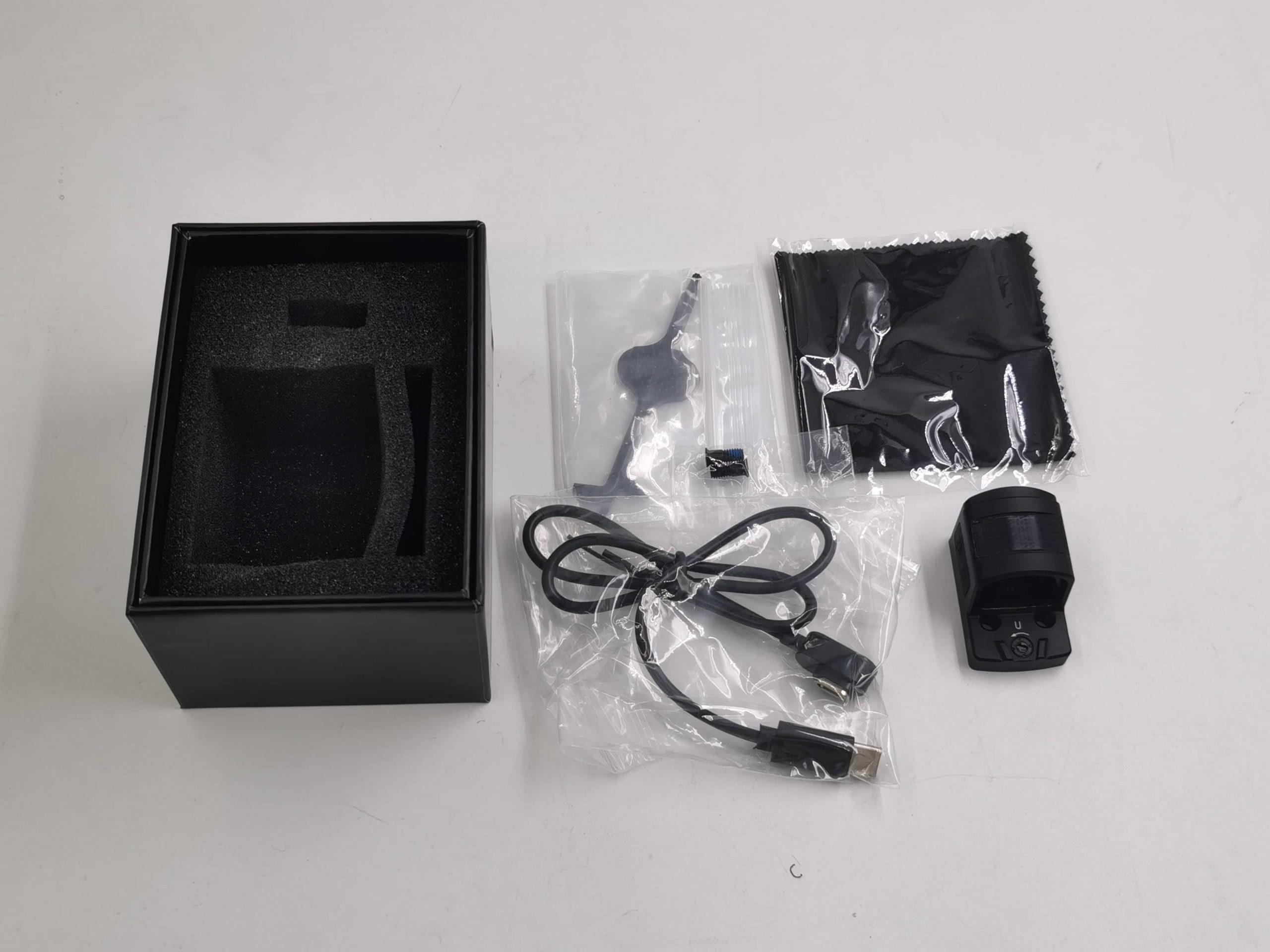

- Accessories Charging cable, lens cover, screws, tool, cleaning cloth, manual
- OEM/ODM Support Suitable for customized micro red dot sight programs
Parameters
| Product Code | RUT1201TR |
| Reticle Color | Red |
| Illumination Source | Highly efficient, point source LED emitter |
| Objective Lens Size | 20 x 17mm |
| Lens Material | Aspherical Glass Lens |
| Solar Panel | YES |
| Motion Activate | 1. Auto power off 2 minutes w/o motion. 2. Power on as soon as motion sensed. |
| Magnification | 1X |
| Eye Relief | Unlimited |
| Parallax Setting | 25 yards |
| Parallax | ≤2MOA |
| Click Value | 1.5 MOA |
| Total Elevation Range | 60MOA (±30MOA) |
| Total Windage Range | 60MOA (±30MOA) |
| Illumination Setting | 8 daytime + 2 NV |
| Battery | Built-in Rechargable Lithium Battery, 35mAh |
| Charging Time | 2 hours |
| Run time | Dot only: highest level 160hrs, mid level 3,100hrs, low level 12,000hrs; Circle Dot: highest level 36hrs, mid level 750hrs, low level 3,400hrs |
| Low Power Alarm | Yes |
| Housing Material | CNC Aluminum Housing, A6061 |
| Surface Finish | Anodized |
| Housing Color | Matt Black |
| Size (LxWxH) | 40.8x26x25.7mm |
| Weight | 30g |
| Waterproof | IPX7 (1M, 30min) |
| Shockproof | 1500Gs, 300 Circles |
| Footprint | Shield RMSc |
For B2B buyers, customization options can include logo branding, reticle style, housing finish, packaging, accessories, manuals, and OEM/ODM support.
Contact us to discuss your customized Red Dot Sights solution for pistol, tactical, or compact firearm optic markets.
