Closed Emitter Pistol Red Dot – Solar + USB Rechargeable, 26×23mm, RMR RUT1262OR
The RUT1262OR Red Dot Sight is a compact 1X open reflex sight designed for pistols, AR rifles, carbines, CQB training, tactical drills, hunting, and range practice. It features a 26×23mm multi-coated glass lens, red LED illumination, 8 daylight + 2 NV brightness settings, solar panel support, motion activation, and a built-in 60mAh rechargeable lithium battery.
With an RMR footprint, 90 MOA total adjustment range, IPX7 waterproof protection, 1500Gs shockproof performance, and CNC A6061 aluminum housing, this optic is suitable for tactical, hunting, and private label red dot sight markets.
OVERVIEW
Key Advantages and Features
- 1X magnification with unlimited eye relief
- 26×23mm multi-coated glass lens
- Red LED point source emitter
- Solar panel support with rechargeable power system
- Motion activation: auto sleep after 2 minutes, wakes on motion
- 8 daytime + 2 NV illumination settings
- Built-in 60mAh rechargeable lithium battery
- 3.5-hour charging time
- Runtime up to 20,000 hrs dot only / 5,500 hrs circle dot at low level
- Low power alarm
- 1 MOA click value
- 90 MOA total elevation and windage range
- CNC A6061 aluminum housing, matte black anodized finish
- Lightweight 43g body
- Compact size: 51×31.7×32.4mm
- IPX7 waterproof, 1500Gs shockproof
- RMR footprint
Best-Fit Application Scenarios
Pistol, AR Rifle, and Carbine Use
The RMR footprint, 1X magnification, and unlimited eye relief make it suitable for pistols, AR platforms, carbines, and compact firearm setups.
CQB Training and Fast Target Acquisition
The 26×23mm window, 1 MOA click value, and 100-yard parallax setting support quick aiming and practical close-range zeroing.
Low-Light and NV-Compatible Shooting
With 8 daytime + 2 NV brightness settings, the sight adapts to daylight, low-light, and night vision-compatible environments.
Hunting and Outdoor Field Use
The IPX7 waterproof rating, 1500Gs shockproof performance, and motion activation make it practical for hog hunting, brush hunting, and outdoor shooting.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview (OEM/ODM-friendly)
- Customizable Part B2B Value
- Logo Branding Supports private label Red Dot Sights
- Reticle Style Dot or circle-dot options can match different user preferences
- Housing Finish Matte black anodized standard; custom finishes can be discussed
- Footprint / Mounting RMR footprint supports broader firearm compatibility
- Packaging Retail box, neutral box, or custom brand packaging

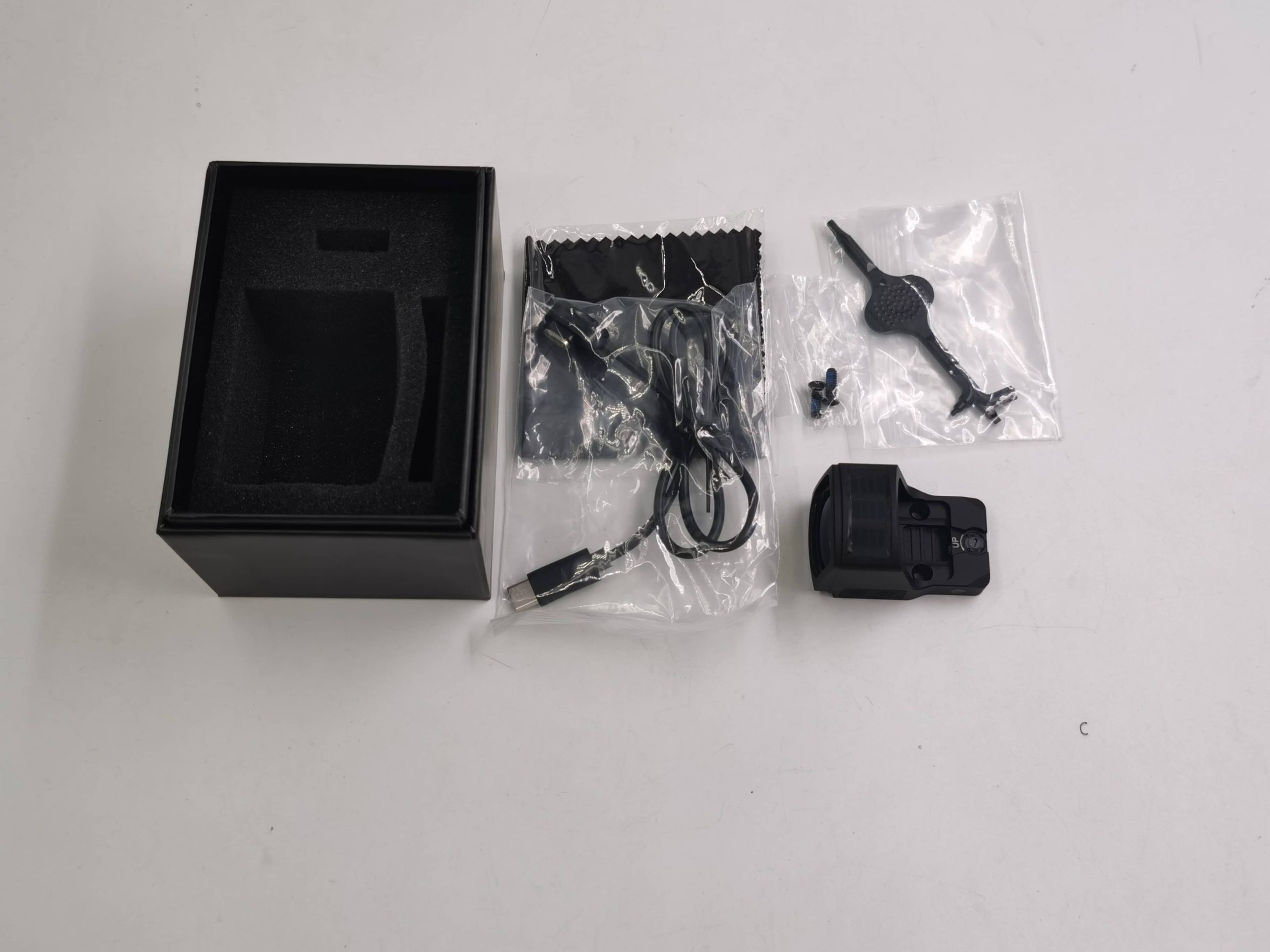

- Accessories Charging cable, lens cover, screws, tool, cleaning cloth, manual
- OEM/ODM Support Suitable for customized reflex sight product lines
Parameters
| Product Code | RUT1262OR |
| Reticle Color | Red |
| Illumination Source | Highly efficient, point source LED emitter |
| Objective Lens Size | 26 x 23mm |
| Lens Material | Multi Coated Glass Lens |
| Solar Panel | YES |
| Motion Activate | 1. Auto power off 2 minutes w/o motion. 2. Power on as soon as motion sensed. |
| Magnification | 1X |
| Eye Relief | Unlimited |
| Parallax Setting | 100 yards |
| Parallax | ≤2MOA |
| Click Value | 1MOA |
| Total Elevation Range | 90MOA (±45MOA) |
| Total Windage Range | 90MOA (±45MOA) |
| Illumination Setting | 8 daytime + 2 NV |
| Battery | Built-in Rechargable Lithium Battery, 60mAh |
| Charging Time | 3.5 hours |
| Run time | Dot only: highest level 250hrs, mid level 5,000hrs, low level 20,000hrs; Circle Dot: highest level 60hrs, mid level 1200hrs, low level 5,500hrs |
| Low Power Alarm | Yes |
| Housing Material | CNC Aluminum Housing, A6061 |
| Surface Finish | Anodized |
| Housing Color | Matt Black |
| Size (LxWxH) | 51 x 31.7 x 32.4mm |
| Weight | 43g |
| Waterproof | IPX7 (1M, 30min) |
| Shockproof | 1500Gs, 300 Circles |
| Footprint | RMR |
For B2B buyers, customization options can include logo branding, reticle style, housing finish, packaging, accessories, manuals, and OEM/ODM support.
Contact us to discuss your customized Red Dot Sights solution for pistol, tactical, or compact rifle optic markets.
