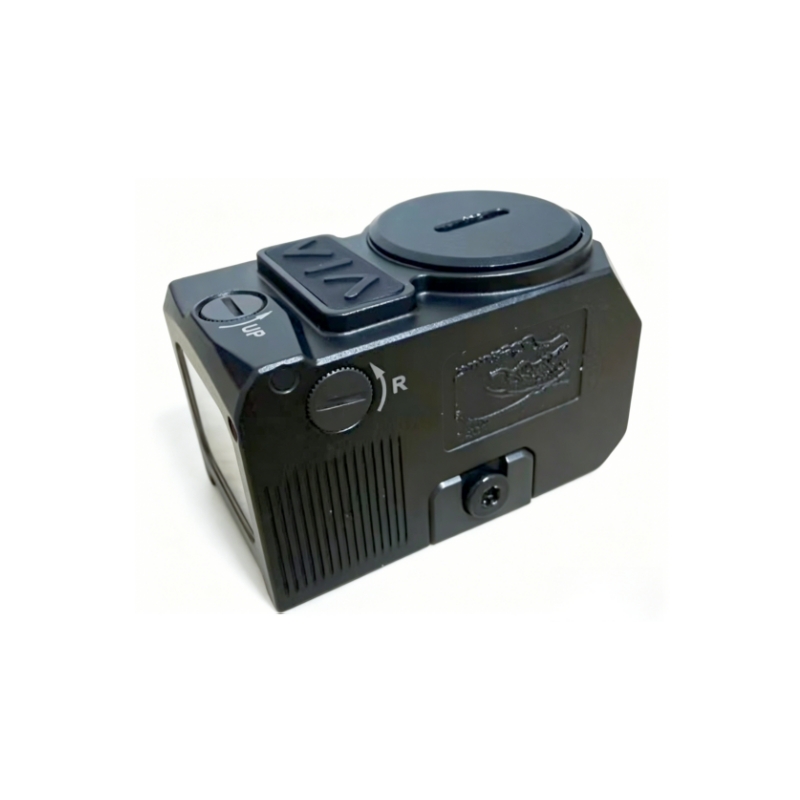

Closed Emitter Pistol Red Dot – Red/Green Multi-Reticle, CR2032, 1 MOA YIE1201TR
The YIE1201TR Red Dot Sight is a compact 1x open reflex sight designed for AR rifles, carbines, tactical drills, CQB training, hog hunting, and range practice. It features standard or multi-reticle options, red or green LED illumination, 10 brightness settings, 2 NV-compatible levels, motion sensing, memory function, and a long-life CR2032 battery for reliable close-range aiming.
Built with 6061 aluminum housing, matte black finish, IPX7 waterproof protection, and 2500G vibration resistance, this optic is suitable for tactical, hunting, and private label rifle optics markets.
OVERVIEW
Key Advantages and Features
- 1x magnification with unlimited eye relief
- Standard or multi-reticle dot options
- Red or green LED illumination
- 10 brightness levels: 8 daylight + 2 NV-compatible
- CR2032 side-loaded battery, up to 50,000 hours battery life
- Motion sensing: sleeps after 225s, wakes on motion
- Memory function returns to last brightness and reticle setting
- 22×17mm window size for compact sight picture
- Zero parallax at 33 yards
- 1 MOA tactile click value
- ±45 MOA adjustment range
- 6061 aluminum housing, matte black finish
- IPX7 submersion protection
- 2500G vibration resistance
- Working temperature: -30°C to 60°C
Best-Fit Application Scenarios
AR Rifle and Tactical Shooting
The 1x magnification, compact window, and unlimited eye relief support quick target acquisition on AR rifles, carbines, and tactical platforms.
CQB Training and Range Practice
With 1 MOA tactile clicks, ±45 MOA adjustment range, and zero parallax at 33 yards, this sight is suitable for close-range drills and basic zeroing.
Hunting and Outdoor Use
The IPX7 submersion rating, 2500G vibration resistance, and wide working temperature make it practical for hog hunting, brush hunting, and outdoor rifle setups.
Low-Light and NV-Compatible Use
The 10 brightness levels, including 8 daylight and 2 NV-compatible settings, support daylight, low-light, and night vision applications.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview (OEM/ODM-friendly)
- Customizable Part B2B Value
- Logo Branding Supports private label Red Dot Sights
- Reticle Option Standard dot or multi-reticle for different markets
- Illumination Color Red or green LED options
- Housing Finish Matte black standard; custom finish can be discussed
- Packaging Retail box, neutral box, or custom brand packaging
- Accessories Battery, lens cover, mount, tool, cleaning cloth, manual
- OEM/ODM Support Suitable for customized red dot sight programs
Parameters
| Product Code | YIE1201TR |
| Housing Material | 6061 Aluminum |
| Surface Finish | Matte Black |
| Reticle | Standard or Multi-Reticle Dot |
| Battery Type | CR2032 |
| Battery Tray | Side loaded |
| Battery Life (Hours) | Up to 50,000 hours |
| Illumination Source | Red or Green LED |
| Power on / Power off | Turn the sight on by momentarily pressing “+”; hold the “+” button for 3 seconds to change the reticles; hold the “-” button for 3 seconds to turn off |
| Brightness Setting | 10 levels (8 DL & 2 NV), settings 1 to 2 are NV compatible |
| Memory Function | Turn the sight on returning to the last brightness setting and reticle used |
| Magnification | 1x |
| Unlimited Eye Relief | YES |
| Parallax Free Distance | Zero parallax at 33 yards |
| Motion Sensing | Automatically enter into sleep mode after 225s of no movement, powers up when it senses motion |
| Window Size (mm) | 22x17mm |
| Click Value | Tactile 1 MOA Per click |
| Adjustment Range | ±45 MOA |
| Submersion | IPX7 |
| Vibration | 2500G |
| Storage Temperature | -40℃ ~ 70℃ |
| Working Temperature | -30℃ ~ 60℃ |
For B2B buyers, customization options can include logo branding, reticle style, LED color, mount accessories, packaging, manuals, and OEM/ODM support.
Contact us to discuss your customized Red Dot Sights solution for tactical, hunting, or fast target acquisition markets.
