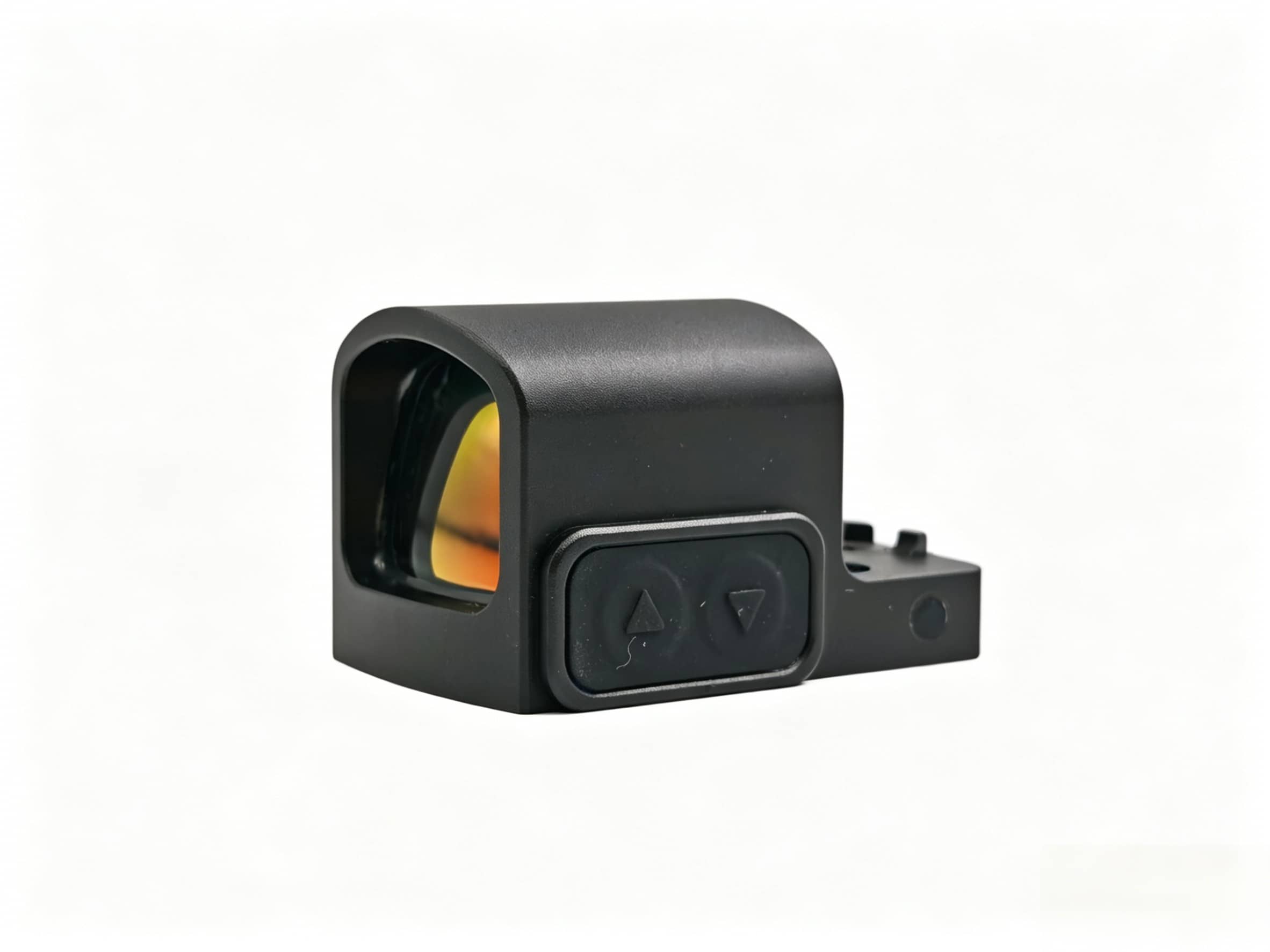

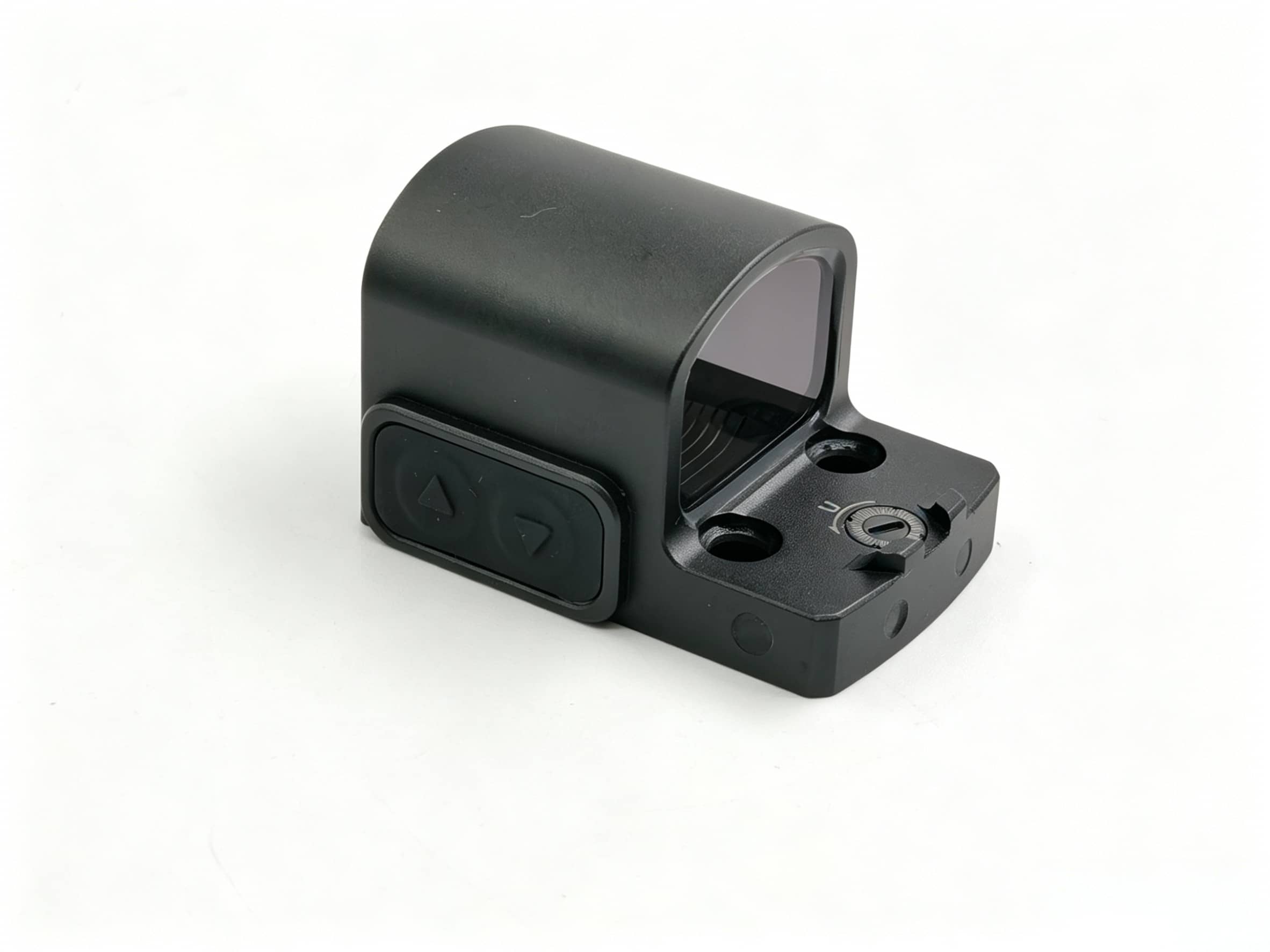

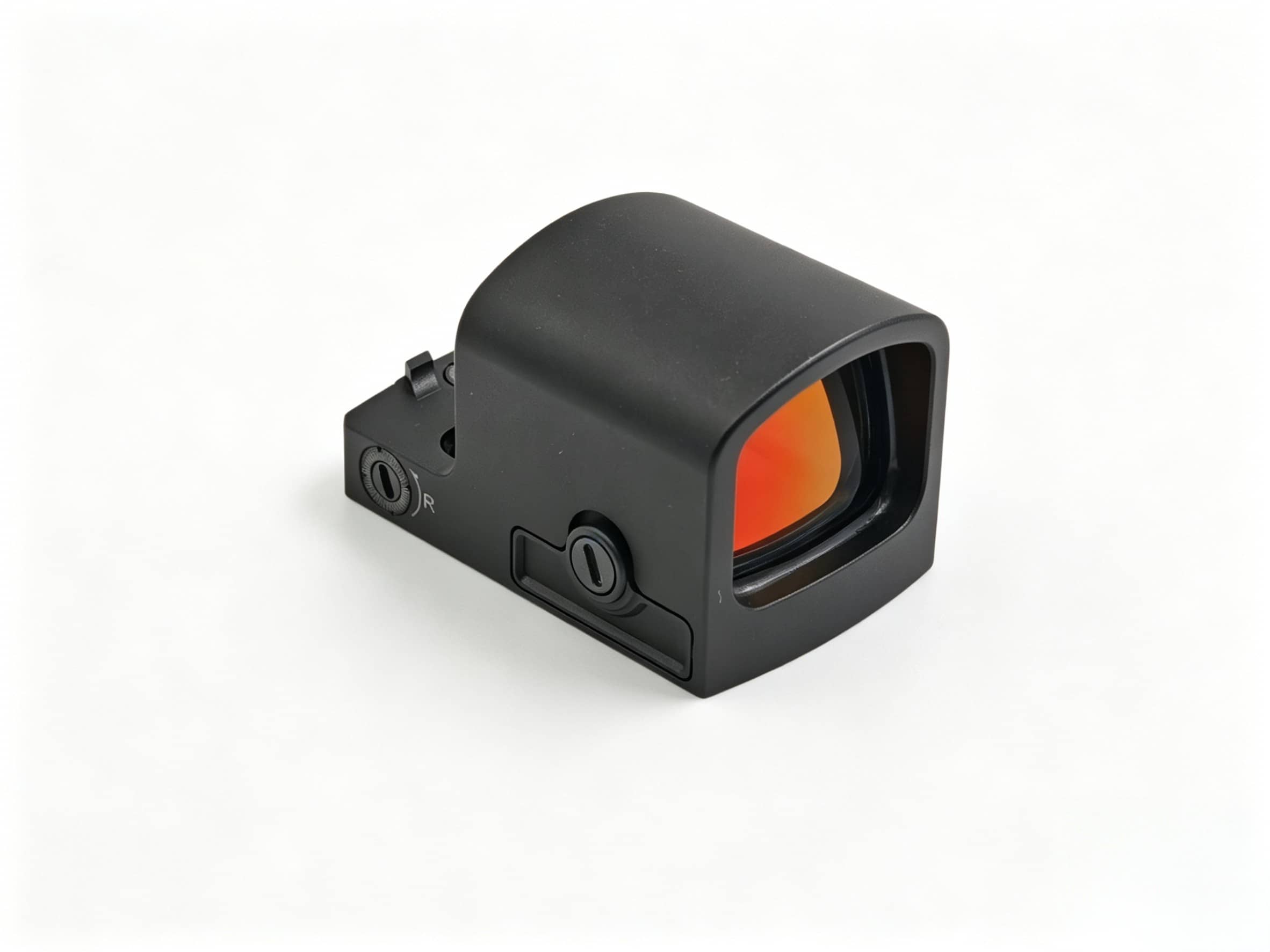

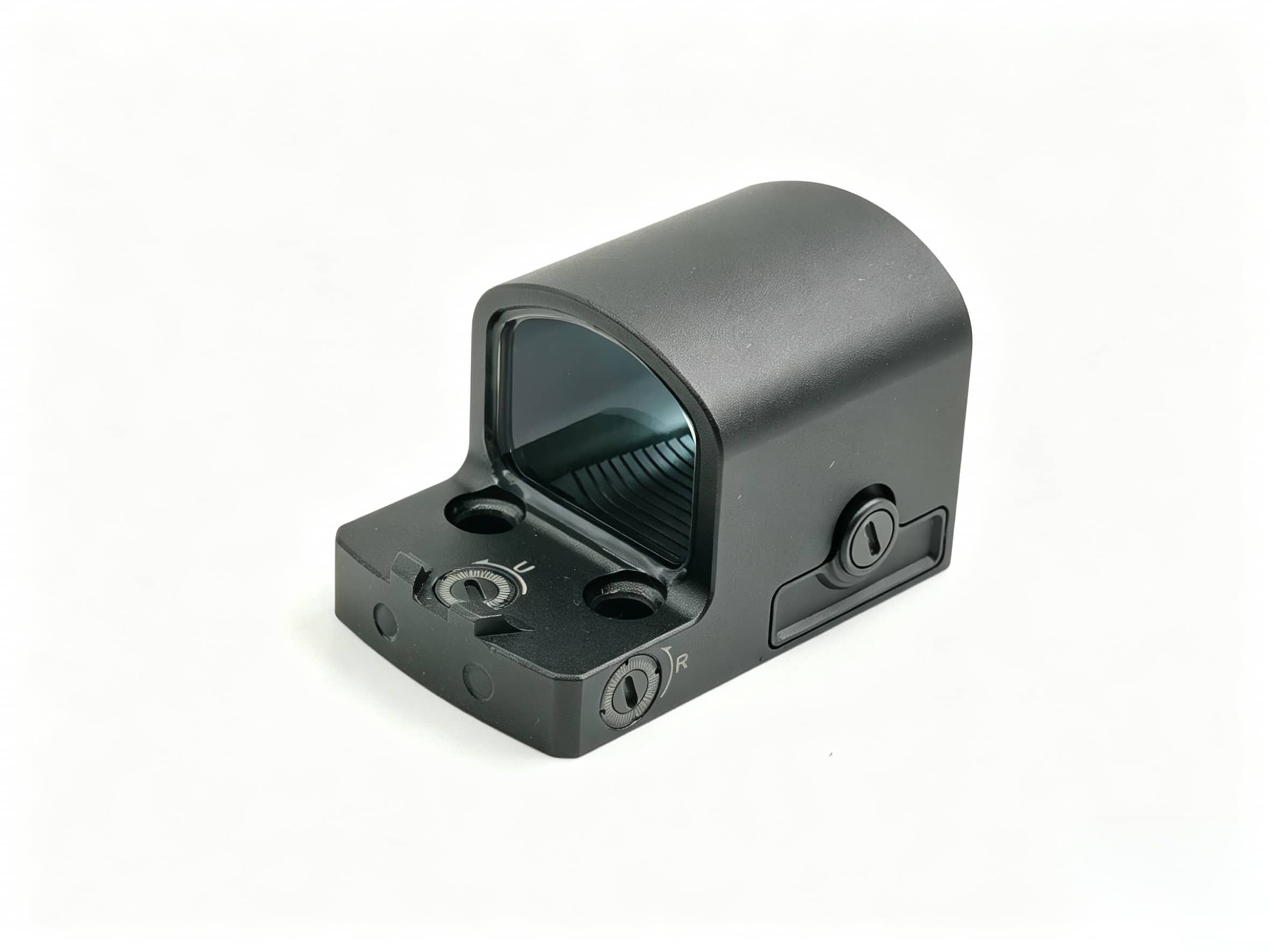

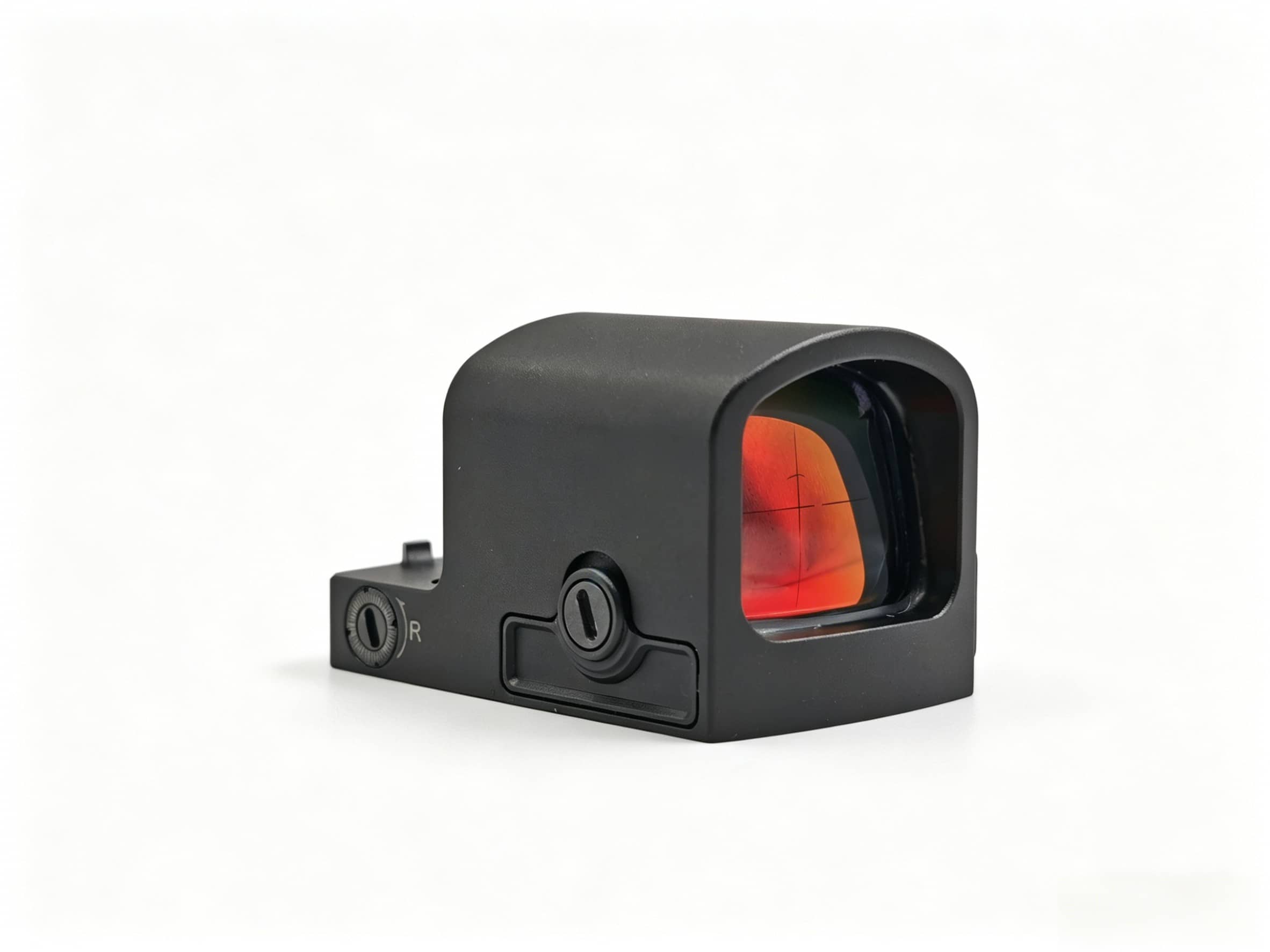

Closed Emitter Pistol Red Dot – Multi-Reticle, CR1620 Side-Load, 10 Brightness Levels YIE1203TR
The YIE1203TR Red Dot Sight is a compact 1x reflex optic designed for pistols, AR rifles, carbines, CQB drills, hog hunting, and range practice. It features a 3MOA red dot, 10 brightness settings, 2 NV-compatible levels, motion sensing, memory function, and long battery life up to 50,000 hours.
Built with 6061-T6 housing, matte black finish, IPX7 waterproof protection, and 2500G vibration resistance, this optic is suitable for tactical, hunting, and private label firearm accessory markets.
OVERVIEW
Key Advantages and Features
- 1x magnification with unlimited eye relief
- 3MOA red dot for quick aiming
- 20mm compact window size
- 10 brightness levels: 8 daylight + 2 NV-compatible
- CR1620 side-loaded battery, up to 50,000 hours battery life
- Motion sensing: sleeps after 225s, wakes on motion
- Memory function returns to last brightness and reticle setting
- Zero parallax at 33 yards
- 1.5 MOA tactile click value
- ±30 MOA adjustment range
- 6061-T6 housing, matte black finish
- IPX7 submersion protection
- 2500G vibration resistance
- Working temperature: -30°C to 60°C
Best-Fit Application Scenarios
Pistol, AR Rifle, and Carbine Use
The 1x magnification, compact window, and unlimited eye relief make it practical for pistols, AR rifles, carbines, and lightweight firearm setups.
CQB Training and Range Practice
With 1.5 MOA tactile clicks, ±30 MOA adjustment range, and zero parallax at 33 yards, it supports close-range zeroing and tactical drills.
Hunting and Outdoor Use
The IPX7 submersion rating, 2500G vibration resistance, and wide working temperature range make it suitable for hog hunting, brush hunting, and outdoor field use.
Low-Light and NV-Compatible Use
The 10 brightness levels, including 8 daylight and 2 NV-compatible settings, help users adapt to bright daylight, low-light, and night vision environments.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Overview (OEM/ODM-friendly)
- Customizable Part B2B Value
- Logo Branding Supports private label Red Dot Sights
- Reticle / Dot Size Standard 3MOA red dot; other reticle options can be discussed
- Housing Finish Matte black standard; custom finish available by project
- Packaging Retail box, neutral box, or customized brand packaging
- Accessories Battery, lens cover, mount, tool, cleaning cloth, manual
- OEM/ODM Support Suitable for customized red dot sight programs
Parameters
| Product Code | YIE1203TR |
| Housing Material | 6061-T6 |
| Surface Finish | Matte Black |
| Reticle | 3MOA Red Dot |
| Battery Type | CR1620, put the “-” upward |
| Battery Tray | Side-loaded |
| Battery Life (Hours) | Up to 50,000 hours |
| Illumination Source | LED |
| Power on/Power off | Turn the sight on by momentarily pressing “+”, hold the “-” button for 3 seconds to turn off |
| Brightness Setting | 10 levels(8 DL&2 NV), settings 1 to 2 are NV compatible |
| Memory Function | Turn the sight on returning to the last brightness setting and reticle used |
| Magnification | 1x |
| Unlimited Eye Relief | YES |
| Parallax Free Distance | Zero parallax at 33 yards |
| Motion Sensing | Automatically enter into sleep mode after 225s of no movement, powers up when it senses motion |
| Window Size(mm) | 20mm |
| Click Value | Tactile 1.5MOA Per click |
| Adjustment Range | ±30MOA |
| Submersion | IPX7 |
| Vibration | 2500G |
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
For B2B buyers, customization options can include logo branding, reticle style, housing finish, packaging, accessories, manuals, and OEM/ODM support.
Contact us to discuss your customized Red Dot Sights solution for tactical, hunting, or fast target acquisition markets.
