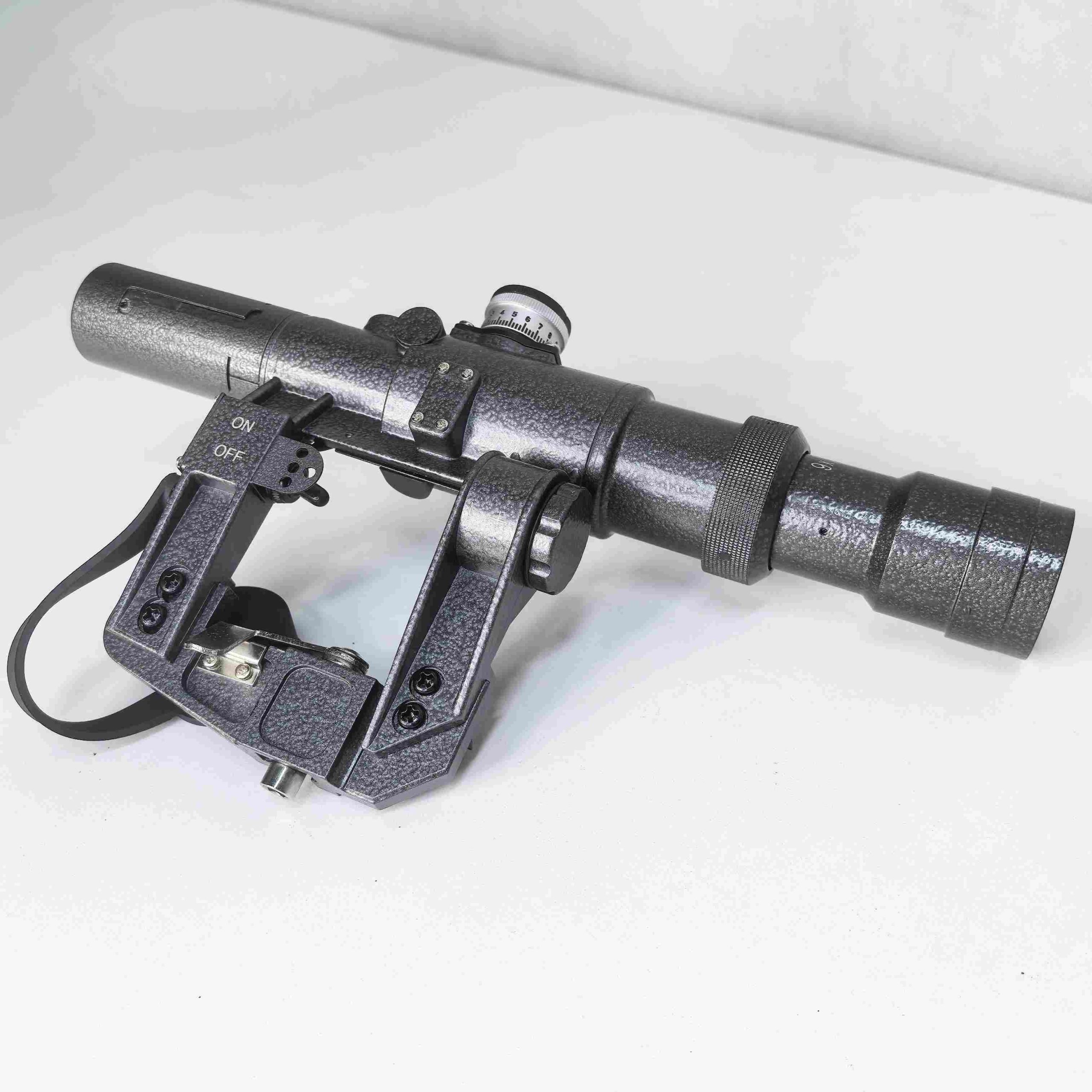

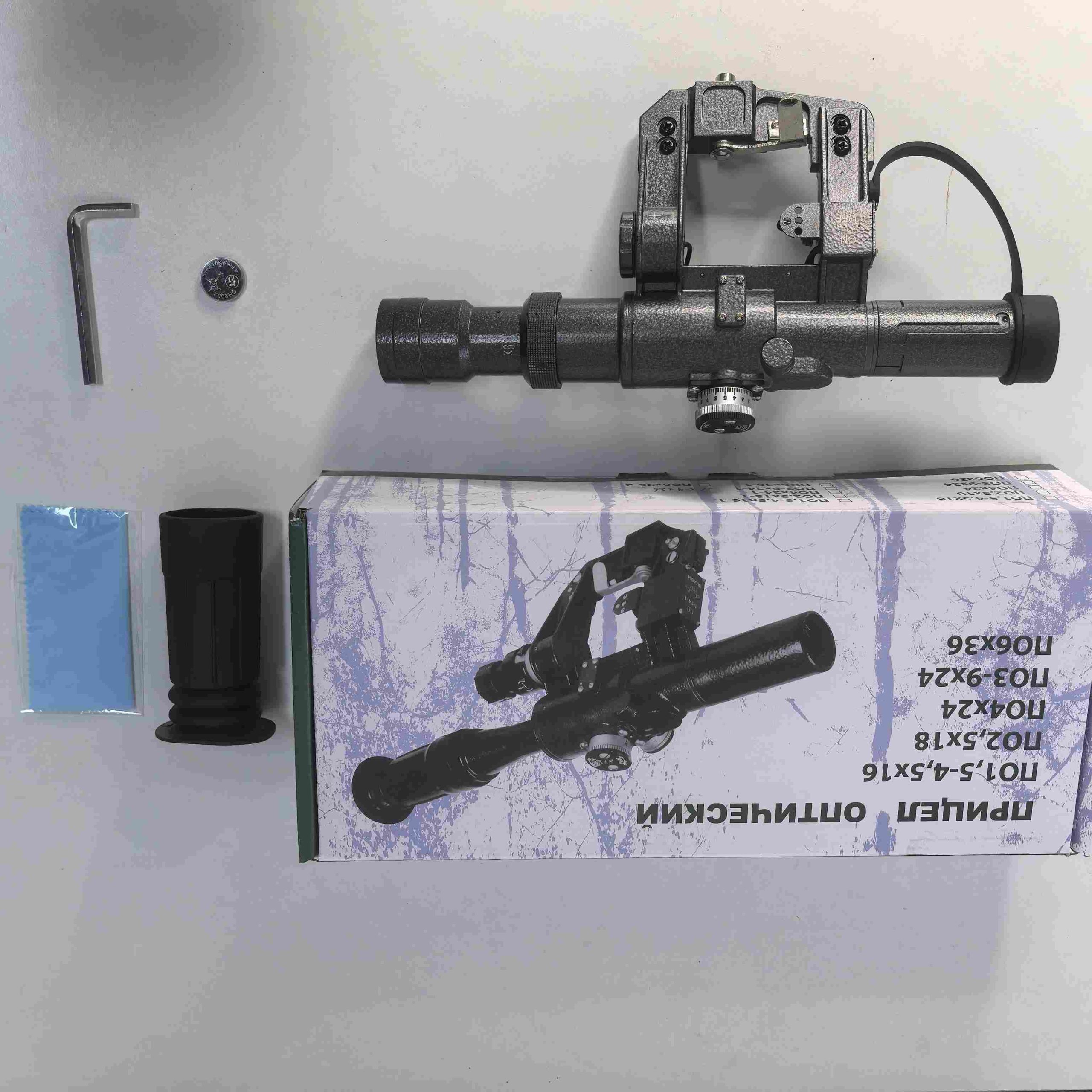

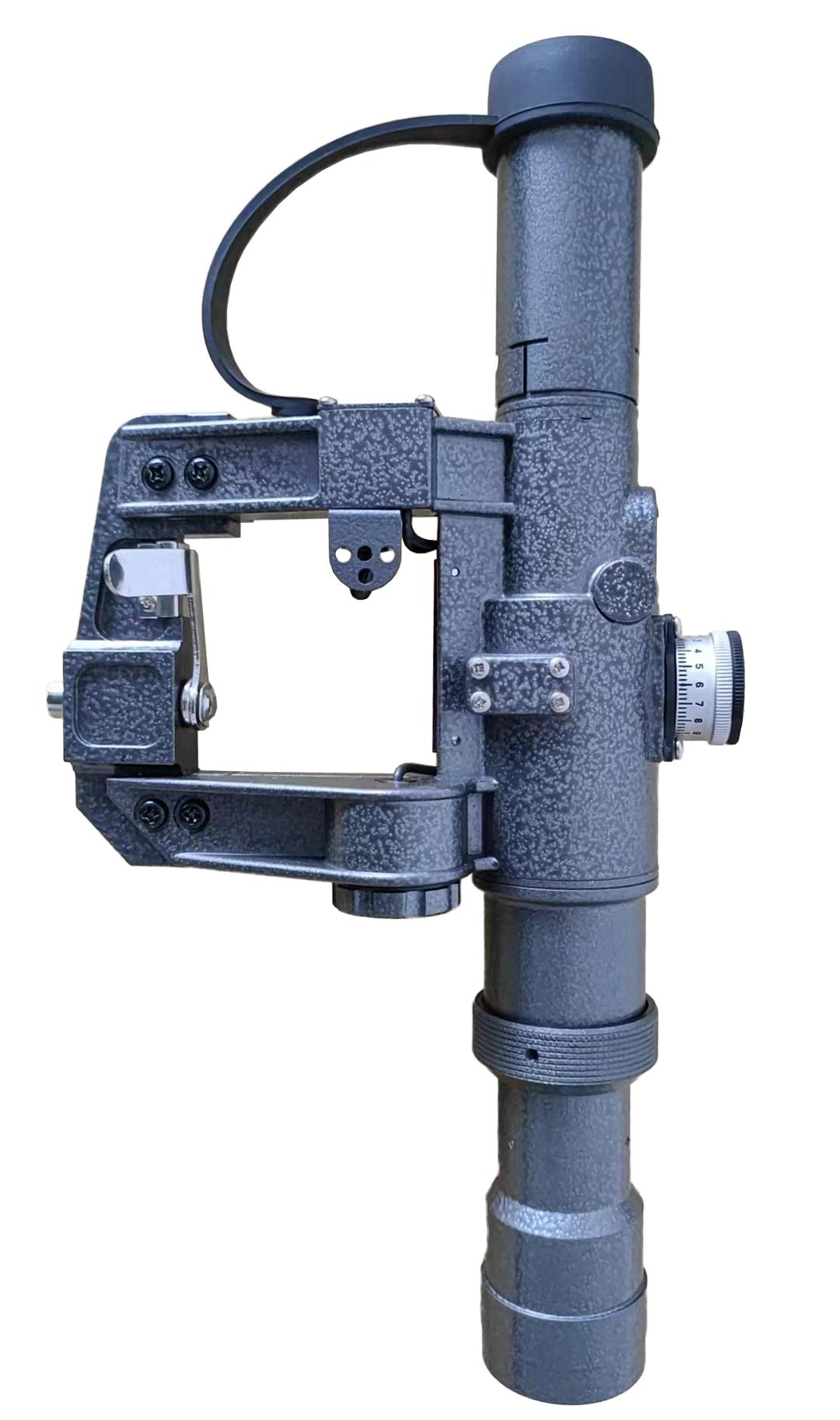

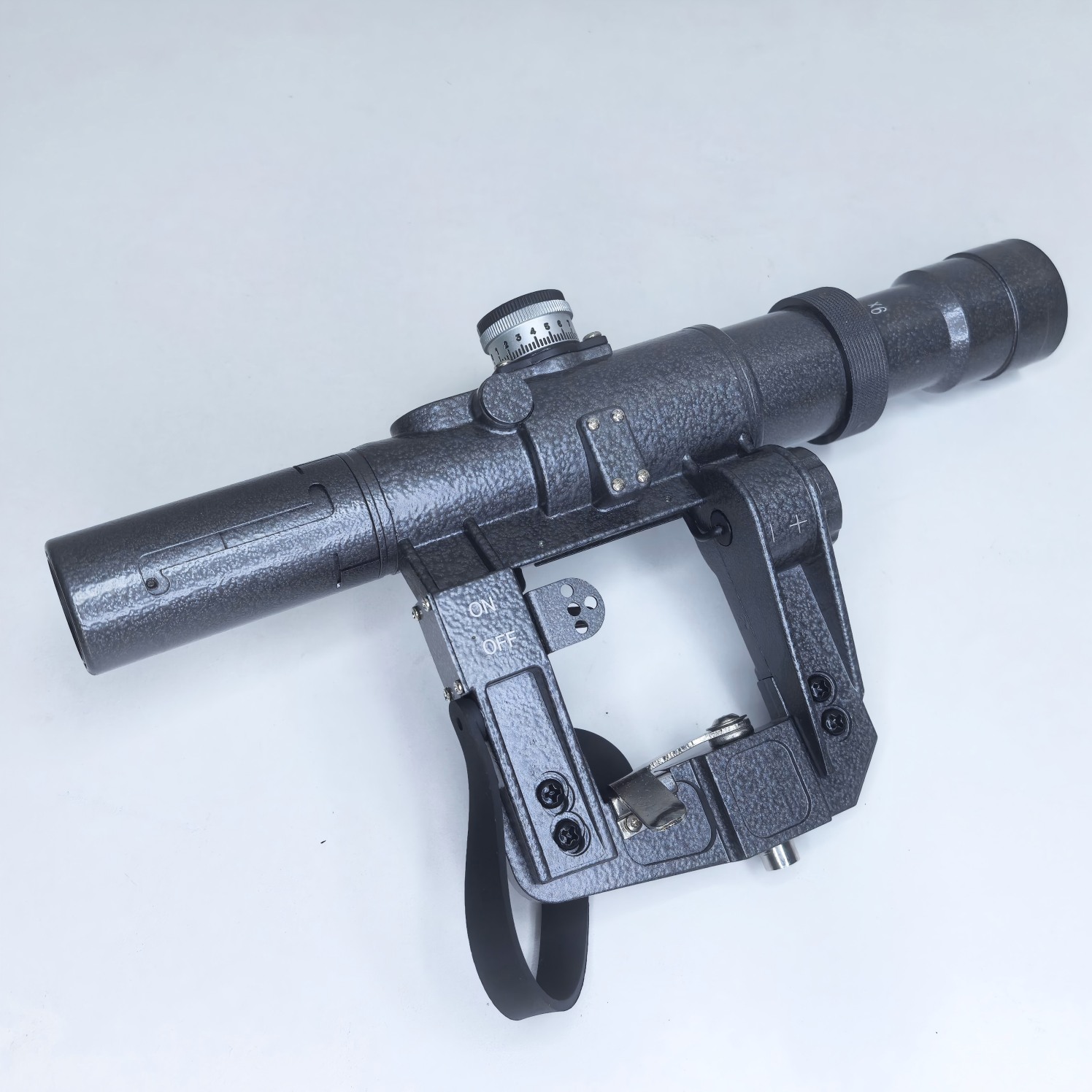

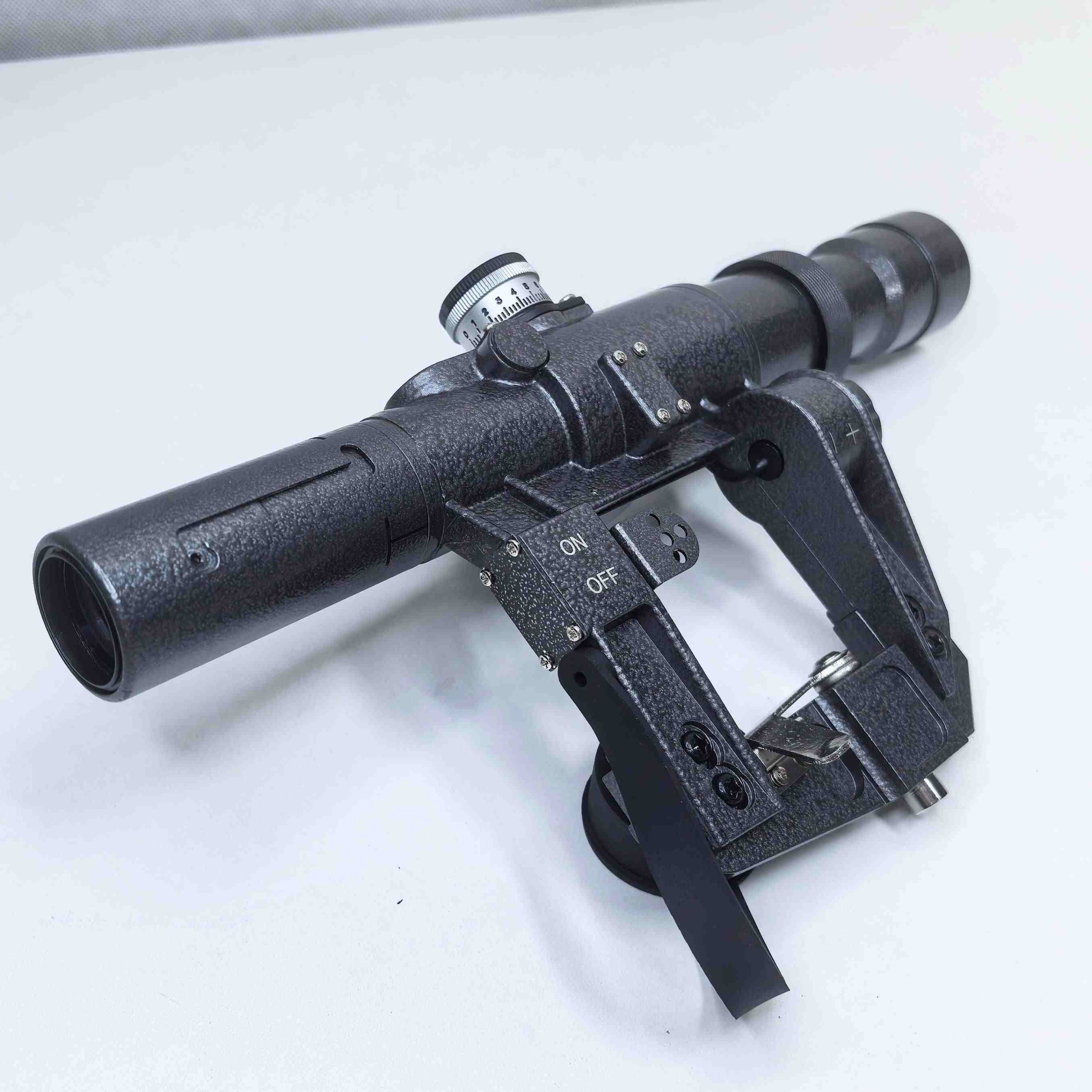

Compact 3–9x First Focal Plane SVD Rifle Scope ZYA3-9X24 FFP
This SVD rifle scope with 3–9x variable magnification and a First Focal Plane (FFP) reticle is ideal for users seeking tactical mid-range versatility without compromising weight or size. Designed for SVD/Dragunov platforms and designated marksman rifles (DMRs), it provides professional-grade accuracy in a compact 11-inch frame, making it an ideal choice for tactical shooters, OEM rifle integrators, and global distributors of DMR optics.
OVERVIEW
Key Advantages and Features
- 3–9x variable zoom with FFP reticle for true scaling at any range
- ±30 MOA windage/elevation adjustment, ideal for ballistic dialing
- 24 mm objective lens for balanced light transmission
- CR2032-powered reticle, compatible with global battery standards
- Lightweight at 22 oz with a compact 11″ body, reducing rifle profile
- 100-yard parallax preset, perfect for fast-paced target transitions
Application Scenarios:
- FFP rifle scopes for SVD platforms
- Compact 3–9x tactical optics for mid-range shooting
- First focal plane scope for DMR configurations
- Adjustable SVD scope for tactical field deployment
- The 45’–15′ field of view and 3.15”–3” eye relief ensure fast target acquisition and comfortable sight picture in variable shooting positions.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Reticle style (MOA/Mil-based, illuminated optional)
- OEM logo engraving (MOQ 100 units)
- Custom exterior finishes (Matte Black, FDE, OD Green)
Parameters
| Product Code | Specification |
| Click Value | 0.75 |
| Magnification | 3x – 9x |
| Diopter Range | -0.75D |
| Objective Lens Diameter | 24 mm |
| Exit Pupil Diameter | 8 mm – 2.7 mm |
| Eye Relief | 3.15″ – 3″ |
| Field of View | 45′ – 15′ |
| Length | 11″ |
| Weight | 22 oz |
| Adjustment Range | ±30 MOA |
| Parallax Setting | 100 yards |
| Battery Type | CR2032 |
| Reticle Position | First Focal Plane (FFP) |
Support for OEM & international orders – inquire now for dealer pricing, white-label options, and export-ready packaging.
Ask about custom reticle and finish design tailored for your shooting market.
