OVERVIEW

Key Advantages and Features

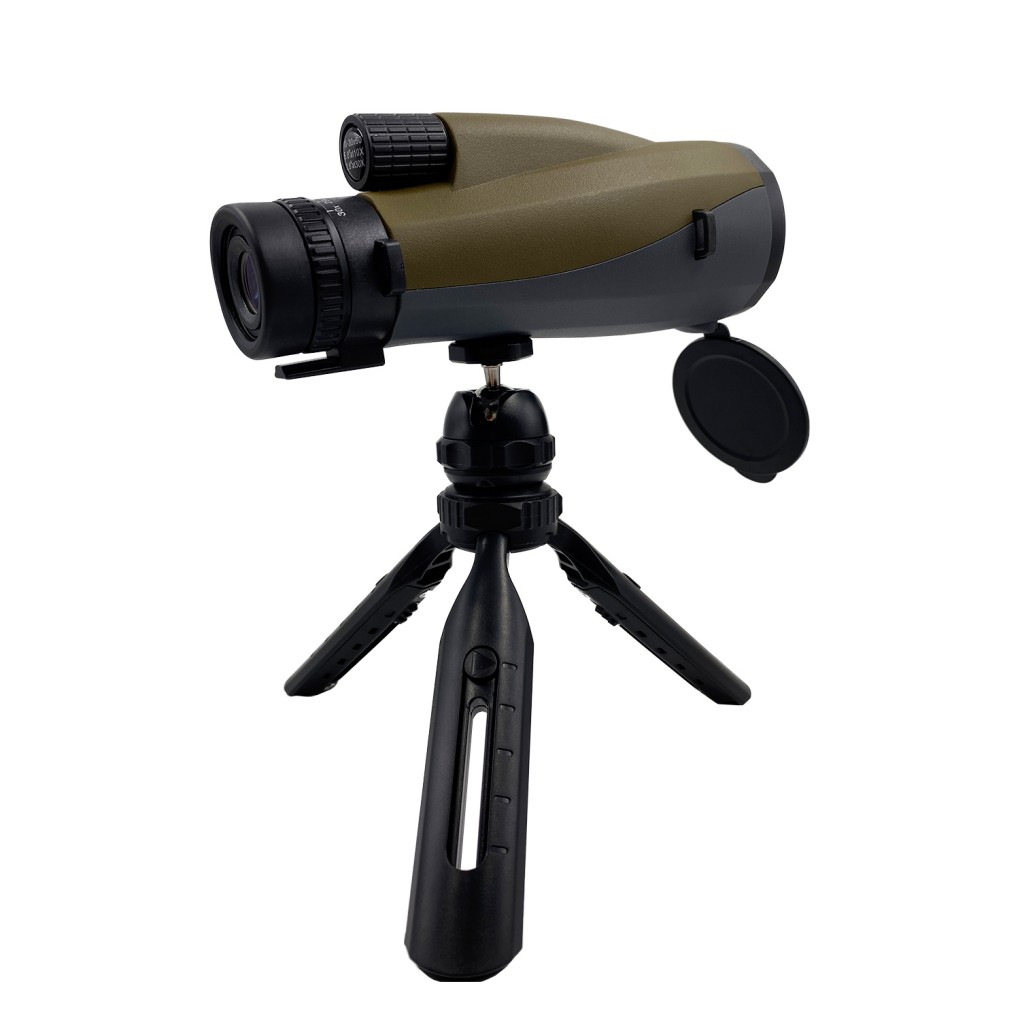

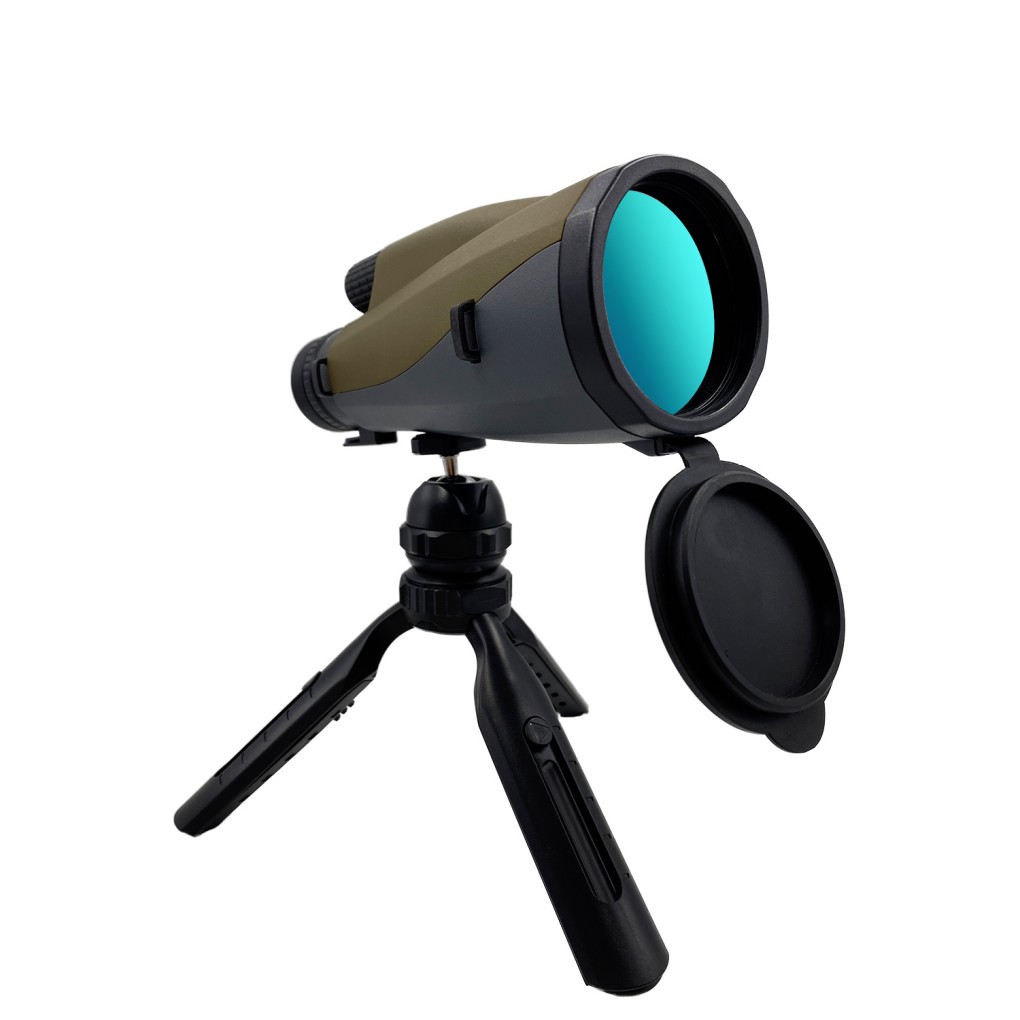

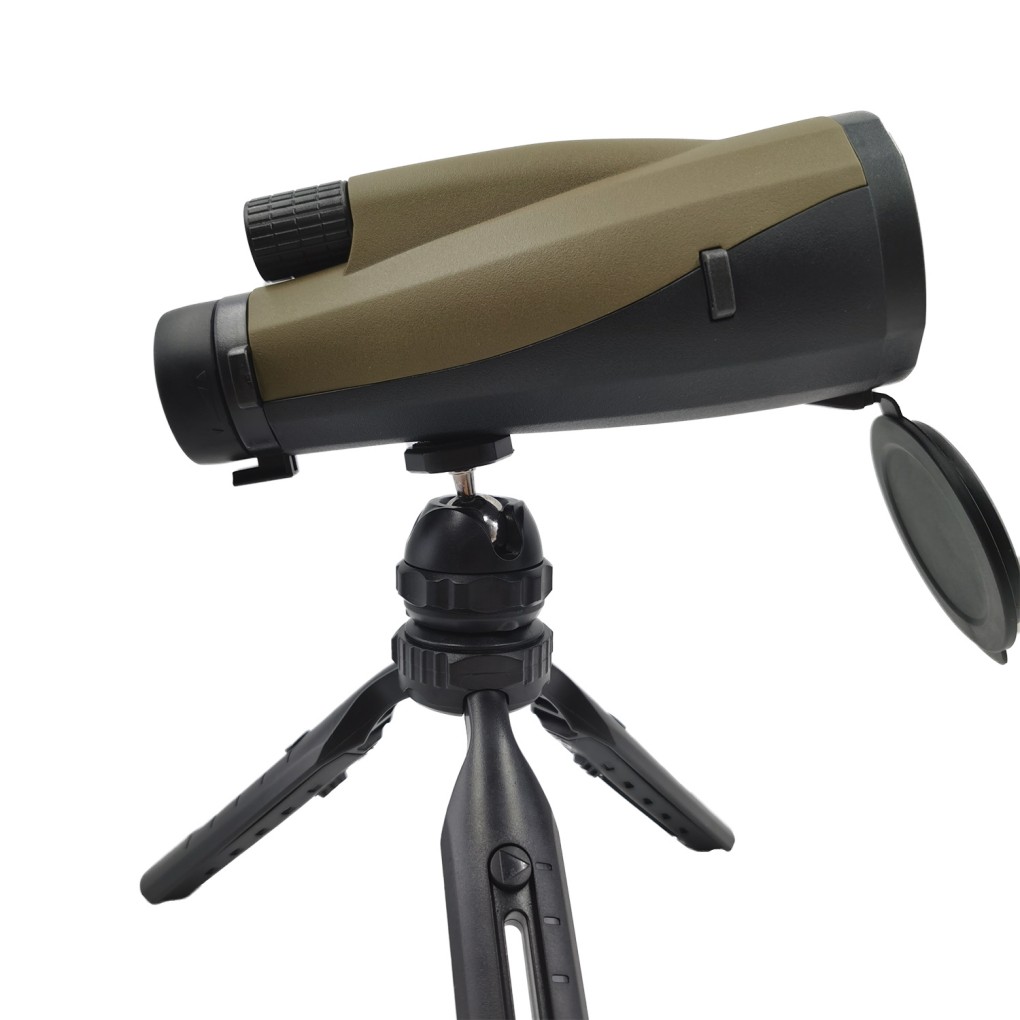

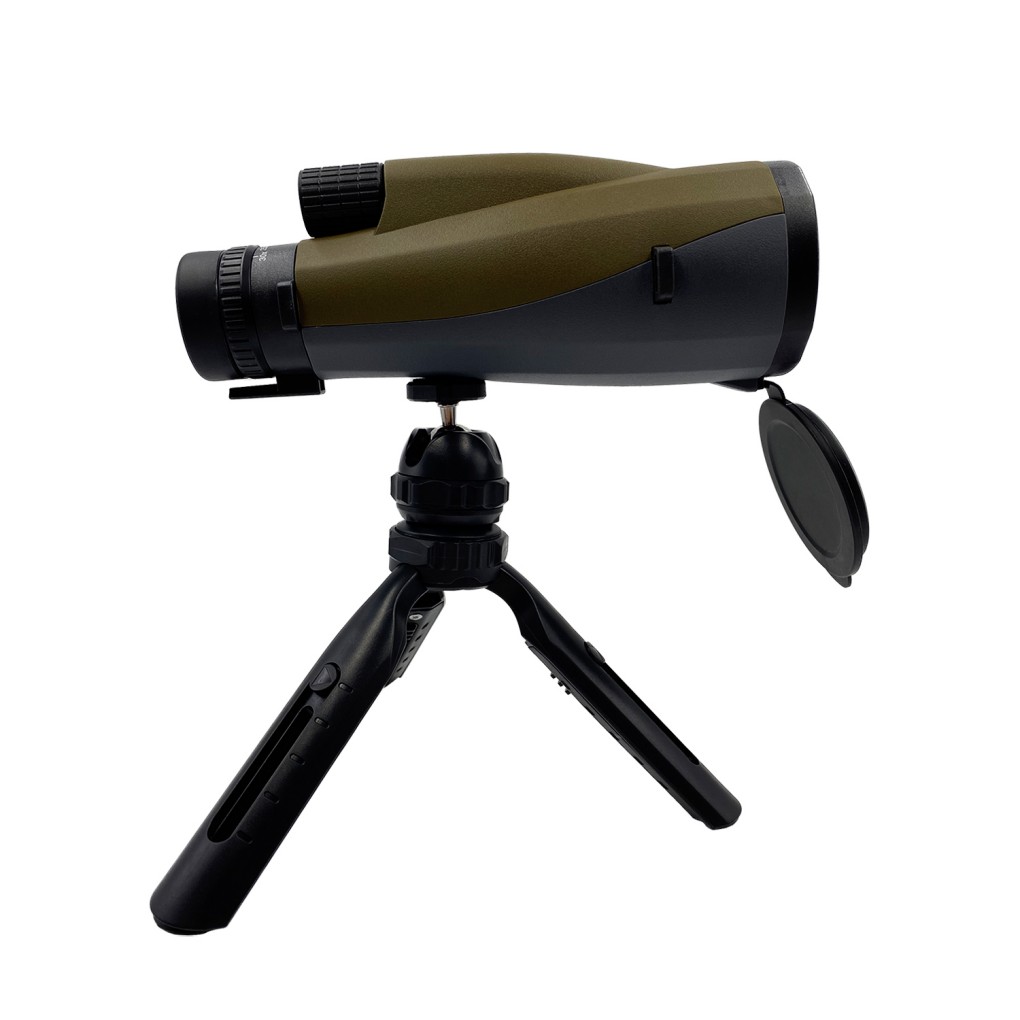

10×60 Fixed-Power Monocular Features:

• 10× magnification with wide 6.8° field of view
• Field of View: 98 m @ 1000 m
• Exit Pupil: 5.2 mm — optimal for bright, steady daytime use
• BAK4 prism with multi-coated optics ensures brightness and sharp contrast
• Twist-up eyecups + 14 mm eye relief for glass wearers
• Minimum focus distance: 2.6 m for versatility in terrain detail
• Dimensions: 238 × 92 × 135 mm | Weight: 840 g (with hand strap, eyecup, tripod)

10–20×60 Zoom Monocular Features:

• Variable magnification: 10× to 20×
• Field of View: 5.6°–2.8° / 68–38 m @ 1000 m
• Exit Pupil: 4–2.8 mm
• 15 mm eye relief, ideal for tactical observers needing flexibility
• 7-lens / 5-group system for zoom optimization
• Same compact dimensions (238 × 92 × 135 mm) | Slightly heavier: 855 g

Application Scenarios

• The 10×60 model provides wide 6.8° FOV and consistent 5.2 mm exit pupil, making it ideal for steady long-range scanning, landscape surveying, or static wildlife spotting.
• The 10–20×60 zoom version offers variable power for tactical targeting, distant object inspection, and situational surveillance, adapting to the viewer’s distance needs in real time.
• Both models are IPX2–3 rain-resistant, with twist-up eyecups, tripod compatibility, and rugged ergonomics—making them well-suited for use in sheltered field stations, shooting blinds, and security perches.

Customizable Features

• Custom body color and finish
• Laser-engraved logo on barrel
• Branded packaging (single or bulk)
• MOQ support available for outdoor gear brands, hunting distributors, and tactical retailers.

Parameters

Product Code	LODM12601	LODM1020601
Model	10×60	10-20×60
Power	10×	10×–20×
Objective Lens Diameter	60 mm	60 mm
Ocular Lens Diameter	24 mm	24 mm
Waterproof Rating	IPX2–3	IPX2–3
Exit Pupil Diameter	5.2 mm	4 – 2.8 mm
Eye Relief	14 mm	15 mm
Prism Type / Material	16.5 mm BAK4	16.5 mm BAK4
Prism Coating	Yes	Yes
Field of View (°)	6.8°	5.6° – 2.8°
Field of View (m/1000m)	98 m / 1000 m	68 – 38 m / 1000 m
Number of Lenses (Pieces & Groups)	6 pcs / 4 groups	7 pcs / 5 groups
Lens Coating	Multi Coated	Multi Coated
Focusing Lens	Objective	Objective
Minimum Focal Length	2.6 m	2.6 m
Eyecup Type	Twist-up	Twist-up
Unit Dimensions	238 × 92 × 135 mm	238 × 92 × 135 mm

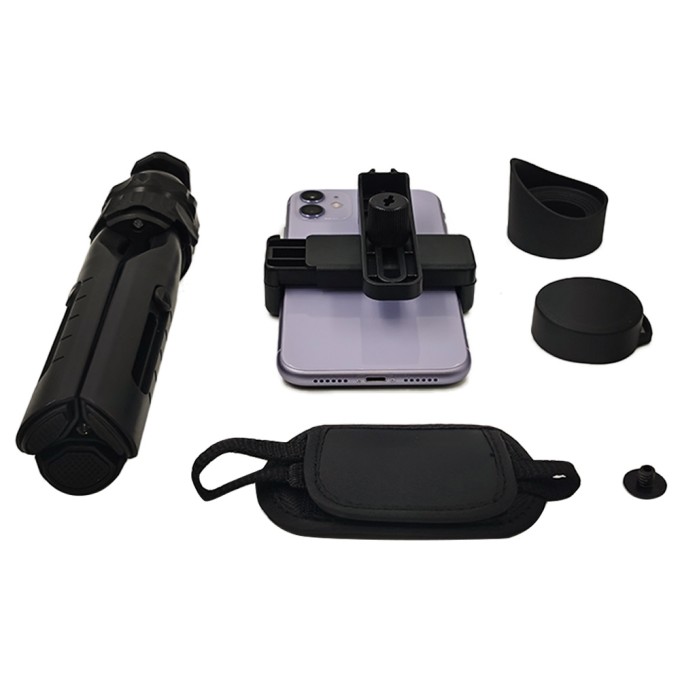

Unit Weight	840 g (Including hand strap, spotlight eye mask, adjustable tripod)	855 g (Including hand strap, spotlight eye mask, adjustable tripod)
Packing Quantity	20 pcs	20 pcs
Carton Dimensions	501 × 485 × 330 mm	501 × 485 × 330 mm
Gross Weight	18.1 kg	18.4 kg
