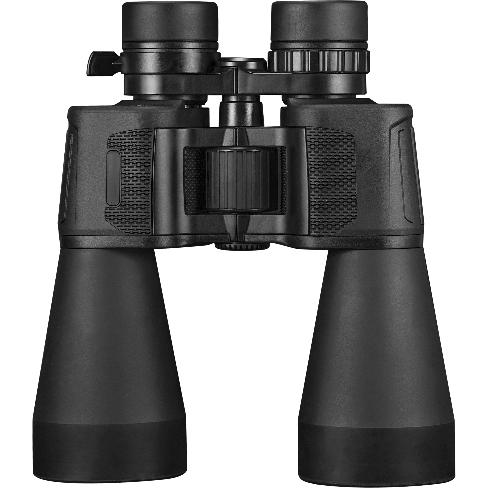

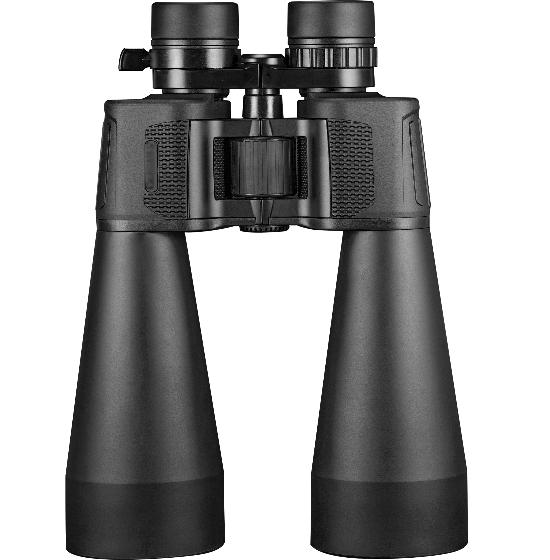

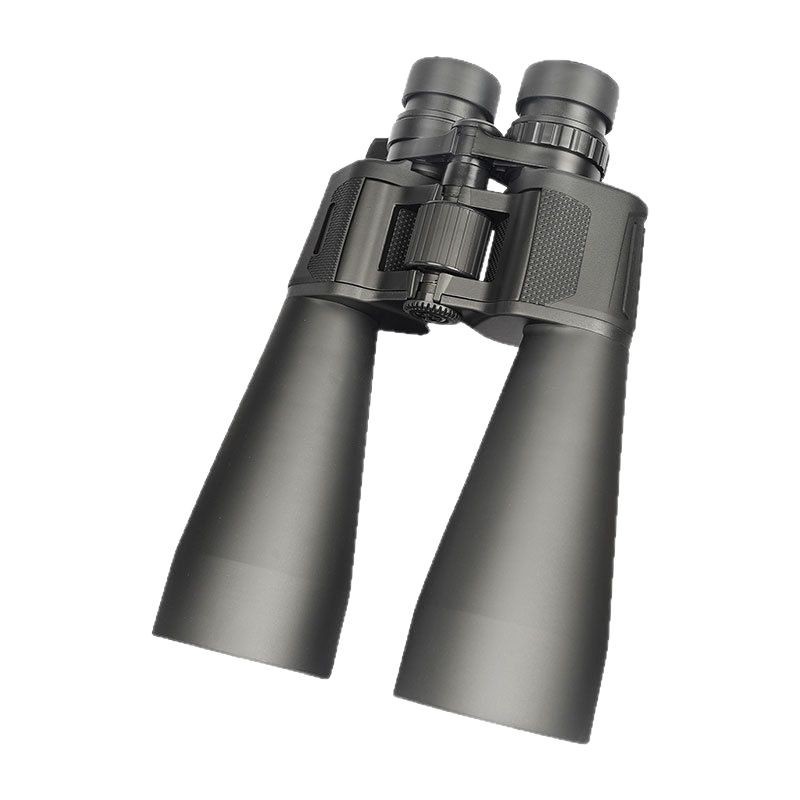

High-power 6x to 36x Zoom Porro Binoculars YIKP123270
This series of zoom Porro Binoculars, available in 6-16×40, 8-21×50, 10-25×60, 12-32×70, and 14-36×80 configurations, is designed for users who require flexible magnification and wide-aperture performance in one rugged package. Built with K9 glass, multi-element spherical optics, and broadband green coatings, they deliver crisp clarity across variable zoom ranges-perfect for long-range terrestrial viewing, target spotting, or scenic landscape scanning.
OVERVIEW
Key Advantages and Features
- Zoom magnification from 6x-36x, adaptable for wide scans or pinpoint detail
- Porro prism system with K9 optical glass delivers traditional depth and strong image clarity
- All-glass lens system with broadband green film coating for high light transmission (420-680 nm)
- Fully multi-coated objective and eyepiece lenses + blue-coated prisms for reduced glare and improved contrast
- Twist-up eyecups with NBR rubber armor for durable, comfortable handling
- Right-eye diopter adjustment (-4 to +4) and ±8 focusing adjustment ensure sharp focus for each user
- Wide field of view (up to 303 ft @ 1000 yds in 6x mode) for tracking movement

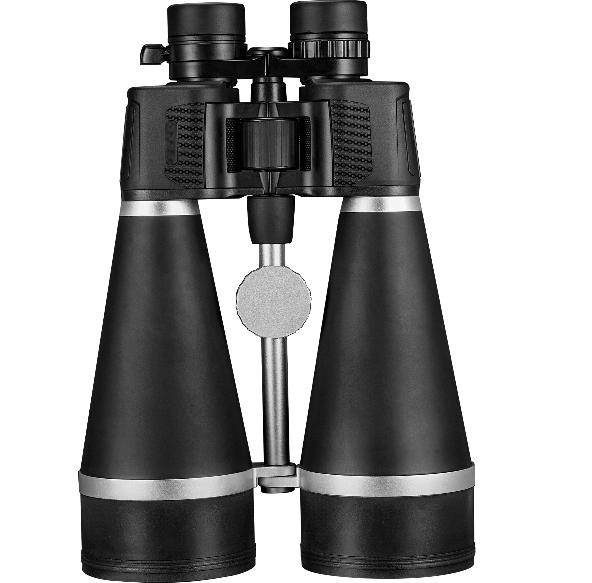

- Compatible with tripods, ideal for steady viewing at high zoom levels
- Rugged aluminum alloy chassis, armored with NBR+PVC for outdoor durability
- Supplied with strap, proprietary 1200D Oxford cloth bag, cleaning cloth, and manual
Application Scenarios
Ideal for mountain sightseeing, coastal observation, wildlife surveillance, and static long-range monitoring, these binoculars offer center focusing with right-eye diopter correction and zoom magnification from 6x to 36x depending on the model. The large objective diameters (up to 80 mm) and bright coatings make them suitable for daylight extended viewing from hillsides, decks, campsites, or observation towers.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
OEM customization available for logo engraving, color adjustments, reticle or rangefinder overlays, custom case branding, and packaging design. Ideal for retailers of outdoor gear, wildlife optics, and tactical equipment, with low MOQ options for private label expansion.
Parameters
| Product Code | YIKP616402 | YIKP821502 | YIKP1025602 | YIKP123270 | YIKP143680 | |
| Product Type | 6-16×40 | 8-21×50 | 10-25×60 | 12-32×70 | 14-36×80 | |
| Magnification | 6×~16x | 8×~21x | 10×~25x | 12×~32x | 14×~36x | |
| Body material | Aluminum Alloy | |||||
| Armor material | NBR+PVC | |||||
| Color | BLACK | |||||
| Objective lens Ø | Φ40 | Φ50 | Φ60 ± | Φ70 | Φ80 | |
| Ocular lens Ø | Φ20 ± 1mm | |||||
| Exit pupil Ø | Φ6.6mm~Φ2.5mm | Φ6.2mm~Φ2.3mm | Φ6mm~Φ2.3mm | Φ5.8mm~Φ2.2mm | Φ5.7mm~Φ2.2mm | |
| Exit pupil distance (mm) | 22mm~16.5mm | |||||
| Field of view (°) | 5.8°~2.2° | 4.4°~1.7° | 3.5°~1.4° | 3°~1.1° | 2.5°~1° | |
| Field of view (at 1000M) | 101m~38mm | 76m~30m | 61m~24m | 52m~19m | 43.5m~17.5m | |
| Field of view (at 1000yds) | 303ft~114ft | 228ft~90ft | 183ft~72ft | 156ft~57ft | 130ft~52ft | |
| Diopter system | Right diopter ring | |||||
| Interpupillary distance | 58～73mm | |||||
| Focus System | Center Focus | |||||
| Focusing lens | Eye. | |||||
| Diopter compensation | -4 To +4 Diopter | |||||
| Focusing Adjustment | -4 To +8 Diopter | |||||
| Prism System | Paul prism | |||||
| Prism Glass Material | K 9 | |||||
| Optical Configuration | Objective lens | 2E1G | ||||
| Ocular lens | 4E3G | |||||
| Lens Type | Spherical Lens | |||||
| Optical Material | All optical glass | |||||
| Lens coating | Coating Condition | Eyepiece and objective lens coated with broadband green film | ||||
| Coating Spec. | 420-680nm,R＜0.5%(AVG) 、420-680nm,R＜1.0%(ABS), Blue coated 550nm（MGF2)。 | |||||
| prism coating | Coating Condition | Blue coated | ||||
| Coating Spec. | 550nm（MGF2) | |||||
| Water/Fogproof | NO | |||||
| Eye cup | Type | Twist up | ||||
| Material | NBR | |||||
| eye caps | Type | Integrated body | ||||
| Material | NBR+PVC | |||||
| obj. Cover | Type | Integrated body | ||||
| Material | NBR+PVC | |||||
| Adapt to tripod | YES | |||||
| strap | YES | |||||
| soft case | Type | Proprietary | ||||
| Material | 1200D Oxford cloth bag | |||||
| strap | Type | Integrated body | ||||
| Material | 25mm | |||||
| cleaning cloth | YES | |||||
| instruction manual | YES | |||||
| packaging | YES | |||||
| Size(Length×Width×Height) | 172×59x158mm | 182×65x199mm | ||||
| Weight approx | 795g | 965g | ||||
