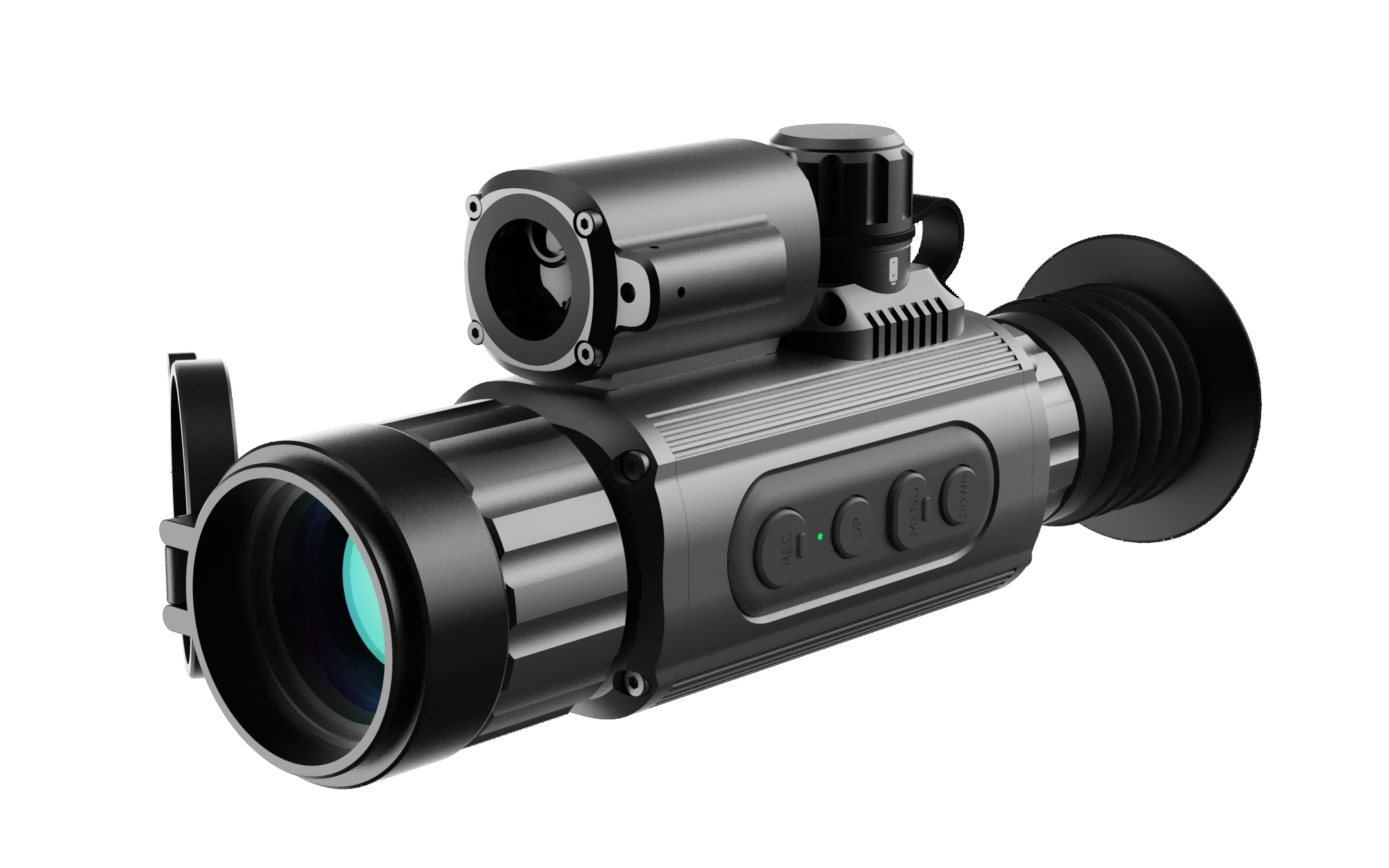

High-sensitivity Thermal Imaging Monocular SYT-AM335R
This thermal imaging monocular is tailored for professional hunters, tactical operators, and outdoor surveillance agencies who require long-range thermal detection with high precision, stability, and rugged field reliability. With ultra-sensitive uncooled VOx sensors, up to <18mK NETD, and built-in 32G storage, this device delivers superior clarity and real-time imaging in all environments — even total darkness, fog, or brush.
OVERVIEW
Key Advantages and Features
- Super-sensitive thermal core: VOx uncooled sensor with <18mK (select models) for extreme clarity
- Dual-resolution options: 384×288 or 640×512 with OLED/AMOLED 0.39″ screen
- Continuous digital zoom up to 8x with true-to-color rendering and gyroscopic stabilization
- Multi-scenario color palettes: Adjust thermal contrast instantly for hunting, reconnaissance, or tactical ops
- Smart recording & storage: Built-in 32GB memory, 1024×768 photo/video capture in .mp4/.jpg format
- Wi-Fi transmission & USB charging: Field-friendly with support for real-time viewing or file backup
- Recoil-proof & waterproof: Rated for 10,000J, IP66/IP67 protection, and -20°C to 50°C usage
Application Scenarios
- Thermal imaging monocular for night hunting up to 2500m – Ideal for spotting hogs, deer, or large predators across open fields or mountain ridges
- Tactical thermal scope with recoil resistance up to 10,000J – Built to withstand high-caliber rifle recoil in law enforcement or sniper scenarios
- Thermal spotting scope with AMOLED display and 5 color palettes – Optimize detection in various thermal contrasts: forest patrol, wildlife research, or border control
- Rugged outdoor thermal imager for security surveillance – IP66/IP67 rated, 5-hour runtime, and quick detection from 5m to infinity
- Thermal imaging with Wi-Fi & laser measurement up to 800m – Stream real-time visuals and measure distances for search and rescue or guided shooting
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Lens choice: 35mm / 50mm objective lens (F1.0)
- Resolution configuration: 384×288 or 640×512 sensor formats
- Color palette styles: White Hot, Black Hot, Red Hot, Fusion, Sky Mode
- Branding: Custom logo, menu language, and interface UI available for OEM/ODM clients
- Accessories: Optional laser rangefinder module and rail-mount kits for helmet or firearm integration
Parameters
| Product Code | SYT-AM335R | SYT-AM350R | SYT-AM650R |
| Type | uncooled VOx | uncooled VOx | uncooled VOx |
| Resolution, pixels | 384×288 super sensitive | 384×288 super sensitive | 640×512 super sensitive |
| Frame rate | 50 Hz | 50 Hz | 50 Hz |
| Pixel size, μm | 12μm | 12μm | 12μm |
| NETD | <30mK | <30mK | <18mK |
| Objective lens | f35mm/50mm, F1.0 | f35mm/50mm, F1.0 | f35mm/50mm, F1.0 |
| Magnification | 2.8x | 2.8X/4X | 1.7X/2.5X |
| Continuous digital zoom | 1x / 2x / 4x / 8x | x1 / x2 / x4 / x8 | x1 / x2 / x4 / x8 |
| Eye relief | 50 mm | 35mm/50 mm | 50 mm |
| Field of view （degree） | 5.3° × 4° | 7.5°X5.7°/5.3°X4.0° | 8.8°X6.6° |
| Dioptre adjustment | +5 / -5 D | +5/-5 D | +5/-5 D |
| Detection distance（1.7m high 0.5m wide） | 2500m | 1750m/2500m | 2500m |
| Close-up range | 5m-∞ | 5m-∞ | 5m-∞ |
| Colour Palettes | White Hot, Sky Mode, Black Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion, Sky | Black Hot, White Hot, Red Hot, Fusion, Sky |
| Type / Resolution | 0.39 inch / OLED / 1024 × 768 | SONY 0.39 inch / AMOLED / 1024X768 | SONY 0.39 inch / AMOLED / 1024X768 |
| 3D Gyroscope | yes | yes | yes |
| Power supply | 3-4.2 V | 3-4.2 V | 3-4.2 V |
| Battery | 18650 /3500mAh | 18650 /3500mAh | 18650 /3500mAh |
| External power supply | 5V (USB) | 5V (USB) | 5V (USB) |
| Operating time (at t=22℃) | 5 hours | 5 hours | 5 hours |
| Max. recoil power, Joules | 10,000J | 10,000J | 10,000J |
| Waterproof rating | IP66/IP67 | IP66/IP67 | IP66/IP67 |
| Operating temperature | ï¹£20℃…50℃ | ï¹£20℃…50℃ | ï¹£20℃…50℃ |
| Dimensions | 209X62X87mm | 210X62X87mm | 210X62X87mm |
| Weight | 605g | 645g | 645g |
| Video / photo resolution | 1024×768 | 1024×768 | 1024×768 |
| Video / photo format | .mp4 / .jpg | .mp4 / .jpg | .mp4 / .jpg |
| Memoery type | Built-in 32G memory card | Built-in 32G memory card | Built-in 32G memory card |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Standart | 802.11 b/g | 802.11 b/g | 802.11 b/g |
| Line-of-sight reception range | 15m | 15m | 15m |
| Wavelength | 905nm | 905nm | 905nm |
| Max. measuring range | 800m | 800m | 800m |
| Measuring accuracy | +/- 1m | +/- 1m | +/- 1m |
Looking to Expand Your Product Line?
Ready to upgrade your tactical optics lineup or OEM private label thermal scopes?
Contact us now to discuss lens customization, memory expansion, or interface branding. Let’s tailor your ideal Thermal Imaging Monocular for the field.
