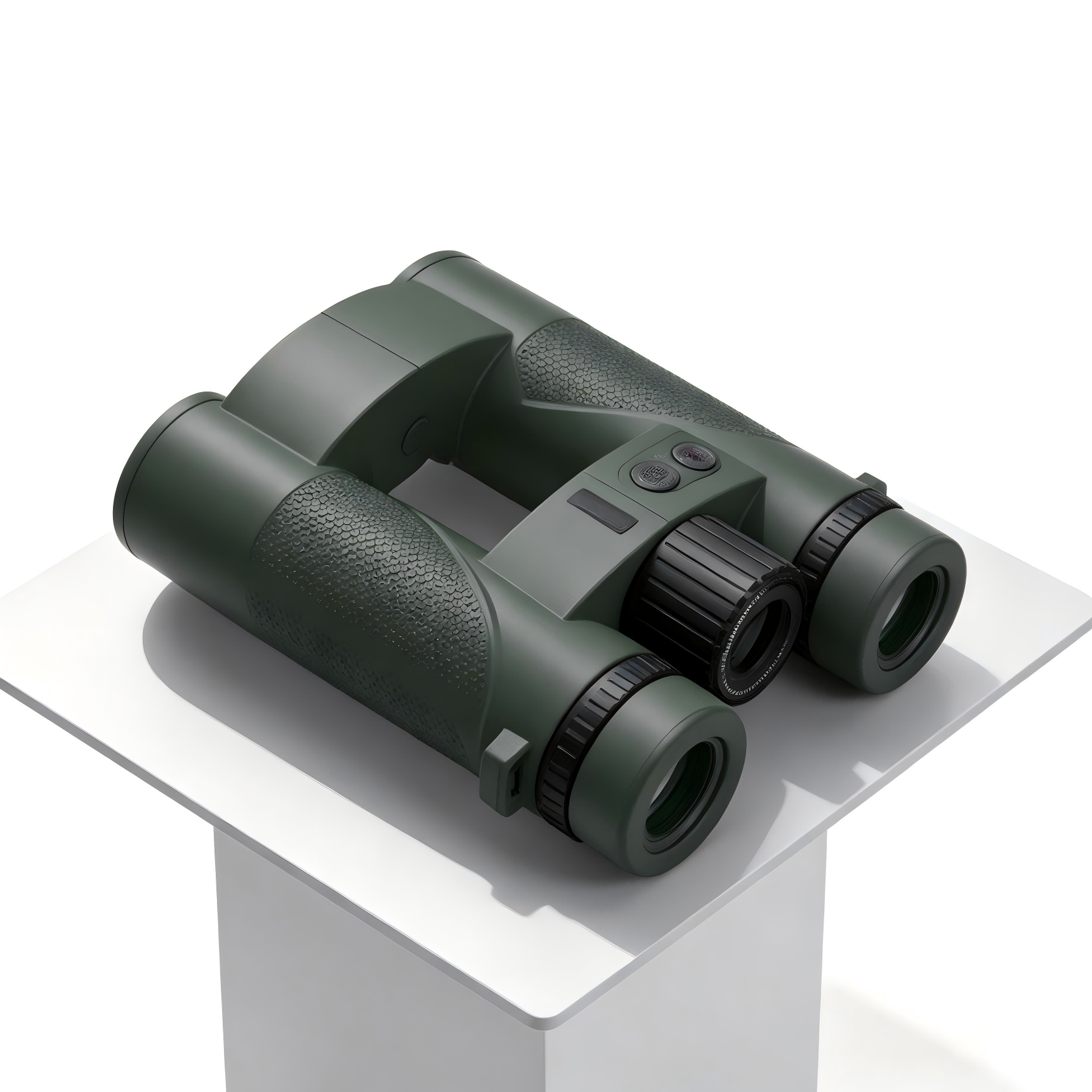

LAH20002 Rangefinder Binoculars

The LAH20002 is positioned for B2B buyers who need a compact laser ranging solution for hunting optics, rangefinder binoculars, and outdoor distance measurement products.
With 5–1500m measuring distance, ±1m accuracy within 1000m, and integrated angle function + ballistic calculation, this model is suitable for brands developing advanced laser rangefinder binoculars or compact ranging devices for hunting and shooting markets.

Get A Quote

OVERVIEW

Key Features & Selling Points

  • 905nm laser wavelength
  • Measuring distance: 5–1500m
  • Ranging performance: White House 1500m / Green Tree 1200m / Deer 800m
  • Measuring accuracy: ≤1000m ±1m / >1000m ±0.2%
  • Fast ranging speed: <0.2s
  • Minimum measuring distance: 5m
  • Angle function for slope-related distance use
  • Bluetooth, ballistic calculation, and OTA update
  • IEC 60825-1 Class 1 laser safety
  • IP67 waterproof rating
  • Charging CR2 battery
  • 1000g impact resistance
  • Operating temperature: -20°C to 50°C
  • Compact size: Φ33 × L102mm

Suitable for:

  • Hunting optics brands
  • Rangefinder binocular manufacturers
  • Long-range shooting accessory suppliers
  • Outdoor gear distributors
  • Tactical observation product lines
  • OEM/ODM rangefinder projects
  • Application Scenarios
  • Hunting Distance Measurement

Applications

Hunting Distance Measurement

  • The LAH20002 supports ranging up to 800m for deer, helping hunters measure target distance quickly in open fields, hills, and woodland edges.

Long-Range Shooting Support

  • With ballistic calculation, angle function, and <0.2s ranging speed, this model supports shooters who need fast distance data before making holdover or elevation decisions.

Outdoor Scouting and Field Observation

  • The 1500m ranging capability for reflective targets and 1200m range for green trees make it practical for mountain scouting, ranch patrol, and outdoor navigation.

Smart Optics and OEM Integration

  • Bluetooth, OTA update, and rechargeable CR2 battery support make this model suitable for smart optics development and customized rangefinder binocular projects.

Customizable for Your Brand

Logo and firmware customization available

OEM/ODM support with low MOQ

Custom language interface and startup screens

Quote for Customization

Customizable Features

  • Logo Branding Supports private label Rangefinder Binoculars
  • Software / Function Setup Bluetooth, ballistic calculation, and OTA update support smart product positioning
  • Body Design / Integration Suitable for binocular, monocular, or optical device integration
  • Packaging Retail box, neutral box, or customized brand packaging
  • Accessories Charging cable, carrying case, strap, cleaning cloth, manual
  • Manual Language English and multi-language manuals for export markets
  • OEM/ODM Support Suitable for customized laser rangefinder binocular projects

Parameters

Model NumberLAH20002
Laser Wave905 nm
Objective Lens DiameterΦ20.8 mm (Cutting)
Transmitting Lens DiameterΦ6 mm
Divergence Angle<3 mrad
Measuring Distance5-1500 m (White House); 1200 m (Green Tree); 800 m (Deer)
Measuring Accuracy≤1000 m: ±1 m; >1000 m: ±0.2%
Ranging Speed<0.2 s
Minimum Measuring Distance5 m
Waterproof RateIP67
Laser SafetyIEC 60825-1 CLASS 1
FunctionAngle Function; Bluetooth; Ballistic Calculation; OTA Update
BatteryCharging CR2 Battery
Operation Temperature-20℃ ~ 50℃
Storage Temperature-20℃ ~ 60℃
SizeΦ33 × L102 mm
Impact Resistance1000 g
