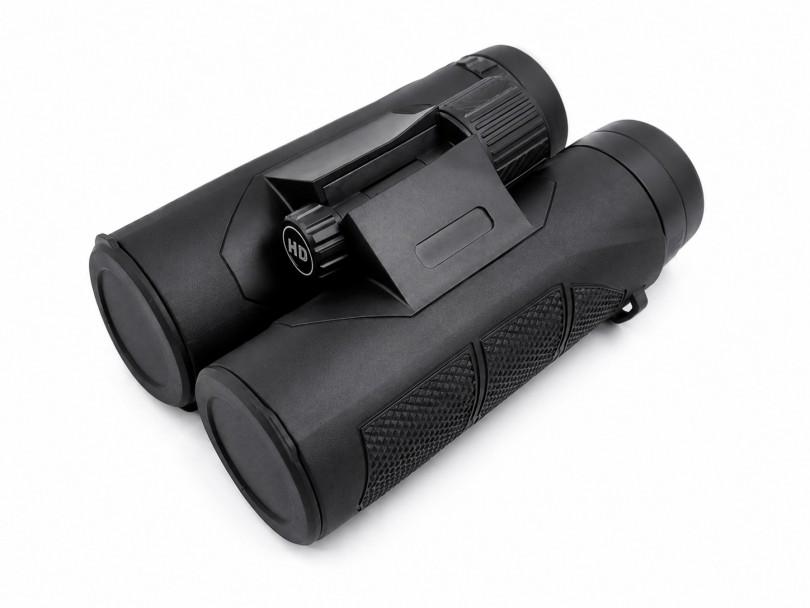

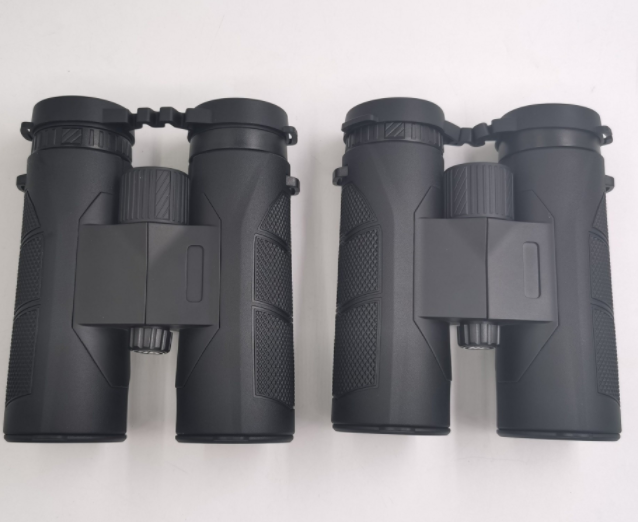

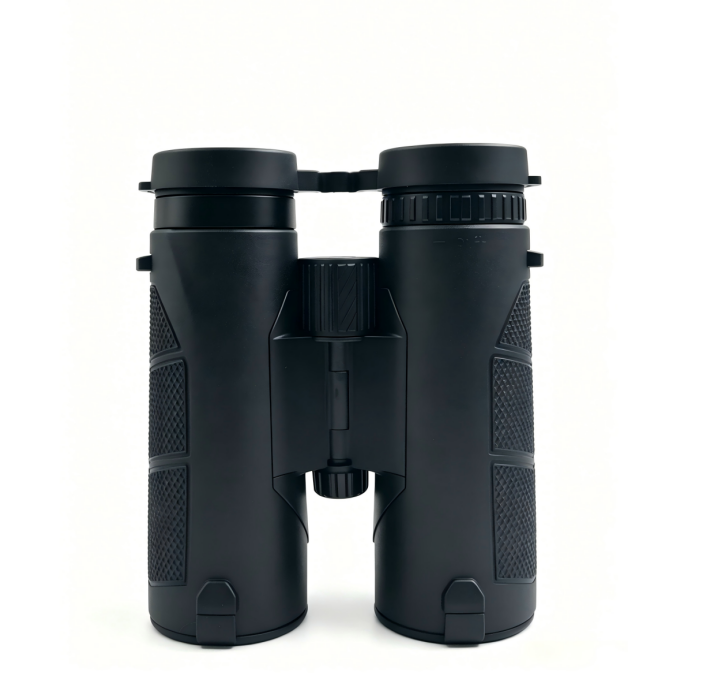

LIDW Roof Binoculars LIDW8X42
This Roof Binoculars series is positioned for B2B buyers who need a practical and versatile binocular lineup for outdoor, travel, hunting, and nature observation markets.
- LIDW8X42: wide field of view for bird watching and hiking
- LIDW10X42: balanced magnification for travel and wildlife viewing
- LIDW10X50: brighter image performance for hunting and field observation
- LIDW12X50: stronger magnification for long-distance viewing and safari use
Suitable for outdoor optics brands, hunting gear distributors, travel retailers, nature tourism suppliers, and private label binocular projects.
OVERVIEW
Key Advantages and Features
- Model options: 8×42, 10×42, 10×50, 12×50
- Roof prism system for compact straight-tube design
- BaK7 prism glass and all optical glass construction
- Fully multi-coated lenses for clear outdoor viewing
- Waterproof and fog-proof design
- Nitrogen filled for better outdoor reliability
- Center focus system with right diopter adjustment
- Twist-up NBR eyecups for comfortable use
- 56–74mm interpupillary distance
- Close focus: 3.04m / 3.5m depending on model
- Standard accessories include cleaning cloth, instruction manual, packaging, eyepiece caps, and objective covers
Application Scenarios
Bird Watching and Wildlife Observation
The 8×42 and 10×42 Roof Binoculars offer a wide field of view and comfortable handling, making them suitable for birding, forest observation, and wildlife tracking.
Hiking, Travel, and Sightseeing
With a compact roof prism structure, center focus system, and twist-up eyecups, this series is suitable for hiking, backpacking, travel, and outdoor sightseeing.
Hunting and Scouting
The 10×50 and 12×50 models provide stronger magnification and larger objective lenses for open-field scouting, hunting observation, and distance viewing.
Safari and Long-Distance Outdoor Viewing
The 12×50 model is suitable for safari tours, nature tourism, and long-range landscape observation where users need more detail at distance.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding Supports private label Roof Binoculars
- Body Color / Finish Can match outdoor, hunting, or travel market styles
- Lens Coating Fully multi-coated optics support premium product positioning
- Packaging Retail box, neutral box, or customized brand packaging
- Accessories Cleaning cloth, carrying case, strap, eyepiece caps, objective covers, manual
- Manual Language English and multi-language manuals for export markets
- OEM/ODM Support Suitable for customized roof prism binocular product lines
Parameters
| Product Code | LIDW8X42 | LIDW10X42 | LIDW10X50 | LIDW12X50 | |
| Magnification | 8× | 10× | 10× | 12× | |
| Body Material | |||||
| Objective Lens Diameter | Φ43.5 | Φ52 | |||
| Ocular Lens Diameter | Φ26 | Φ24 | Φ26 | Φ24 | |
| Exit Pupil Diameter | Φ5.27 mm | Φ4.2 mm | Φ5.13 mm | Φ4.1 mm | |
| Eye Relief | 17.3 mm | 16.1 mm | 17 mm | 15.9 mm | |
| Field of View (Degrees) | 7.3° | 6.2° | 6° | 5.1° | |
| Field of View (at 1000 m) | 128 m | 110 m | 105 m | 90 m | |
| Field of View (at 1000 yds) | 384 ft | 330 ft | 315 ft | 270 ft | |
| Close Focus Distance | 3.04 m | 3.5 m | |||
| Diopter System | Right diopter ring | ||||
| Interpupillary Distance | 56～74mm | ||||
| Focusing System | Center Focus | ||||
| Focusing Lens | Eye. | ||||
| Diopter Compensation | -4 To +4 Diopter | ||||
| Focusing Adjustment | -4 To +8 Diopter | ||||
| Prism System | roof prism | ||||
| Prism Glass Material | Bak7 | ||||
| Prism | 18 | ||||
| Optical Configuration | Objective Lens Construction | 3E2G | |||
| Ocular Lens Construction | 4E3G | ||||
| Lens Type | Spherical Lens | ||||
| Optical Material | All optical glass | ||||
| Lens Coating | Coating Condition | Fully Multi Coating | |||
| Coating Specification | 420-680nm,R＜0.5%(AVG) | ||||
| Prism Coating | Incident Surface Coating | Fully Multi Coating | |||
| Coating Specification | 550nm（MGF2) | ||||
| Waterproof / Fogproof | YES | ||||
| Gas Filled | Nitrogen | ||||
| Eyecup | Type | Twist up | |||
| Material | NBR | ||||
| Eyepiece Caps | Type | ||||
| Material | NBR+PVC | ||||
| Objective Covers | Type | ||||
| Material | NBR+PVC | ||||
| Cleaning Cloth | YES | ||||
| Instruction Manual | YES | ||||
| Packaging | YES | ||||
| Dimensions (L × W × H) | 150 × 53 × 128 mm | 176 × 59 × 133 mm | |||
| Approx. Weight | Approx. 622 g | Approx. 635 g | |||
Let’s Work Together
For B2B buyers, customization options can include logo branding, body finish, packaging, accessories, manual language, and OEM/ODM support.
Contact us to discuss your customized Roof Binocular solution for outdoor, hunting, travel, or private label optics markets.
