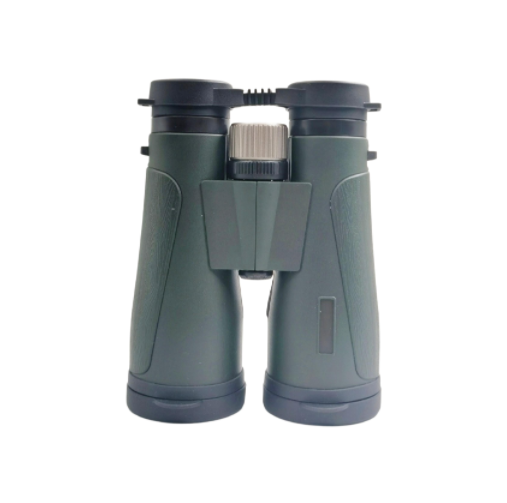

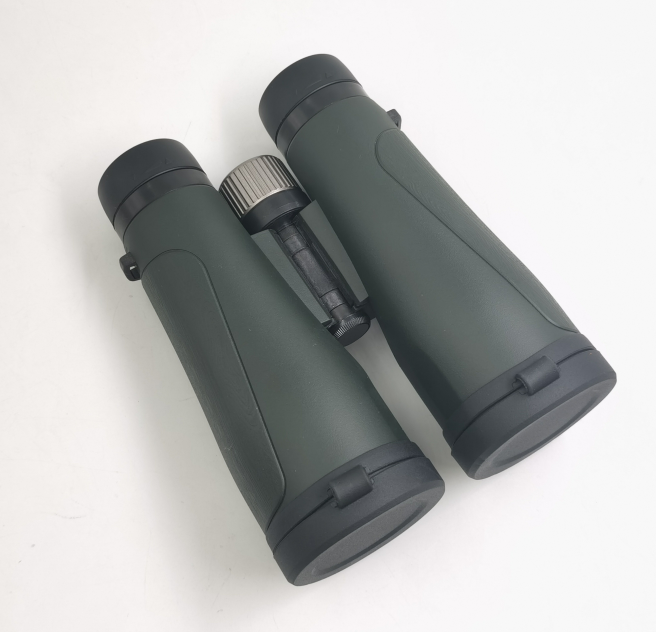

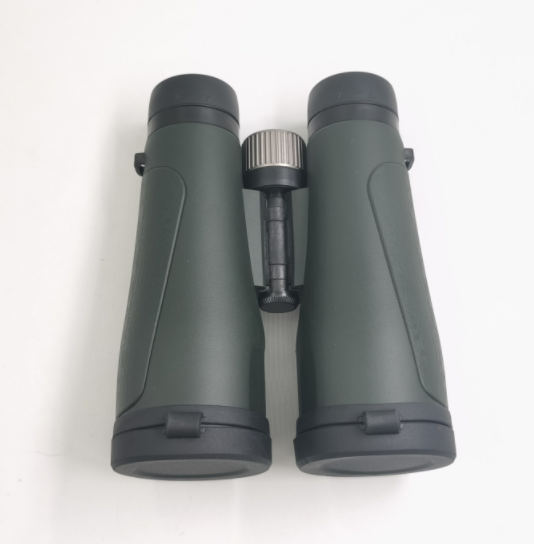

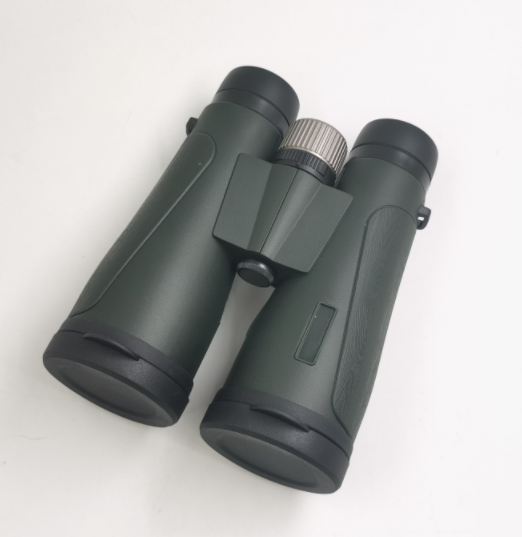

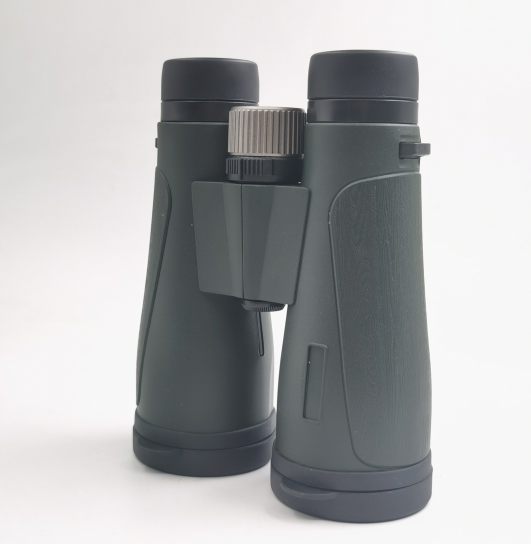

LODR8422 and LODR10504 Roof Binoculars

This Roof Binoculars series is built for B2B buyers who need modern, lightweight, and easy-to-use roof prism binoculars for outdoor and retail channels.

LODR8422 8×42: better for bird watching, hiking, travel, and wide-field observation
LODR10504 10×50: better for wildlife viewing, hunting scouting, safari tours, and longer-distance field use

Suitable for outdoor optics brands, hunting gear distributors, travel retailers, nature tourism suppliers, and private label binocular projects.

Get A Quote

OVERVIEW

Key Advantages and Features

  • 8×42 and 10×50 straight tube roof binocular options
  • 0.88 light transmittance for clear outdoor viewing
  • Dual-side purple anti-reflection coating
  • Low distortion and good stray light control
  • 18mm / 20mm eye relief for comfortable viewing
  • Twist-up eyecups suitable for different users
  • ±4D diopter adjustment and 56-74mm interpupillary distance
  • Reinforced ABS body with eco-friendly PVC armor
  • Optional nitrogen-filled, IPX4, or IPX7 waterproof configuration
  • B2B packing: 20pcs/ctn for 8×42, 16pcs/ctn for 10×50

Application Scenarios

Bird Watching and Nature Observation

The 8×42 Roof Binoculars provide a 6.9° angle of view, 120m/1000m field of view, 5mm exit pupil, and 2.5m close focus, making them suitable for birding, forest viewing, and wildlife observation.

Hiking, Travel, and Sightseeing

The 515g lightweight body, compact straight tube design, and twist-up eyecups make the 8×42 model practical for hiking, backpacking, travel, and sightseeing.

Hunting Scouting and Safari Use

The 10×50 Roof Binoculars offer stronger magnification, a 50mm objective lens, 20mm eye relief, and 4.8mm exit pupil, making them suitable for open-field scouting and safari viewing.

Outdoor Retail and Private Label Projects

Optional nitrogen filling and IPX4/IPX7 water resistance allow buyers to create different product tiers for standard, outdoor, and premium markets.

Customizable for Your Brand

Logo and firmware customization available

OEM/ODM support with low MOQ

Custom language interface and startup screens

Quote for Customization

Customizable Features

  • Logo Branding Supports private label Roof Binoculars lines
  • Waterproof Level Optional IPX4 or IPX7 for different market positioning
  • Nitrogen Filling Optional fog-proof upgrade for outdoor models
  • Body / Armor Color Eco-friendly PVC armor can match brand style
  • Lens Coating Dual-side purple anti-reflection coating; upgrades can be discussed
  • Packaging Retail box, neutral box, or customized brand packaging
  • Accessories Strap, pouch, lens caps, cleaning cloth, and manuals
  • OEM/ODM Support Suitable for customized roof prism binocular projects

Parameters

Product CodeLODR8422LODR10504
Product Category8*42 Straight Tube10*50 Straight Tube
ConfigurationHigh ConfigurationHigh Configuration
Magnification810
Ocular Lens Diameter)23mm23mm
Objective Lens Diameter42mm50mm
Apprent Angle of View 6.9°6.2°
Field of View120m/1000m109m/1000m
Eye Relief18mm20mm
Exit Pupil Diameter5mm4.8mm
Angular Resolution6’1”4’7”
Light Transmittance0.880.88
Relative Brightness 2523
Diopter Adjust Range±4D±4D
Interpupillary Distance56mm-74mm56mm-74mm
Close Focus2.5M3M
Nitrogen-FilledOptionalOptional
Water Resistance LevelOptional (IPX4, IPX7)Optional (IPX4, IPX7)
Eyecup TypeTwist-up EyecupsTwist-up Eyecups
Body MaterialReinforced ABSReinforced ABS
Prism Material16.5 Prism16.5 Prism
Lens MaterialOptical GlassOptical Glass
Eyepiece Lens G3 Groups, 4 Elements3 Groups, 4 Elements
DistortionLowLow
Stray LightGoodGood
Lens CoatingDual-Side Purple Coating (Anti-Reflection)Dual-Side Purple Coating (Anti-Reflection)
Armor MaterialEco-Friendly PVCEco-Friendly PVC
Weight515g762g
Product Dimensions143*128*54mm172*140*65mm
Packing Quantity20pcs16pcs
Outer Carton Dimensions38*35*42.5cm/17.52kg37*35*49cm/19.16kg

Let’s Work Together

Contact us to discuss your customized Roof Binoculars solution with logo branding, packaging, waterproof upgrades, and OEM/ODM support.
