Long-range Precision Shooting Zero-Stop Rifle Scopes XIX4-16X44SFIR FFP
Designed for professional marksmen, hunters, competitive shooters, and tactical trainers, these scopes integrate first focal plane (FFP) optics with zero-stop turrets, ensuring consistent return-to-zero after dialing elevation or windage adjustments. Perfect for OEM/ODM brands seeking advanced long-range optics.
OVERVIEW
Key Advantages and Features

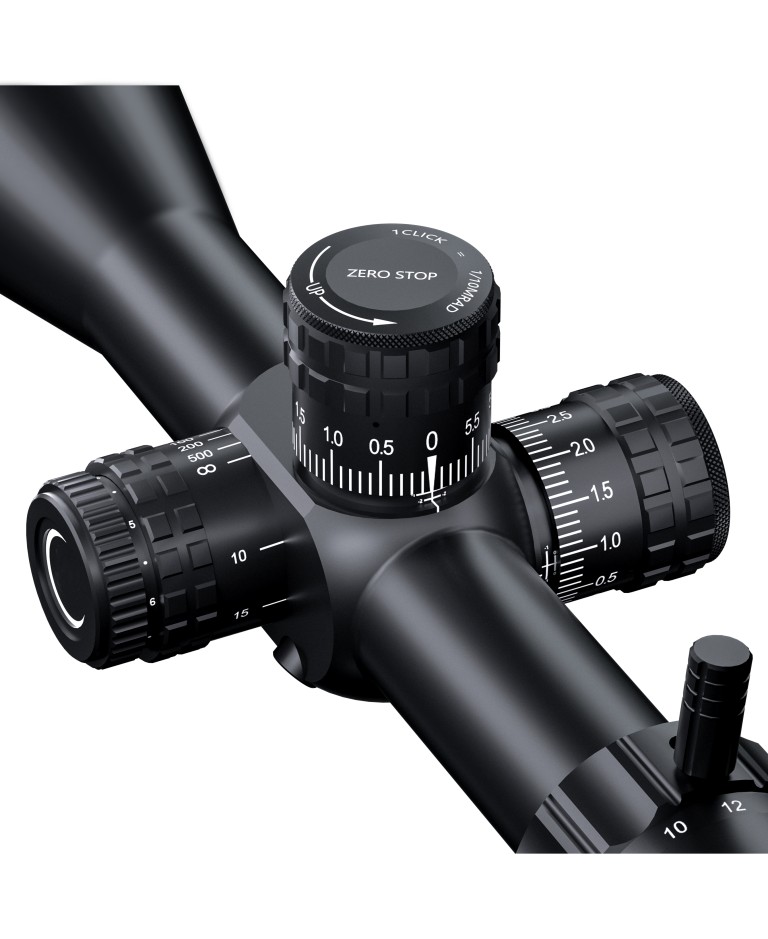

- Zero-stop mechanism – guarantees exact return-to-zero for tactical and long-range use.
- First focal plane reticle – ensures accurate holdovers and ranging at any magnification.
- High light transmission optics – multi-coated lenses for superior clarity in dawn/dusk conditions.
- Rugged construction – shockproof (1500G), waterproof, nitrogen-filled fog-proof for extreme environments.
- Wide adjustment range – MRAD-based precision turrets with tactile clicks for reliable tracking.
Key Specifications
Model 1: XIX4-16X44SFIR FFP
- Magnification: 4-16X
- Focal Plane: First Focal Plane (FFP)
- Objective Lens: 42.5mm | Ocular Lens: 32mm
- Adjustment: Elevation 17 MRAD | Windage 17 MRAD | Click Value 1/10 MRAD
- Eye Relief: 80–70mm | Exit Pupil: 10–2.8mm
- Tube: 30mm aerospace-grade aluminum
- Focus: Side adjustment with parallax correction (100Y)
- Zero Stop: YES
Model 2: XIX6-24X50SFIR FFP
- Magnification: 6-24X
- Objective Lens: 50mm | Ocular Lens: 32mm
- Adjustment: Elevation 18 MRAD | Windage 17 MRAD | Click Value 1/10 MRAD
- Eye Relief: 85–72mm | Exit Pupil: 7.8–2.1mm
- Tube: 30mm durable body construction
- Focus: Side parallax adjustment (100Y)
- Zero Stop: YES
Application Scenarios
Zero-stop rifle scope for long range shooting – 6-24x magnification ideal for snipers and precision shooters at extended distances.
Best zero-stop scope for hunting rifles – 4-16x option optimized for big game hunting with wide field of view and quick target acquisition.
Zero-stop rifle scope for tactical carbines – FFP design keeps reticle subtensions accurate across magnification levels.
Durable zero-stop scope for outdoor missions – IPX-rated waterproof, shockproof (1500G+), and fog-proof for all-weather operations.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo & Branding: OEM/ODM laser engraving on scope body and turrets

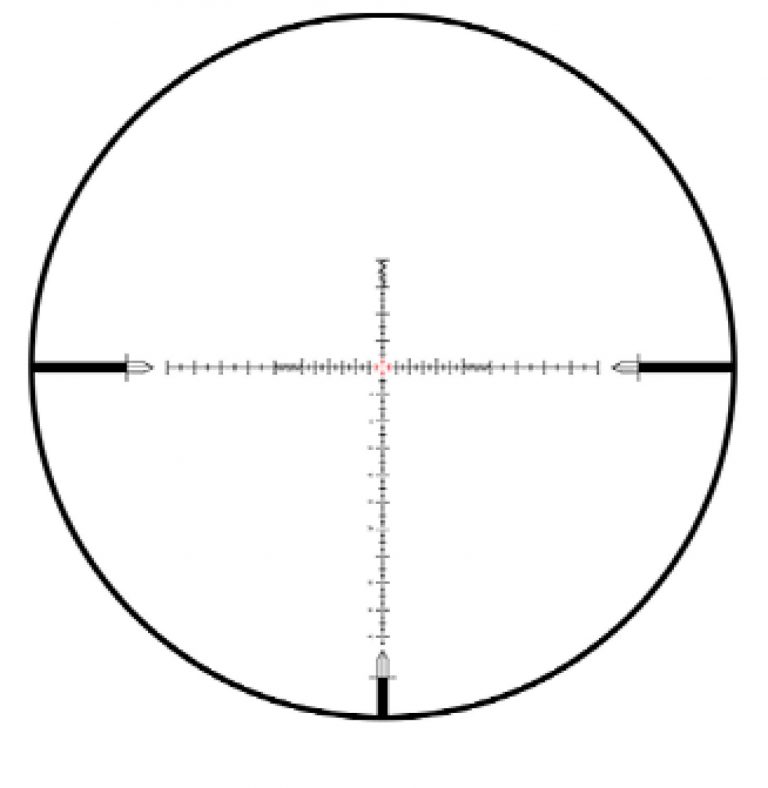

- Reticle Choices: MOA, MRAD, illuminated options (custom color available)
- Packaging: Standard or premium tactical packaging with accessories
- Finish: Matte black, camo patterns, or custom anodized colors
Parameters
| Product Code | XIX4-16X44SFIR FFP | XIX6-24X50 SFIR FFP |
| MAGNIFICATION | 4X-16X | 6X-24X |
| FOCAL PLANE | FIRST | FIRST |
| FIELD VIEW | 5.2°-1.3° | 3.48°-0.82° |
| EYE RELIEF (MM) | 80-70 | 85-72 |
| CLICK VALUE | 1/10 MRAD | 1/10 MRAD |
| TOTAL ADJUSTMENT ELEVATION | 17 MRAD | 18 MRAD |
| TOTAL ADJUSTMENT WINDAGE | 17 MRAD | 17 MRAD |
| OBJECTIVE DIAMETER (MM) | 42.5 | 50 |
| OCULAR LENS DIAMETER (MM) | 32 | 32 |
| RESOLUTION (“) | 4.87”-2.89” | 4.87”-2.89” |
| EXIT PUPIL DIAMETER (MM) | 10-2.8 | 7.8-2.1 |
| FOCUS TYPE SF | (SIDE ADJUSTMENT) | (SIDE ADJUSTMENT) |
| ZERO STOP | YES | YES |
| PARALLAX | 100Y | 100Y |
| WATER PROOF (YES/NO) | YES | YES |
| MAIN BODY/TUBE DIAMETER (MM) | 30 | 30 |
| OCULAR CELL DIAMETER (MM) | 42.5 | 42.5 |
| DIOPTER COMPENSATION | ±2° | ±2° |
Boost your product line with our Zero-stop Rifle Scopes – engineered for accuracy and built for endurance.
Contact us today for bulk orders, OEM/ODM customization, and dealer partnerships.
