OVERVIEW

Key Advantages and Features

• Precision Magnification Range: 3–12x or fixed 8x, both optimized for long-range acquisition
• SFIR MIL Reticle (SFP): Maintains subtension values across zoom for predictable holdovers
• Zero Reset & Lock: Prevents accidental drift and simplifies re-zeroing under pressure
• Side Parallax Adjustment: Adjustable from 10 yds to infinity for sharp target definition
• Wide Field of View: Up to 36.7 ft at 100 yds (3–12x44SFIR), 2.2° FOV on 8x model
• Rugged Construction: Fully waterproof, nitrogen-purged, shockproof, and fogproof
• Bright Optics: Fully multi-green coated lens system for increased transmission and reduced glare
• Mount-Friendly Dimensions: 25.4 mm tube diameter compatible with standard Picatinny/Weaver mounts

Application Scenarios:

• Tactical targeting in open field or mountainous terrain
• Hunting at varying distances with quick reticle referencing
• Competition shooting requiring repeatable zero and parallax-free focus
• Low-light or dawn/dusk operations supported by red & green illumination

Customizable Features

• OEM logo engraving on the turret cap or tube
• Custom reticle patterns (SFIR MIL, MIL-DOT, BDC)
• Optional packaging or instruction manual branding

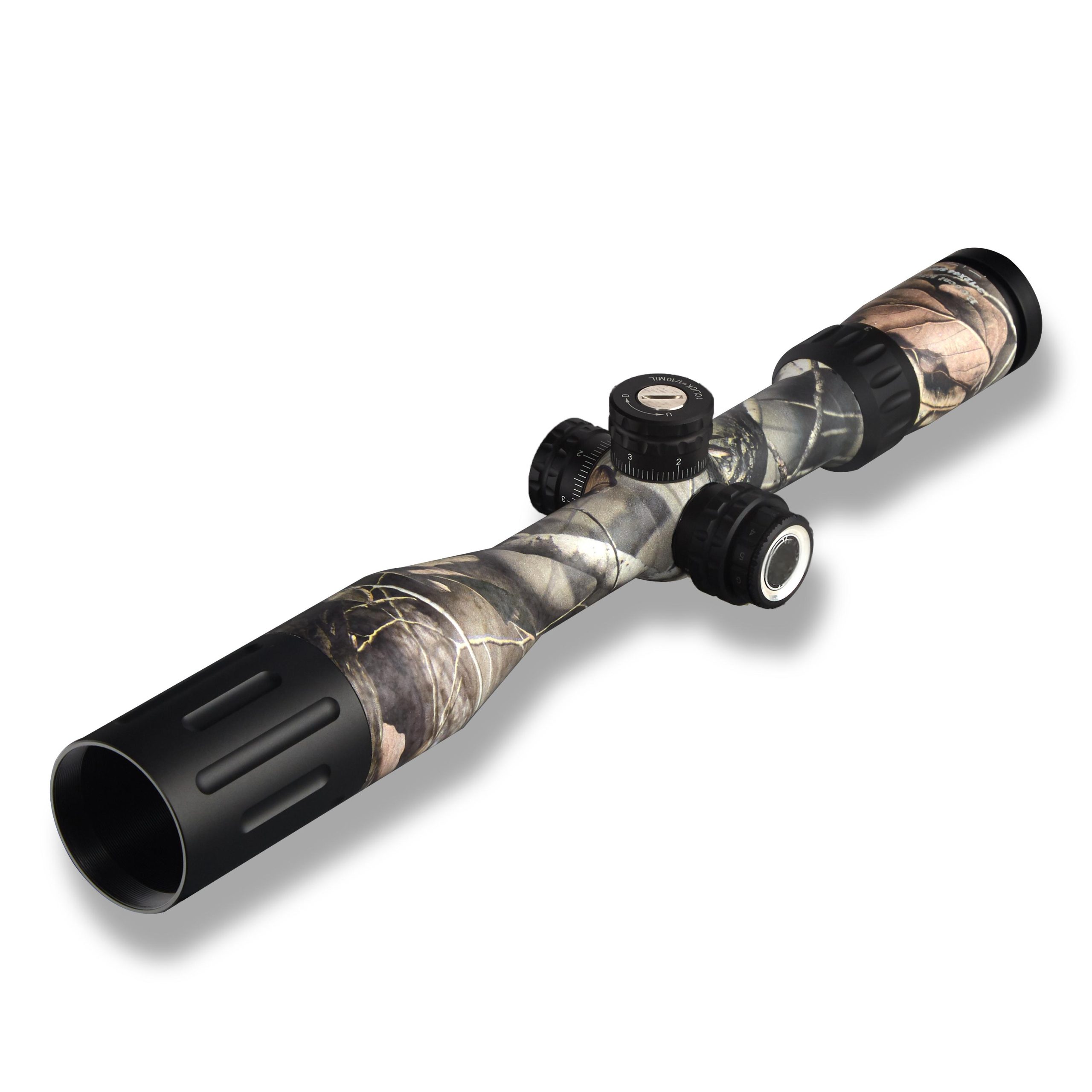

• Available in black matte or camo anodized finish

Parameters

Product Code	AOT3-12X44 SFIR
Model	3-12X44SFIR
Function	Optical Scope
Magnification	3x – 12x
Tube Diameter	25.4 mm

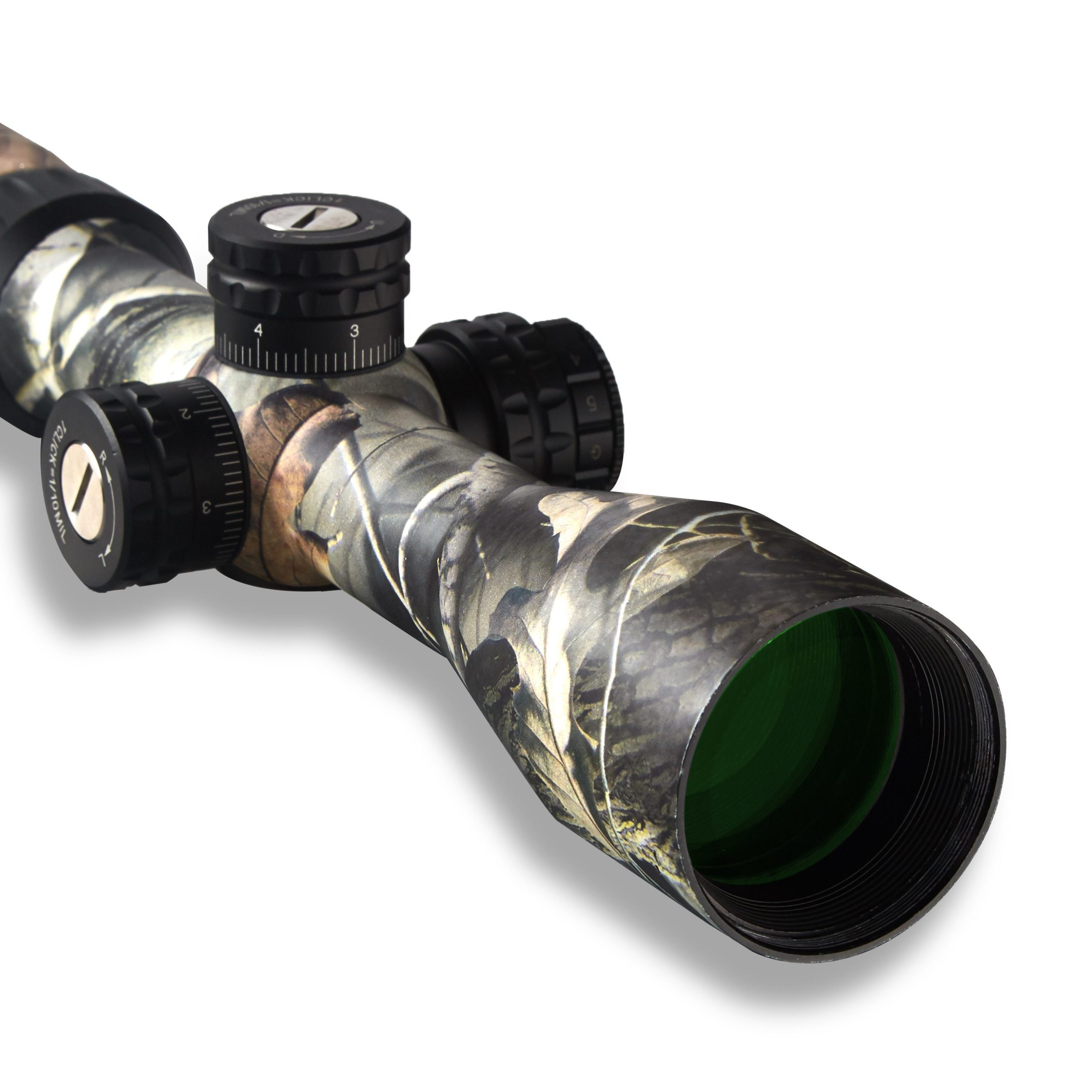

Objective Lens Diameter	44 mm
Overall Length	325 mm (12.79 inches)
Mounting Length	128 mm
Reticle Type	SFIR MIL
Focal Plane	Second Focal Plane (SFP)
Parallax Adjustment	Side Parallax
Illumination	Red & Green, 5 levels each
Side Parallax Adjustment	10 yds – Infinity
Field of View (@100 yds)	36.7 ft – 9.2 ft
Eye Relief	3.93″ – 4.33″ (100 – 110 mm)
Zero Reset	Yes
Zero Lock	Yes (Lock = Down)

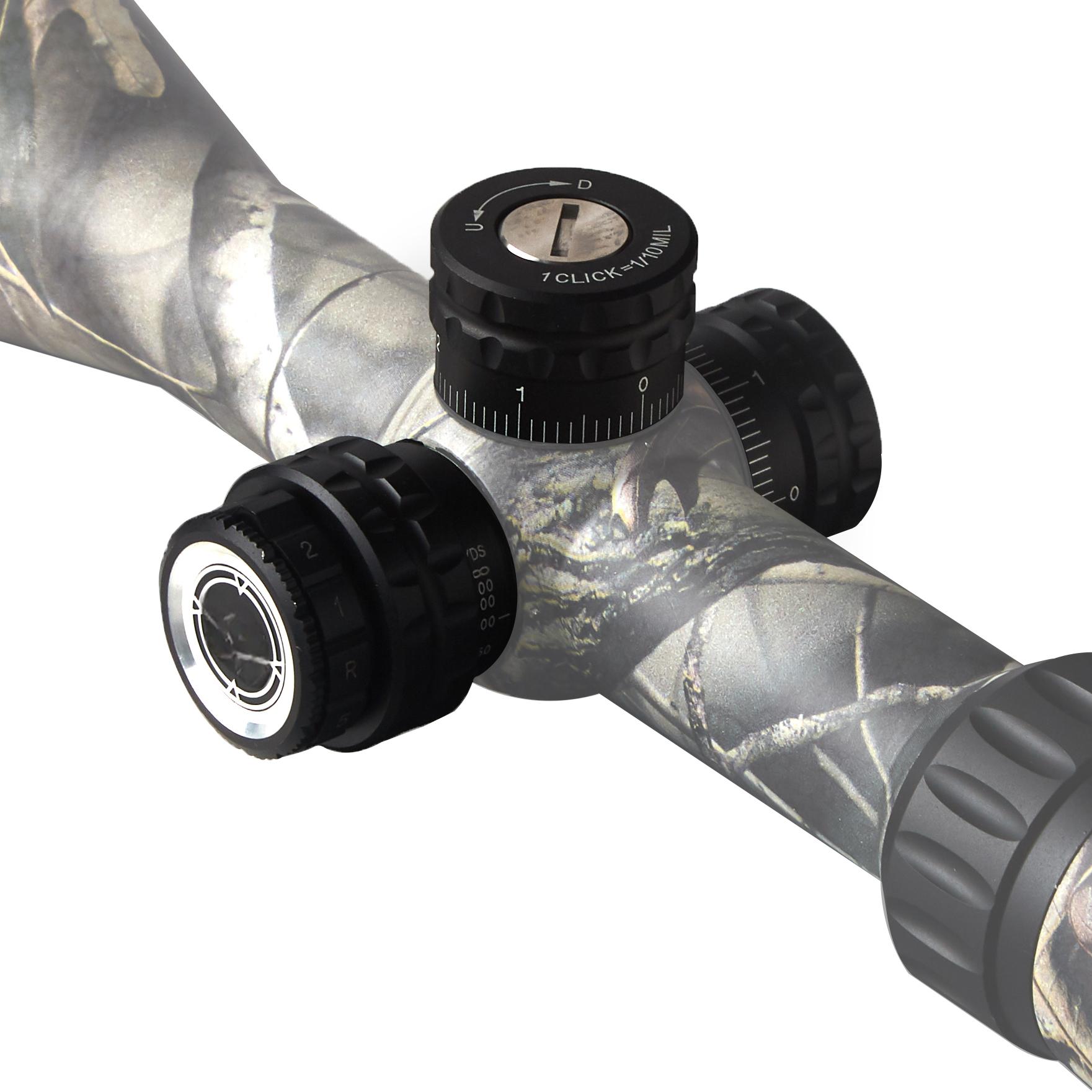

Click Value	1/4 MOA
Elevation Adjustment Range	60 MOA
Windage Adjustment Range	60 MOA
Lens Coating	Fully Multi-Green Coated
Nitrogen Filled	Yes
Shockproof	Yes
Waterproof	Yes
Fogproof	Yes
