OVERVIEW

Key Advantages and Features

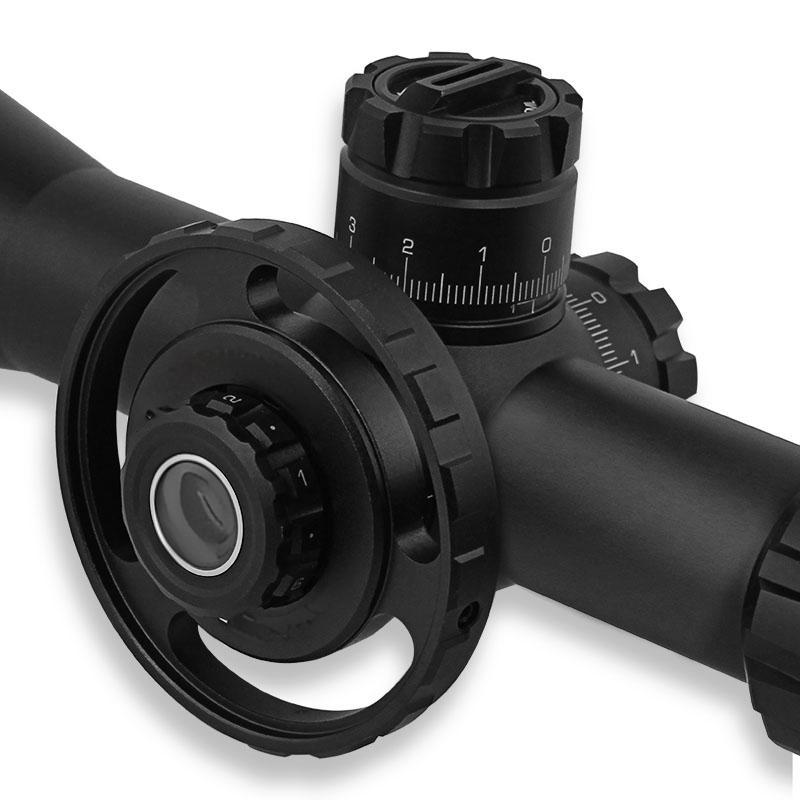

• Zero-Stop Elevation Control – Prevents overshooting past your zero reference during dynamic adjustments
• High Magnification Range – 4-16x and 5-25x configurations for mid to extreme-range accuracy
• Precision MIL Click Value – 1/10 MIL for fine-tuned aiming adjustments
• Parallax Correction from 10 Yards to Infinity – Crystal-clear targeting at all distances

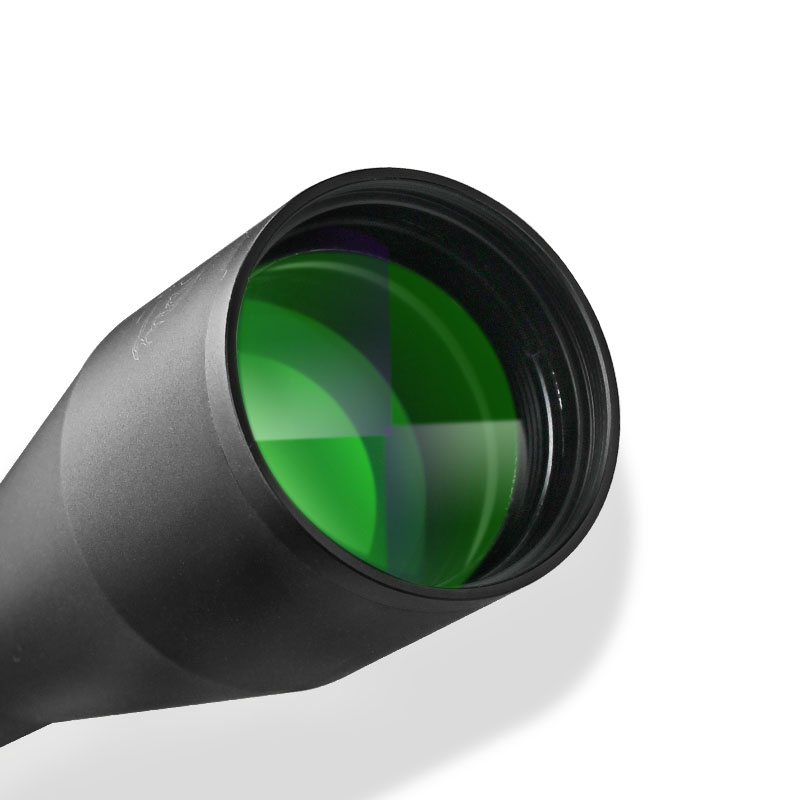

• Fully Multi-Coated Green Optics – Sharp image resolution and maximum light transmission
• Generous Eye Relief – Up to 105mm for safe and comfortable viewing with heavy recoil
• Durable Build – Matte black finish, shock-resistant housing, and reinforced turret assembly

Customizable Features

• Scope tube diameter: 30mm or 34mm to fit various rifle platforms
• Multi-coated green lenses for reduced glare and improved clarity
• Matte black finish available for stealth applications
• OEM/ODM options available for turret markings, reticle types, and branded packaging.

Parameters

Product Code	AOT4-16X44 FFP
Model Number	4-16X44
Magnification	4x – 16x
Scope Tube Diameter	30 mm
Lens Coating	Fully Green Multi-Coated
Reticle Type	Reticle
Ocular Lens Diameter	35 mm
Objective Lens Diameter	44 mm
Exterior Finish	Matte Black
Mounting Length	150 mm
Field of View (100 yds)	24.6 – 6.3 ft (4.7° – 1.2°)
Exit Pupil	11 mm – 2.75 mm
Eye Relief	4.13″ – 3.93″ (105 mm – 100 mm)
Diopter Adjustment	-2.0 / +2.0
Adjustment Click Value	1/10 MIL
Max Elevation/Windage Adjustment Range	±30 MOA
Parallax Correction Range	10 yds – ∞
Length	14.0″ (356 mm)
