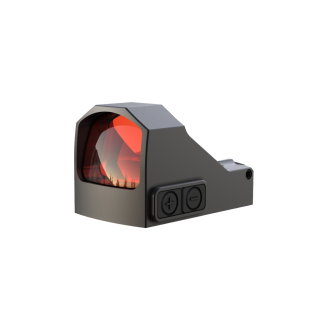

RMSc Interface Micro Reflex Red Dot Sight LIP1211OR
A miniature red dot sight suitable for pistols and tactical platforms
Developed for handgun manufacturers, tactical distributors, and EDC-focused optic brands, this model is engineered for concealed-carry pistols, micro-compacts, and slimline defensive handguns.
Its low 16.1 mm center height, parallax-free optical design, and 20.5 × 16 mm window provide fast target acquisition with minimal visual obstruction.
Motion activation, 8 daylight + 2 NV brightness levels, and auto-brightness mode ensure reliable performance in tactical, self-defense, and daily carry environments.
OVERVIEW
Key Advantages and Features

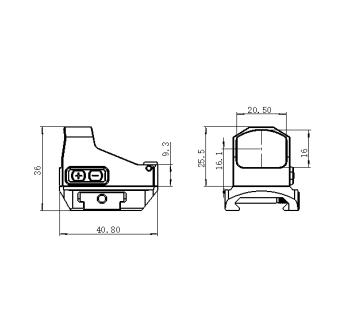

- Ultra-Compact Size – 40.8 × 25.5 × 25.5 mm: Minimal footprint designed for concealed-carry pistols.
- Featherweight – Only 26 g: Reduces slide mass and supports reliable cycling on micro handguns.
- RMS-C Footprint Compatibility: Fits widely-used micro pistol optic footprints without modification.
- 6 MOA Red Dot: Bright, fast, and optimized for close defensive distances.
- Parallax-Free 1× Design: Allows both-eyes-open shooting and instinctive target acquisition.
- 20.5 × 16 mm Optical Window: Clear, wide enough for fast tracking while staying concealment-friendly.
- 7075-T6 Aluminum Housing: Aviation-grade structural strength with premium durability.
- 1 MOA Click Adjustment — 80 MOA Range: Precise zeroing for various micro pistol calibers.
- CR1632 Battery — Up to 20,000 Hours Life: Long-lasting performance for daily carry.
- Advanced Brightness Control: 8 daylight + 2 night-vision levels; Built-in auto-brightness mode for adaptive lighting.
- Motion Sensor Activation: Auto wake for rapid readiness, power-saving standby when still.
- IPX7 Waterproof: Fully sealed against rain, immersion, and outdoor conditions.
- Push-Button Power & Brightness Control: Simple, intuitive, and glove-friendly interface.
Application Scenarios
Concealed-Carry Pistols (EDC)
Perfect as a micro pistol red dot sight for compact and subcompact carry pistols (9mm, .380, .45), improving reaction speed and accuracy.
Slimline Defensive Pistols
Optimized for RMS-C optic-ready slides—ideal for Glock Slimline, SIG micro platforms, Springfield, Walther, and other CCW models.
Competition Subcompact Divisions
A strong choice for micro red dot competition shooting, offering fast dot acquisition and stable tracking.
Law Enforcement Backup or Off-Duty Pistols
Ultra-reliable IPX7 waterproofing and motion wake make it suitable as a duty backup pistol optic.
Training, Range Use & Target Practice
Crisp reticle clarity and 1 MOA click adjustments support accurate training sessions.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Options Available for B2B Buyers
- Custom logo engraving or printed branding
- OEM packaging with branded manuals, inserts, and barcodes
- Customized brightness presets or auto-mode behavior
- Optional color/anodizing finishes for large orders
- Distributor-ready export carton and labeling solutions
- Slide plates or mounting adapters for specific handgun models
Parameters
| DESCRIPTION | Parameter | |||
| Physical | Size (L x W x H) mm | 40.8X25.5X25.5 | ||
| Weight (g/oz.) | 26/0.9 | |||
| Center Height mm | 16.1 | |||
| Housing Material | 7075 Aluminum | |||
| Footprint | RMS-C | |||
| Optical | Reticle | Single Dot | ||
| Reticl Color | Red | |||
| Dot Size | 6 MOA | |||
| Magnification | 1X – No Magnification | |||
| Eye Relief（mm） | Unlimited | |||
| Parallax Setting | Parallax Free | |||
| Window Size（mm） | 20.5X16 | |||
| Mechanical | Elevation/Windage Travel Range | 80 MOA | ||
| Graduation of Adjustment | 1 MOA per click | |||
| Electronics | Battery Type | CR1632 | ||
| Battery Life | Up to 20,000 Hours | |||
| Power Switch | Push Buttons | |||
| Motion Sensor（Y/N ） | Y | |||
| Brightness Setting | 8DL+2NV settings and Auto mode | |||
| Environmental | Waterproof | IPX7 | ||
| shockproof | 1200G | |||
Let’s Work Together
If you are expanding your micro pistol optics lineup or seeking OEM/ODM partners for RMS-C footprint red dots, we provide full customization, branding options, and sample support.
Share your host pistol platform and market strategy—I’ll configure the ideal solution for your business.
