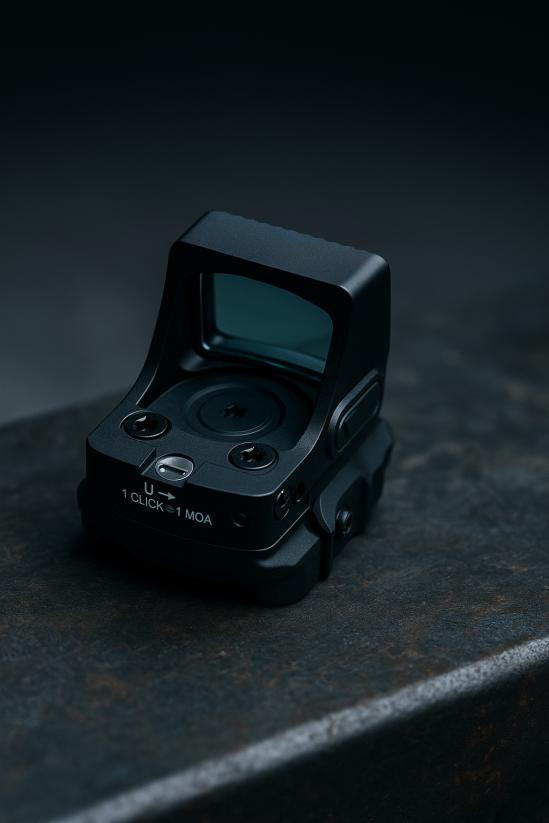

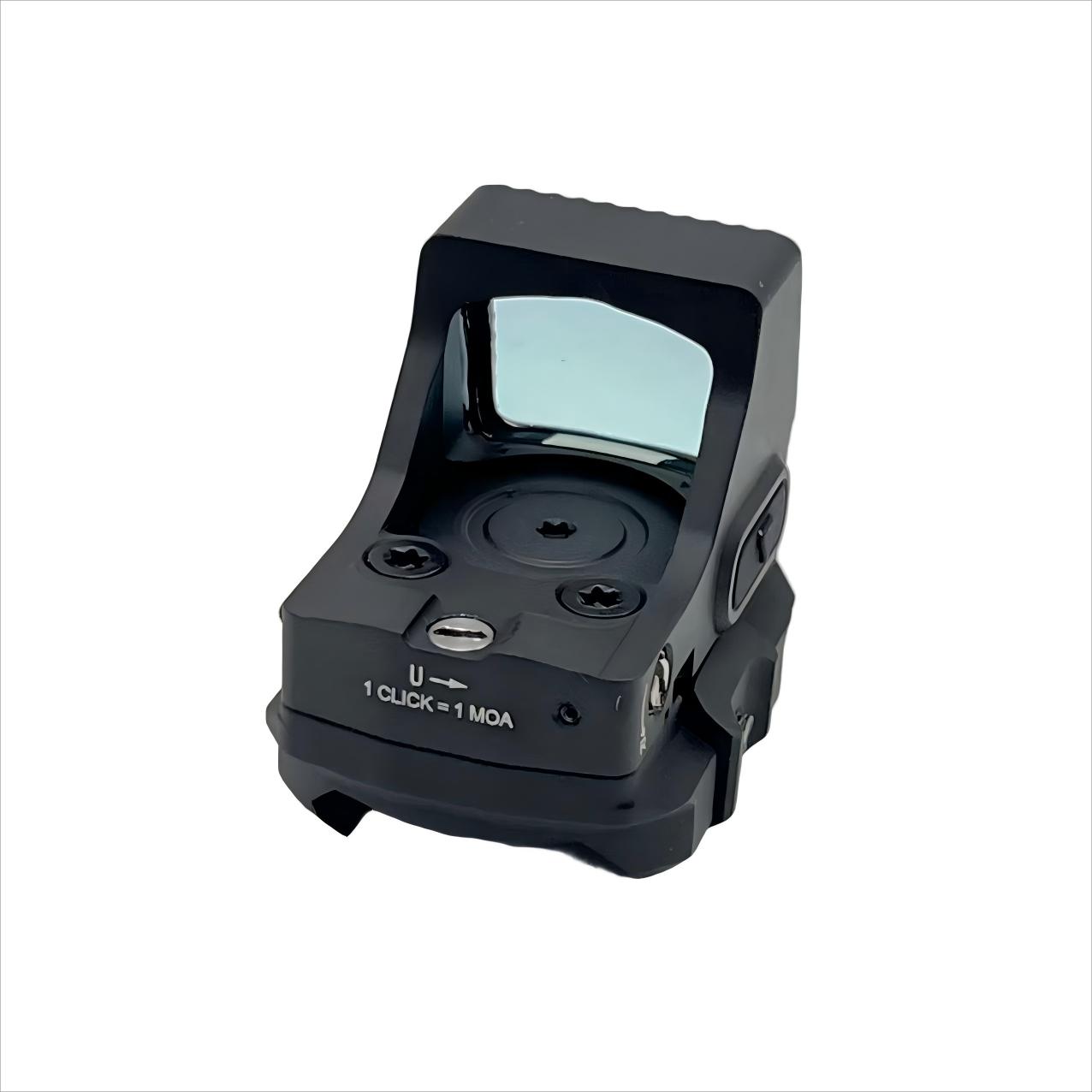

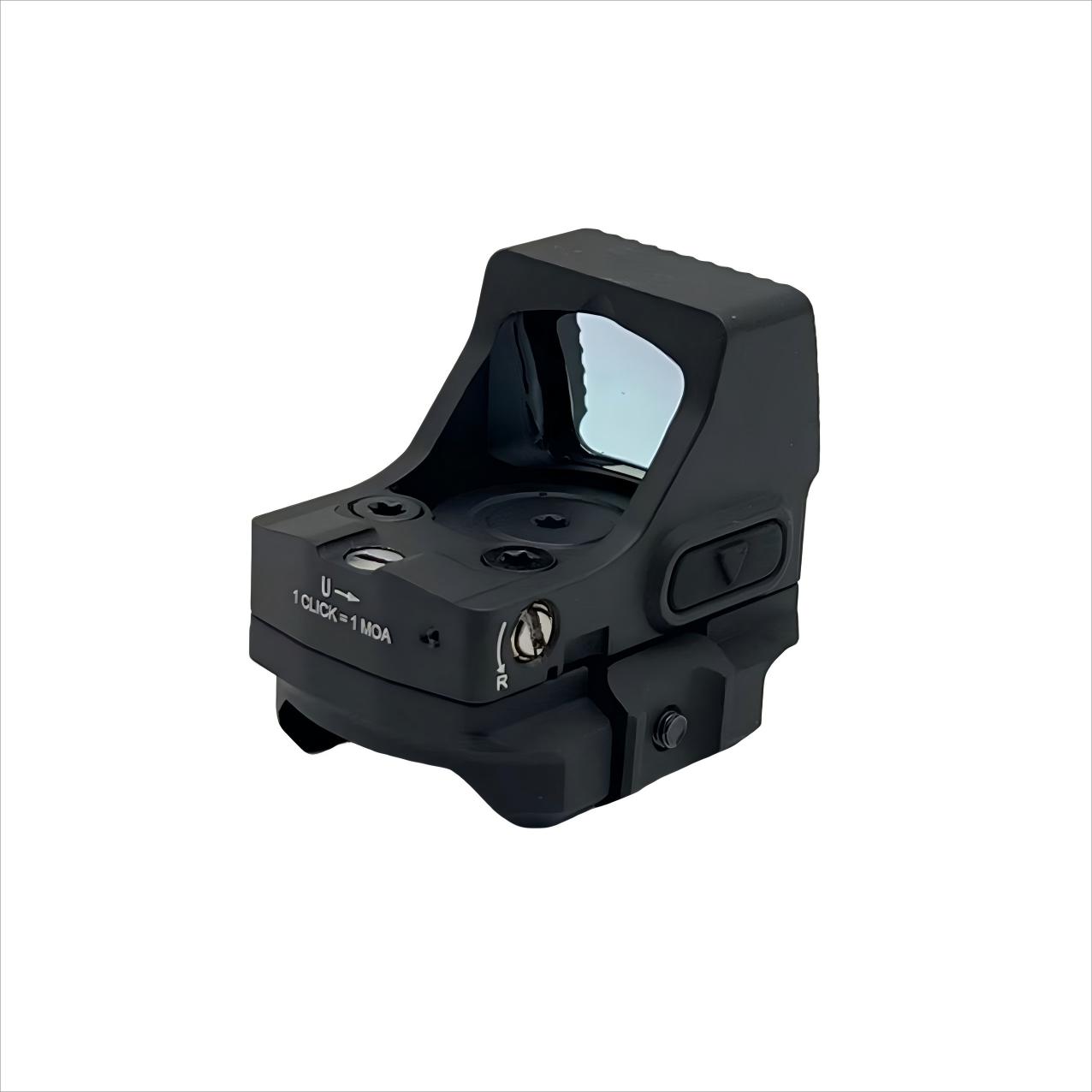

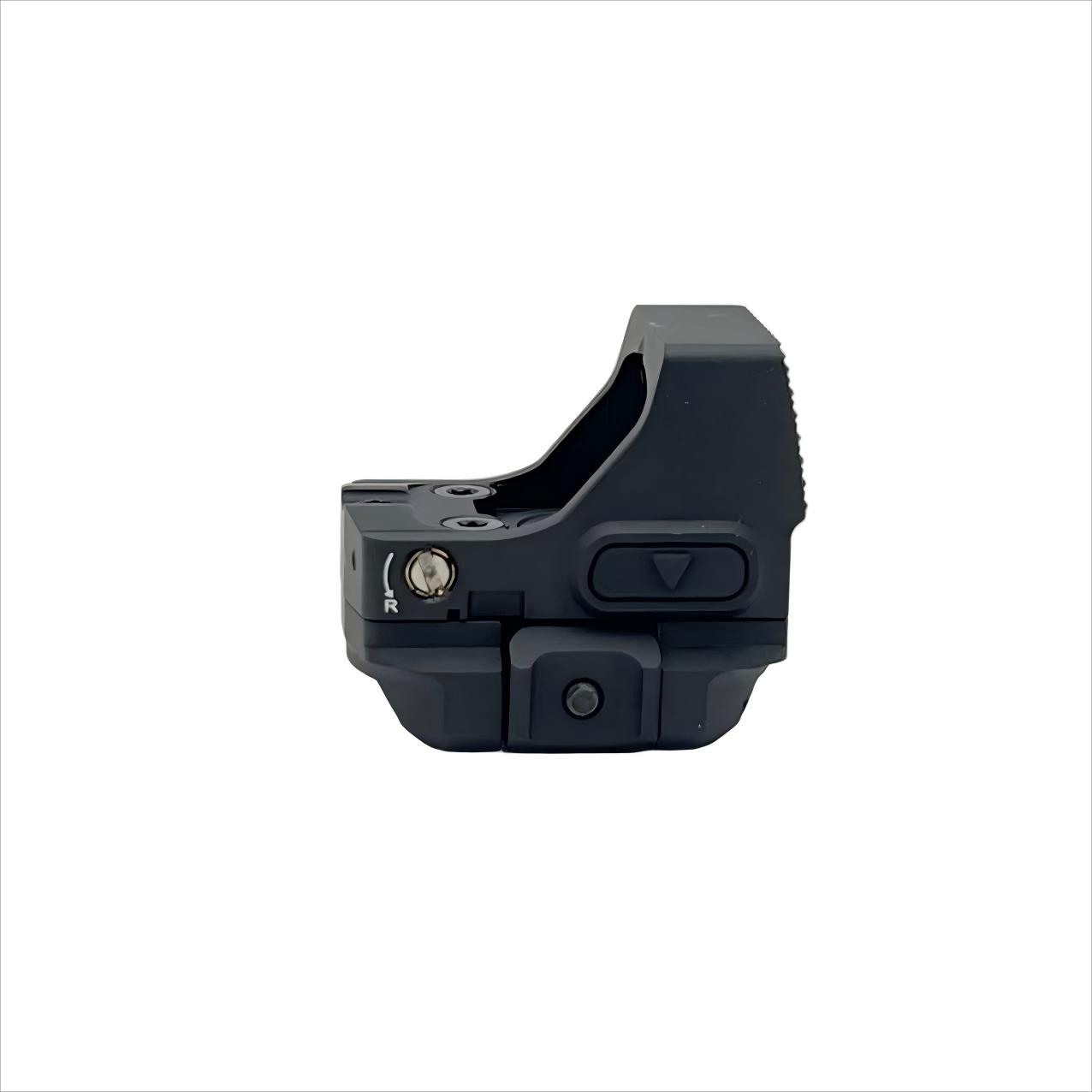

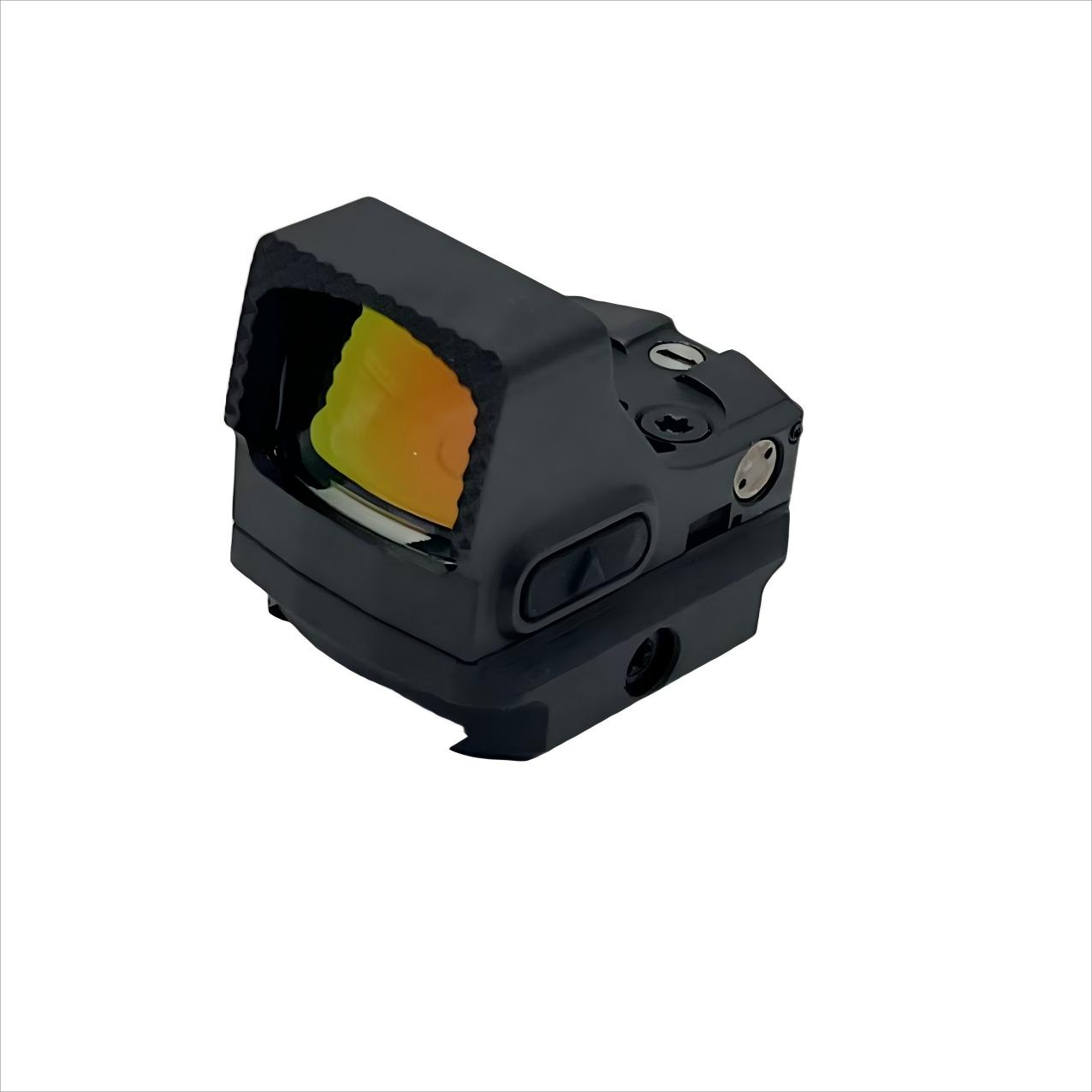

RMSc Interface Micro Reflex Red Dot Sights XIX1225OR
- Optimized Dimensions: Slightly wider (29.5 mm) to accommodate sealed housing and reinforced structure;
- Enhanced Protection: Closed bottom + IPX7 waterproof + 1200 G shock resistance;
- Ease of Use: Top-loading battery, adjustable Shake Awake, crisp mechanical clicks;
- Optical Quality: High transmission, low chromatic aberration, parallax-free aiming;
- Overall Performance: Tactical-grade RMSc-compatible red dot sight balancing ruggedness, usability, and optical precision.
OVERVIEW
Key Advantages and Features
Mounting Standard: Shield RMSc Footprint
Positioning: Tactical-grade RMSc red-dot sight designed for reliability, precision, and field performance.
Structural and Functional Design

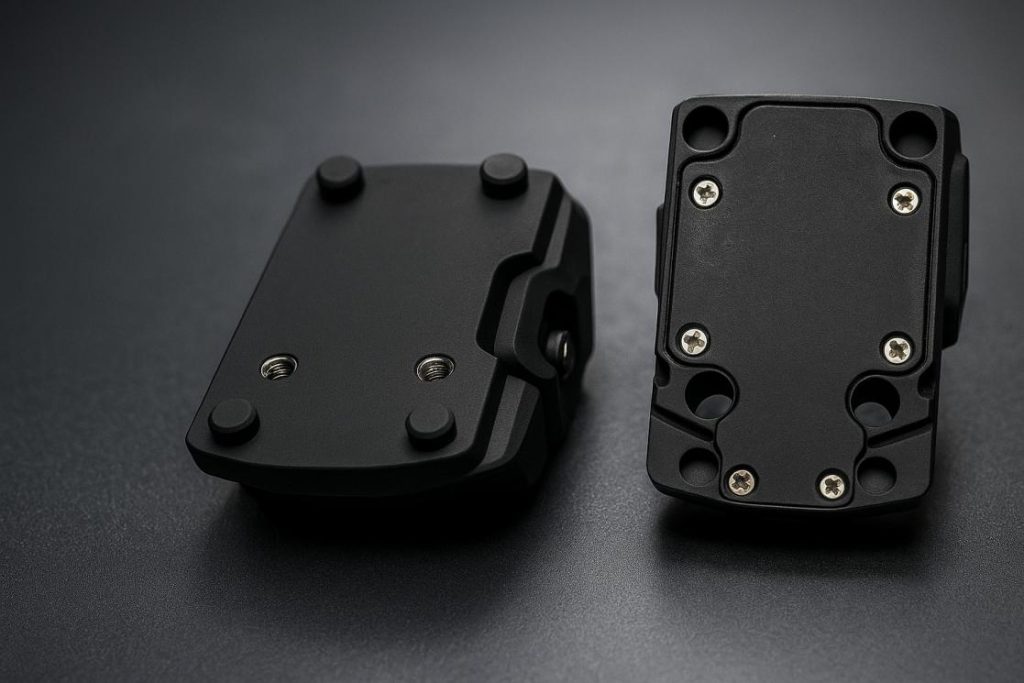

- Fully Sealed Base Design
The lower housing is completely enclosed to prevent dust, moisture, and oil ingress, ensuring long-term reliability under harsh environments.

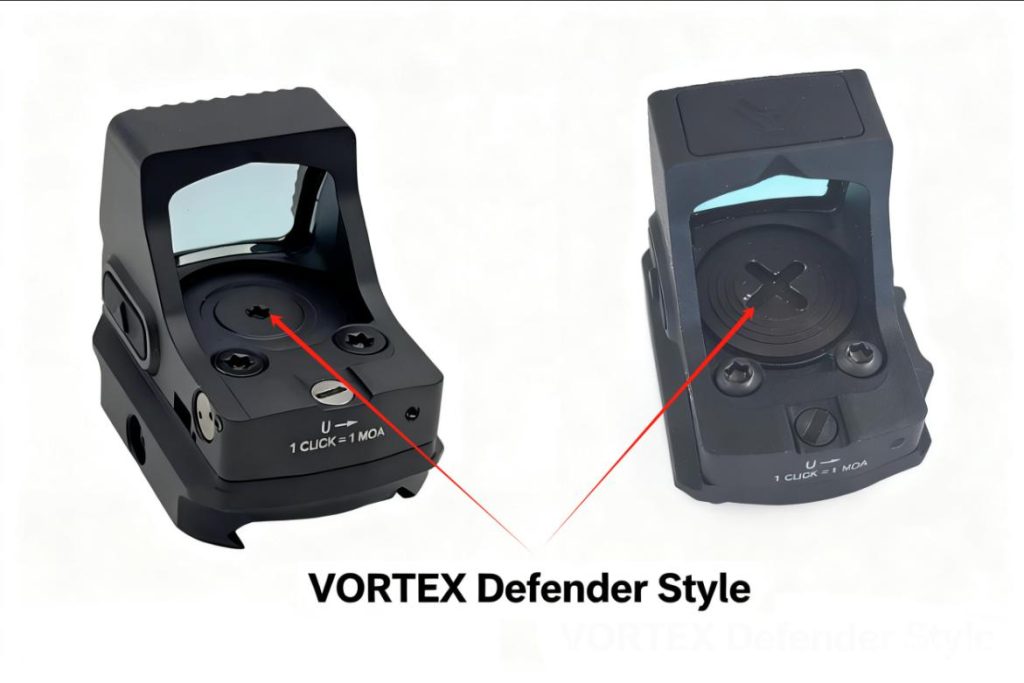

- Top-Loading Battery Compartment (VORTEX Defender Style)
The CR1632 battery can be replaced quickly from the top without removing the optic, maintaining both waterproof integrity and zero stability.

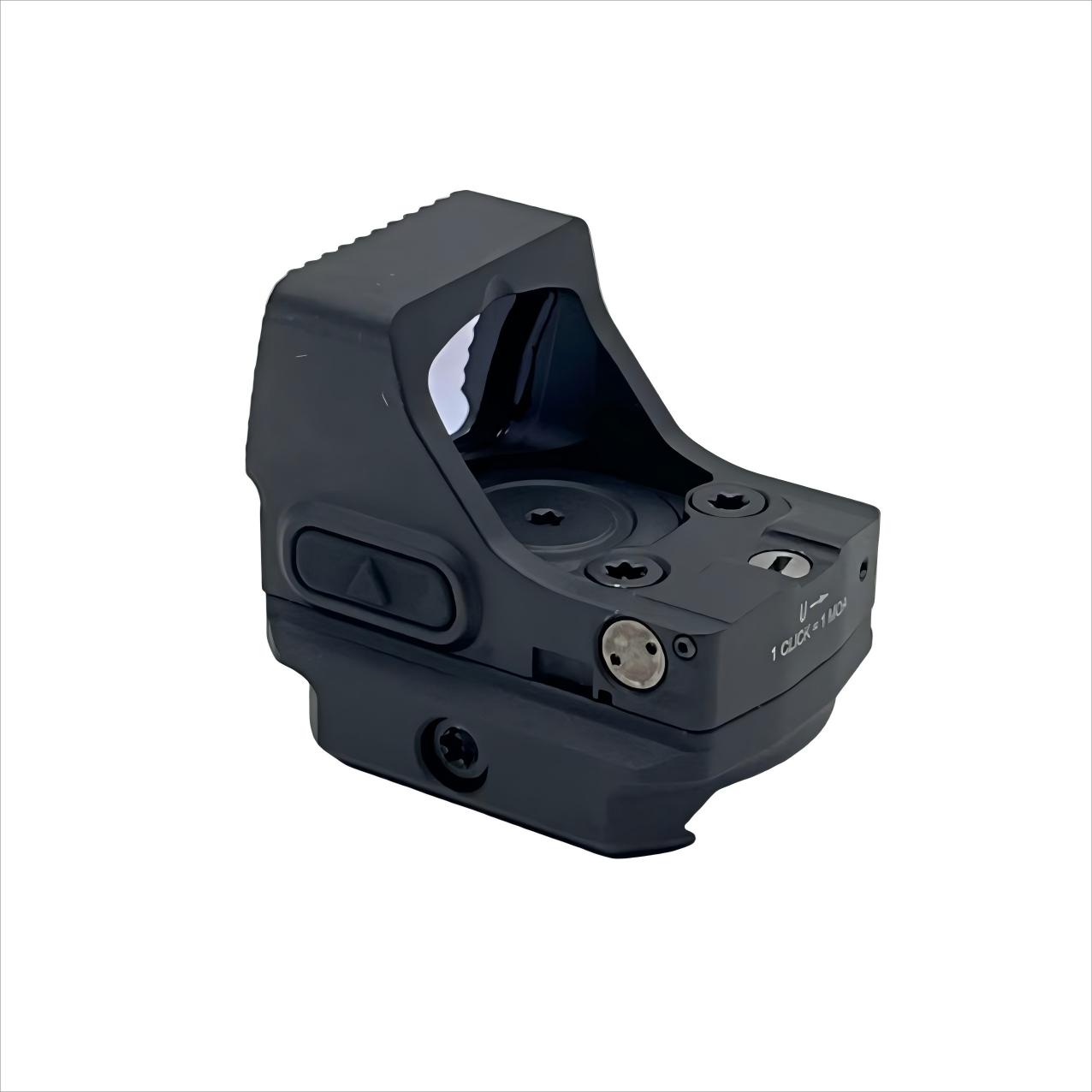

- Tungsten-Steel Adjustment Mechanism
- Click value: 1 Click = 1 MOA
- Elevation range: +30 / -50 MOA
- Windage range: ±45 MOA
- Crisp tactile clicks for precise zeroing and stable repeatability.
- High Durability and Protection
The CNC aluminum body and reinforced structure ensure optical alignment stability under recoil and impact conditions.
Brightness and Power Management
- Brightness Control System
- 10 brightness levels total: Levels 1–2 for NV mode; Level 10 is daylight super-bright;
- 2 NV-compatible levels + 8 daylight levels;
- Level 8 features a “boost mode” for direct sunlight conditions;
- Adjust via “+” or “–” keys in a continuous loop.
- Power Management System
- Long press any key (3s) to power ON/OFF; automatically restores last brightness;
- Auto-sleep after 4 minutes of inactivity; resumes previous setting upon wakeup;
- Low-battery indicator flashes automatically for warning.
- Shake Awake ON/OFF Function
- The sight enters sleep mode after 3 minutes of inactivity and wakes instantly upon motion;
- Manual toggle: Press and hold both “+” and “–” for 3 seconds;
- One flash = Shake Awake OFF; two flashes = Shake Awake ON;
- Settings are stored even after power removal.
Optical Performance
- High-transmittance multi-coated lens for enhanced brightness and contrast;
- Excellent chromatic suppression and uniform dot shape across the window;
- True Parallax Free optical design ensuring consistent accuracy from any viewing angle;
- Factory-zeroed at 50 m for out-of-box readiness.
User Experience
- Dual-side control buttons with balanced tactile response and anti-mispress design;
- Intelligent motion-sensing standby and wake-up modes for efficient power saving;
- Responsive buttons optimized for gloved operation;
- Wide field of view with uniform dot presentation across the lens.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Specifications of Reflex Red Dot Sights XIX1225OR
Width: The width of our recommended model is 24.6 mm, slightly wider than your 23 mm requirement.
Reducing it to 23 mm would significantly limit the internal space, making it impossible to include the tungsten-steel adjustment mechanism for windage and elevation. This mechanism ensures high durability, wear resistance, and a crisp tactile click during adjustment — key features for maintaining precision and long-term reliability.
| Item | Specification |

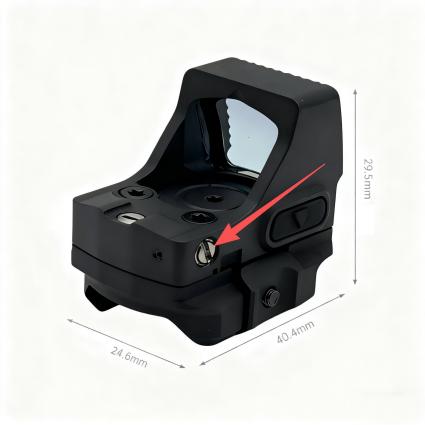

| Dimensions | 40.4 × 29.5 × 24.6 mm |
| Weight | 27 g (with battery) |
| Optical System | High-transmittance bonded lens with multi-layer violet coating |
| Battery | CR1632, top-loading design for quick replacement |

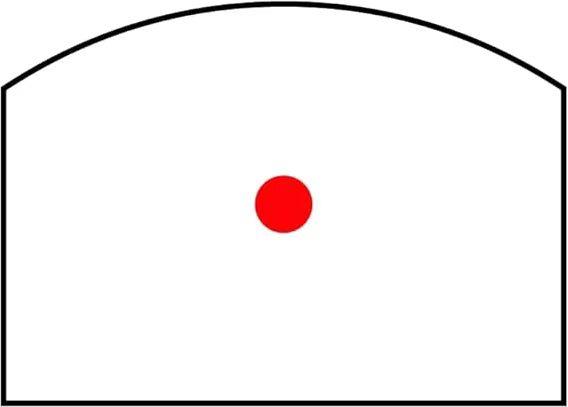

| LED Type | Laser-sealed 3 MOA red dot LED |
| Battery Life | 10,000 hours (low brightness) |
| Power Consumption | ≤30 mA |
| Waterproof Rating | IPX7 (1 m / 30 min) |
| Shock Resistance | 1200 G (suitable for 9 mm handguns) |
| Housing Material | 6061-T6 aircraft-grade aluminum, full CNC machining, matte anodized finish |
| Mount Screws | Grade 12.9 high-strength steel screws with anti-loosening treatment |
Packaging and Logistics
| Item | Specification |
| Packaging | Individual plastic case |
| Quantity per Carton | 50 units |
| Reference Price | $43.25 / unit (excl. VAT) |
| Mount Compatibility | RMSc footprint — fits Canik, SIG, Springfield and similar slides |
