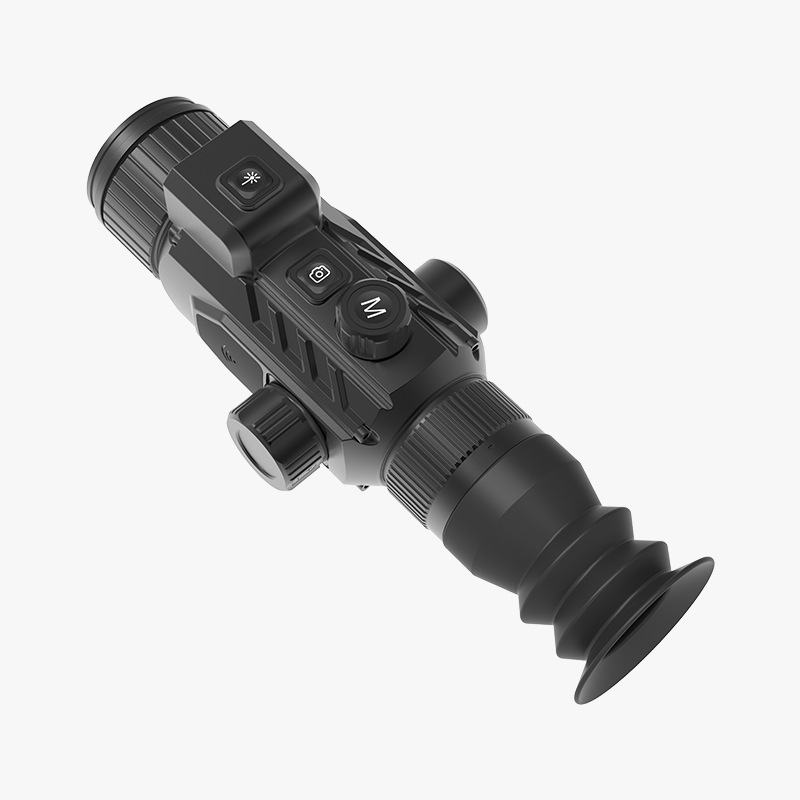

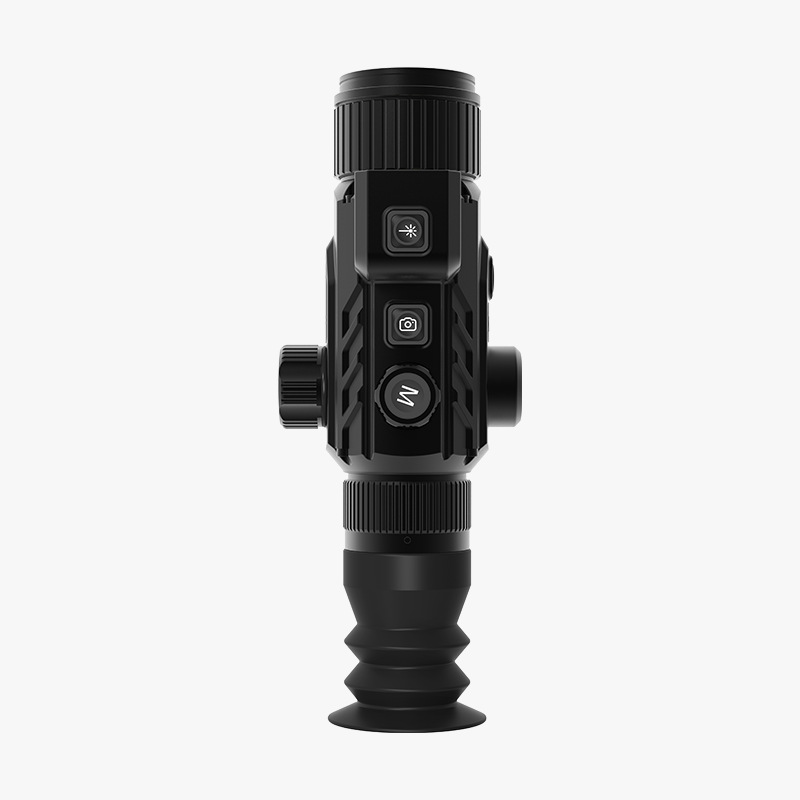

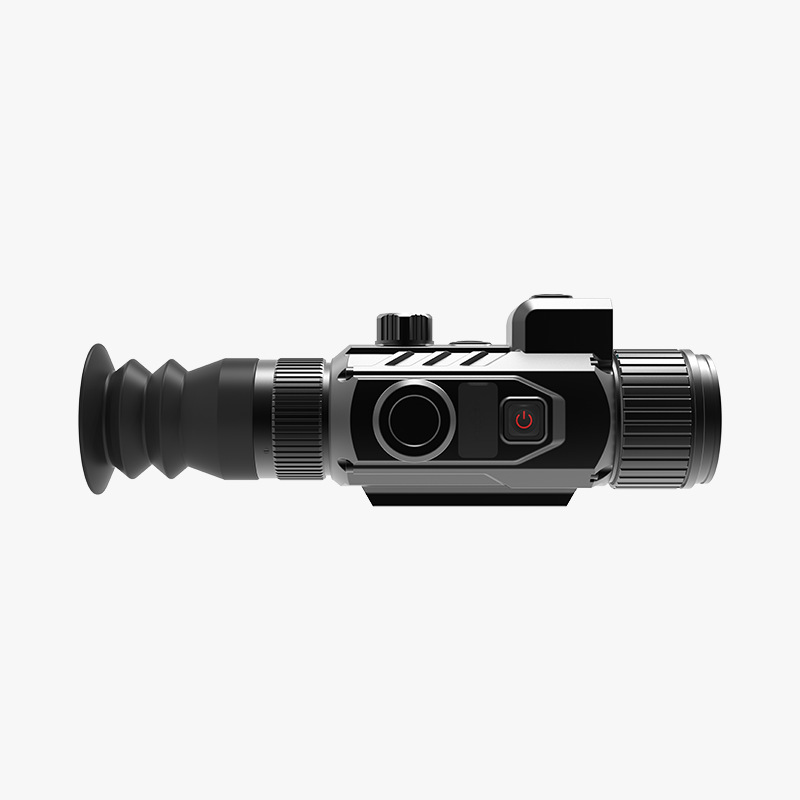

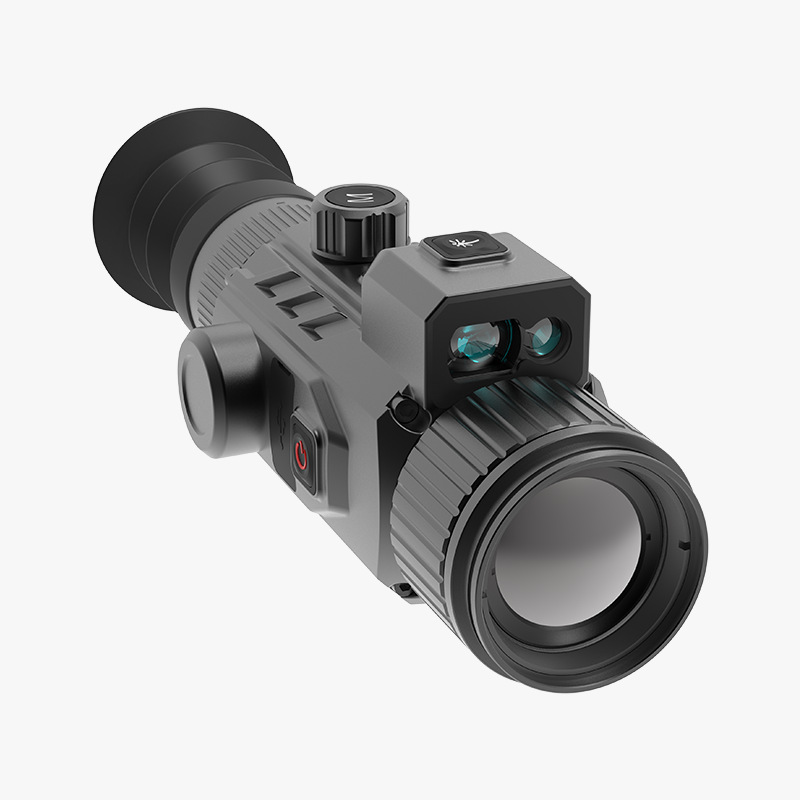

Thermal Imaging Rifle Scope HR225R
The HR Series Thermal Imaging Rifle Scopes are professional thermal optics designed for night hunting, hog hunting, predator control, tactical night training, ranch protection, and long-range outdoor detection. With VOx uncooled sensors, ≤20mK NETD, 50Hz frame rate, OLED 1024×768 display, and detection ranges up to 2600m, this series provides strong thermal visibility for demanding field applications.
The lineup includes 256×192, 384×288, and 640×512 sensor options, giving B2B buyers flexible product tiers for entry-level, mid-range, and premium thermal rifle scope markets. Built-in 1200m laser rangefinder, Wi-Fi, Bluetooth, audio/video recording, 32GB storage, IP67 protection, and 1000g shock resistance further improve usability for hunting, tactical, and outdoor security users.
OVERVIEW
This Thermal Imaging Rifle Scopes series is built for B2B buyers who need a complete thermal optic lineup for hunting, tactical, and outdoor security markets.
- HR225R: compact entry-level thermal scope with 1200m detection range
- HR335R: balanced 384×288 thermal scope for hunting and patrol use
- HR635R: 640×512 high-resolution model for clearer thermal detail
- HR650R: long-range 640×512 thermal scope with up to 2600m detection range
Suitable for hunting optics brands, tactical equipment distributors, ranch security suppliers, and private label thermal scope programs.
Key Advantages and Features
- VOx uncooled thermal sensor, 8–14 μm
- Sensor options: 256×192, 384×288, 640×512
- ≤20mK NETD for sensitive heat detection
- 50Hz frame rate for smooth image tracking
- Objective lens options: 25mm / 35mm / 50mm F1.0
- Detection range: 1200m / 1800m / 2600m
- Magnification options: 2.5X–13.2X depending on model
- 0.39-inch OLED display, 1024×768 resolution
- 1200m laser rangefinder, ±1m accuracy
- Built-in Wi-Fi, Bluetooth, microphone, USB-C interface
- Photo/video recording with audio support
- 32GB storage capacity
- Removable rechargeable 18650 battery, approx. 6h runtime
- IP67 protection rating
- 1000g shock resistance
- Compact dimensions: 183×73×70mm
Application Scenarios
Night Hunting and Hog Hunting
The thermal sensor, ≤20mK NETD, and 50Hz frame rate help users detect heat signatures clearly in darkness, brush, and low-visibility conditions.
Predator Control and Ranch Protection
With detection ranges from 1200m to 2600m, these scopes are suitable for coyote hunting, livestock protection, and large-property monitoring.
Tactical Night Training
The 0.39-inch OLED display, 1024×768 resolution, laser rangefinder, Wi-Fi, Bluetooth, and audio/video recording support tactical training and field documentation.
Outdoor Surveillance and Field Observation
The IP67 protection, 1000g shock resistance, and -20°C to +50°C operating range make the series reliable for outdoor patrol and harsh field environments.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding Supports private label Thermal Imaging Rifle Scopes
- Reticle / UI Design Can match hunting, tactical, or security markets
- Menu Language Suitable for US, European, Australian, and global sales
- Packaging Retail box, neutral box, or custom brand packaging
- Accessories Battery, charger, USB-C cable, mount, carrying case, manual
- Software / App Support Wi-Fi connection and feature interface can support brand positioning
- OEM/ODM Support Suitable for customized thermal rifle scope projects
Parameters
| Category | Parameter | HR225R | HR335R | HR635R | HR650R |
| Sensor | Type | VOx uncooled sensor, 8–14 μm | VOx uncooled sensor, 8–14 μm | VOx uncooled sensor, 8–14 μm | VOx uncooled sensor, 8–14 μm |
| Resolution | 256×192@12 μm | 384×288@12 μm | 640×512@12 μm | 640×512@12 μm | |
| Noise Equivalent Temperature Difference (NETD) | ≤20 mK (@25°C, F#1.0, 25 Hz) | ≤20 mK (@25°C, F#1.0, 25 Hz) | ≤20 mK (@25°C, F#1.0, 25 Hz) | ≤20 mK (@25°C, F#1.0, 25 Hz) | |
| Frame Rate | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |
| Lens Parameters | Objective Lens Focal Length | 25 mm/F1.0 | 35 mm/F1.0 | 35 mm/F1.0 | 50 mm/F1.0 |
| Field of View (±0.3°) | 7.1°×5.3° | 12.5°×10° | 12.5°×10° | 8.8°×7.0° | |
| Magnification | 3.3×–13.2× | 2.7×–10.8× | 2.7×–10.8× | 2.5×–10× | |
| Eye Relief | 48 mm | 48 mm | 48 mm | 48 mm | |
| Diopter Adjustment | -5 to +5 | -5 to +5 | -5 to +5 | -5 to +5 | |
| Detection Range (m) | 1200 | 1800 | 1800 | 2600 | |
| Display Parameters | Display | 0.39-inch OLED | 0.39-inch OLED | 0.39-inch OLED | 0.39-inch OLED |
| Resolution | 1024×768 | 1024×768 | 1024×768 | 1024×768 | |
| Hardware Configuration | Laser Rangefinder | 1200 m, ranging accuracy ±1 m | 1200 m, ranging accuracy ±1 m | 1200 m, ranging accuracy ±1 m | 1200 m, ranging accuracy ±1 m |
| Wi-Fi | Built-in Wi-Fi | Built-in Wi-Fi | Built-in Wi-Fi | Built-in Wi-Fi | |
| Interface | USB-C | USB-C | USB-C | USB-C | |
| Other Features | Microphone, Bluetooth | Microphone, Bluetooth | Microphone, Bluetooth | Microphone, Bluetooth | |
| System | Recording Function | Photo / video (supports audio recording) | Photo / video (supports audio recording) | Photo / video (supports audio recording) | Photo / video (supports audio recording) |
| Storage Capacity | 32 GB | 32 GB | 32 GB | 32 GB | |
| Power | Battery Type | 1×18650 battery (removable, rechargeable) | 1×18650 battery (removable, rechargeable) | 1×18650 battery (removable, rechargeable) | 1×18650 battery (removable, rechargeable) |
| Continuous Operating Time | 6 hours | 6 hours | 6 hours | 6 hours | |
| Environmental Adaptability | Operating Temperature | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C |
| Shock Resistance | 1000 g | 1000 g | 1000 g | 1000 g | |
| Protection Rating | IP67 | IP67 | IP67 | IP67 | |
| Weight | 535 g | 615 g | 535 g | 615 g | |
| Dimensions (mm) | 183×73×70 | 183×73×70 | 183×73×70 | 183×73×70 |
For B2B buyers, customization options can include logo branding, reticle/UI design, menu language, packaging, accessories, software support, and OEM/ODM configuration.
Contact us to discuss your customized Thermal Imaging Rifle Scopes solution for hunting, tactical, or outdoor security markets.
