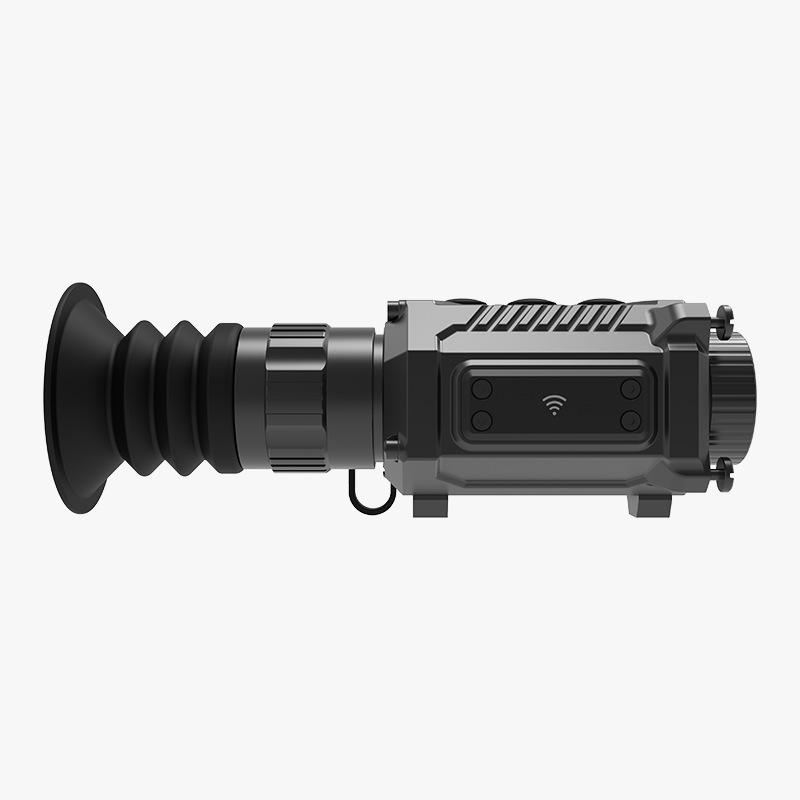

Thermal Imaging Rifle Scopes TherClip2 384 25MM
The TherClip2 Thermal Imaging Rifle Scopes series is designed for night hunting, hog hunting, predator control, tactical night training, helmet-mounted observation, ranch protection, and long-range thermal detection, offering 384×288 and 640×512 sensor options, 25mm / 35mm F1.0 lenses, ≤20mK NETD, 50Hz imaging, and OEM/ODM customization support.
- TherClip2 384 25mm: compact thermal scope for shorter-range hunting and patrol use
- TherClip2 384 35mm: longer detection range for predator control and open-field use
- TherClip2 640 25mm: wider field of view with higher thermal detail
- TherClip2 640 35mm: premium 640 thermal optic for clearer long-range detection
Suitable for hunting optics brands, tactical gear distributors, outdoor security suppliers, and private label thermal optic programs.
OVERVIEW
Key Advantages and Features
- VOx uncooled sensor, 8–14μm
- Sensor options: 384×288@12μm and 640×512@12μm
- ≤20mK NETD for sensitive thermal detection
- 50Hz frame rate for smooth tracking
- Lens options: 25mm F1.0 and 35mm F1.0
- Detection distance: 1200m / 1800m
- 1X–4X aiming mode and 1X helmet mode
- 0.39-inch OLED display, 1024×768 resolution
- Built-in Wi-Fi, USB-C, photo/video recording
- 32GB storage capacity
- 1×18650 removable rechargeable battery: Approx. 6 hours continuous working time
- IP67 ingress protection
- 1000g shock resistance
- Compact dimensions: 117×70×51mm / 126×70×51mm
- Lightweight design: 351g / 381g
- Available colors: Black, Tan
Application Scenarios
Night Hunting and Hog Hunting
With VOx uncooled sensors, ≤20mK NETD, and 50Hz frame rate, the series helps hunters detect heat signatures clearly in darkness, brush, and low-visibility environments.
Predator Control and Ranch Protection
The 1200m / 1800m detection distance makes these scopes suitable for coyote hunting, livestock protection, farm patrol, and large-property monitoring.
Tactical Night Training and Helmet Mode
The 1X helmet mode, compact size, and lightweight body make this series useful for mobile night observation, tactical training, and hands-free field scanning.
Outdoor Surveillance and Field Observation
With IP67 protection, 1000g shock resistance, Wi-Fi, USB-C, photo/video recording, and 32GB storage, this series supports outdoor patrol, wildlife observation, and field documentation.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding Supports private label Thermal Imaging Rifle Scopes
- Color Options Black and Tan available for different tactical or hunting markets
- UI / Menu Language Can support international distribution
- Reticle / Interface Design Can be adapted for hunting, tactical, or observation use
- Packaging Retail box, neutral box, or customized brand packaging
- Accessories Battery, charger, USB-C cable, helmet mount, rifle mount, carrying case, manual
- OEM/ODM Support Suitable for custom thermal scope and clip-on thermal optic projects
Parameters
| Product Name | TherClip2 384 25MM | TherClip2 384 35MM | TherClip2 640 25MM | TherClip2 640 35MM |
| Infrared Detector Type | VOx Uncooled Sensor, 8-14µm | VOx Uncooled Sensor, 8-14µm | VOx Uncooled Sensor, 8-14µm | VOx Uncooled Sensor, 8-14µm |
| Infrared Detector Resolution | 384×288@12µm | 384×288@12µm | 640×512@12µm | 640×512@12µm |
| Noise Equivalent Temperature Difference (NETD) | ≤20mK(@25°C, F#1.0,25Hz) | ≤20mK(@25°C, F#1.0,25Hz) | ≤20mK(@25°C, F#1.0,25Hz) | ≤20mK(@25°C, F#1.0,25Hz) |
| Frame Rate | 50Hz | 50Hz | 50Hz | 50Hz |
| Objective Focal Length | 25mm/F1.0 | 35mm/F1.0 | 25mm/F1.0 | 35mm/F1.0 |
| Field of View (±0.3°) | 10.5°×7.9° | 7.5°×5.6° | 17.2°×13.7° | 12.5°×10.0° |
| Magnification | 1×-4× (Aiming Mode) / 1× (Helmet Mode) | 1×-4× (Aiming Mode) / 1× (Helmet Mode) | 1×-4× (Aiming Mode) / 1× (Helmet Mode) | 1×-4× (Aiming Mode) / 1× (Helmet Mode) |
| Exit Pupil Distance | 35mm | 35mm | 35mm | 35mm |
| Diopter Adjustment | -4~+4 | -4~+4 | -4~+4 | -4~+4 |
| Detection Distance (m) | 1200 | 1800 | 1200 | 1800 |
| Display Type | 0.39-inch OLED | 0.39-inch OLED | 0.39-inch OLED | 0.39-inch OLED |
| Display Resolution | 1024×768 | 1024×768 | 1024×768 | 1024×768 |
| WiFi | Supported | Supported | Supported | Supported |
| Interface | USB-C | USB-C | USB-C | USB-C |
| Recording Function | Photo/Video | Photo/Video | Photo/Video | Photo/Video |
| Storage Capacity | 32GB | 32GB | 32GB | 32GB |
| Battery Type | 1×18650 Battery (Removable, Rechargeable) | 1×18650 Battery (Removable, Rechargeable) | 1×18650 Battery (Removable, Rechargeable) | 1×18650 Battery (Removable, Rechargeable) |
| Continuous Working Time | 6 Hours | 6 Hours | 6 Hours | 6 Hours |
| Operating Temperature | -20°C~+50°C (Expandable to -40°C~+60°C) | -20°C~+50°C (Expandable to -40°C~+60°C) | -20°C~+50°C (Expandable to -40°C~+60°C) | -20°C~+50°C (Expandable to -40°C~+60°C) |
| Shock Resistance | 1000g | 1000g | 1000g | 1000g |
| Ingress Protection Rating | IP67 | IP67 | IP67 | IP67 |
| Weight | 351g | 381g | 351g | 381g |
| Dimensions (mm) | 117×70×51 | 126×70×51 | 117×70×51 | 126×70×51 |
| Color | Black, Tan | Black, Tan | Black, Tan | Black, Tan |
For B2B buyers, customization options can include logo branding, reticle/UI design, menu language, packaging, accessories, software support, and OEM/ODM configuration.
Contact us to discuss your customized Thermal Imaging Rifle Scopes solution for hunting, tactical, or outdoor security markets.
