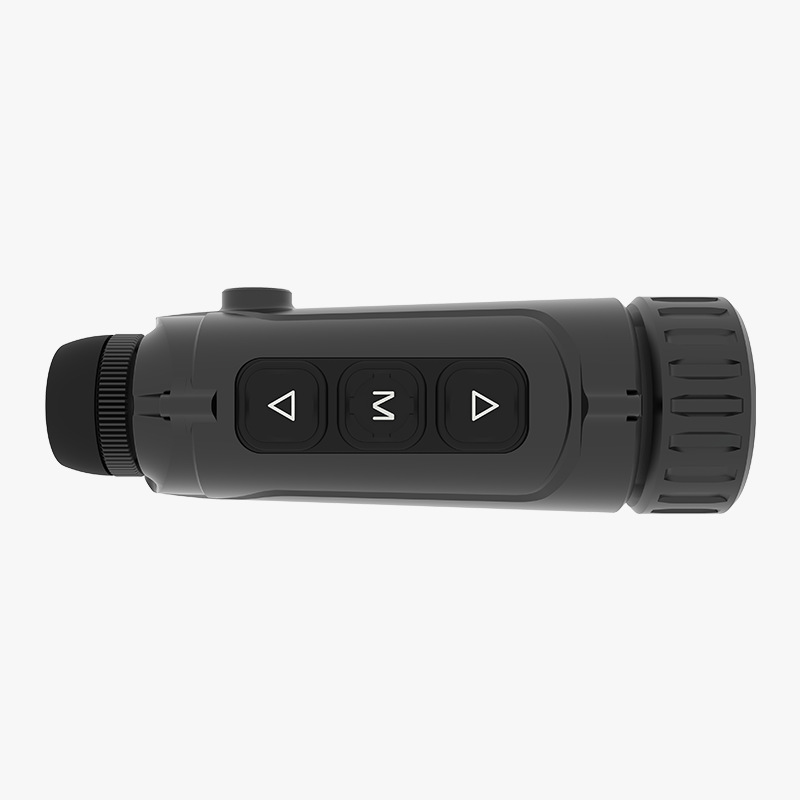

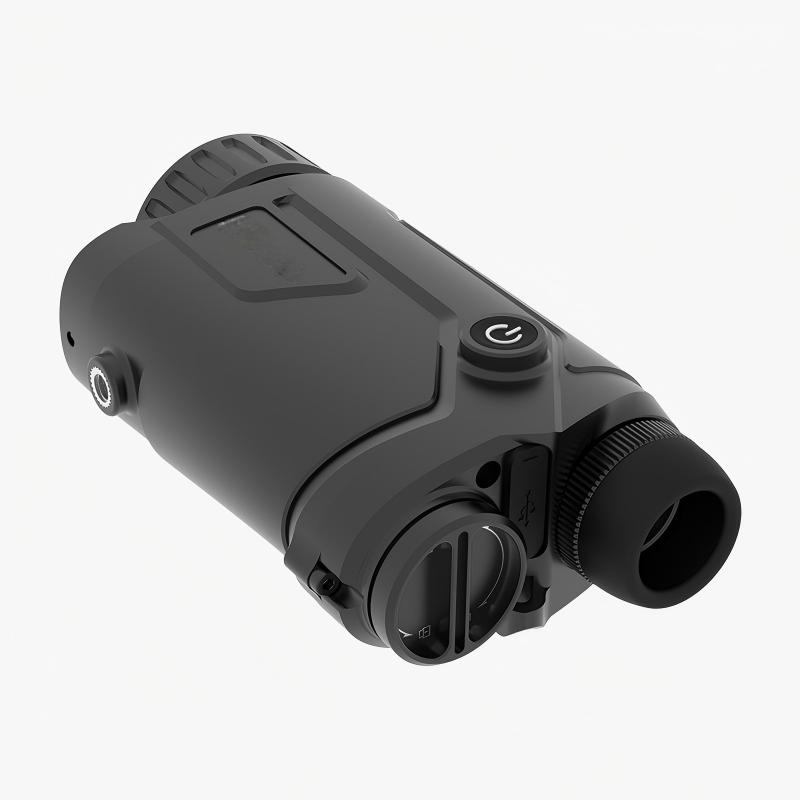

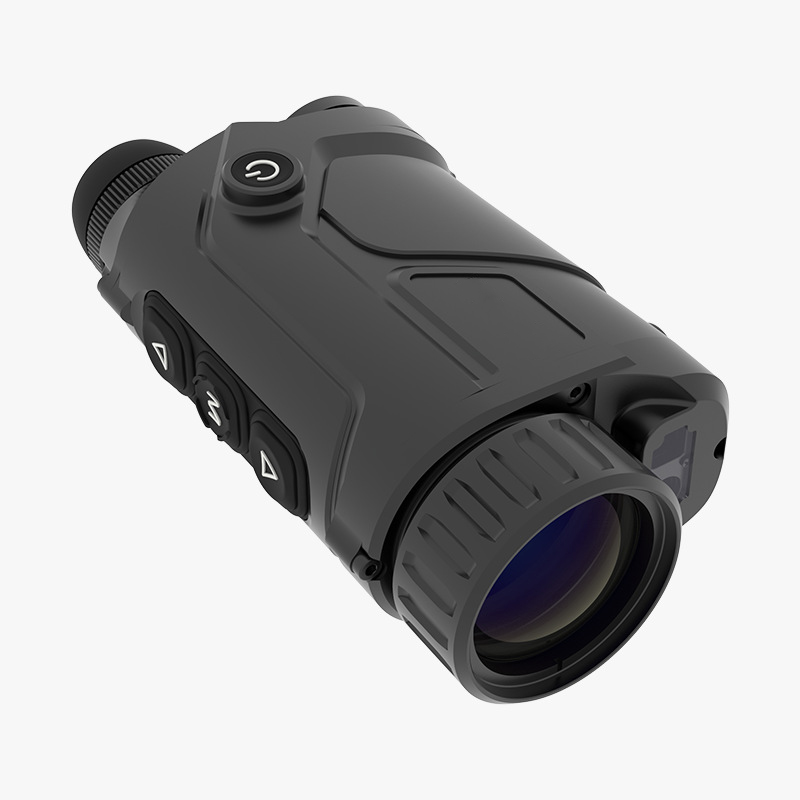

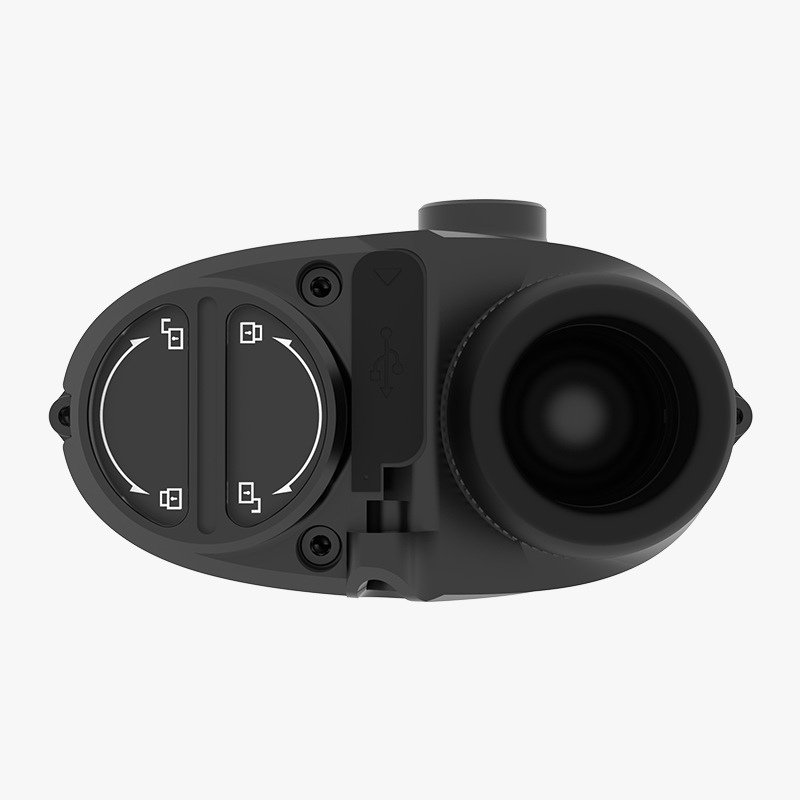

TherView M2 Thermal Imaging Binoculars TherView M2 325
The TherView M2 Thermal Imaging Binoculars series is designed for thermal wildlife observation, hunting scouting, night patrol, ranch protection, search and rescue, outdoor surveillance, and long-range thermal detection, featuring 384×288 / 640×512 VOx sensors, ≤20mK NETD, 50Hz imaging, laser rangefinder, Wi-Fi, IP67 protection, and OEM/ODM customization support.
- TherView M2 325: 384 sensor with 25mm lens for compact thermal observation
- TherView M2 335: 384 sensor with 35mm lens for longer detection distance
- TherView M2 625: 640 sensor with 25mm lens for wider field thermal scanning
- TherView M2 635: 640 sensor with 35mm lens for clearer long-range detection
Suitable for hunting optics brands, tactical equipment distributors, outdoor security suppliers, rescue equipment channels, and private label thermal binocular programs.
OVERVIEW
Product Features and Benefits
- VOx uncooled sensor, 8–14μm
- Sensor options: 384×288@12μm and 640×512@12μm
- ≤20mK NETD for high thermal sensitivity
- 50Hz frame rate for smooth image tracking
- Lens options: 25mm F1.0 / 35mm F1.0
- Detection distance: 1200m / 1800m
- Magnification range up to 36.88x depending on model
- 0.49-inch OLED display, 1920×1080 resolution
- 5–2200m laser rangefinder, ±1m accuracy
- Built-in Wi-Fi, Bluetooth, microphone, and USB-C interface
- Photo/video recording with audio support
- 32GB storage capacity
- Detachable rechargeable 18650 battery: Approx. 6 hours continuous operating time
- IP67 protection level
- Lightweight design: 400g / 450g
- Compact size: 139×45×70mm
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Ideal Applications
Wildlife Observation and Hunting Scouting
With VOx uncooled sensors, ≤20mK NETD, and 50Hz frame rate, these thermal binoculars help users detect animals in darkness, brush, fog, and low-visibility outdoor conditions.
Night Patrol and Outdoor Security
The 1200m / 1800m detection distance, IP67 protection, and compact body make the series suitable for ranch patrol, farm protection, border observation, and property surveillance.
Search and Rescue
The high-sensitivity thermal sensor, 0.49-inch OLED display, and 1920×1080 display resolution help users locate heat sources during rescue tasks and field operations.
Long-Range Detection and Ranging
The built-in 5–2200m laser rangefinder with ±1m accuracy supports distance measurement for field observation, hunting scouting, and security monitoring.
Customization Options
- Logo Branding Supports private label Thermal Imaging Binoculars
- UI / Menu Language Suitable for US, European, Australian, and global markets
- Color / Housing Finish Can match tactical, hunting, or outdoor security positioning
- Packaging Retail box, neutral box, or customized brand packaging
- Accessories Battery, charger, USB-C cable, neck strap, carrying case, manual
- Software / App Support Wi-Fi connection supports product differentiation
- OEM/ODM Support Suitable for customized thermal binocular product lines
Parameters
| Parameter | TherView M2 325 | TherView M2 335 | TherView M2 625 | TherView M2 635 |
| Type: | VOx uncooled sensor, 8-14μm | VOx uncooled sensor, 8-14μm | VOx uncooled sensor, 8-14μm | VOx uncooled sensor, 8-14μm |
| Resolution: | 384×288@12μm | 384×288@12μm | 640×512@12μm | 640×512@12μm |
| Noise Equivalent Temperature Difference (NETD): | ≤20mK (@25℃, F#1.0, 25Hz) | ≤20mK (@25℃, F#1.0, 25Hz) | ≤20mK (@25℃, F#1.0, 25Hz) | ≤20mK (@25℃, F#1.0, 25Hz) |
| Frame Rate: | 50Hz | 50Hz | 50Hz | 50Hz |
| Objective Focal Length / Aperture: | 25mm/F1.0 | 35mm/F1.0 | 25mm/F1.0 | 35mm/F1.0 |
| Field of View (±0.3°): | 10.5° ×8.0° | 7.5° ×5.7° | 17.6° ×14.0° | 12.5° ×10° |
| Magnification: | 3.29×-26.4× | 4.61×-36.88× | 1.98×-15.84× | 2.77×-22.16× |
| Diopter Adjustment: | -5~+5 | -5~+5 | -5~+5 | -5~+5 |
| Detection Distance (m): | 1200 | 1800 | 1200 | 1800 |
| Type: | 0.49 inch OLED | 0.49 inch OLED | 0.49 inch OLED | 0.49 inch OLED |
| Resolution: | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Laser Rangefinder: | 5-2200 meters, accuracy ±1 meter | 5-2200 meters, accuracy ±1 meter | 5-2200 meters, accuracy ±1 meter | 5-2200 meters, accuracy ±1 meter |
| WiFi: | Built-in WiFi | Built-in WiFi | Built-in WiFi | Built-in WiFi |
| Interface: | USB-C | USB-C | USB-C | USB-C |
| Other Functions: | Microphone, Bluetooth | Microphone, Bluetooth | Microphone, Bluetooth | Microphone, Bluetooth |
| Recording Function: | Photo / Video (supports audio recording) | Photo / Video (supports audio recording) | Photo / Video (supports audio recording) | Photo / Video (supports audio recording) |
| Storage Capacity: | 32GB | 32GB | 32GB | 32GB |
| Battery Type: | 1×18650 battery (detachable, rechargeable) | 1×18650 battery (detachable, rechargeable) | 1×18650 battery (detachable, rechargeable) | 1×18650 battery (detachable, rechargeable) |
| Continuous Operating Time: | 6 hours | 6 hours | 6 hours | 6 hours |
| Operating Temperature: | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Protection Level: | IP67 | IP67 | IP67 | IP67 |
| Weight: | 400g | 450g | 400g | 450g |
| Dimensions (mm): | 139×45×70 | 139×45×70 | 139×45×70 | 139×45×70 |
