Ultra-Durable Compact Reflex Red Dot Sight HUQ120OR
Designed for professional shooters and tactical users, this Reflex Red Dot Sight offers unmatched speed, clarity, and durability in dynamic environments. Ideal for rapid target acquisition in close-quarters shooting, it’s a top-tier choice for rifles, carbines, and tactical platforms.
OVERVIEW
Key Advantages and Features
- Crystal Clear Vision: 28×20 mm window with ultra-high transmittance lenses and 96% light transmission, delivering sharp reticle contrast even in bright daylight.
- True 1X Magnification with Unlimited Eye Relief: Maintain full situational awareness with both eyes open; ideal for CQB or fast transitions.
- Rugged Military-Grade Construction: Crafted from aircraft-grade 6061-T6 aluminum with hard anodized dark graphite grey matte finish, ensuring IP67 waterproofing and shockproof up to 3500g.
- Extended Battery Life: Powered by a CR1632 3V lithium battery, it runs up to 36,000 hours on the lowest setting with shake-awake technology to conserve power and ensure readiness.
- Night Vision Compatible + 6 Brightness Levels: Offers 1 NV gear and 6 daylight modes for precision across lighting conditions.
- Precision Adjustability: 1 MOA click value with 110 MOA windage/elevation range ensures fine zeroing for various calibers.
- Compact & Lightweight: Weighs just 42g, with a profile of 46mm x 30.5mm x 39.15mm, perfect for lightweight builds and minimalist rigs.
Packaging & Logistics

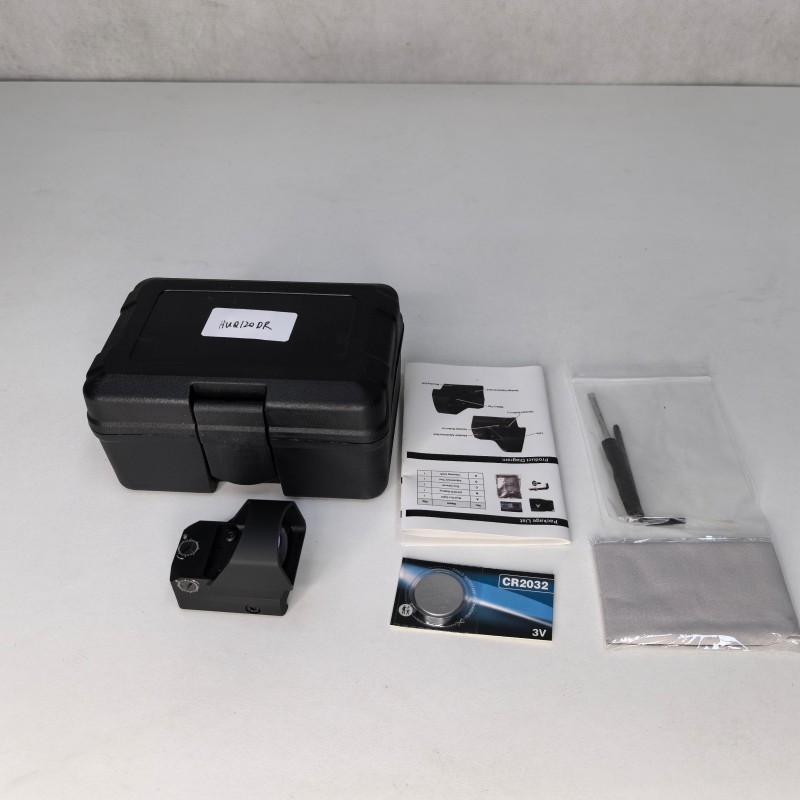

- Individually packed in plastic box
- 50 units/carton, box size: 49.5×27×36 cm
- Gross weight: 11.5 kg/carton
Application Scenarios
Perfect for tactical operations, competitive shooting, home defense setups, and dynamic law enforcement use, where reflex sights are preferred for fast target engagement, low-light shooting, and two-eyes-open aiming. Its compact housing and rugged build support integration with AR platforms, PCCs, and shotguns.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Supports OEM laser-engraved logos
- Custom color anodizing (MOQ negotiable)
- Optional reticle colors and dot sizes upon request
Parameters
| Model | HUQ120OR |
| Magnification Stated | 1X |
| Exit Pupil Dia | 28*20 |
| Eye relief | Unlimited |
| Parallax setting | 100YDS / 1′ |
| Light Source | Chip |
| Wavelength | 650 |
| Click Value I Click | 1MOA |
| Dot size | 2MOA |
| Windage Elevation (Up Down) | 110MOA |
| Windage Elevation (Right Left) | 110MOA |
| gear | 1（NV）+ 6 |
| shake awake | YES |
| Battery installation | Knob installation（top posision） |
| reflex lenses | Ultra-high transmittance 96% medium reflection |
| Coating | Anti Reflex coating,all surfaces Fully Multi-layer coating |
| Surface Finish | Hard Anodized,Dark Graphite Grey,matte |
| Housing Material | Aircraft Grade Aluminum 6061T6 |
| Battery | CR1632 3V |
| Battery life | Up to360 hours on highest setting. Up to 36,000 hours on lower settings. |
| Water Proof | IP67 |
| Shock Proof | Acceleration 3500g With 3.8HZ And 100 times |
| Working temperature | . -30℃ to +60℃(-86℉ to +140℉) |
| Length (mm) (inch) | 46mm(1.81in) |
| Width (mm) (inch) | 30.5mm(1.2in) |
| Height (mm) (inch) | 39.15mm(1.54in) |
| Weight (Gram) (Ounce) | 72/42g(1.48/2.54oz) |
| Individually packaged | plastic box |
| A box of quantity | 50 |
| Volume of a box | 48.5cm*26cm*32cm |
| weight of a box | 11.5kg |
| box size | 49.5cm*27cm*36cm |
Let’s Work Together
Ready to elevate your product line or brand portfolio?
Contact us today for OEM customization or bulk quotation.
