OVERVIEW

Key Advantages and Features

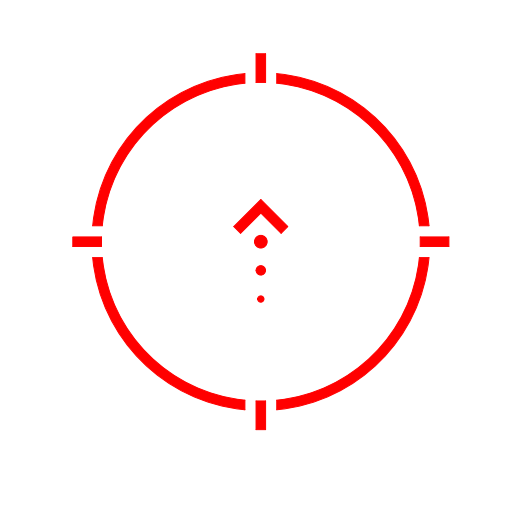

High-Precision Reticle System
Offers a Dot (4, 3, 2 MOA) and Circle (100 MOA) combination for flexible and accurate targeting across various distances and environments.

Wide Viewing Window
A generous 34×27 mm lens window ensures an unobstructed field of view for rapid alignment and improved situational awareness.

Superior Optical Performance
Built with ultra-high-transmittance optical components (95%) and a multi-layer magenta coating, providing vivid color transmission and minimal glare.

Enhanced Low-Light Capability
Maintains excellent brightness and contrast even in dim conditions, enabling clear visualization when natural light is limited.

Smart Power Management

• 300-hour standby time with auto shut-off after 5 minutes of inactivity.
• Motion-activated wake-up retains previous brightness settings.
• Power loss memory ensures seamless operation between uses.

User-Friendly Operation

• Press “+” for 3 seconds to power on.
• Press “–” for 3 seconds to power off.
• 11 adjustable brightness levels for versatile ambient light adaptation.

Precision Adjustment System
Constructed with quenched Mn steel and Grade 12.9 mounting hardware for secure alignment.
Offers ±50 MOA adjustment range and 1 MOA parallax at 45 m for reliable zeroing.

Extreme Durability

• Waterproof Rating: IP67 (tested at 1 m depth for 20 min).
• Shock Resistance: 3000 G / 500 cycles with ≤1 MOA deviation.
• Temperature Resilience: Fully functional from −25°C to +65°C.

Robust and Compact Design
Measuring 88×45×67 mm and weighing 235 g, it combines strength and portability with a refined, professional look.

Packaging and Logistics
Delivered in a durable plastic box, with 50 units per carton (total weight 13 kg).

Parameters

Product Code	XIX1342OR
Product Size	88×45×67 mm
Window Size	34×27 mm
Reticle	Dot (4, 3, 2 MOA) + Circle (100 MOA)
Weight	235 g
Optical Components	Ultra-high-transmittance 95% medium reflection
Coating	Ultra-high-transmittance multi-layer magenta coating
Low-light Performance	Enhanced brightness and clarity under low light
Power Consumption (Standby)	300 h / Auto power-off after 5 min idle / Motion-activated memory wake-up
Brightness Levels	11 levels / Power loss memory function
Power On	Press and hold “+” for 3 seconds
Power Off	Press and hold “–” for 3 seconds
Zeroing Distance	50 m
Parallax (45 m)	1 MOA
Adjustment Mechanism	Quenched Mn steel
Click Value	30 MOA / revolution
Effective Adjustment Range	±50 MOA
Mounting Bolt	Grade 12.9
Screws (Body to Mount)	Grade 12.9
Waterproof	IP67 (1 m depth, 20 min immersion, normal function)
Shock Resistance	3000 G / 500 cycles, ≤1 MOA deviation
High Temperature Resistance	Operates normally at +65 °C
Low Temperature Resistance	Operates normally at −25 °C
Individual Packaging	Plastic box
Carton Capacity	50 units
Carton Weight	13 kg
