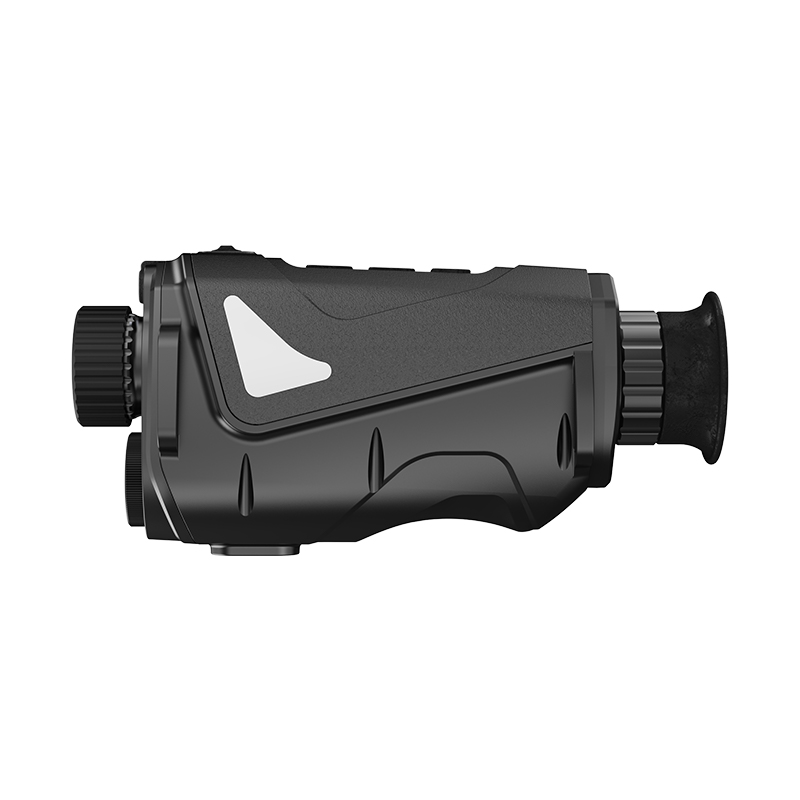

Thermal Imaging Binoculars CZF-S2PRO256 With IP66 Waterproof Multiple Scene Modes
These Thermal Imaging Binoculars are tailored for B2B customers in outdoor optics, including hunting guides, wildlife researchers, and security providers. Equipped with dual sensor resolution options (256×192 and 384×288) and advanced 12μm pixel size detectors, they offer exceptional thermal sensitivity and clarity. Multiple scene modes, including birdwatching and forest, ensure adaptability across diverse environments. The IP66-rated durable housing and long battery life make them perfect for extended field operations in harsh conditions.
OVERVIEW
Product Features and Benefits
- Dual resolution options (256×192 and 384×288) with NETD as low as ≤18mK for outstanding image clarity
- 12μm pixel size sensor ensures high thermal sensitivity and detail recognition
- Multiple scene modes: Normal, Outline, City, Forest, Rainforest, Birdwatching
- Color palettes: Black hot, White hot, Red hot, Green hot, Iron red hot
- 1.43-inch AMOLED display with 50-60Hz refresh rate for smooth imaging
- Hotspot tracking for precise target highlighting
- IP66 waterproof and durable construction for extreme outdoor conditions
- Over 8 hours of battery life for extended field operations
- Connectivity: Wi-Fi AP/STA support, CVBS and HDMI output via USB-C port
- Lightweight design (~238g) enhances portability and user comfort
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Ideal Applications
Long-Range Hunting & Tactical Use: High thermal sensitivity combined with up to 8x digital zoom and hotspot tracking enables precise target identification and tracking in low visibility. (long-range thermal binoculars, tactical thermal optics)
Wildlife Monitoring & Birdwatching: Specialized birdwatching mode and multiple color palettes enhance observation in forested and rainforest habitats. (thermal binoculars for wildlife observation, birdwatching thermal scopes)
Search & Rescue Missions: Lightweight and rugged design with IP66 waterproof rating supports reliable use in challenging weather and terrain. (thermal binoculars for search and rescue, rugged thermal imaging devices)
Security & Surveillance: Built-in Wi-Fi AP/STA and video output options allow real-time remote monitoring and integration with external devices. (wireless thermal binoculars, security thermal imaging tools)
Customization Options
OEM and ODM services available to customize branding, software interface language, firmware features, and color modes, allowing clients to tailor devices to specific operational requirements.
Parameters
| Product Code | CZF-S2PRO256 | CZF-S2PRO384 |
| Detector resolution | 256×192 | 384×288 |
| Pixel size | 12 μm | 12 μm |
| NETD | ≤40mk | ≤18mk |
| Response band | 8μm ~ 14μm | 8μm ~ 14μm |
| Lens (focal length) | 10mm / 15mm | 15mm / 25mm |
| Aperture | F=0.95 | F=0.95 |
| Field of view | 18.00°×13.55° / 11.69°× 8.78° | 17.5°×13.1° / 10.5°×7.9° |
| Screen refresh rate | 50 Hz | 60Hz |
| Digital zoom | 1x, 2x, 4x, 8x | 1x, 2x, 4x, 8x |
| Display | 1.43-inch AMOLED display | 1.43-inch AMOLED display |
| Scene mode | Normal, Outline, City, Forest, Rainforest, Birdwatching | Normal, Outline, City, Forest, Rainforest, Birdwatching |
| Color mode | Black hot, White hot, Red hot, Green hot, Iron red hot | Black hot, White hot, Red hot, Green hot, Iron red hot |
| Hot spot tracking | Support | Support |
| Wi-Fi AP/STA | Support | Support |
| Standby mode | Support | Support |
| Storage | Built-in 32 GB | Built-in 32 GB |
| Recording video | Support | Support |
| Capture snapshot | Support | Support |
| CVBS output | Support (via USB-C) | Support (via USB-C) |
| HDMI output | Support (via USB-C) | Support (via USB-C) |
| Battery life | More than 8 hours (@25℃, Wi-Fi OFF) | More than 8 hours (@25℃, Wi-Fi OFF) |
| Battery capacity | 3.7V 3200mAh | 3.7V 3200mAh |
| Operating temperature | -20℃ ~ 60℃ | -20℃ ~ 60℃ |
| Protection level | IP66 | IP66 |
| Size | 170×80×61.5mm | 170*80*61.5mm |
| Weight | About 238g | About 238g |
Let’s Collaborate
For tailored solutions or bulk orders of professional Thermal Imaging Binoculars, contact us now to discuss your requirements and customization options.
