OVERVIEW

Key Features & Benefits

Smart Imaging and Capture Modes

• Take crisp 20MP/16MP/12MP stills with multi-shot (up to 9) support
• Video options: 1080P, 720P, VGA, up to 90 seconds per clip
• Choose from Photo, Video, Hybrid, and Timelapse modes for all scenarios
• Date, time, and temperature stamps included on media files

Infrared Motion Detection and Night Vision

• 4pcs 850nm IR LEDs cover up to 65 ft (20m) in low-light conditions
• PIR angle: 60°, adjustable High/Normal/Low sensitivity
• Trigger speed: 1s, with configurable PIR interval (1–60s/min)

Offline Local Storage

• Supports Micro SD cards up to 32GB (not included)
• No Wi-Fi/SIM setup—media stored locally for manual retrieval
• Overwrite mode available for cyclic usage on limited memory

Built-in Audio and Access Control

• Audio recording switchable (On/Off)
• Protect settings and access with 4-digit PIN security
• ISO control, timer, and manual power-saving options for refined operation

Multi-Power, Long-Lasting Design

• Runs on 4×AA, DC 6V 1.5A, or 18650 lithium battery (2600mAh)
• Standby current: 0.1mA, enables up to 6 months operation
• 2.0″ TFT screen for live viewing, playback, and settings adjustments

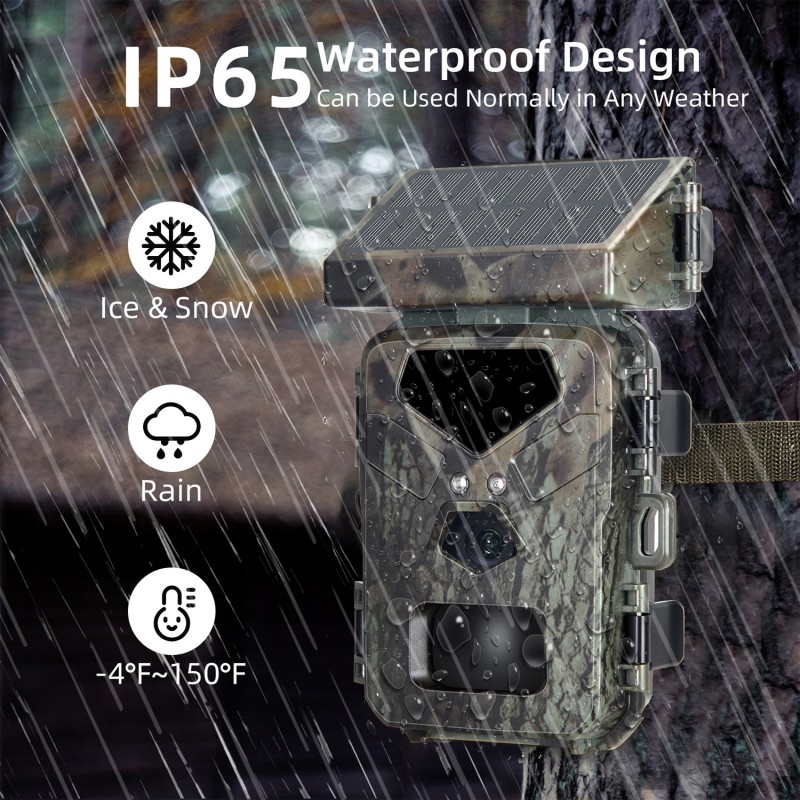

• IP65 waterproof housing, mountable via strap or tripod

Application Scenarios

In small conservation zones or birdwatching posts, users benefit from adjustable motion detection, multi-shot bursts, and up to 90-second video clips.

For rural backyards, chicken runs, or gardens, it provides secure and password-protected motion alerts with timestamped evidence.

In environmental education projects or nature trails, the compact size and tripod/mounting belt options allow simple, weatherproof deployment.

Customization Options

• OEM branding on shell, boot screen, menu language, and packaging
• Bundled kits: tripod, preloaded SD cards, solar-ready power adapters
• Custom firmware defaults (ISO, PIR sensitivity, date/time stamp format)
• MOQ available for surveillance integrators, wildlife agencies, and outdoor goods retailers.

Parameters

Product Code	MiNi700
Mode	Camera / Video / Camera&Video / Timelapse
Memory	Micro SD Card up to 32GB
Lens	F=2.0; FOV=60°
Size	105mm * 85mm * 45mm
G.W (Gross Weight)	0.25KG
N.W (Net Weight)	0.35KG
TFT Display Screen	2.0” Screen
Infra LED	850nm Infrared LEDs
PIR Sensitivity	High / Normal / Low
PIR Sensor Sight Angle	60 Degrees
Number of IR LED	4pcs
Max Night Vision Lighting Distance	65ft / 20 meters
Trigger Speed	1 second
PIR Interval	1/5/10/30 sec/min (default 1 sec)
Selectable Image Resolution	20MP / 16MP / 12MP
Continue shot	1/3/6/9
Video Resolution	1080P / 720P / VGA
Video length	10s / 30s / 60s / 90s
ISO	Auto / 100 / 200 / 400
Date Time Imprint	Yes
Time lapse	Yes (5/10/30/60 min)
Power Supply	4×AA battery or external DC 6V 1.5A or 2600mAh Li-ion +18650*1pcs
Password Security	4 digital PIN codes
Over write	Off / Yes
Timer	00:00:00 to 23:59:59
Record Audio	Off / Yes
Interface	Type-C, Micro SD Card jack, 6V DC External jack
Stand-by current	0.1mA
Stand-by time	6 Months
Fix Method	Mount Belt, Tripod mount
Water proof	IP65
Language	13 languages, default English
