OVERVIEW

Key Advantages and Features

Compact and Solid Build
Measuring 45 × 33 × 32.8 mm and weighing 285 g, this sight offers excellent balance between portability and strength, ensuring consistent performance in diverse environments.

Exceptional Optical Quality
Featuring ultra-high-transmittance optics with a magenta multi-layer coating, the XIX1451OR produces a bright, high-contrast image with superior color fidelity even under challenging light conditions.

Long Battery Life & Smart Power Management
Powered by a CR2032 or CR1632 battery, this model delivers up to 20,000 hours of standby time.
Intelligent features include motion-activated standby (auto sleep after 4 minutes) and instant power-loss memory, so you’re always ready to continue from where you left off.

Flexible Brightness Adjustment
Offers 11 brightness levels, allowing smooth control in varying light conditions.
Simple operation—press “+” or “–” to adjust, and hold “–” for 3 seconds to power off—ensures intuitive usability.

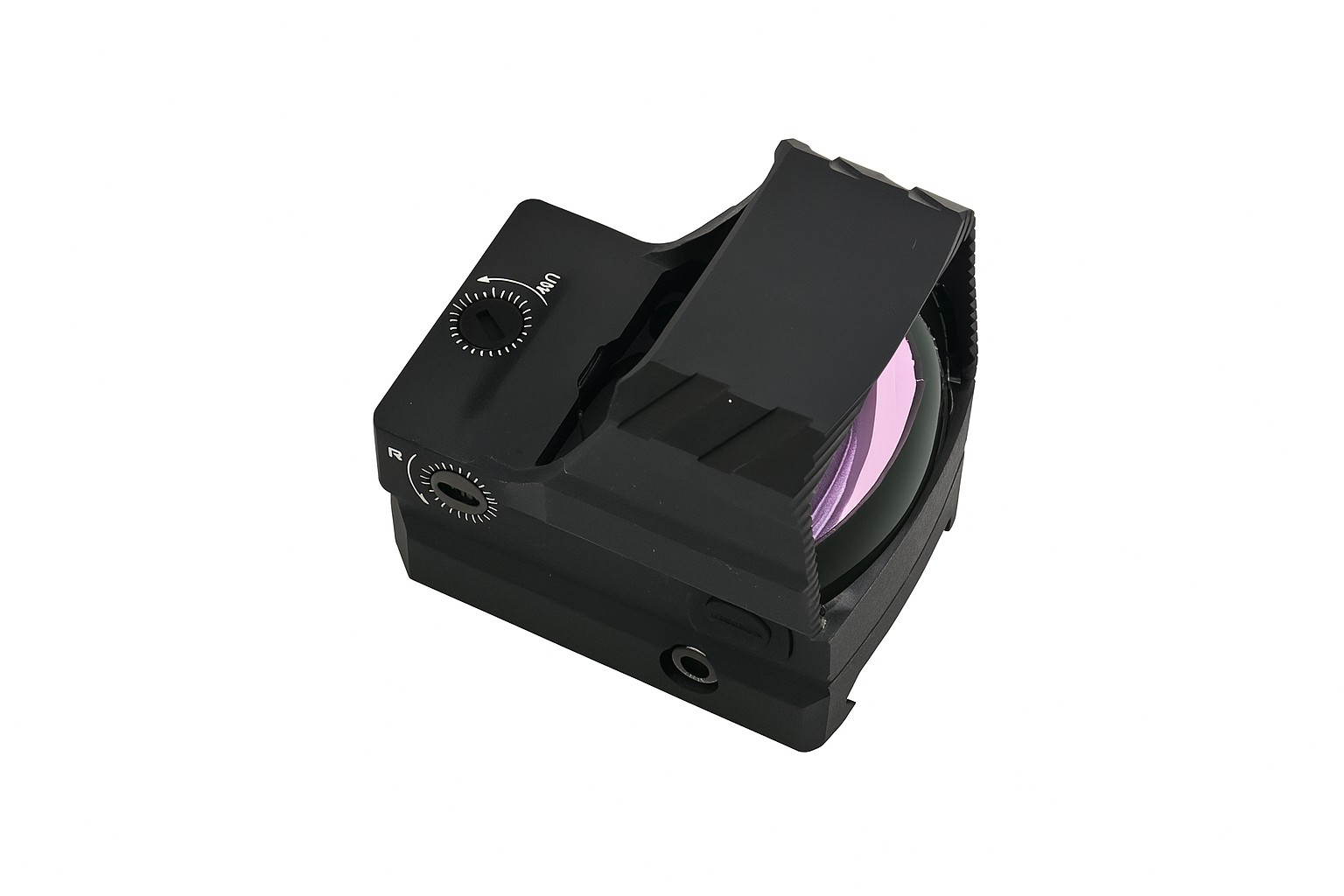

Precision Adjustment Mechanism
Built with tungsten steel internal components for enhanced durability and adjustment stability.
The system provides 1 MOA per click, with a crisp tactile response for reliable fine-tuning.
Adjustment range: UP/D (+45 MOA / -90 MOA) and R/L (±60 MOA) for optimal alignment flexibility.

Durable and Dependable Construction
Mounting bolts and screws are made of Grade 12.9 steel, ensuring secure installation and long-term resilience.
The sight is IPX7 waterproof and shock-resistant up to 3500 G (1500 cycles), maintaining full functionality under demanding conditions.

OLED Display
Equipped with an energy-efficient OLED system, ensuring a sharp, bright aiming point with minimal power consumption.

Professional Packaging
Each unit comes in a protective plastic case for secure storage and shipping.
Bulk packaging: 50 units per carton, total carton weight 15.5 kg.

Parameters

Product Code	XIX1451OR
Product Size	45 × 33 × 32.8 mm
Window Size	30.3 × 23.3 mm
Weight	285 g
Optical Components	Ultra-high-transmittance magenta coating
Power Consumption (Standby)	20,000 hours
Brightness Levels	11 levels
Power On	Short press “+” or “–” to turn on; “+” to increase brightness; “–” to decrease brightness
Power Off	Press and hold “–” for 3 seconds
Motion-activated Standby	Auto sleep after 4 min; includes instant power-loss memory function
Battery	CR2032 / CR1632
LED	OLED
Reticle	Not specified
Zeroing Distance	50 m
Click Sound	Crisp
Adjustment Mechanism	Tungsten steel
Click Value	1 click = 1 MOA
Effective Adjustment Range	UP/D (+45 MOA; -90 MOA); R/L (±60 MOA)
Mounting Bolt	Grade 12.9
Screws (Body to Mount)	Grade 12.9
Waterproof	IPx7
Shock Resistance	3500 G / 1500 cycles
Individual Packaging	Plastic box
Carton Capacity	50 units
Carton Weight	15.5 kg
