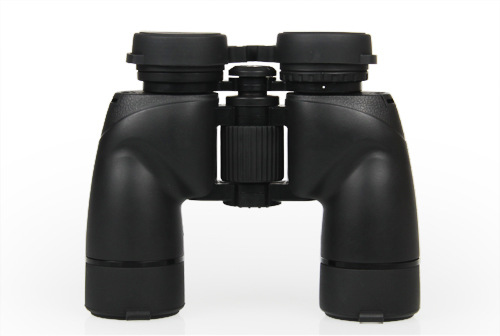

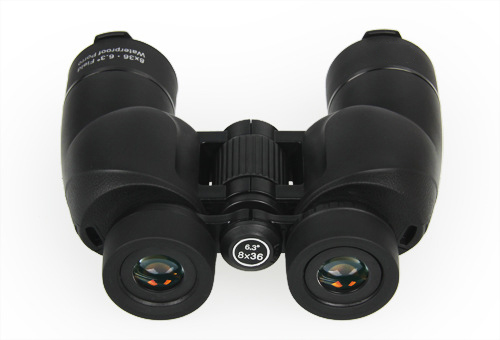

Porro Prism Binoculars | 8×36 BAK-4 Prism, Multi-Coated Optics, Long Eye Relief Waterproof Outdoor Binoculars MIZP836-3
The MIZP836-3 / MIZP1036 Binoculars are positioned for B2B buyers seeking practical and cost-effective outdoor observation optics with a balance between magnification, brightness, and portability.
Â
With a 36mm objective lens, classic Porro prism optical structure, and multiple lens group configurations, this series provides comfortable viewing performance for users who need reliable binoculars for daily outdoor activities.
OVERVIEW
The two configurations meet different market needs:
MIZP836-3 (8X36)
Provides a wider field of view and larger exit pupil, suitable for users who prioritize comfortable viewing and easier target tracking.
MIZP1036 (10X36)
Provides stronger magnification for users who need more detail at longer distances.
Key Advantages and Features
Available models:
- MIZP836-3: 8X36
- MIZP1036: 10X36
Classic Porro prism / BaK-4 optical system
Prism coating for improved optical performance
Multi-coated lenses for better light transmission
Multi-element optical design:
MIZP836-3:
12 lenses / 6 groups
MIZP1036:
14 lenses / 6 groups
Center focus system for easy adjustment
Right ocular diopter adjustment:
±4 diopter
Comfortable viewing:
- 8X36 exit pupil: 4.5mm
- 10X36 exit pupil: 3.7mm
Eye relief:
- 8X36: 19.4mm
- 10X36: 15.6mm
Field of view:
8X36:
- 6.3°
- 330ft @1000yds
- 110m @1000m
10X36:
- 6.1°
- 318ft @1000yds
- 106m @1000m
Minimum focusing distance: 5m
Waterproof design
All-weather protection

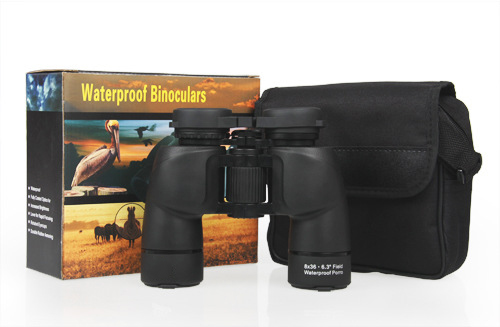

Includes:
- Nylon soft case
- Hand strap
- Cleaning cloth
- Desiccant
Application Scenarios
Bird Watching and Nature Observation
The 8X36 configuration with a 6.3° field of view and 4.5mm exit pupil provides a comfortable viewing experience for tracking birds and observing natural environments.
The Porro prism design offers a stable image experience, making it suitable for beginners and outdoor enthusiasts.
Wildlife Observation and Outdoor Exploration
The 10X36 model provides higher magnification for observing wildlife from longer distances, while the center focus system allows quick adjustment during outdoor use.
The waterproof construction supports use in changing outdoor conditions.
Travel and Hiking Activities
The compact design, included nylon soft case, hand strap, and cleaning accessories make this series suitable for hiking, camping, sightseeing, and travel applications.
Sports Events and General Viewing
The balanced magnification and practical field of view make these binoculars suitable for stadium events, concerts, sightseeing, and everyday observation.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding Supports private label Binoculars programs

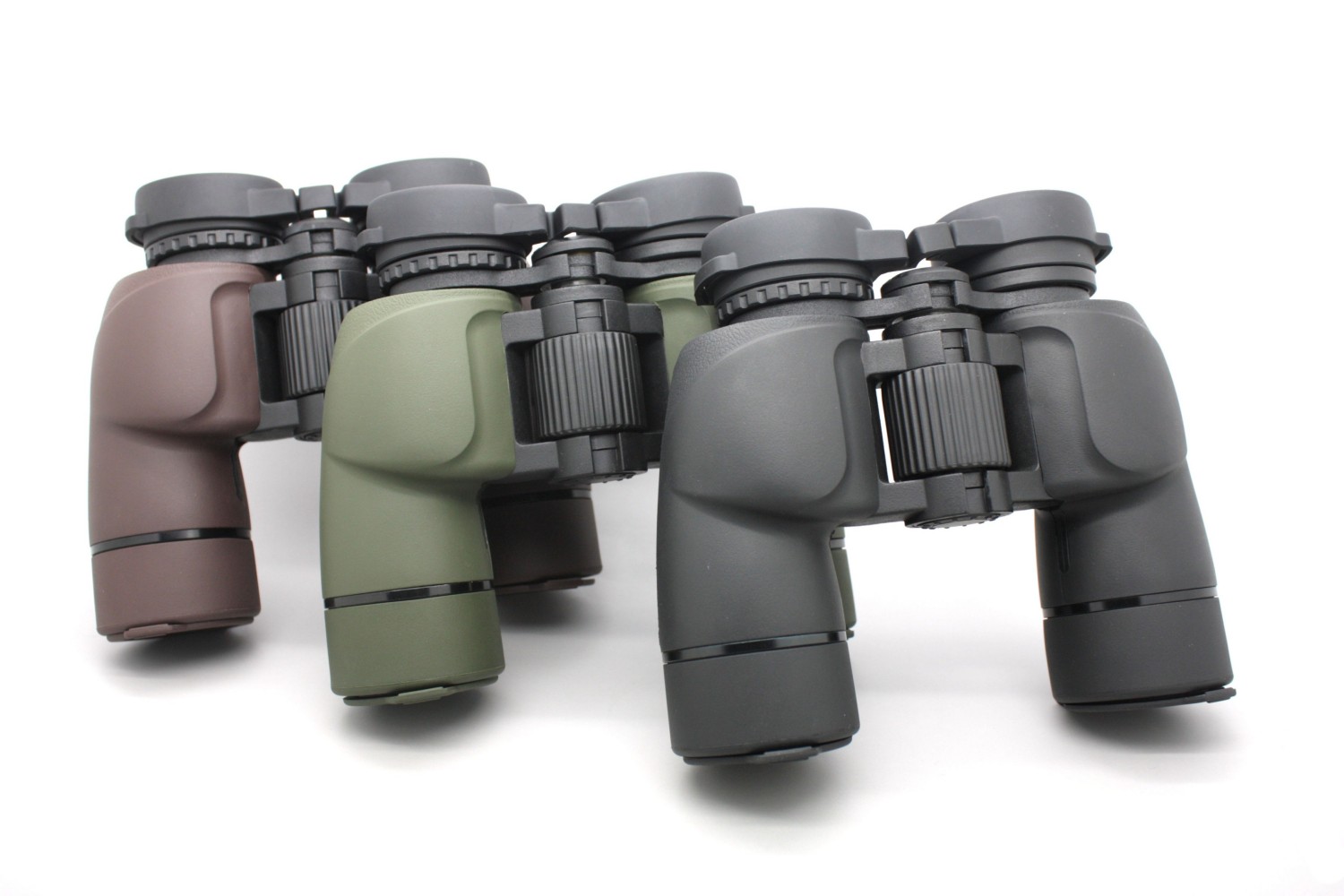

- Body Color / Finish Allows different outdoor and lifestyle positioning
- Packaging Design Customized retail box, gift packaging, or brand packaging
- Accessories Soft case, hand strap, cleaning cloth, lens covers, manual
- Manual Language Multi-language manuals for global markets
- OEM/ODM Support Suitable for customized binocular product development
Suitable for:
- Outdoor optics brands
- Travel equipment suppliers
- Bird watching retailers
- Wildlife observation product distributors
- Sports and event viewing markets
- Private label binocular programs
Parameters
| Product Code | MIZP836-3 | MIZP1036 |
| Magnification | 8X | 10X |
| Objective Lens Diameter | 36mm | 36mm |
| Prism Type | Porro / BAK4 | Porro / BAK4 |
| Prism Coating | Yes | Yes |
| Number of Lenses | 12 Pcs / 6 Groups | 14 Pcs / 6 Groups |
| Lens Coating | Multi | Multi |
| Focusing System | Center Focus | Center Focus |
| Focusing Lens | Eye | Eye |
| Exit Pupil Diameter | 4.5mm | 3.7mm |
| Eye Relief (Exit Pupil Distance) | 19.4mm | 15.6mm |
| Field of View | 6.3° / 330Ft @1000Yds / 110M @1000M | 6.1° / 318Ft @1000Yds / 106M @1000M |
| Minimum Focusing Distance | 5M / 16.40Ft | 5M / 16.40Ft |
| Relative Brightness | 20.25 | 13.69 |
| Twilight Factor | 16.97 | 18.69 |
| Diopter Adjustment | Right Ocular | Right Ocular |
| Diopter Range | ±4 Diopter | ±4 Diopter |
| Interpupillary Distance | 56mm to 73mm | 56mm to 73mm |
| Zoom System | No | No |
| All-Weather Protection | Yes | Yes |
| Waterproof | Yes | Yes |
| Nitrogen Filled | No | No |
| Reversible Eyecup | No | No |
| Soft Case | Yes / Nylon | Yes / Nylon |
| Hand Strap | Yes / Nylon | Yes / Nylon |
| Cleaning Cloth | Yes | Yes |
| Desiccant | Yes | Yes |
| Dimensions (L×W×H) | 172 × 139 × 56 mm | 132 × 59 × 128 mm |
Let’s Work Together
For B2B buyers, customization options include logo branding, packaging design, accessories, body design, manual language, and OEM/ODM support.
Contact us to discuss your customized Binoculars solution for outdoor adventure, bird watching, wildlife observation, or travel markets.
