Zoom Roof Monoculars | 8-24×40 Variable Magnification, Multi-Coated Optics, Waterproof Nitrogen Filled Outdoor Monocular HUYA824402
The HUYA824402 / HUYA113356 Monoculars are high-performance zoom monoculars designed for wildlife observation, hunting, outdoor exploration, bird watching, hiking, travel, and long-distance viewing, featuring 8-24X and 11-33X variable magnification, BK7 roof prism optical system, multi-coated lenses, internal focusing design, waterproof construction, nitrogen-filled protection, and OEM/ODM customization support.
Â
Unlike fixed-power monoculars, these zoom monoculars allow users to adjust magnification according to different observation distances:
HUYA824402 (8-24X40 Zoom Monocular)
Designed for everyday outdoor observation, travel, hiking, and wildlife viewing where portability and flexibility are important.
HUYA113356 (11-33X56 High Magnification Monocular)
Designed for long-distance observation, hunting scouting, landscape viewing, and professional outdoor applications requiring stronger magnification.
OVERVIEW
Key Advantages and Features

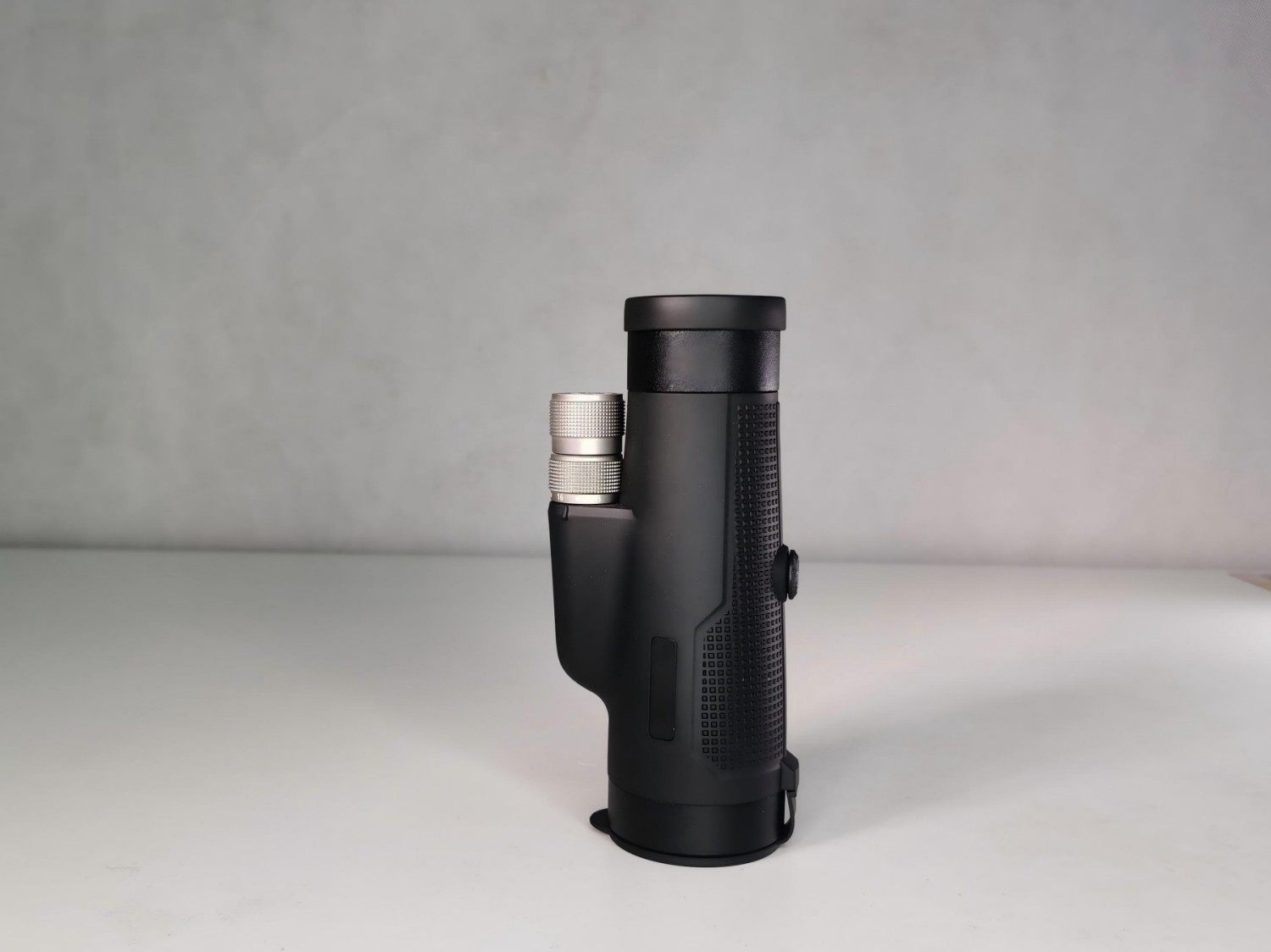

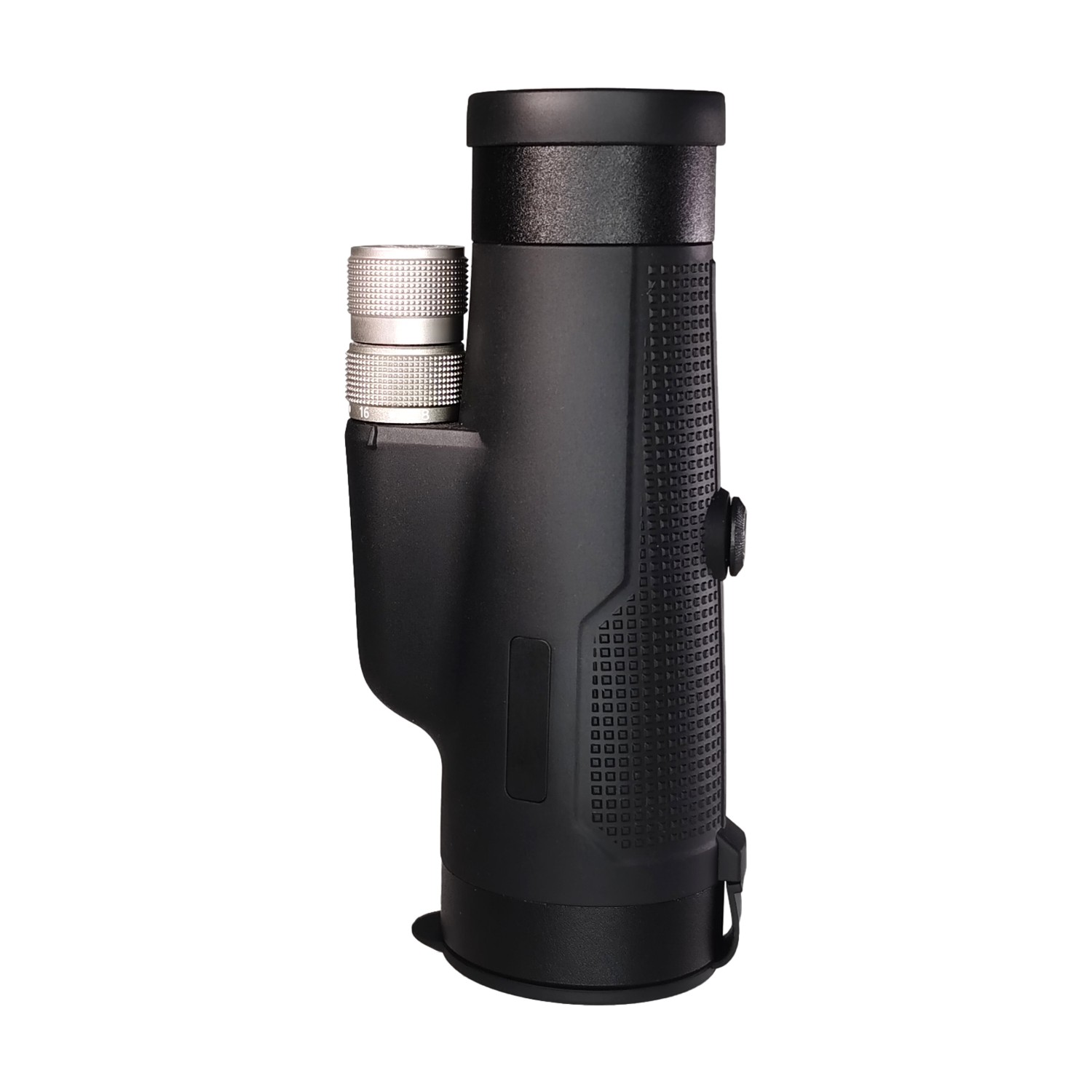

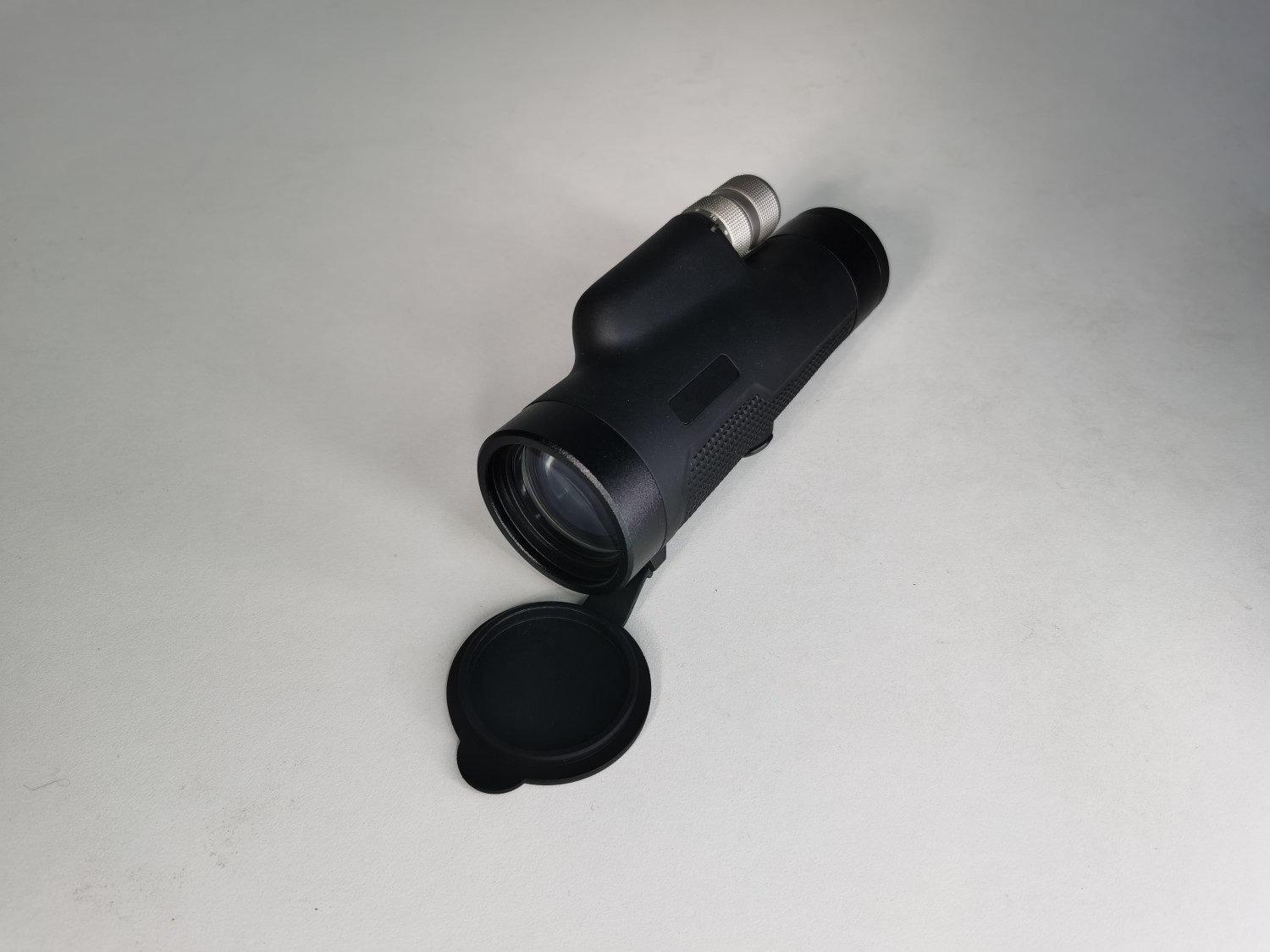

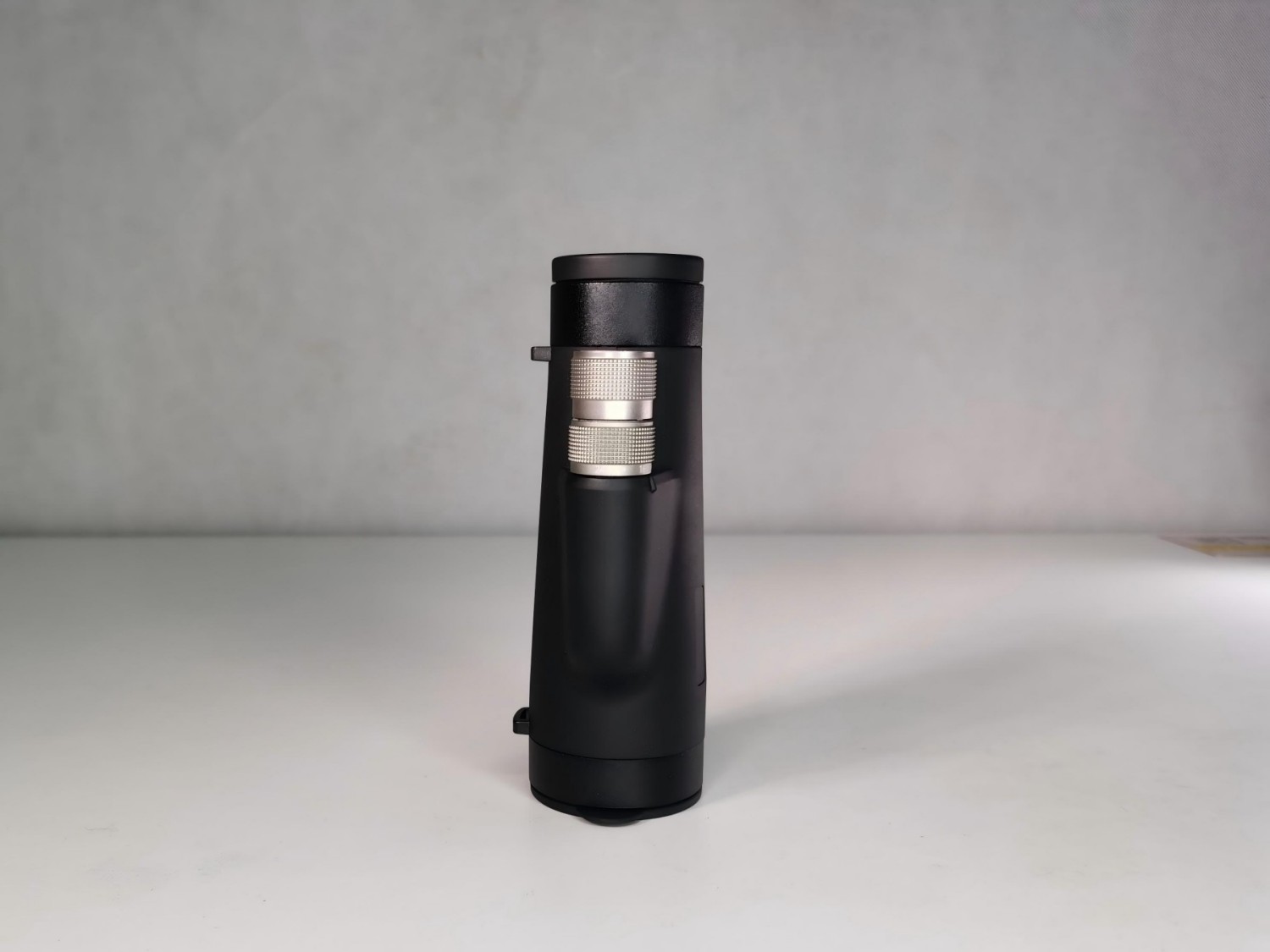

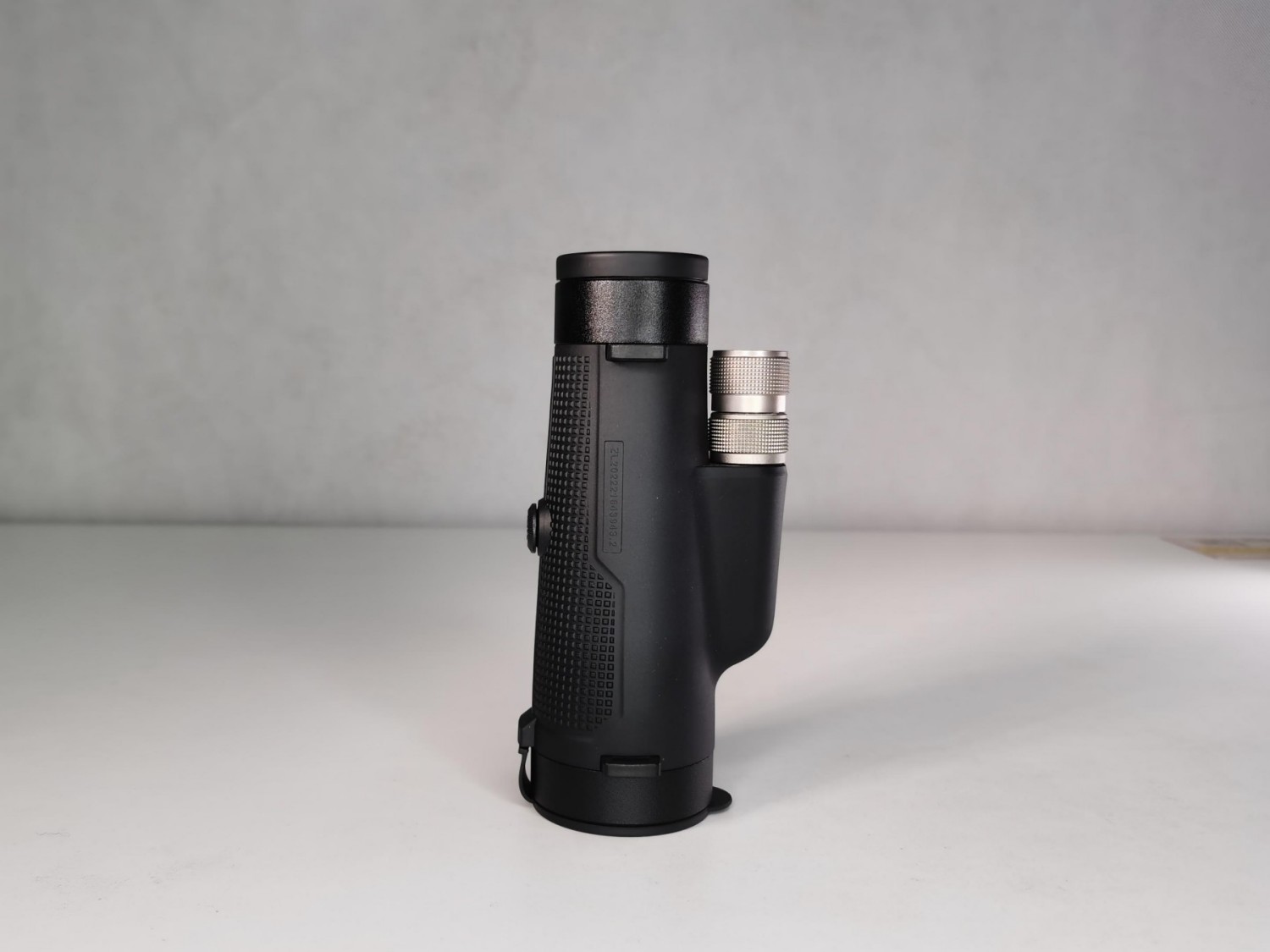

HUYA824402 8-24X40 Zoom Monocular
- Variable magnification: 8X-24X
- Objective lens: 40mm
- Prism system: Roof BK7
- Optical structure: 8 lenses / 6 groups
- Multi-coated optical system
- Internal focusing design
- Exit pupil: 5.0-1.65mm
- Eye relief: 15.5-12mm
- Field of view: 4.5°-2.2°, 78.5-38.5m @1000m
- Resolution: 4.5
- Minimum focus distance: 4m
- Size: 160×78×59.5mm
HUYA113356 11-33X56 High Magnification Monocular
- Variable magnification: 11X-33X
- Large objective lens: 56mm
- Prism system: Roof BK7
- Optical structure: 8 lenses / 6 groups
- Multi-coated lenses
- Internal focusing system
- Exit pupil: 5.0-1.65mm
- Eye relief: 15.5-12mm
- Field of view: 3.2°-1.6°
- 56-28m @1000m
- Resolution: 3.5
- Minimum focus distance: 5m
- Size: 198×84×70mm
Application Scenarios
Hunting and Wildlife Observation
The variable magnification system allows users to quickly switch between wide-area scanning and detailed target observation.
The 8-24X40 monocular is suitable for general wildlife spotting, while the 11-33X56 high magnification monocular provides enhanced detail recognition for distant animals in open terrain.
Bird Watching and Nature Observation
The compact single-eye design makes these monoculars easy to carry during bird watching trips, hiking, and nature exploration.
The adjustable magnification allows users to locate birds quickly at lower power and observe feather details at higher magnification.
Hiking, Travel and Outdoor Exploration
The lightweight and compact structure makes zoom monoculars ideal for outdoor enthusiasts who need powerful viewing capability without carrying large optical equipment.
The waterproof and nitrogen-filled design improves reliability during outdoor activities.
Long-Distance Landscape and Scenic Viewing
The high magnification capability allows users to observe mountains, landscapes, coastal areas, and distant objects with enhanced detail.
The 11-33X56 model is especially suitable for users requiring stronger optical reach.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Logo Branding Supports private label Monoculars programs
- Magnification Range Different zoom configurations for various market needs
- Body Color / Finish Supports outdoor and lifestyle product differentiation
- Optical Configuration Prism and coating options for different product levels
- Packaging Design Customized retail packaging and gift box solutions
- Accessories Carrying pouch, strap, lens cover, cleaning cloth, manual
- Manual Language Multi-language manuals for global markets
- OEM/ODM Support Suitable for customized monocular product development
Suitable for:
- Outdoor optics brands
- Hunting equipment suppliers
- Wildlife observation retailers
- Travel gear distributors
- Bird watching equipment suppliers
- Nature tourism equipment providers
- Private label monocular programs
Parameters
| Product Code | HUYA824402 | HUYA113356 |
| Magnification | 8×-24× | 11×-33× |
| Objective Lens Diameter | 40mm | 56mm |
| Ocular Lens Diameter | 22mm | 19mm |
| Prism Type | Roof (BK7) | Roof (BK7) |
| Prism Coating | Yes | Yes |
| Number of Lenses | 8 Pcs / 6 Groups | 8 Pcs / 6 Groups |
| Lens Coating | Multi-Coated | Multi-Coated |
| Focusing System | Internal | Internal |
| Exit Pupil Diameter | 5.0-1.65mm | 5.0-1.65mm |
| Eye Relief (Exit Pupil Distance) | 15.5-12mm | 15.5-12mm |
| Field of View | 4.5°-2.2° / 235.5-115.5ft @1000yds / 78.5-38.5m @1000m | 3.2°-1.6° / 168-84ft @1000yds / 56-28m @1000m |
| Resolution | 4.5 | 3.5 |
| Minimum Focusing Distance | 4m | 5m |
| Zoom System | Yes | Yes |
| Weather Proof | Yes | Yes |
| Water Proof | Yes | Yes |
| Water Resistance | Yes | Yes |
| Nitrogen Filled | Yes | Yes |
| Eyecups | Twist-Up Eyecup | Twist-Up Eyecup |
| Dimensions (L×W×H) | 160 × 78 × 59.5mm | 198 × 84 × 70mm |
| Weight | N/A | N/A |
Let’s Work Together
For B2B buyers, customization options include logo branding, magnification configuration, optical upgrades, packaging design, accessories, manual language, and OEM/ODM support.
Contact us to discuss your customized Monoculars solution for hunting, wildlife observation, outdoor adventure, travel, or professional observation markets.
