OVERVIEW

Key Advantages and Features

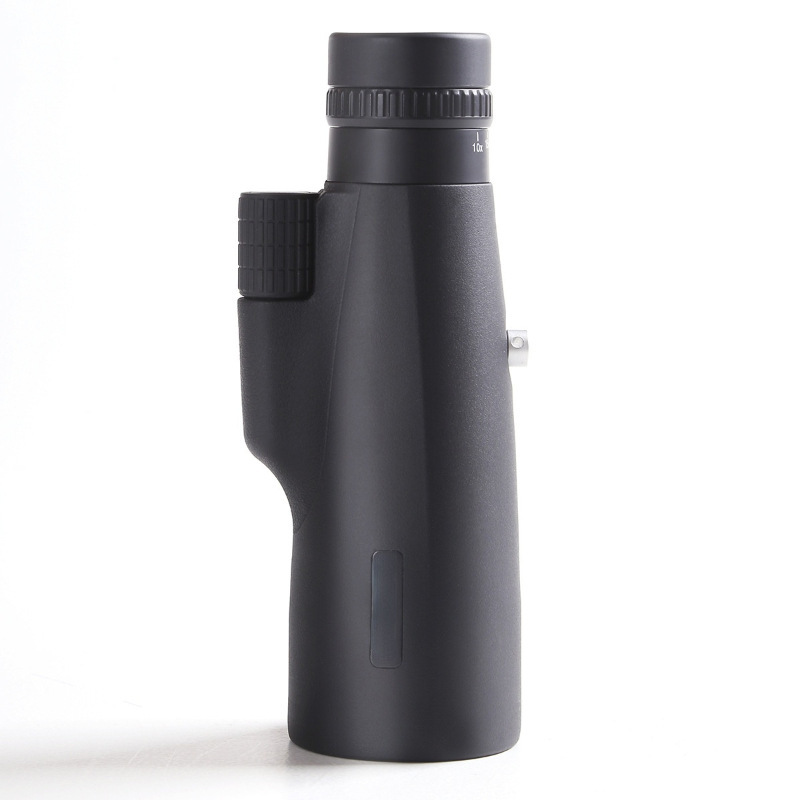

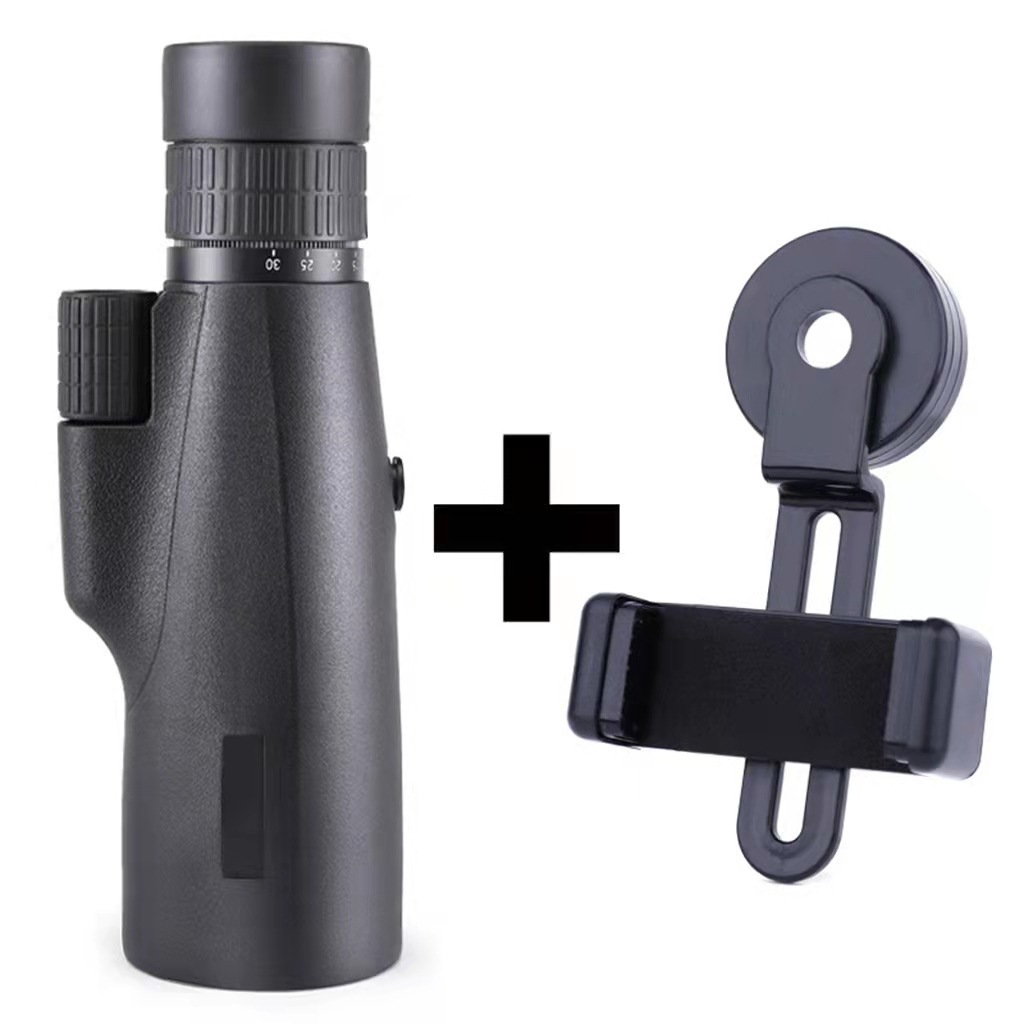

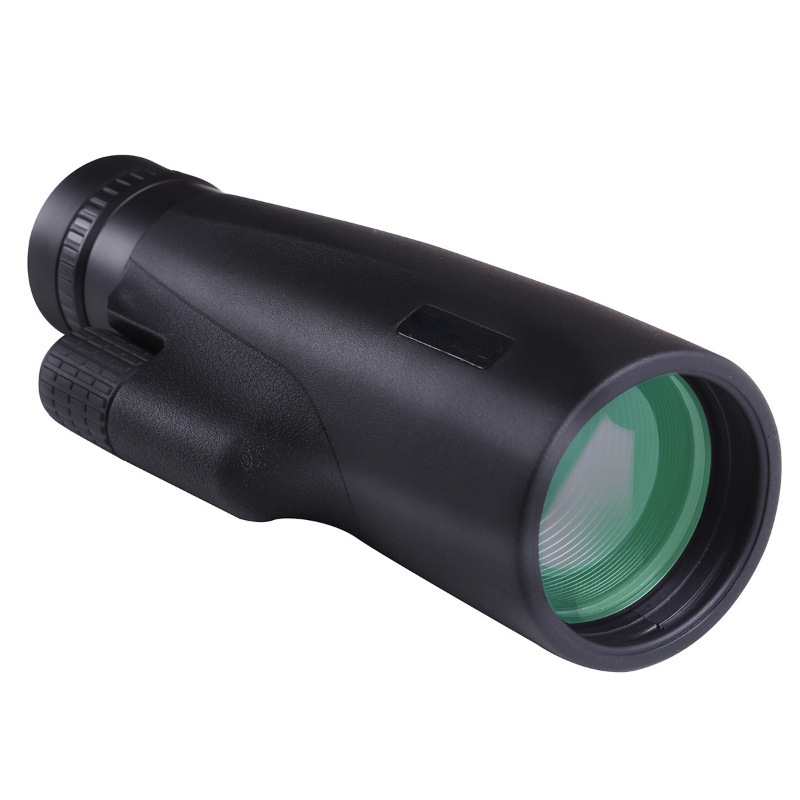

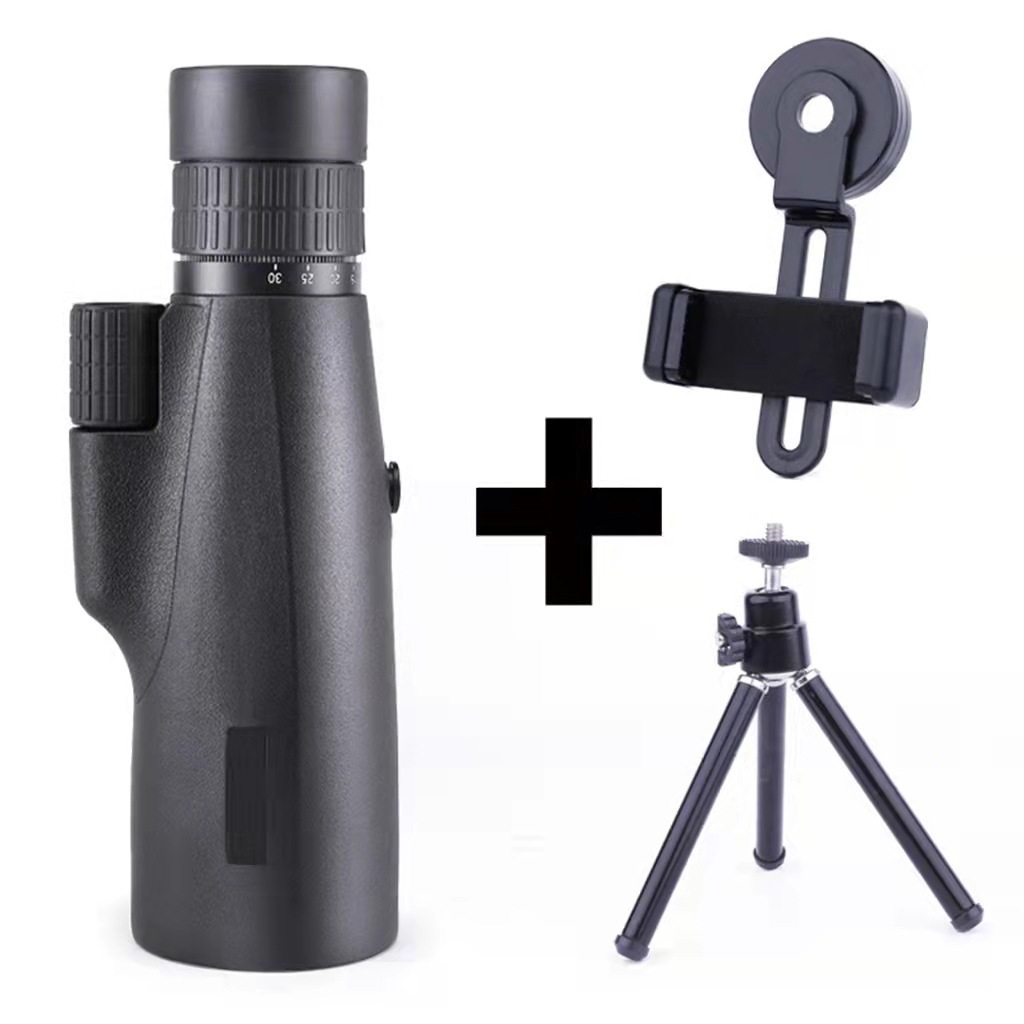

10–30×50 Zoom Monocular

• Adjustable magnification: 10x to 30x
• BAK4 prism system for high light transmission and edge-to-edge clarity
• Wide 5° field of view for easy subject tracking
• Eye relief: 14–12 mm, exit pupil: 5–1.7 mm
• Overturn eyecups for user-friendly eye positioning
• Handwheel focusing for smooth, manual control
• Weight: 378 g—light enough for single-handed use

12×50 Fixed Monocular

• 12x fixed power with a 50 mm objective lens
• BAK7 prisms provide good clarity for everyday observation
• Consistent 5° field of view
• Eye relief: 11 mm, exit pupil: 4.2 mm
• Rainproof construction, suited for variable weather
• Compact design at just 357 g—ideal for travel bags or daypacks

Application Scenarios

• The 10–30x zoom monocular is ideal for versatile outdoor explorers, allowing users to adjust magnification on the fly—from wide-angle landscape scans to zoomed-in target focus, making it great for travel photography assistance, scouting, or birding.
• The 12×50 monocular, with its BAK7 prism and fixed 12x power, is suited for users who want consistent, sharp visuals during sporting events, concerts, or casual day hikes.
• Both models are lightweight, rain-resistant, and feature double-coated optics for improved image contrast and color accuracy.

Customizable Features

• Laser-engraved logo
• Custom housing or color accents
• Retail-ready box design (single and bulk)
• MOQ programs available for sporting goods suppliers, tourist gear distributors, and outdoor promotional gifting.

Parameters

Product Code	LODZ103050-1	LODM12501
Magnification	10x – 30x	12x
Objective Lens Diameter	50 mm	50 mm
Eyepiece Diameter	20 mm	20 mm
Eye Relief	14 – 12 mm	11 mm
Exit Pupil Diameter	5 – 1.7 mm	4.2 mm
Field of View (°)	5°	5°
Prism Material	BAK4	BAK7
Eyecup Type	Overturn	Overturn
Coating Type	Double-coated	Double-coated
Focusing System	Handwheel Focusing	Handwheel Focusing
Waterproof	Rain-proof	Rain-proof
Weight	378 g	357 g
Packing Quantity	30 pcs	30 pcs
Carton Dimensions	46 × 37.5 × 50 cm	55.5 × 47 × 24.5 cm
Gross Weight	16 kg	15.5 kg
