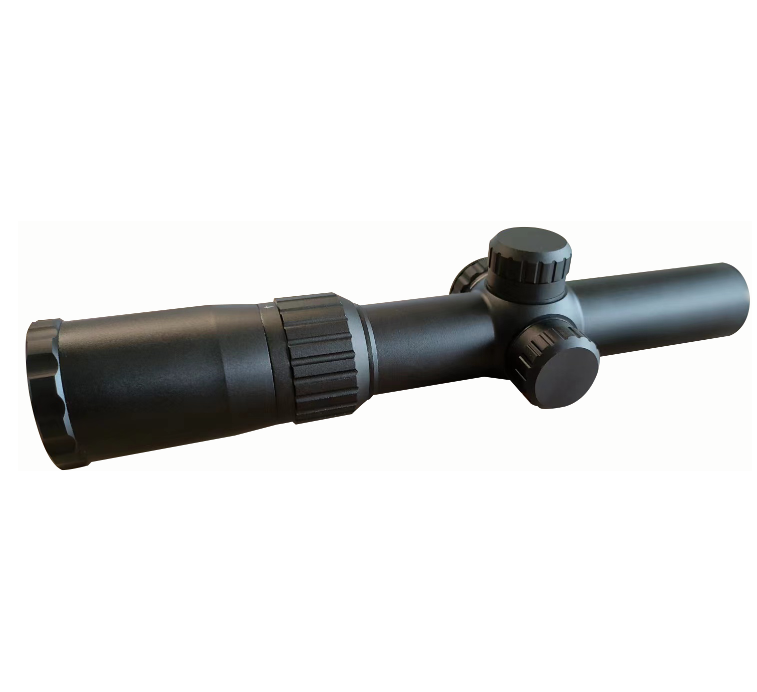

OVERVIEW

Key Features & Advantages

• True 1x-4x Zoom Range: Offers both reflex-style rapid aiming and clear mid-range targeting.
• Fully Multi-Coated Optics (FMC): Delivers excellent light transmission and clarity in low-light or transitional environments.
• Generous Eye Relief & Fast Focus Eyepiece: Comfortable and quick adjustments for varying shooting positions.
• Durable, Nitrogen-Filled Construction: Fogproof, waterproof, and sealed against dust—suitable for harsh field use.
• Precision Adjustments: 1/2 MOA click value with ≥60 MOA travel in both windage and elevation ensures fine-tuning for exact shots.
• Wide Field of View: 127.3 ft @ 100 yds at 1x provides situational awareness critical in tactical and moving target engagements.

Application Scenarios

• Urban Tactical Operations – Rapid transitions between targets at short to mid distances, ideal for SWAT or CQB (close-quarter battle) environments.
• 3-Gun & Action Shooting Matches – Optimized for fast target acquisition and swift reticle tracking under pressure.
• Thick Brush Hunting for Hogs or Whitetail – Maintain situational awareness with wide FOV (127.3 ft @ 100 yds at 1x) while being ready to engage at 4x.
• Tactical Training and Law Enforcement Marksmanship – Reliable, rugged scope for training simulations and duty use in variable light and temperature conditions.

Customization Options

• Laser-engraved OEM logo & reticle customization
• Optional illuminated reticle configurations
• Packaging customization for retail or military contracts
• Export-ready packaging and instruction materials (multi-language)

Parameters

Product Code	SHM1-4×241
Low Magnification	1x
High Magnification	4x
Clear Aperture (Objective Lens Diameter)	24mm
Eyepiece Field of View	23
Diopter Range	± 2
Tube Diameter	25.4mm
Click Value for Elevation/Windage (MOA)	0.5
Total Elevation Travel (@ 100 yds)	≥ 60 MOA
Total Windage Travel (@ 100 yds)	≥ 60 MOA
Parallax Compensation	50 yds
Fast Focus Eyepiece	Yes
Sealing Gas Used	Nitrogen
Clear Aperture at Min Magnification (Objective Lens)	21.6mm
Clear Aperture at Max Magnification (Objective Lens)	24mm
Effective Exit Pupil Diameter at Min Magnification	21.60mm ± 3%
Effective Exit Pupil Diameter at Max Magnification	6.00mm ± 3%
Maximum Resolution at Min Magnification (Arc Seconds)	8
Maximum Resolution at Max Magnification (Arc Seconds)	7
Range of Function Temperature	-5°C to +41°C
Storage Temperature	5°C to +21°C
Range of Dioptric Compensation	± 3 diopters
Permissible Backlash in Dioptric Compensation	< 0.26 diopters
Objective Field of View at Min Magnification (@ 100 yds)	127.3 ft
Objective Field of View at Max Magnification (@ 100 yds)	31.8 ft
Impact Point Change After Magnification Change (MOA)	2 MOA
Reticle Tilt Correction	± 2°
Coating	FMC (Fully Multi-Coated)
